The BTGME round bale transport fork ready for work.

Bale Fork / silo bale fork / straw bale fork
BTGME | Round bale transport fork, mechanical

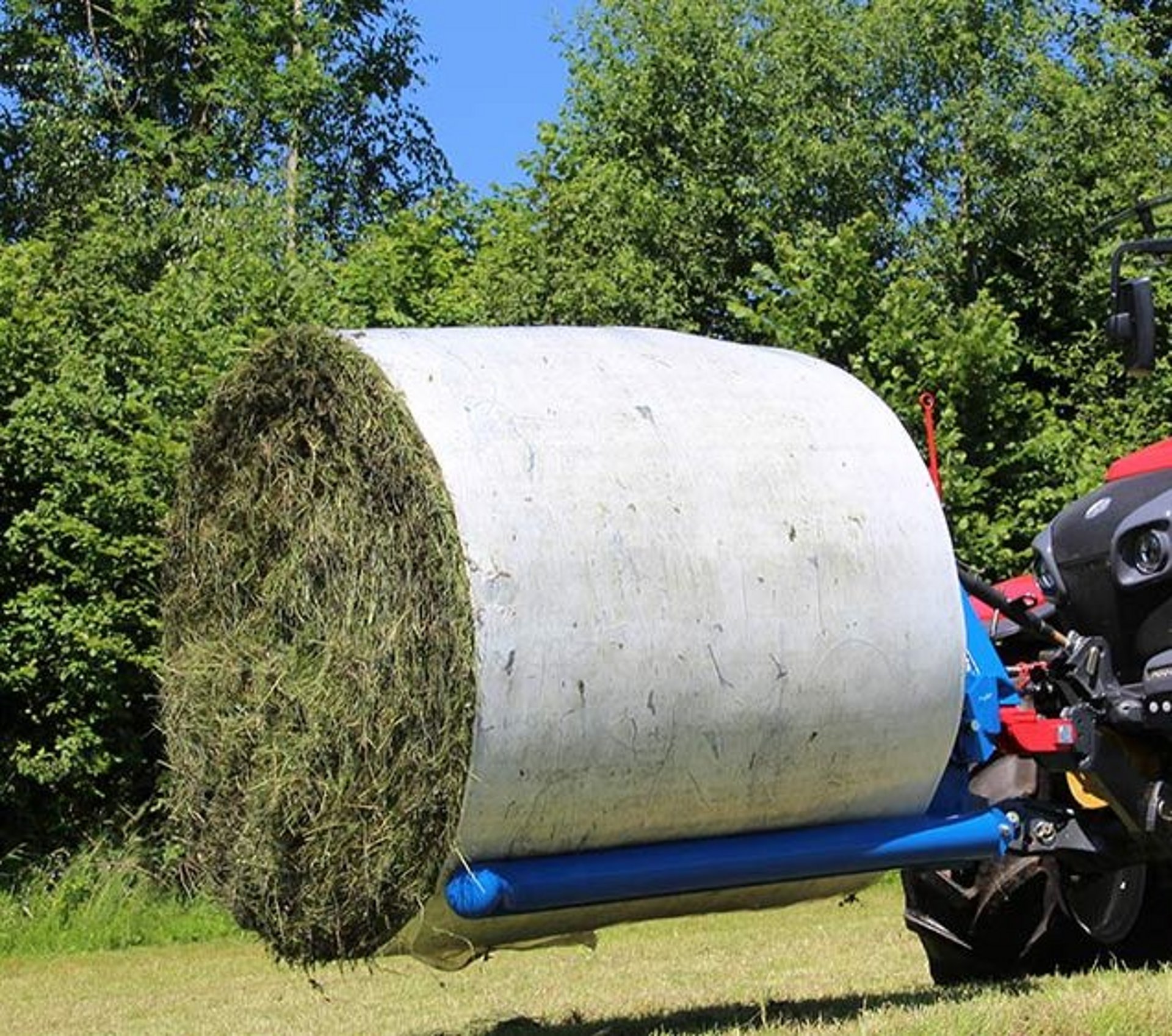

The round bale transport fork is ideally suited for the gentle transport of wrapped round bales with a diameter of 1.00 -1.80 m. The opening area can be adjusted mechanically in 50 mm increments by means of a quick-release fastener. The transport arms of the round bale fork can be raised for road transport.

Basic model

Base frame with Cat. I and II three-point linkage

Large fork pipes / Ø: 110 mm 4''

Quick-release fastener for width adjustment

Technical data (basic model)

Length:

1.380 mm (4' 5")

Width:

1.140 mm (3' 8")

Height:

970 mm (3' 2")

Weight:

90 kg (198 lbs)
Bale weight:max. 1,800 kg (max. 4,000 lbs)



Possible attachments

Adapter Weiste triangle Cat. II

Overview mounting options »

Additional equipment

The opening area can be adjusted continuously using two hydraulic cylinders
Double-acting hydraulic connection required

For transporting two unwrapped round or square bales simultaneously
(max. bale diameter 1.6 m)
Reinforced tines (Ø: 42 mm, length 1100 mm)
Payload: max. 1800 kg
