Bale Transport Spike Double
TDD
Double bale spear for 2 unwrapped bales
TDD | Bale Transport Spike Double

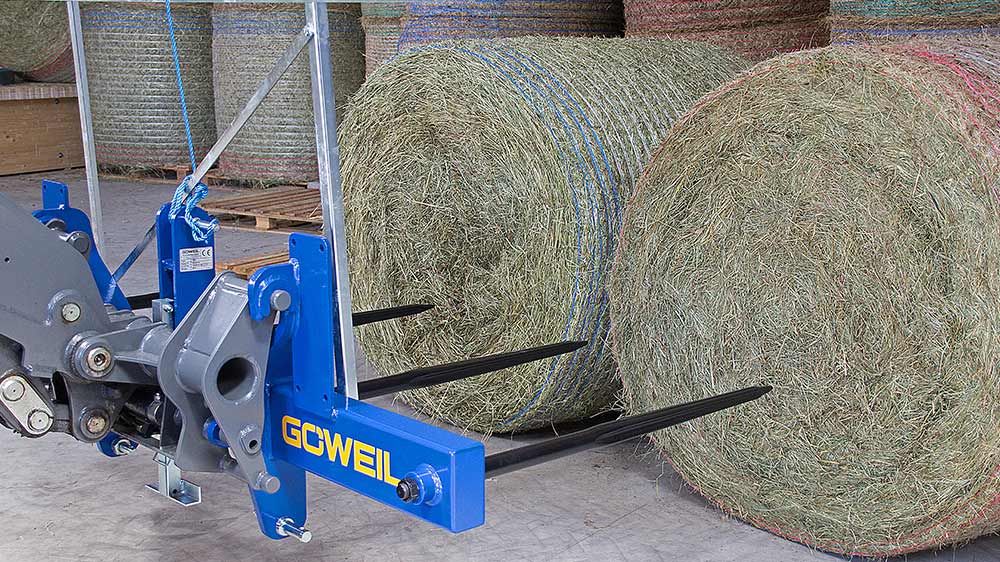

The double bale spear for two unwrapped bales TDD has been engineered for transporting two unwrapped round or square bales (max. bale diameter 1.60 m). The tine guard ensures that the TDD is also suitable for road transport.
Basic Model
Base frame
4 reinforced tines
Ø: 42 mm (1.5”), Länge 1.100 mm (43”)
Take advantage of our demonstration service and see for yourself.
Technical data
(Basic model)
| Weight | 134 kg |
| Length | 1,210 mm |
| Width | 2,000 mm |
| Height | 690 mm |
| Bale weight | up to 2,500 kg (2,200 lbs) |
| Bale diameters | max. 1.60 m (63”) |
Possible attachments
(excluding installation)
| Euro-attachment |
| Package Cat. I and II three-point linkage with support foot and tine protection for road transport |
| Hauer B, Merlo, Dieci Dedalus, Weidemann hydr., Kramer, Schäffer small, Avant, Faucheux, Giant, Genie |
| Merlo ZM3, SMS, MX, Dieci/New Holland, JCB Compact Tool Carrier, Schäffer big, Claas Scorpion, Zettelmeyer 402, Zettelmeyer 602, Liebherr L514, Faresin, CAT TH 407 C, Skid Steer |
| Adapter Weiste triangle Cat. II (Requires three-point linkage) |
| Manitou, JCB Q-Fit, Atlas, Volvo BM, CAT 907H / Liebherr L507, Fendt Cargo T955/Sennebogen, Matbro Pin&Cone |
| Amkodor, Bobcat |
| Other attachments – on request |
| Overview Mounting options |
Additional equipment
Additional tine
Square bale attachment, telescopic
FAQ - Frequently asked questions
Can you also transport two silage bales with the TDD?
The bale transport spike double was developed for transporting two unwrapped round or square bales.
Can the square bale attachment be retrofitted to the TDD?

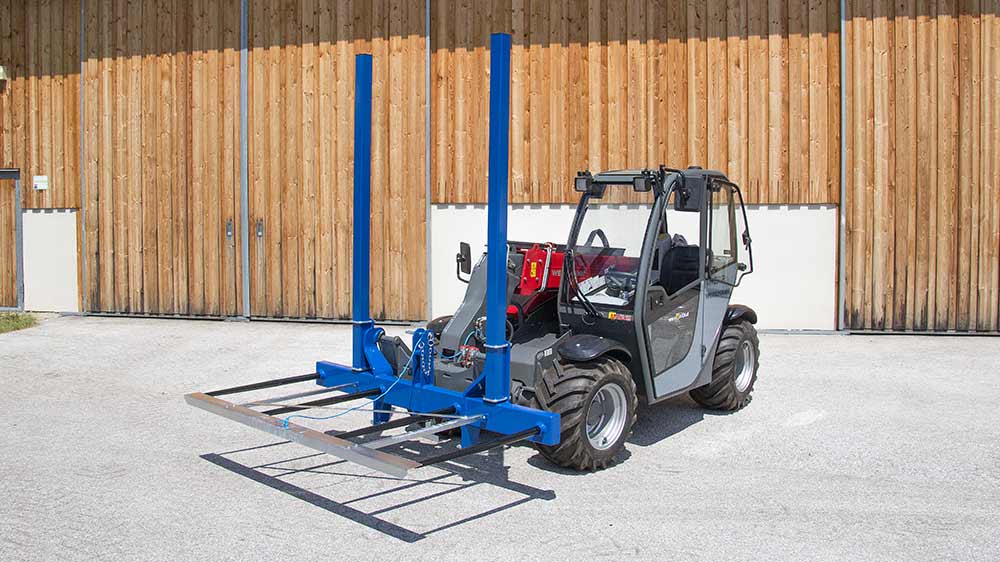

Specially designed for transporting square bales, a square bale attachment is available as additional equipment.
