BTGQU | Square bale grabber
While specially designed for transporting and stacking square bales up to 2.10 m, the square bale grabber BTGQU is, of course, also an excellent choice for the transport of round bales with a diameter of up to 2.00 m. The special shape of this square bale grabber's rounded and largely dimensioned gripper arms ensures that all bales are clamped gently and without any damage.
Basic Model
Base frame with large, rounded grabbing arms
Hydraulic cylinder for bale securing
Low-maintenance gripper arm guides
Pressure relief valve including check valve
Take advantage of our demonstration service and see for yourself.
Technical data
(Basic model)
| Weight | 381 kg |
| Length | 1,640 mm |
| Width | 2,440 mm |
| Height | 830 mm |
| Bale weight | up to 2,000 kg (2,200 lbs) |
| Bale diameters | square: 2,10 m / round: 2.00 m |
| Operating pressure | max. 200 bar |
Required connections
| Double-acting hydraulic control device |
Possible attachments
(excluding installation)
| Euro-attachment |
| Cat. I and Cat. II three-point linkage |
| Hauer B, Merlo, Dieci Dedalus, Weidemann hydr., Kramer, Schäffer small, Avant, Faucheux, Giant, Genie |
| Merlo ZM3, SMS, MX, Dieci/New Holland, JCB Compact Tool Carrier, Schäffer big, Claas Scorpion, Zettelmeyer 402, Zettelmeyer 602, Liebherr L514, Faresin, CAT TH 407 C, Skid Steer |
| Adapter Weiste triangle Cat. II (Requires three-point linkage) |
| Manitou, JCB Q-Fit, Atlas, Volvo BM, CAT 907H / Liebherr L507, Fendt Cargo T955/Sennebogen, Forklift-attachment ISO II, Matbro Pin&Cone |
| Amkodor, Bobcat |
| Other attachments – on request |
| Overview Mounting options |
Additional equipment
Hydraulic width adjustment
Double-acting hydraulic control device required

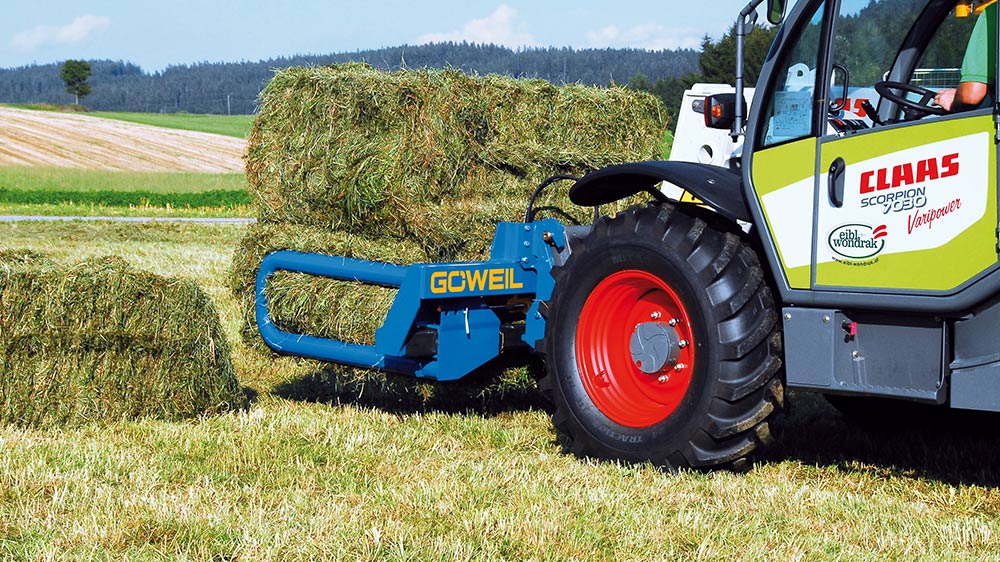

Bale transport spike double conversion kit
For transporting two unwound round bales (max. bale diameter
1.60 m) or square bales at the same time.
Reinforced tines (Ø: 42 mm, length 1100 mm)
Payload: max. 1500 kg
FAQ - Frequently asked questions
What size bales can I pick up with the BTGQU?
The BTGQU is specifically designed for transporting and stacking square bales up to 2.10 m. However, the square bale grapple is of course also suitable for transporting all round bales with a diameter of up to 2.00 m.
How heavy is the square bale grabber?
The total weight of the BTGQU is 381 kg.
What are the mounting options for the BTGQU?
Mounting options for telescopic loader:
– Merlo, MX
– Manitou, JCB Q-Fit, Weidemann Hydraulik, Kramer, Schäffer up to 3550, Schäffer 3550T or higher, Claas Scorpion, Volvo BM, Hydrema, Faucheux, Bobcat
– Other attachments on request
