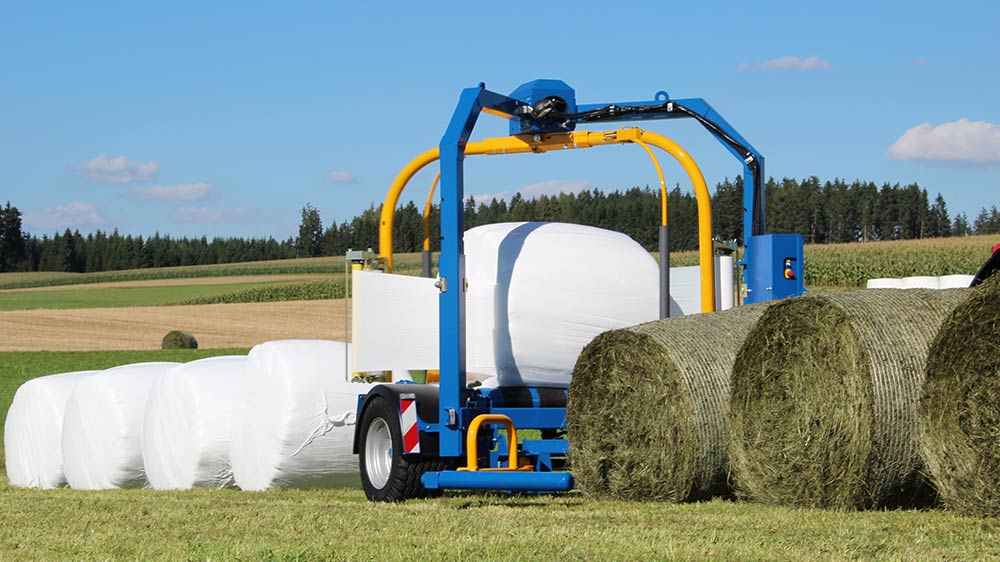

Trailed bale wrapper with twin wrapping arm
G5020 | Round bale wrapper
This trailed round bale wrapper with twin wrapping arm and bale pick-up is the perfect machine for professionals who need to operate at multiple sites. Boasting a compact and agile construction, this bale wrapper is equipped as standard with the fully automatic ISOBUS program control. The pull-type G5020 round bale wrapper is the must-have machine for every contract harvester!
Highlights
Design
The wrapper’s sturdy and solid design and workmanship guarantee a long service life. Thanks to its compact and wide design, the round bale wrapper offers particularly good performance on slopes and excellent maneuverability. In addition, its low center of gravity allows for a level of maneuverability on slopes that is second to none. The standard 380/55-17AW tires ensure uniform weight distribution and are gentle on the soil.

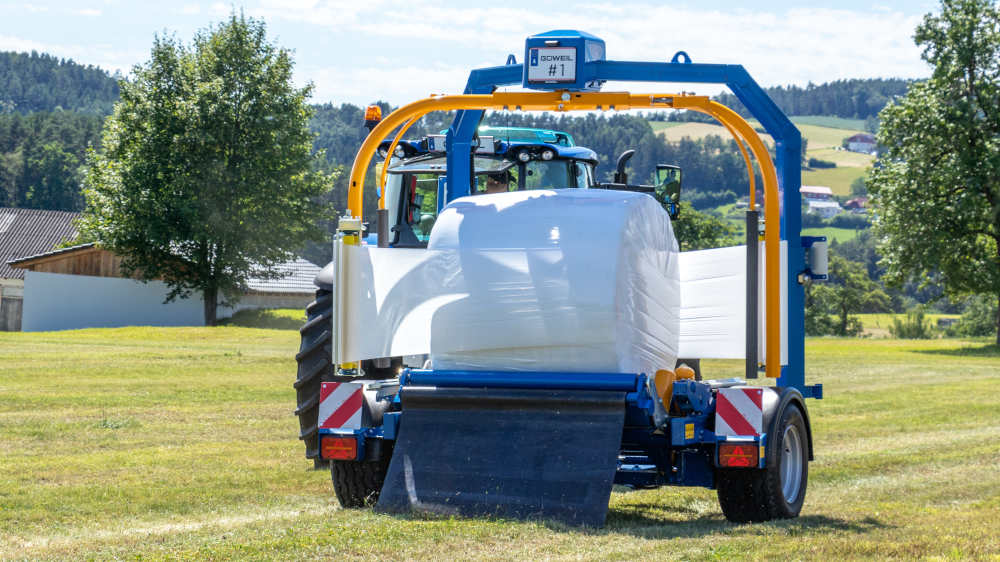

Rotating wrapping arm with stationary wrapping table
This system reliably prevents the bale from falling off as it is not subjected to any kind of centrifugal forces. The conveyor belts and the four rotating bale guide rollers guarantee that the bale will continually move forward and, consequently, ensure a uniform overlap of the film. When it is time to drop the bales, the mobile wrapping table is lowered all the way to the ground. This provides for a gentle deposit of the bales.
Wrapping arm with film pre-stretcher
The film pre-stretcher is designed for 750-mm film rolls. The three patented plastic rollers provide for perfectly uniform stretching. What is more, the rollers are not sensitive to temperature. This saves film and guarantees tightly wrapped and airtight bales. The wrapping arm is available in two sizes – an added bonus is that the stretching unit is height-adjustable. This ensures that the bales will always be wrapped perfectly around their own center. The quick-release system makes it possible to change empty rolls quickly and effortlessly.
Automatic film cutting and holding system
The stainless steel knife guarantees that the film will be cut cleanly and precisely. At the same time, the film is fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the film will unwind easily.
Axle
The machine is built on an offset axle. The work position is shifted to the right, resulting in balanced weight distribution.
The advantages:
- The weight is perfectly distributed, especially when picking up bales
- The wrapper can also be towed by smaller tractors
- Stability on slopes is excellent
Control lever
The control unit and the levers come in particularly handy during maintenance and service operations. This allows all functions and processes to be carried out directly at the machine.
The operator can easily leave the program control for example, when changing the film in the tractor cab.
Film Storage
When working long days, you need to make sure that you have enough film. The film storage lets you carry along up to six rolls of film. The brackets are mounted on the drawbar. This makes it easy to load and unload the rolls of film at a comfortable working height.
Pivoting drawbar
The hydraulically adjustable pivoting drawbar ensures optimal operation during the wrapping process – bales are picked up from the front in the direction of travel and fed to the baler, and then deposited in the bale deposit at the rear. The standard lower-link hitch makes the wrapper particularly maneuverable. In tight field conditions, a small turning radius is often a decisive advantage!

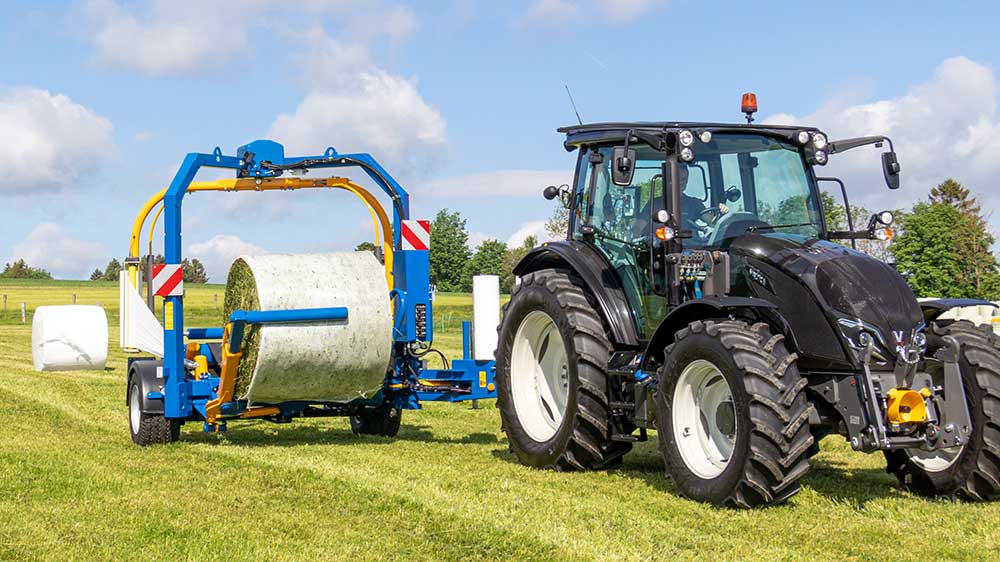

Bale pick-up
The hydraulic loading arm softly grabs the bale and places it gently on the wrapping table, which is tilted backwards while the bale is being picked up.

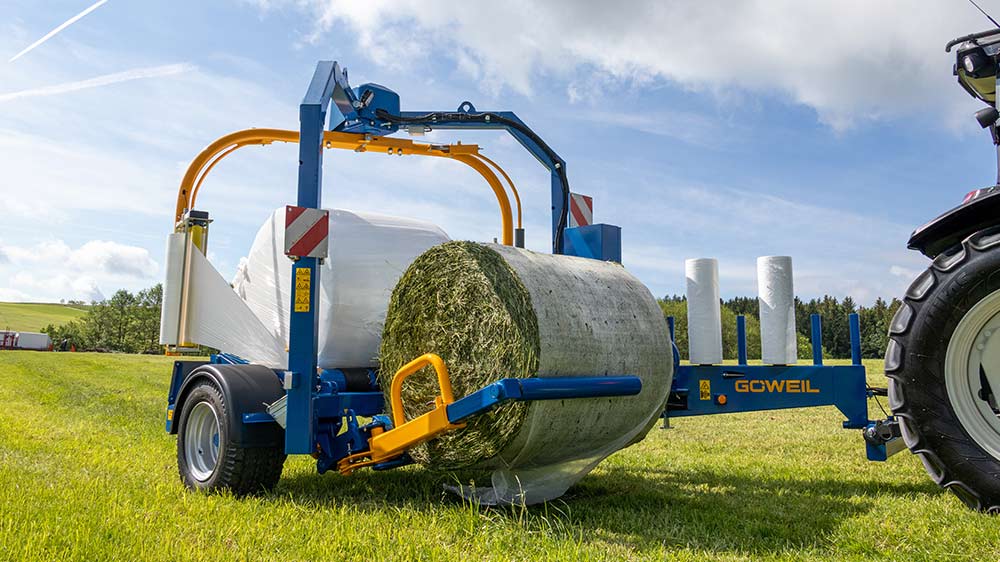

The loading arm can be adjusted to five different positions, ensuring that it is always perfectly adapted to the bale diameter. Thanks to the pivoting, ball-mounted reception tube, the bale is never pinched or damaged. It also guarantees that the bale is picked up reliably even in difficult terrain. The bale pick-up also proves to be exceptionally convenient when you need to transport two bales.

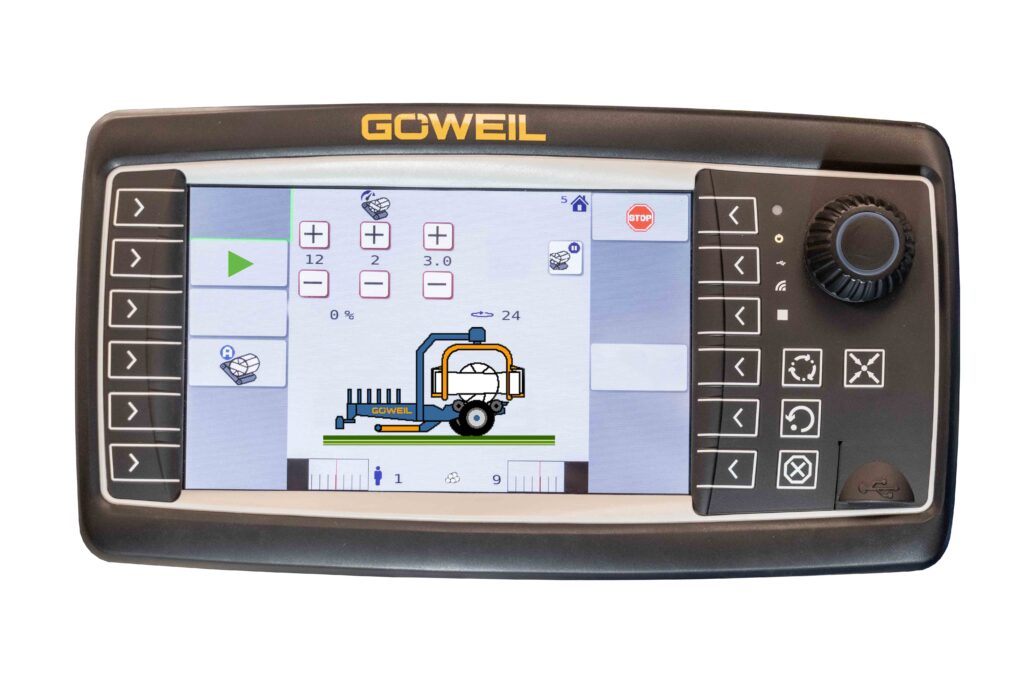

Control system
A real highlight is the fully automatic control system ISOBUS. The machine can be easily controlled via the tractor handset and automatically monitors the entire work process. Alternatively, the machine can also be operated manually by an operator.
Reermann Agrarservice in action with two G-1 F125 Kombi units
A Powerful One-Two Punch in Forage Harvesting: The Reermann Agrarservice contracting firm from Brilon serves its customers with two GÖWEIL baler-wrapper combinations. Although there is a wide selection of round balers available, the service provider deliberately chose the blue machines from Austria. In this video, we’ll take a look with you at how this came about and what the technology is capable of under tough, continuous use. Come along and join the forage harvesting pros from the Sauerland as they go about their work!
“We decided to go with the GÖWEIL wrapper again, and this time with the baler built right in – which, from a technical standpoint, totally blew us away!”
Stefan Reermann
Agricultural Service Specialist from the Sauerland Region
Video of the G5020
Basic Model
(without hydraulic oil) - WITH EU type-approval
Load-Sensing
Can also be operated with tractors without load-sensing pump

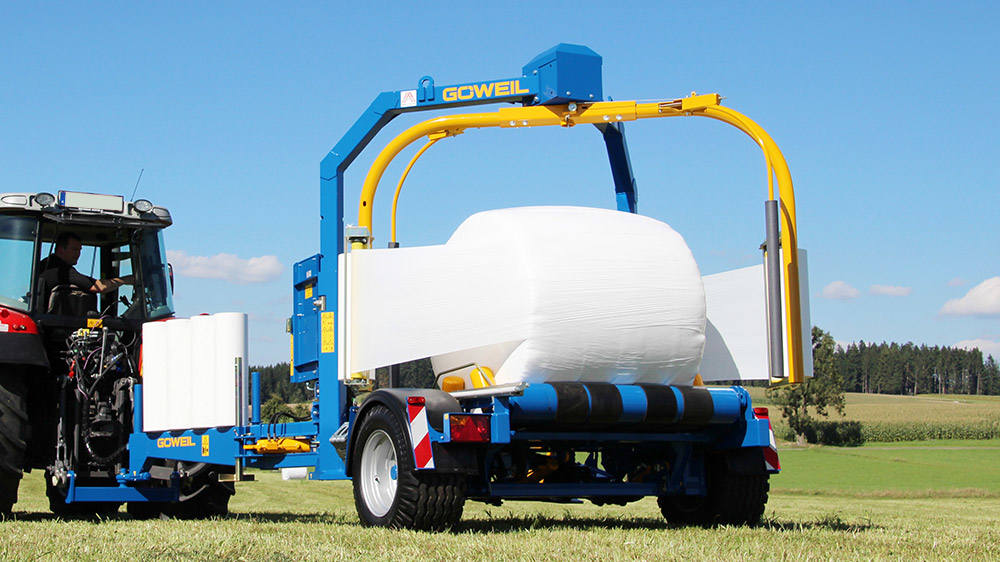

Twin wrapping arm
(Standard: 1.50 m; optional: 1.25 m)
Hydraulically actuated wrapping table

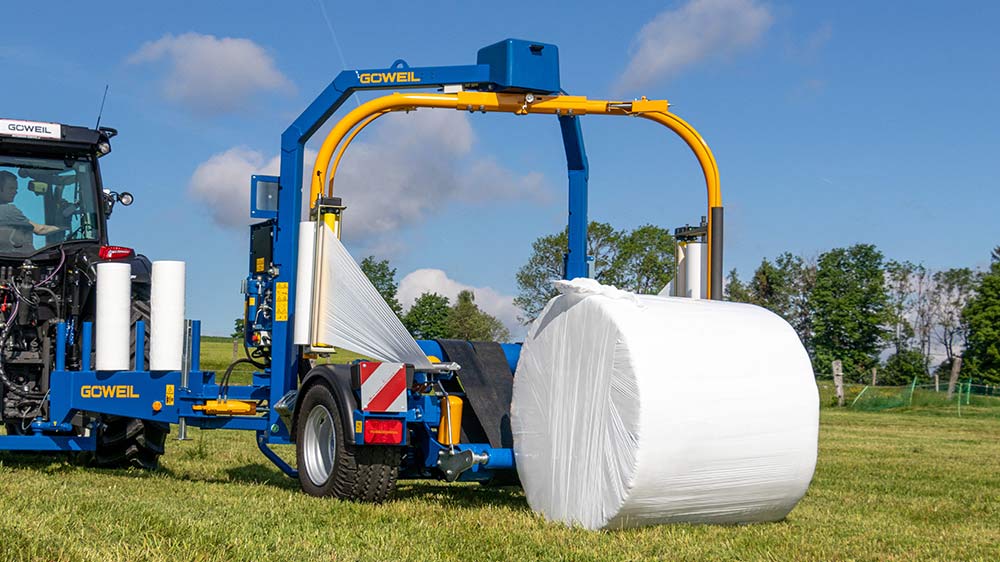

Bale deposit to the rear
Hydraulically rotatable bale pick-up
Bale pick-up from the front
4 bale conveyor belts including belt guide and 4 bale guide rollers
Film pre-stretcher 750 mm
Film cutter precision cut
Film monitoring

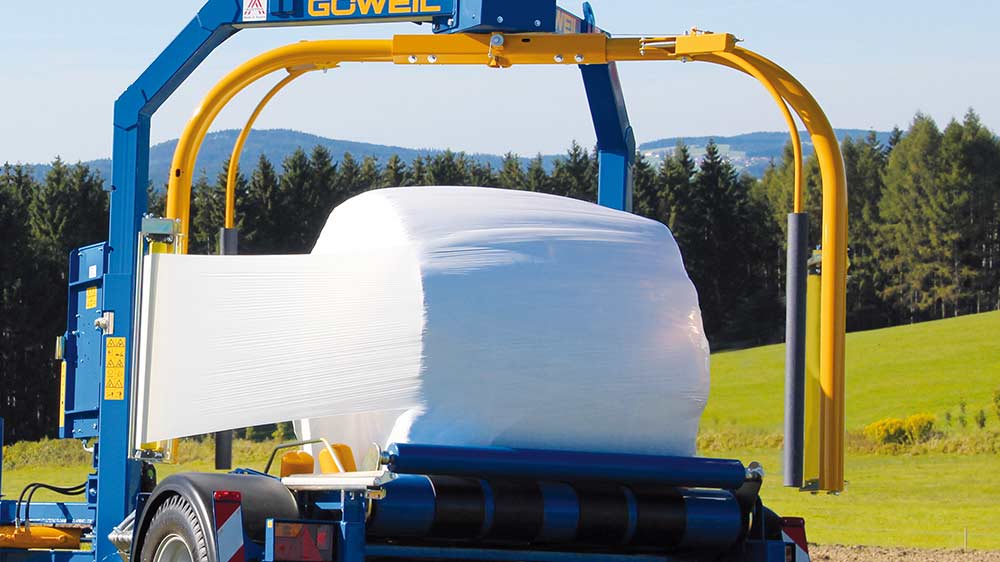

Single-film mode
Storage for 6 rolls of film
Hydraulic pivoting drawbar with manual operation and lower linkage hitch
Tires 380/55-17 AW
LED Light and indicator system
LED work lights
Fully automatic program control, optionally with ISOBUS (without terminal) or PROFI program control with PROFI plus B2 terminal
Technical data
(Basic model)
| Weight | 1,780 kg |
| Length | 3,940 mm |
| Width | 2,750 mm |
| Height | 3,060 mm |
| Bale diameters | 0.90 – 1.50 m (36” – 60”) (with standard wrapping arm) |
| Bale diameters | 0.90 – 1.35 m (36” – 53”) (height altered to 2,760 mm) |
| Oil requirement | from 65 l/min at max. 190 bar |
| Bale weight | up to 1,800 kg (2,200 lbs) |
Required connections
| Load Sensing connection (for LS mode) or one pressure connection and one depressurized return for the supply of the round baler |
| Electrical power supply to the machine via ISOBUS connector or the included wiring harness |
| 7-pin socket for the entire lighting system, except work lights |
Additional equipment
Tires 480/45-17 AW
Width altered to 2,880 mm (7’)
PTO drive shaft Load Sensing
(without hydraulic oil)
Including gearbox with pump, return filter, hydraulic oil tank and lower linkage link
Cardan shaft
Extra bale rotation
When the wrapping process is complete, the bale will keep turning to allow the film to make better contact
Additional roller for wrapping table
Prevents the bale from dropping off the wrapping table in steep terrain
Bale drop mat
(including additional roller): For a gentle bale drop onto the field
Bale tipper
(including additional roller): When the wrapping process is complete, the bale is positioned on its right front side with the direction of travel
ISOBUS terminal G7 (7.0") with 10 buttons and encoder
ISOBUS-capable power supply for tractor
Wiring harness is required if ISOBUS is not available on the tractor
Country-specific additional equipment
Dual-line air brake system
Hydraulic dual-line brake system – with emergency brake valve and pressure accumulator
Hydraulic brake system without pressure accumulator and breakaway device
WITHOUT EU type-approval
Beacon light (height plus 150 mm)
WITHOUT EU type-approval
FAQ - Frequently asked questions
Which connections does my tractor need for the G5020?
The tractor should have the following connections:
- 1 pressure connection and one depressurized return for the supply of the wrapper
- 3-pin socket for the electrical supply with direct supply to the battery (12V/30A), cable cross-section 2×6 mm²
- 7-pin power outlet for the entire lighting system (excluding work lights)
Oil requirements:
- from 25 l/min for standard hydraulics at max. 190 bar
- from 65 l/min for LS hydraulics at max. 190 bar
Does the wrapper of the G5020 pick up bales automatically?
Yes, when the bale actuates the start flap.
How does the fully automatic program control work on the G5020 wrapping machine?
The program control PROFI performs all work processes fully automatically.
What are the benefits of the load sensing feature on the G5020?
The oil pressure and quantity are adjusted to consumption, increasing energy efficiency and speed. The machine can also be operated in conjunction with tractors without load sensing pump.
Does the G5020 wrapping machine come with film monitoring? And how does this work?
Film monitoring with single-film mode is available as additional equipment. This switches the wrapping process off if the film tears or runs out, or switches to "single-film mode" when one roll runs out. During this process the feed rate is reduced to ensure an overlap of 50 %.
