Round Bale Transport Fork, Hydraulic
BTGHY
Hydraulic bale spear
BTGHY | Round Bale Transport Fork, Hydraulic

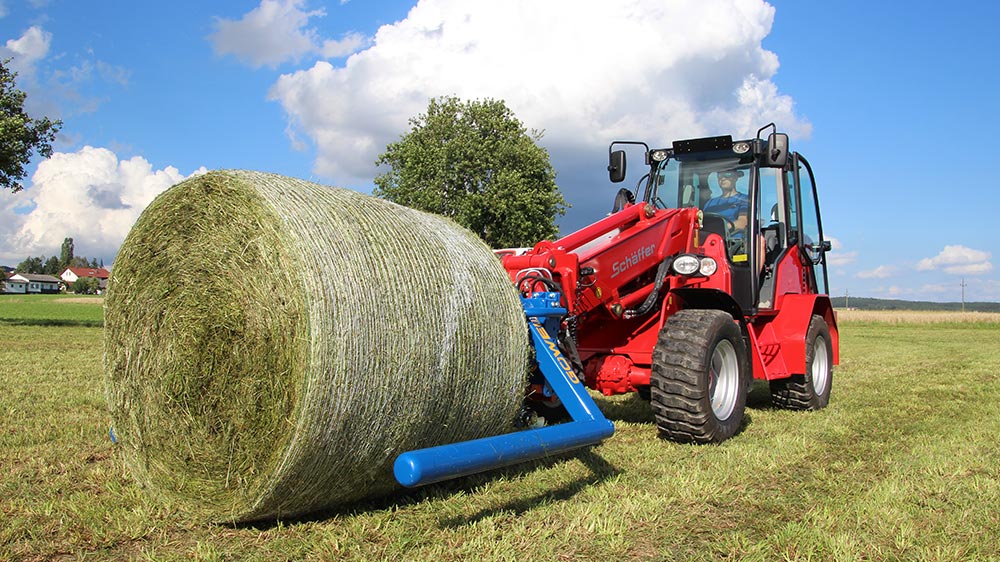

The BTGHY was designed for transporting and stacking wrapped round bales with a diameter of 0.9 – 1.8 m. The hydraulic and rotatable fork pipes ensure that the workflow is particularly gentle and damage-free.
Basic Model
Base frame with Cat. I and Cat. II three-point linkage
Ball bearing-mounted fork pipes, rotatable
Hydraulic cylinder for width adjustment
Support foot
Take advantage of our demonstration service and see for yourself.
Technical data
(Basic model)
| Weight | 245 kg |
| Length | 1,580 mm |
| Width | 1,310 mm |
| Height | 920 mm |
| Bale weight | up to 1,500 kg (2,200 lbs) |
| Bale diameters | 0,90 – 1,80 m (36” – 63”) |
| Operating pressure | max. 200 bar |
Required connections
| Double-acting hydraulic control device |
Possible attachments
(excluding installation)
| Euro-attachment |
| Hauer B, Merlo, Dieci Dedalus, Weidemann hydr., Kramer, Schäffer small, Faucheux, Giant, Genie |
| SMS, MX, Dieci/New Holland, JCB Compact Tool Carrier, Schäffer big, Claas Scorpion, Hydrema, Zettelmeyer 402, CAT TH 407 C, Skid Steer, Merlo ZM3 |
| Adapter Weiste triangle Cat. II |
| Manitou, JCB Q-Fit, Atlas, Volvo BM, CAT 907H / Liebherr L507, Fendt Cargo T955/Sennebogen, Forklift-attachment ISO II |
| Amkodor, Bobcat |
| Other attachments – on request |
| Overview Mounting options |
Additional equipment
Pressure relief valve including check valve
(telescopic/wheel loaders require an operating pressure greater than 200 bar)
Kit for conversion to bale transport spike
Tine design similar to that of a simple bale transport spike
FAQ - Frequently asked questions
What is the maximum bale size that can be processed by the BTGHY?
The BTGHY was designed for transporting and stacking wrapped round bales with a diameter of 0.9 – 1.8 m.
What are the benefits of the bearing-mounted rollers on the BTGHY?
The bearing-mounted rollers prevent the fork pipes rubbing on the film and damaging it when the round bale transport fork is opened and closed.
What is the maximum bale weight that can be processed by the BTGHY?
The maximum weight of the bales is 1,500 kg.
What are the mounting options for the BTGHY?
What are the mounting options for the BTGHY?
