Stationary round bale wrapper with remote control

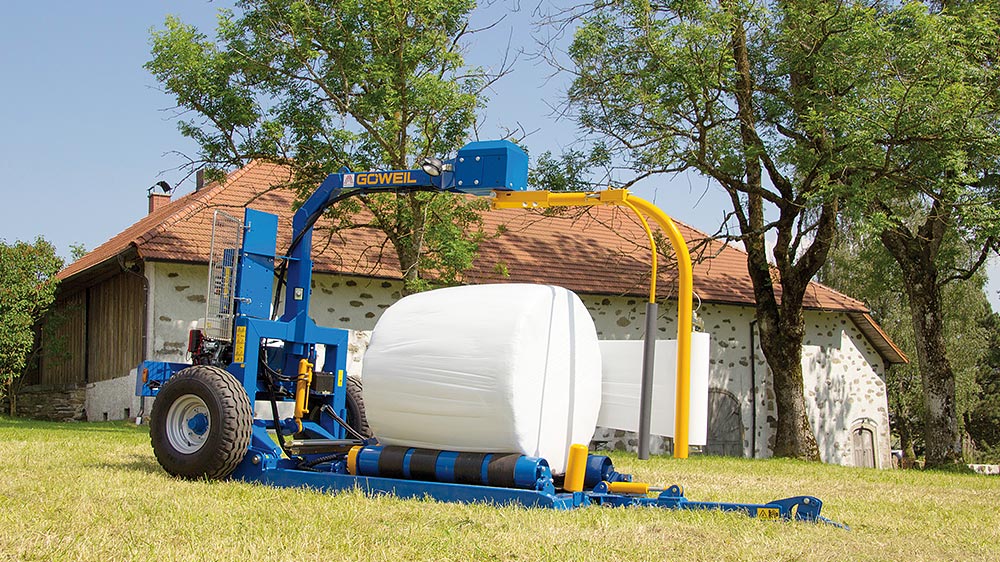

G3010 Farmer | Round bale wrapper

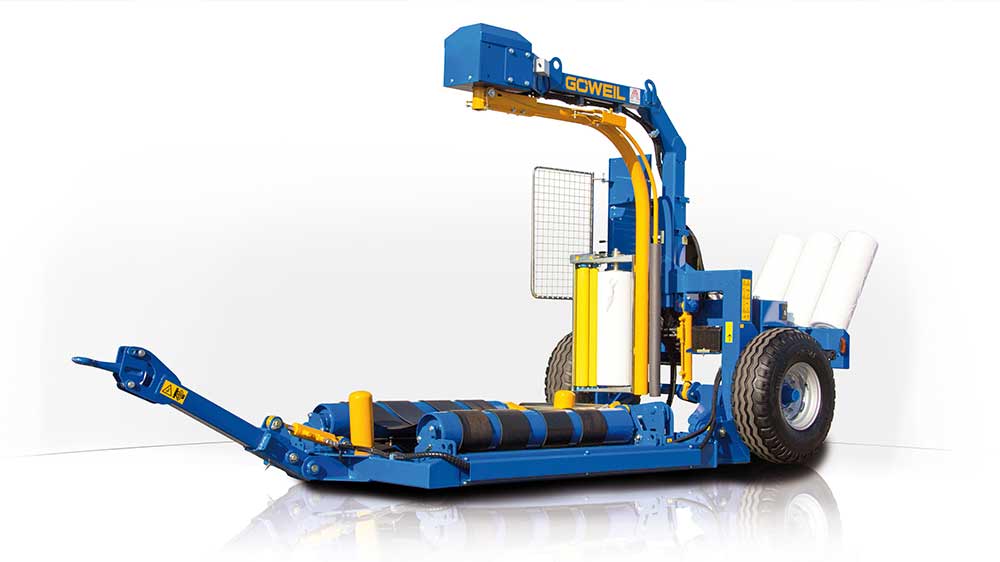

The G3010 Farmer is a round bale wrapper with remote control and combines efficiency and comfort. The adjustable hydraulic articulated drawbar and compact design allow the wrapping machine to be transported with almost any towing vehicle. The integrated motor and ease of operation make the G3010 Farmer the ideal wrapper for one-man operation.
Highlights
Design
The G30 series wrappers are particularly notable for their low working height. The wrapper’s robust and sturdy design and workmanship guarantee a long service life.
Wrapping arm with film pre-stretcher
The wrapping arm is equipped with a film pre-stretcher that can accommodate 750 mm rolls of film. Three patented plastic rollers provide for uniform stretching. This saves film and guarantees tightly wrapped and airtight bales. What is more, the rollers are not sensitive to temperature. The quick-release system makes it possible to change empty rolls quickly and effortlessly.

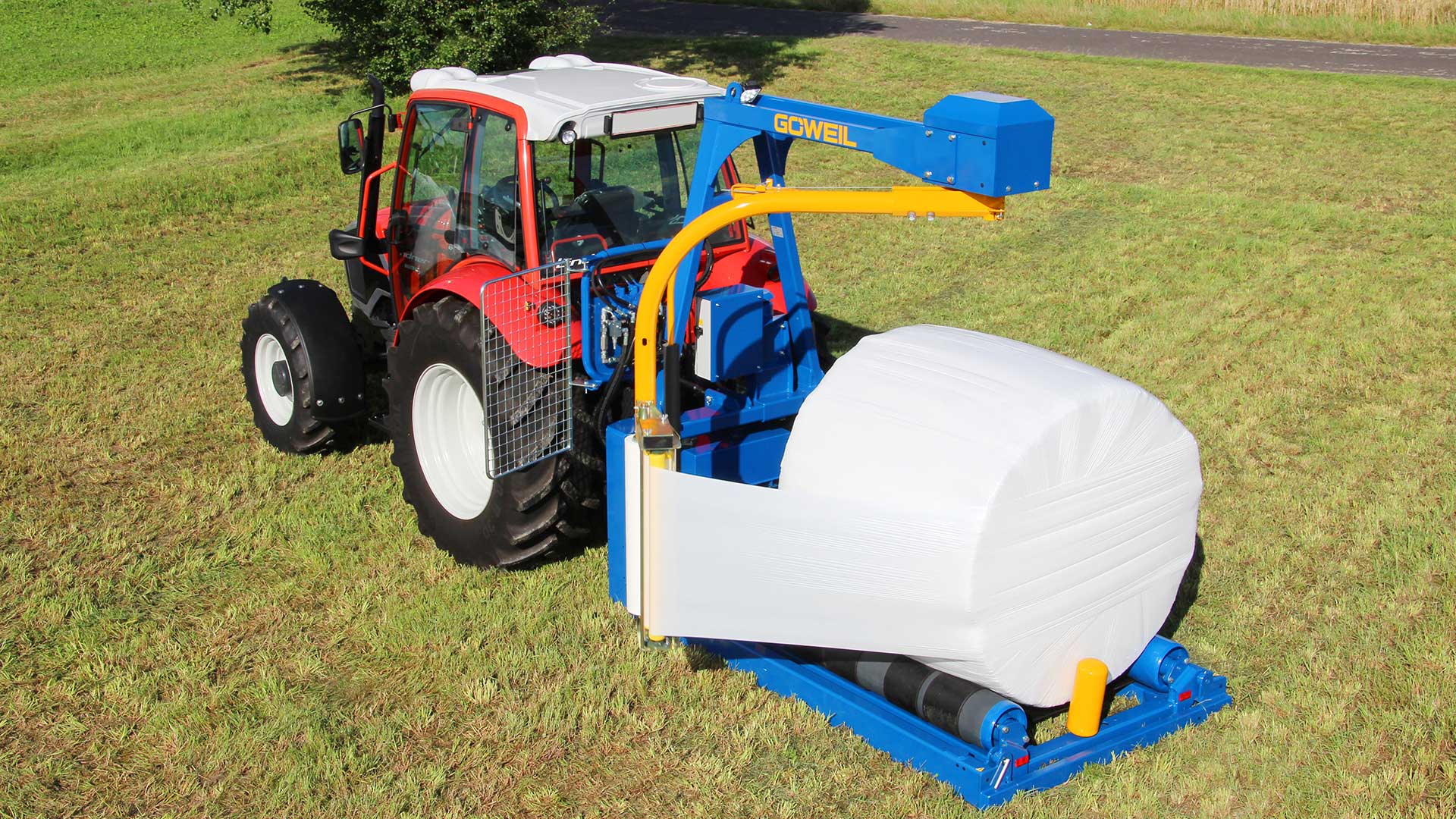

Rotating wrapping arm with stationary wrapping table

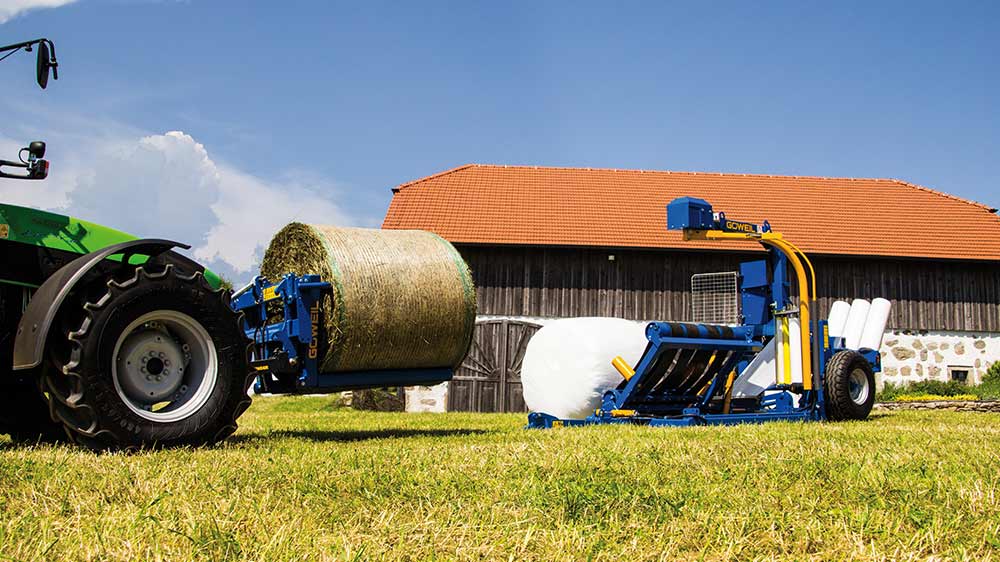

This system reliably prevents the bale from falling off as it is not subjected to any kind of centrifugal forces. While the conveyor belts ensure continuous rotation of the bale, the two rotating bale guide rollers (up to four, optional) hold the bale in place. This ensures that the film has an even overlap. When performing the bale deposit, the wrapping table tilts to the side and the bale is gently set down next to the machine.

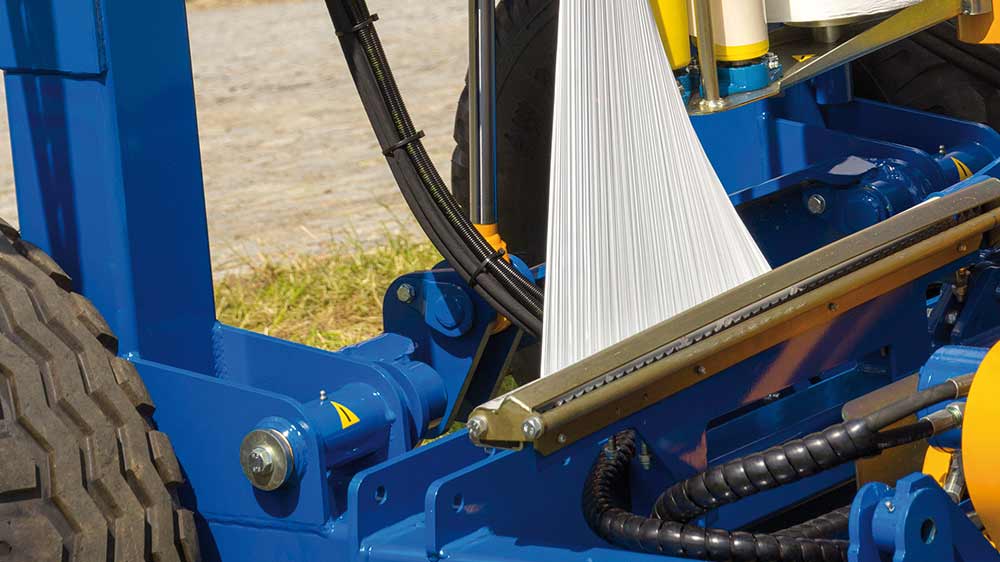

Film cutter
The stainless steel knife guarantees that the film will be cut cleanly and precisely. At the same time, the film is fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the wrapping films will unwind easily.

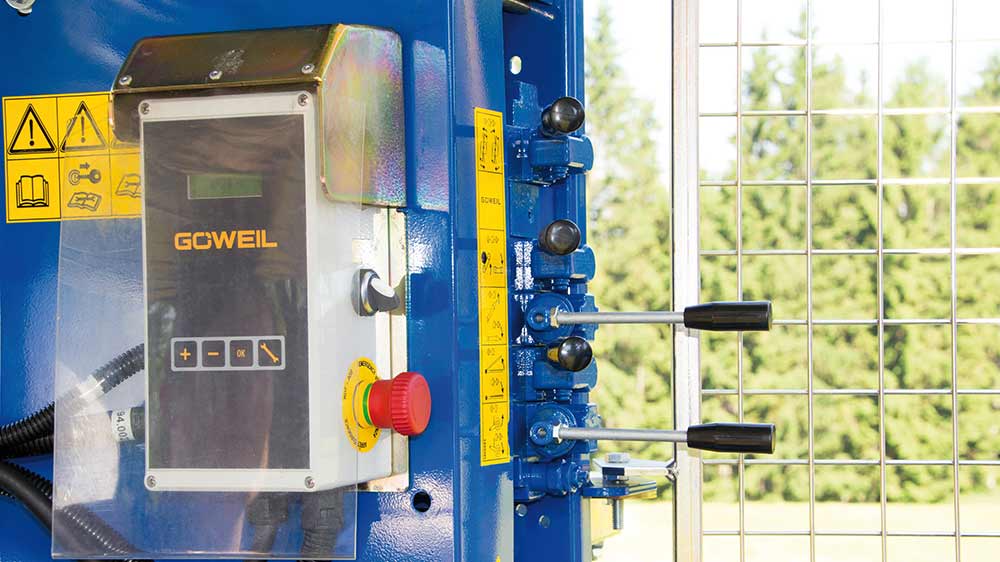

Control unit with hand lever
The control unit and the levers come in particularly handy during maintenance and service operations. They make it possible to control all functions and processes directly at the machine. This means that the operator can simply leave the handset in the tractor cab.

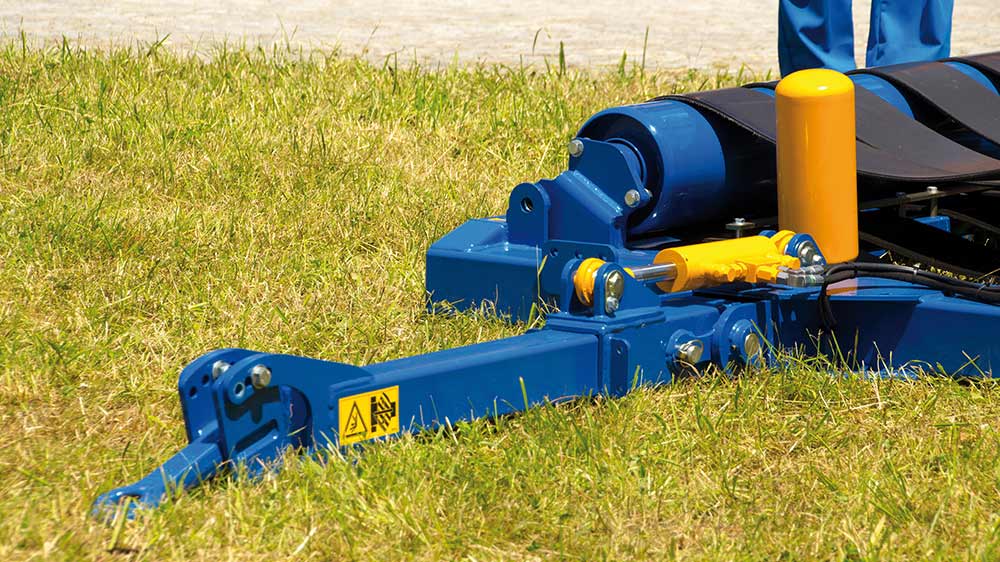

Drawbar & Axle

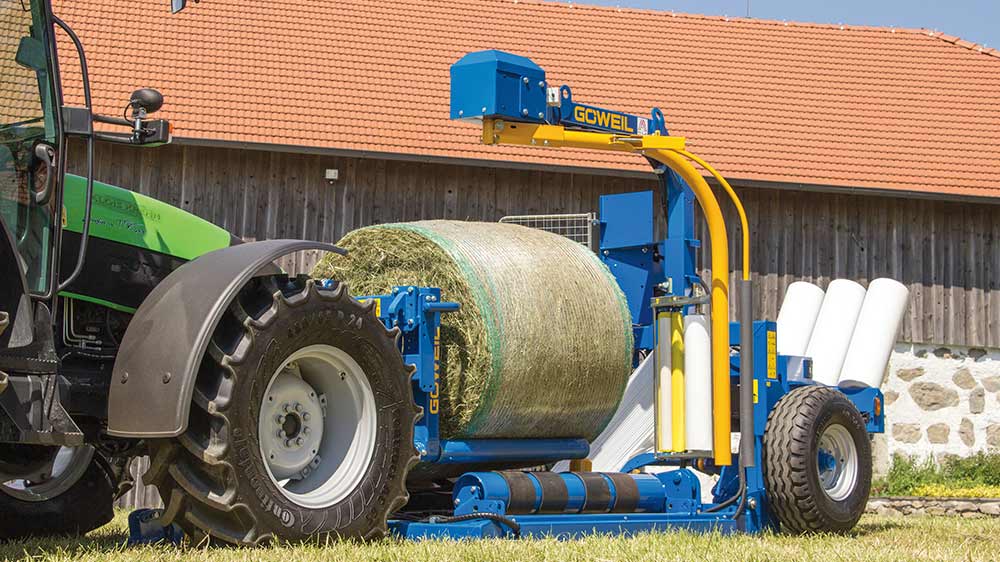

The G3010 Farmer and Profi machines are towed and turned off in the work position using the hydraulically adjustable lift axle and articulated drawbar. Thanks to their low profile, the wrappers can be easily loaded with a forklift. A front-loading washer is not required.

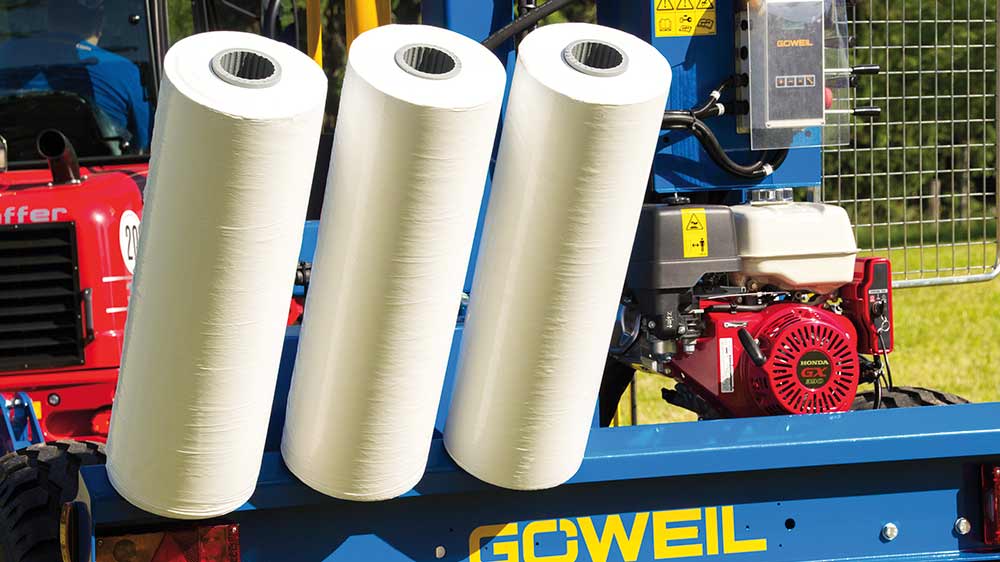

Film Storage
When working long days, you need to make sure that you have enough film. The G3010 Farmer can carry up to four rolls of film, and the G3010 Profi can carry up to 16 rolls. The brackets are mounted on the rear of the wrapper at a comfortable working height.
Reermann Agrarservice in action with two G-1 F125 Kombi vehicles
A Powerful Feed Harvest Duo: The Reermann Agrarservice contracting company from Brilon serves its customers with two GÖWEIL baler-wrapper combinations. Although there is a wide selection of round balers available, the service provider made a conscious decision to choose the blue machines from Austria. In this video, we’ll take a look with you at how this came about and what the technology is capable of under harsh, continuous use. Come along and join the forage harvesting pros from the Sauerland region as they go about their work!
“We decided to go with the GÖWEIL wrapper again, and this time with the baler built in – which totally blew us away from a technical standpoint!”
Stefan Reermann
Agricultural Service Specialist from the Sauerland Region
Video of the G3010 Farmer
Basic Model
(without hydraulic oil) - WITH EU type-approval
Single wrapping arm
Hydraulically actuated wrapping table
4 bale conveyor belts including belt guide and 2 bale guide rollers
Bale deposit on the left and the right
Film pre-stretcher 750 mm
Film cutter precision cut
Hydraulically adjustable lift axle
Removable, hydraulic articulated drawbar
Storage for 4 rolls of film
Tires 300/80-15.3 AW
1-cylinder Honda gasoline engine
(without hydraulic oil)
8.2 kW gasoline engine with battery Electric starter Return filter 30 l hydraulic oil tank
Light and indicator system
LED work lights
Program control STANDARD with radio remote control
The cycles “wrapping process” and “film-holding and cutting” start automatically, while “bale drop” starts at the push of a button
Technical data
(Basic model)
| Weight | 1,450 kg |
| Length | 5,260 mm |
| Width | 1,950 mm |
| Height | 2,990 mm (10’ 6”) (with the lift axle extended) |
| Bale diameters | 0.90 – 1.60 m (36” – 60”) |
| Oil requirement | Self-sufficient oil supply |
| Bale weight: | up to 1,800 kg (2,200 lbs) |
Required connections
| 7-pin power outlet for the entire lighting system (excluding work lights) |
Additional equipment
Tires 380/55-17 AW
Width altered to 2,130 mm (7’)
Film monitoring
Stops the wrapping process if film tears or runs out
Additional bale guide roller
maximum 2 items
10 l (2.5 gal) spare fuel can including bracket
Drawbar eye types
Customers can choose from a large selection of drawbar eye types
FAQ - Frequently asked questions
Which connections does my tractor need for the G3010 Farmer?
The following connections are required to transport the G3010 Farmer wrapping machine:
- 7-pin power outlet for the entire lighting system (excluding work lights)
Oil requirements: Self-sufficient oil supply
What size bales can the G3010 Farmer wrap?
The bale diameter is 0.90 – 1.60 m.
Does the gas can come with the G3010 Farmer as standard?
The fuel reserve canister (10 l with holder) is available as additional equipment.
