Hydraulically folding round bale transport fork
BTGMK
Bale Fork / silo bale fork / straw bale fork
BTGMK | Hydraulically folding round bale transport fork

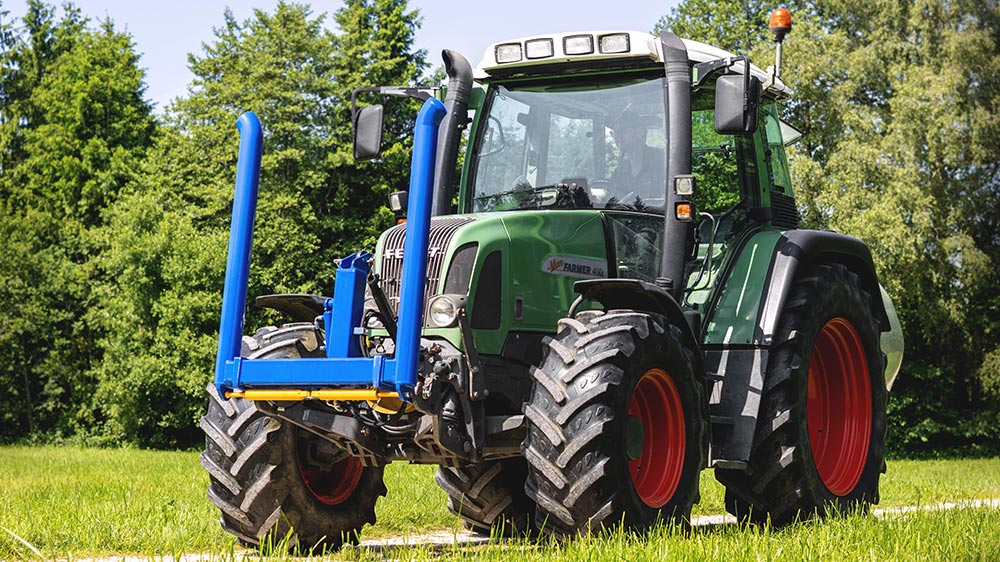

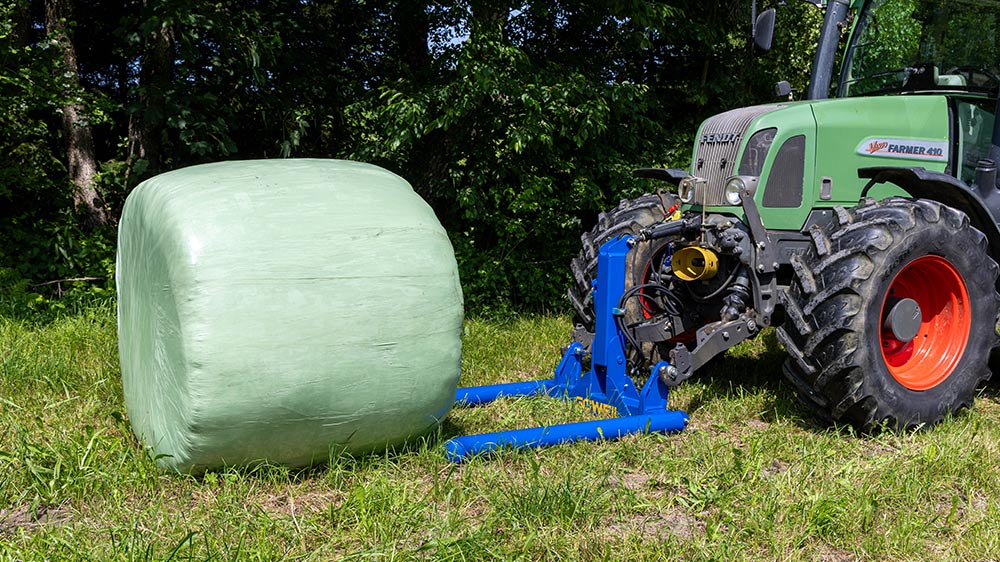

The round bale transport fork is designed for the gentle transport of wrapped and unwrapped round bales with a diameter of 1.00–1.80 m. The opening width can be mechanically adjusted in 50-mm increments using a quick-release fastener. For road transport, the loading arms are hydraulically foldable, meaning they can be folded upward.
Basic Model
Base frame with Cat. I and Cat. II three-point linkage
Large fork pipes / Ø: 110 mm
Quick-release fastener for width adjustment
Take advantage of our demonstration service and see for yourself.
Technical data
(Basic model)
| Weight | 112 kg |
| Length | 1,390 mm |
| Width | 1,140 mm |
| Height | 970 mm |
| Bale weight | up to 1,500 kg (2,200 lbs) |
| Bale diameters | 1,00 – 1,80 m (36” – 63”) |
Required
Connections
| Double-acting hydraulic control device required |
Possible attachments
(excluding installation)
| Other attachments – on request |
| Overview Mounting options |
Additional equipment
Hydraulic width adjustment
Double-acting hydraulic control device required
Bale transport spike double conversion kit
For transporting two unwound round bales (max. bale diameter
1.60 m) or square bales at the sametime.
Reinforced tines (Ø: 42 mm, length 1100 mm)
Payload: max. 1500 kg
FAQ - Frequently asked questions
What is the maximum bale weight that can be processed by the BTGMK?
The maximum weight of the bales is 1,500 kg.
Is the BTGMK foldable if it is converted to a double-spike configuration?
Yes.
Is the width of the BTGMK hydraulically adjustable?
Yes, with the “hydraulic width adjustment” additional equipment.
Double-acting hydraulic control device required
Can the hydraulic width adjustment be combined with the conversion kit for a double-spike configuration?
No.
