Bale spear & bale transport spike
TDE
Three-Point Bale Spike
TDE | Bale spear & bale transport spike

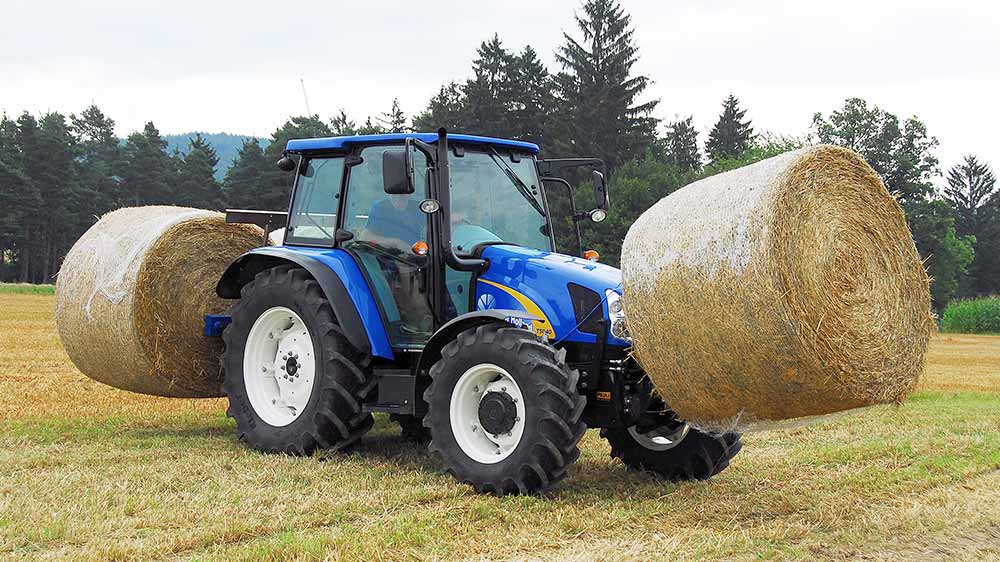

The transport spike was specifically designed for transporting unwrapped round bales.

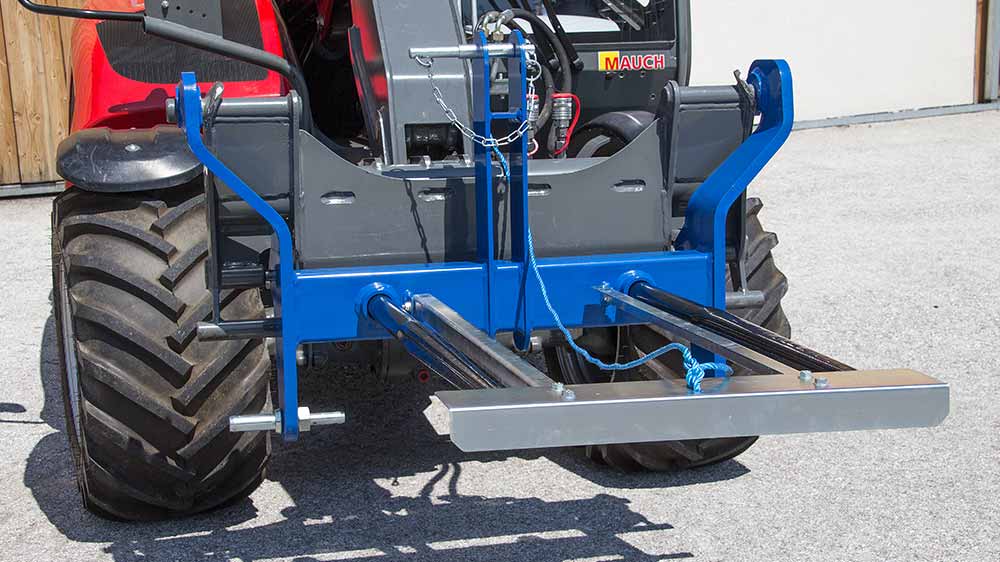

Thanks to the tine guard, the TDE bale spike is also suitable for road transport.
Basic Model
Base frame with Cat. I and Cat. II three-point linkage
Euro-attachment
Reinforced tines
Ø: 42 mm (1.5”), Länge 1.100 mm (43”)
Tine guard for road transport
Take advantage of our demonstration service and see for yourself.
Technical data (Basic model)
| Weight | 75 kg |
| Length | 1,210 mm |
| Width | 1,080 mm |
| Height | 690 mm |
| Bale weight | up to 1,500 kg (2,200 lbs) |
Possible attachments
(excluding installation)
| Adapter Weiste triangle Cat. II |
| Overview Mounting options |
Additional equipment
Support foot
Counterweight
approx. 60 kg
FAQ - Frequently asked questions
What is the maximum bale weight that can be transported by the bale transport spike single?
The maximum weight of the bales is 1,500 kg.
Can you also transport silage bales with the TDE?
The bale transport spike single was developed for transporting unwrapped round bales. The bale is picked up with the tines, which would damage the film.
