#ifarmitmyway
Wrapper for round & square bales
G4010 Q Profi | Square bale wrapper

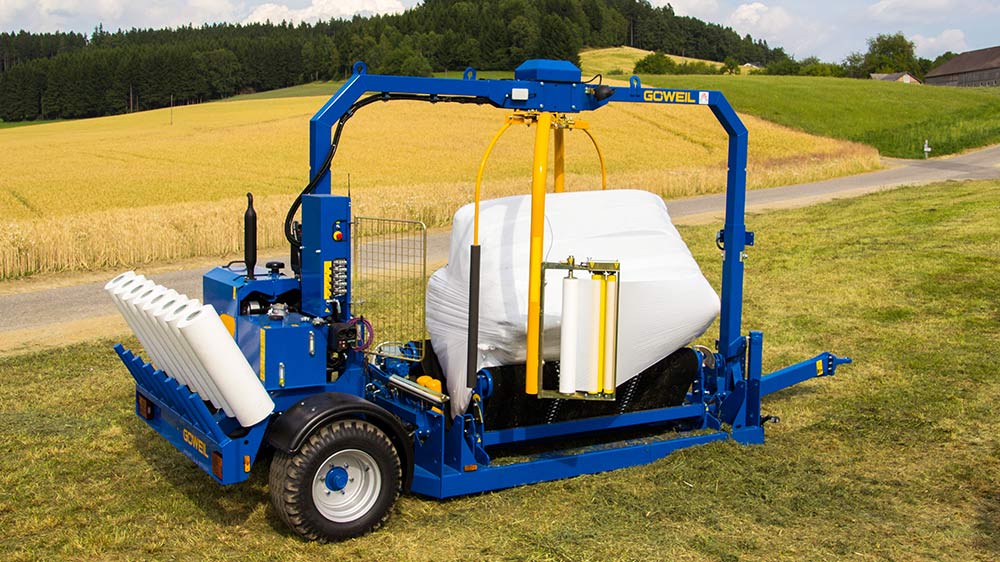

The key distinguishing features of the stationary round and square bale wrapper G4010 Q Profi are the twin wrapping arm and the fully automatic PROFI program control. This bale wrapper makes it possible to wrap square bales with a length of up to two meters. One feature that comes in particularly handy is the ability to wrap double bales. This feature increases performance and cuts down film consumption by up to 20%. Another major advantage the G4010 Q Profi round and square bale wrapper has to offer is the capacity to wrap both square and round bales.
Highlights

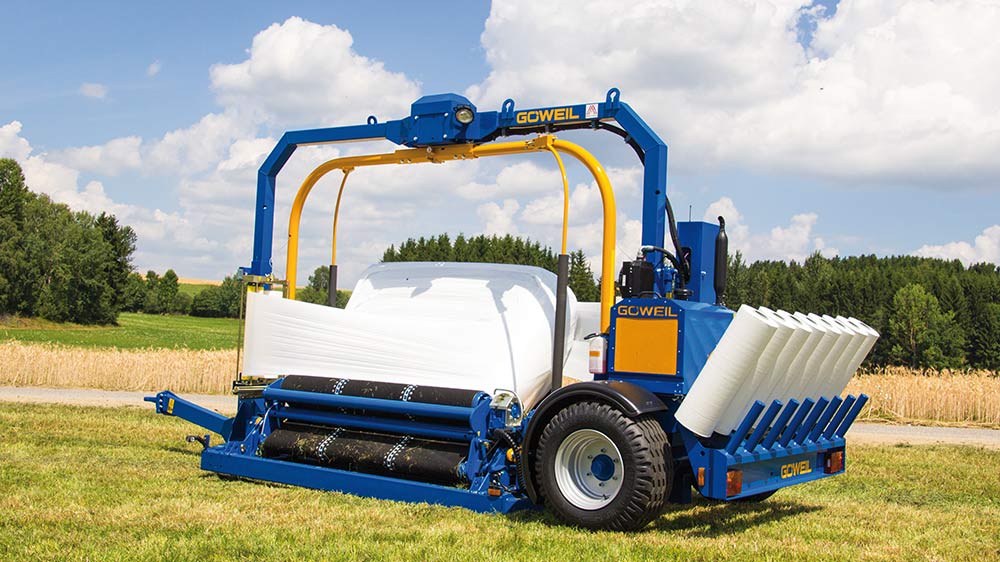

Secure bale Guiding
The roller tubes arranged on both sides are connected to each other by control rods. This results in forced control which, in conjunction with the conveyor belt, produces a clamping effect on the bale. The wrapper is able to guide the bale securely even with rectangular bale dimensions. A quick adjustment can adapt the belt length to different bale dimensions.
Control system PROFI
A genuine highlight is the user-friendly and easy-to-use program control PROFI. The process steps are carried out fully automatically . All functions and parameters can also be set manually.
Continuous belt
The wide, continuous belt guarantees uniform wrapping of each and every bale – even if it is misshapen.
engine
The square bale wrapper comes standard with a water-cooled 17.5 kW KUBOTA diesel engine equipped with a battery, alternator, hour meter, and electric starter, as well as a hydraulic system.
Reermann Agrarservice in action with two G-1 F125 Kombis
A Powerful One-Two Punch in Forage Harvesting: The Reermann Agrarservice contracting firm from Brilon serves its customers with two GÖWEIL baler-wrapper combinations. Although there is a wide selection of round balers available, the service provider deliberately chose the blue machines from Austria. In this video, we’ll take a look with you at how this came about and what the technology is capable of under these demanding, continuous operating conditions. Come along and join the forage harvesting pros from the Sauerland region as they go about their work!
“We decided to go with the GÖWEIL wrapper again, and this time with the baler built right in – which, from a technical standpoint, completely blew us away!”
Stefan Reermann
Agricultural Service Specialist from the Sauerland Region
Video of the G4010 Q Profi
Basic Model
(without hydraulic oil) - WITH EU type-approval
Load-Sensing
Twin wrapping arm
Hydraulically tilting wrapping table with mechanical belt length adjustment
Bale deposit to the left with the direction of travel
Wide, continuous bale conveyor belt with belt guide and 4 bale guide rollers
Film pre-stretcher combined
For film widths between 500 mm and 750 mm (20” and 30”) the overlap can be adjusted as well.

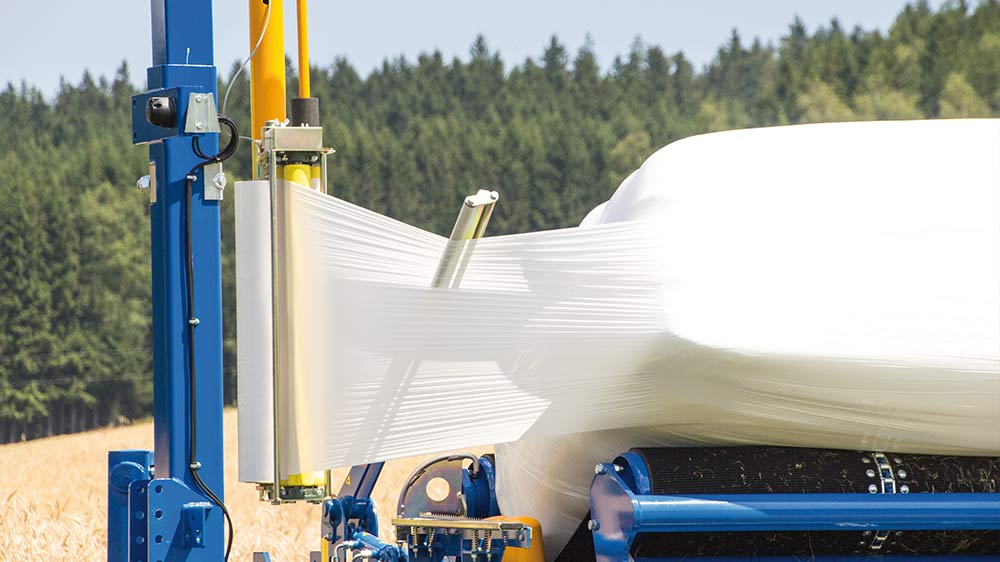

Film cutter precision cut
Film monitoring
Single-film mode
Hydraulically adjustable lift axle
Hydraulic support foot
Height-adjustable drawbar with hydraulic support foot for wheel loader operation, can be controlled via radio remote control

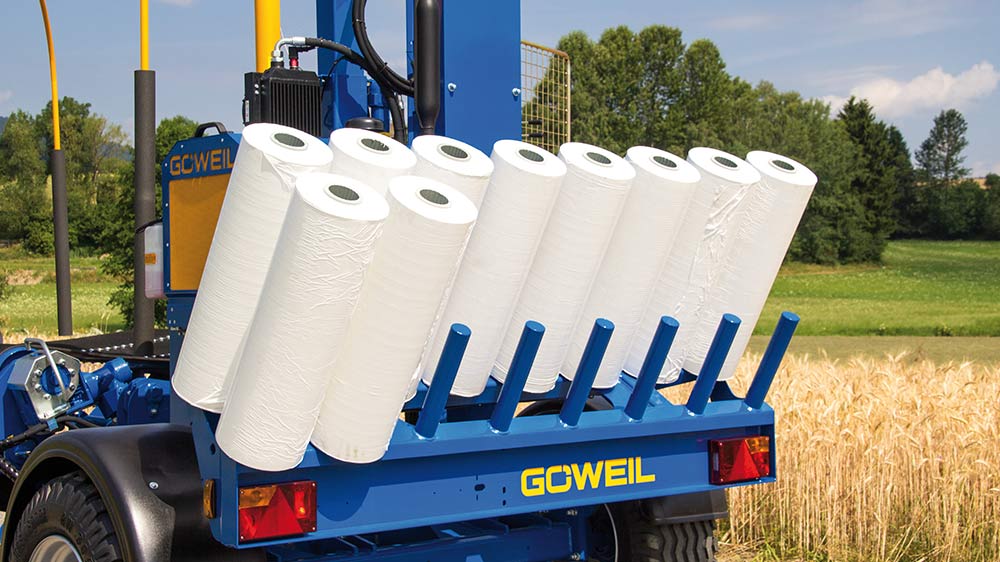

Storage for 16 rolls of film
Tires 380/55-17 AW
3-cylinder Kubota diesel engine (without hydraulic oil)
17.5 kW diesel engine, water-cooled,
battery, e-starter, hour meter, pressure filter & return flow filter, 44 l hydraulic oil tank, and automatic RPM control
Feed rate shut-off valve
This ensures that the film will overlap accurately for rectangular bales
LED Light and indicator system
LED work lights
Fully automatic remote control PROFI and PROFI plus S terminal
All work cycles are fully automatic
Technical data
(Basic model)
| Weight | 3,200 kg |
| Length | 6,790 mm |
| Width | 2,410 mm |
| Height | 3,530 mm to 3,710 mm depending on top part position (with the lift axle extended) |
| For all bale dimensions: | from 0.80 x 0.80 to 1.20 x 1.40 m |
| Single/double bales | from 1.00 up to 2.00 m |
| Round bale diameter | 0.90 – 1.50 m (36” – 60”) |
| Oil requirement | Self-sufficient oil supply |
| Bale weight round / square: | max. 1,800 / 1,500 kg (max. 4,000 / 3,300 lbs) |
Required connections
| 7-pin power outlet for the entire lighting system (excluding work lights) |
| 3-pin socket for electrical supply of the hand-held terminal 12 V / 10 A) |
Additional equipment
Tires 520/50-R17 FLT
Width altered to 2,545 mm, height altered to 3,590 – 3,770 mm depending on position of upper part, with lift axle extended
Bale drop mat
Hydraulically lowerable rubber mat that can be controlled via radio remote control
Axle suspension
Lower linkage link
Drawbar eye types
A, B, C, D, G, M (specify when ordering)
Country-specific additional equipment
Dual-line air brake system
Hydraulic dual-line brake system – with emergency brake valve and pressure accumulator
Hydraulic brake system without pressure accumulator and breakaway device
Beacon light
FAQ - Frequently asked questions
What equipment does my tractor need for the G4010 Q Profi?
Required connections
7-pin power outlet for the entire lighting system (excluding work lights)
What is the maximum double bale size that can be processed by the G4010 Q Profi?
The G4010 Q Profi stationary machine can be used to wrap double bales that are up to 2.00 m long.
Which engine does the G4010 Q Profi have?
The G4010 Q Profi is equipped with a 3-cylinder Kubota engine including battery, generator, hours counter and electric starter as well as hydraulic system.
