Trailed wrapper
G2020 | Round bale wrapper
Standing out as the lightweight among wrappers, the G2020 trailed bale wrapper is the perfect machine for small and medium size operations. When picking up and depositing a bale, the wrapping table and loading arm are lowered all the way to the ground. This ensures that the bale is always securely held in place. This machine is ideal for use especially on steep terrain .
Highlights

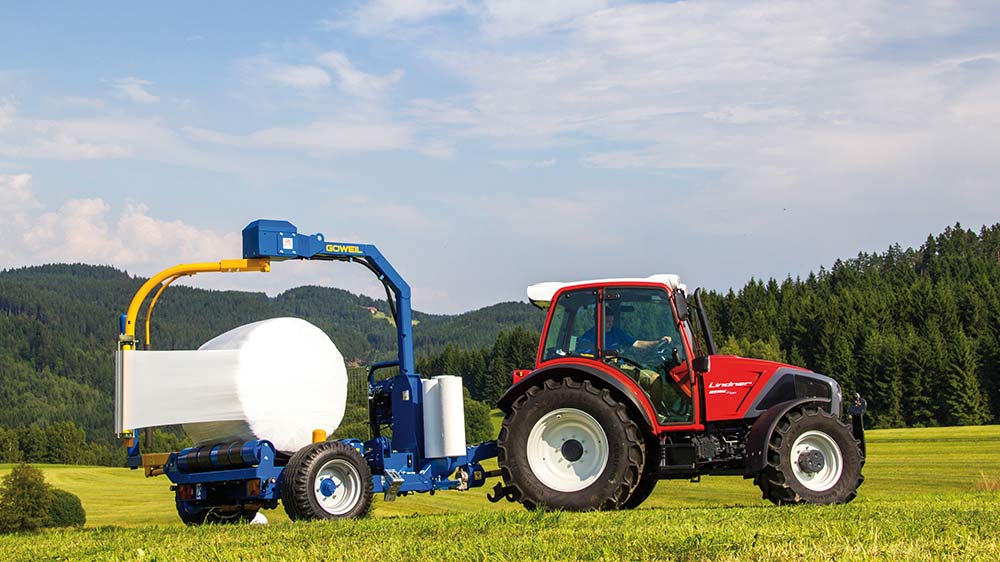

Agile & suitable for work on slopes
Boasting an exceptionally low tare weight, the G2020 sports a compact and wide design that makes it particularly agile and capable for working on slopes. What is more, its low center of gravity makes picking up and wrapping bales effortless even in difficult terrain. The standard 380/55-17AW tires ensure uniform weight distribution and are gentle on the soil.

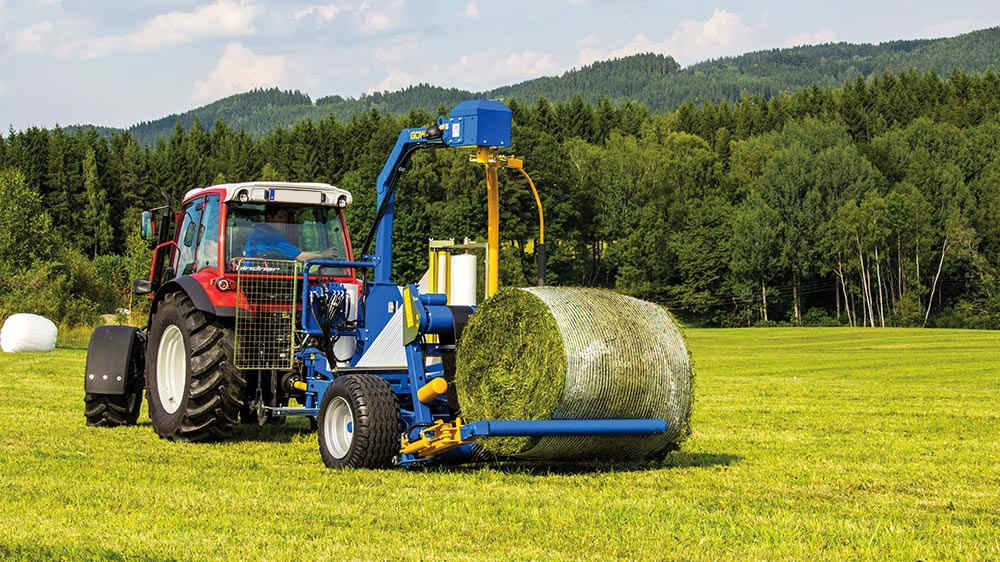

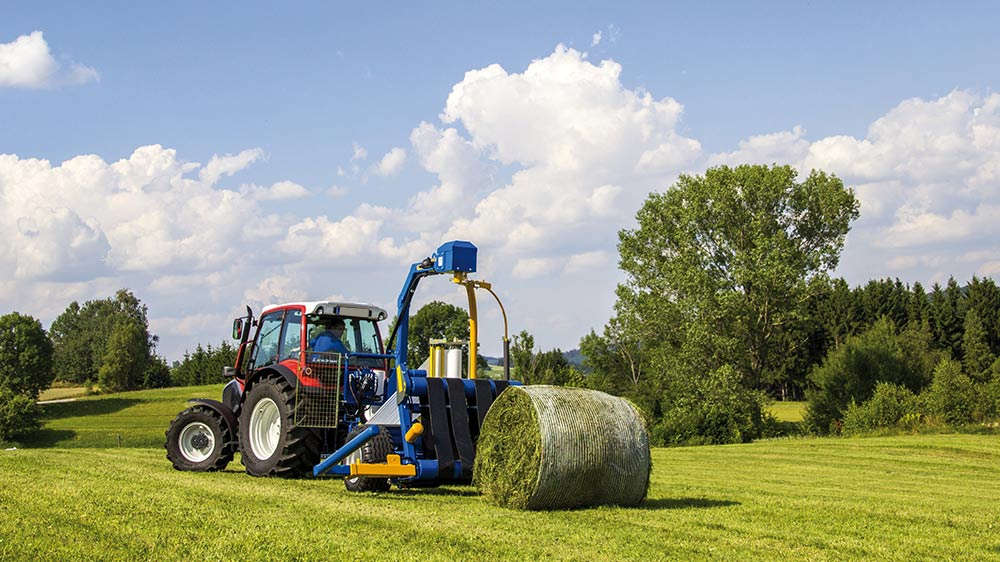

Bale pick-up
The hydraulic loading arm softly grabs the bale and places it gently on the wrapping table, which is tilted backwards while the bale is being picked up. The loading arm can be adjusted to five different positions. It can thus be adapted perfectly to the diameter of the bale. Thanks to the pivoting, ball-mounted reception tube, the bale is never pinched or damaged. It also guarantees that the bale is picked up reliably even in difficult terrain.

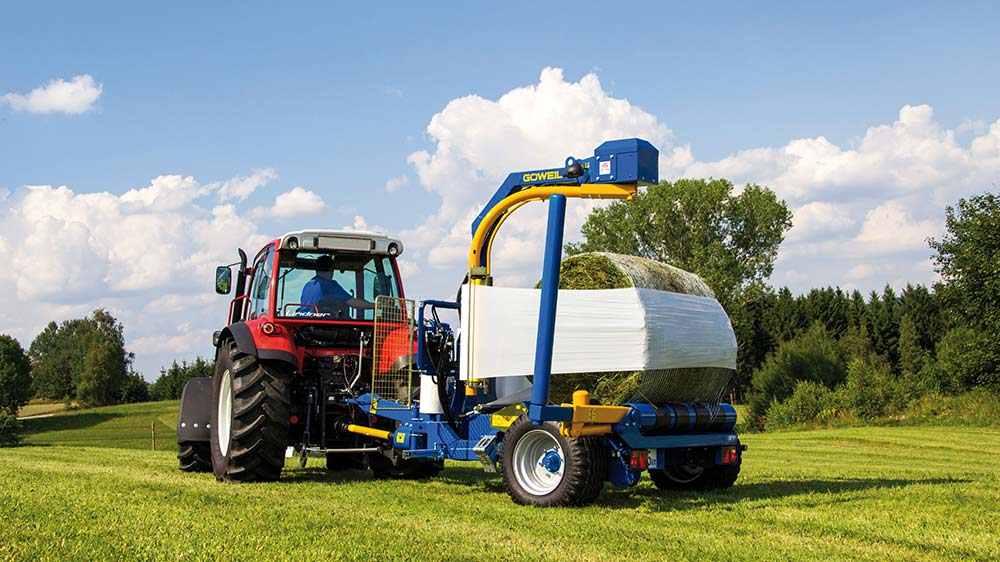

Wrapping arm with film pre-stretcher
The wrapping arm is equipped with a film pre-stretcher that can accommodate 750 mm rolls of film. The patented plastic rollers provide for uniform stretching. What is more, the rollers are not sensitive to temperature. This helps save film and guarantees firmly wrapped bales.
The wrapping arm is available in two sizes – an added bonus is that the stretching unit is height-adjustable. This ensures that the bales will always be wrapped perfectly around their own center. The quick-release system makes it possible to change empty rolls quickly and effortlessly.

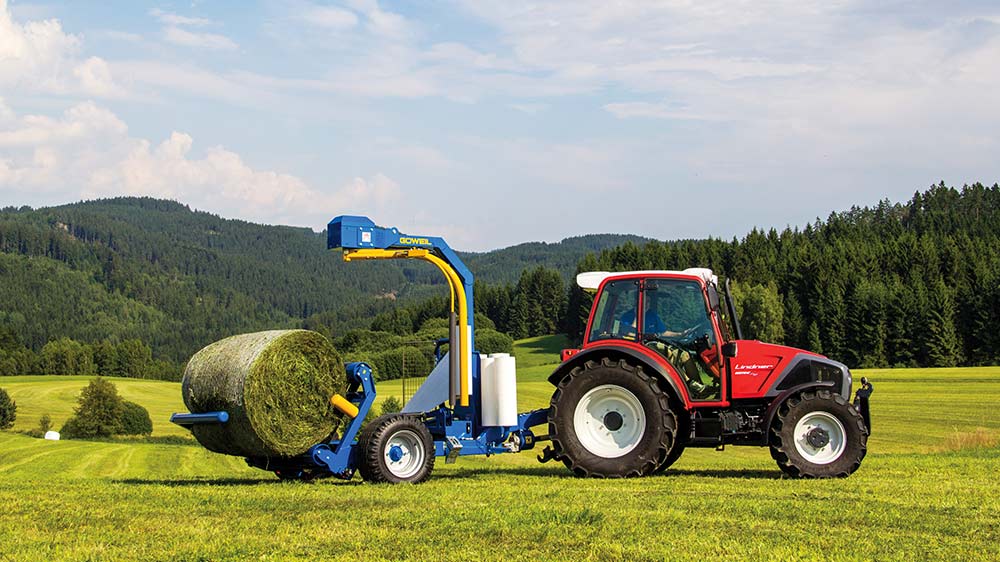

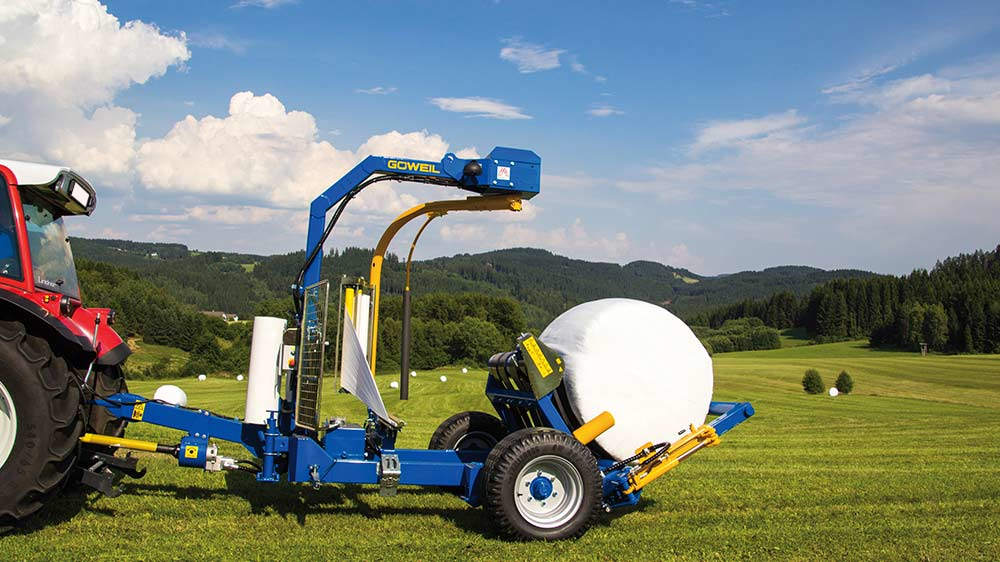

Wrapping table
When picking up and depositing a bale, the wrapping table is lowered all the way to the ground. The loading arm fixes the bale in place during these processes. This ensures that the bale is deposited in a particularly gentle and safe manner. This gives you a decisive advantage when you need to work on slopes.

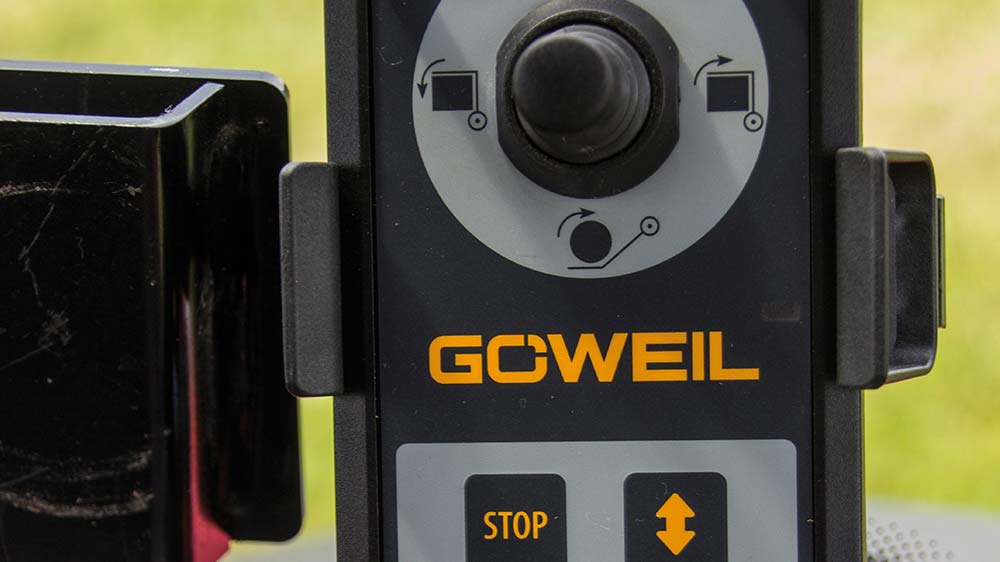

Control system
A genuine highlight is the user-friendly and easy-to-use program control STANDARD. The “bale pick-up” function is controlled manually using the electronic joystick. The cycles “wrapping process” and “film-holding and cutting” are executed automatically. You use the joystick again to deposit the bale. All functions and settings are adjusted using the control unit on the wrapper.

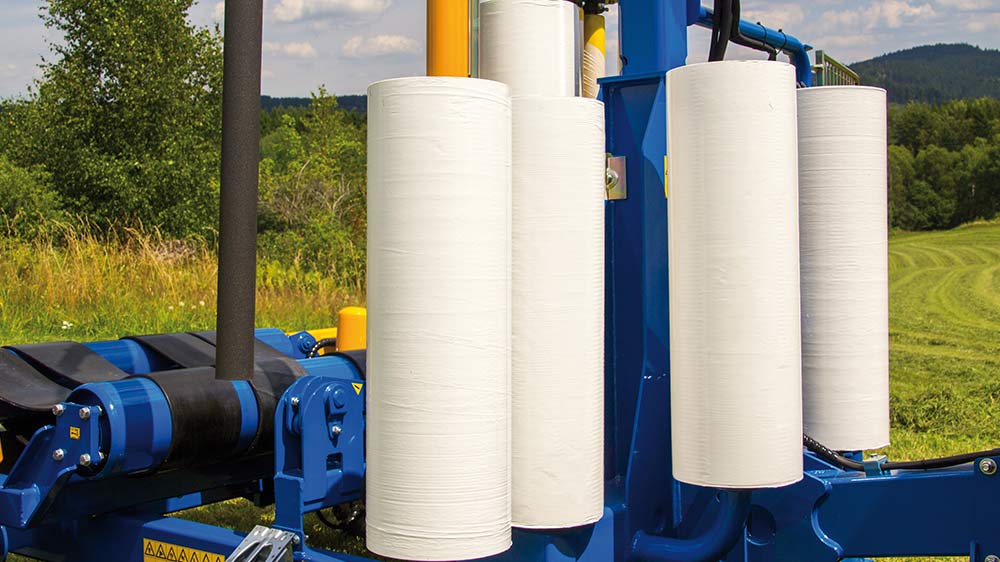

Film Storage
When working long days, you need to make sure that you have enough film. The film storage on the G2020 wrapper allows you to carry along up to four rolls of film. The holders are mounted in such a way that you can load and unload the film rolls with ease at a comfortable working height.

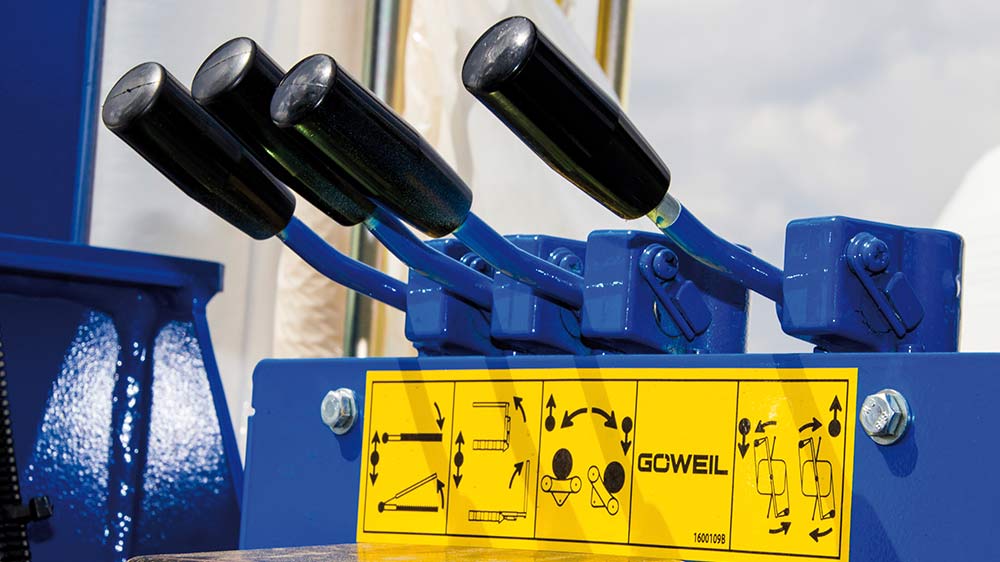

Control unit & levers
The control unit and the levers come in particularly handy during maintenance and service operations. They make it possible to control all functions and processes directly at the machine. The driver can thus easily leave the program control in the tractor cab when they, for example, need to change the film.

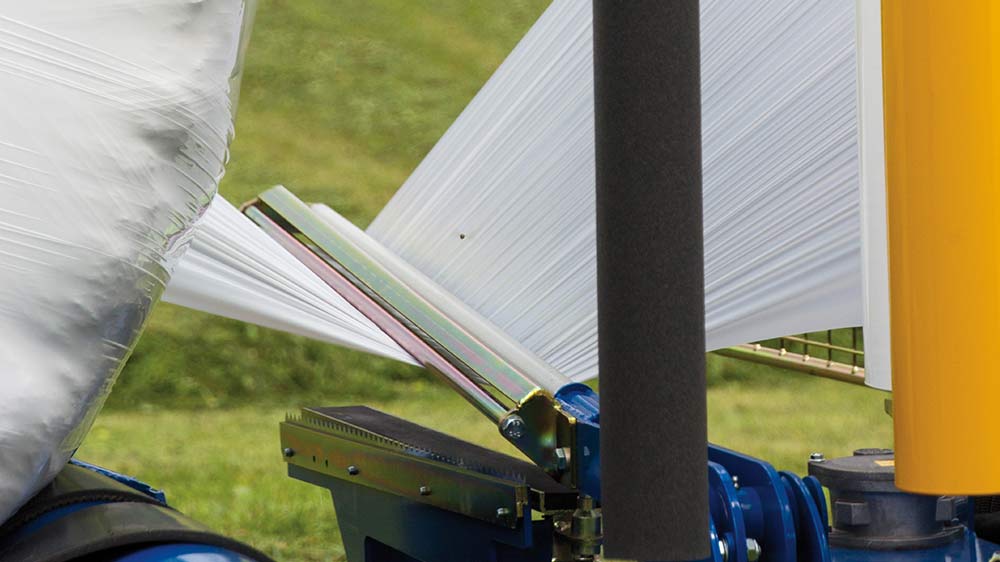

Automatic film cutting and holding system
The stainless steel knife guarantees that the film will be cut cleanly and precisely. At the same time, the film is fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the film will unwind easily.
Reermann Agrarservice in action with two G-1 F125 Kombis
A Powerful One-Two Punch in Forage Harvesting: The Reermann Agrarservice contracting firm from Brilon serves its customers with two GÖWEIL baler-wrapper combinations. Although there is a wide selection of round balers available, the service provider deliberately chose the blue machines from Austria. In this video, we’ll take a look with you at how this came about and what the technology is capable of under these demanding, continuous operating conditions. Come along and join the forage harvest pros from the Sauerland region as they go about their work!
“We decided to go with the GÖWEIL wrapper again, and this time with the baler built in – which, from a technical standpoint, completely blew us away!”
Stefan Reermann
Agricultural Service Specialists from the Sauerland Region
Video of the G2020
Basic Model
Single wrapping arm
(Standard: 1.50 m; optional: 1.25 m)
Hydraulically actuated wrapping table
Bale pick-up and bale deposit backwards
Hydraulically rotatable bale pick-up
4 bale conveyor belts with belt guide and 2 bale guide rollers
Film pre-stretcher 750 mm
Film cutter precision cut
Storage for 4 rolls of film
Trailer drawbar (height-adjustable)
Tires 380/55-17 AW
LED Light and indicator system
LED work lights
Program control STANDARD with radio remote control
Bale pick-up and deposit are controlled using the electronic joystick. The cycles “wrapping process” and “film-holding and cutting” start automatically.
Technical data
(Basic model)
| Weight | 1,150 kg |
| Length | 3,885 mm |
| Width | 2,440 mm |
| Height | 3,010 mm |
| Bale diameters | 0.90 – 1.50 m (with standard wrapping arm) |
| Bale diameters | 0.90 – 1.35 m (height altered to 2,760 mm) |
| Oil requirement | from 20 l/min at max. 190 bar |
| Bale weight | up to 1,400 kg (2,200 lbs) |
Required connections
| 1 pressure connection and one depressurized return for the supply of the wrapper |
| 3-pin socket for the electrical supply with direct supply to the battery (12V/30A), cable cross-section 2×6 mm² |
| 7-pin power outlet for the entire lighting system (excluding work lights) |
Additional equipment

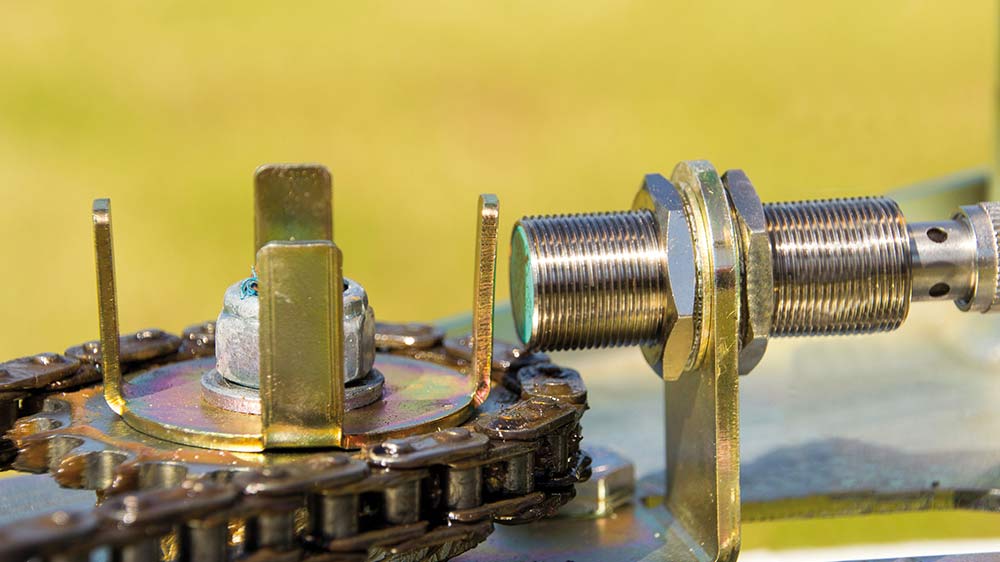

Film monitoring
Stops the wrapping process if film tears or runs out
Additional bale guide roller
maximum 2 items

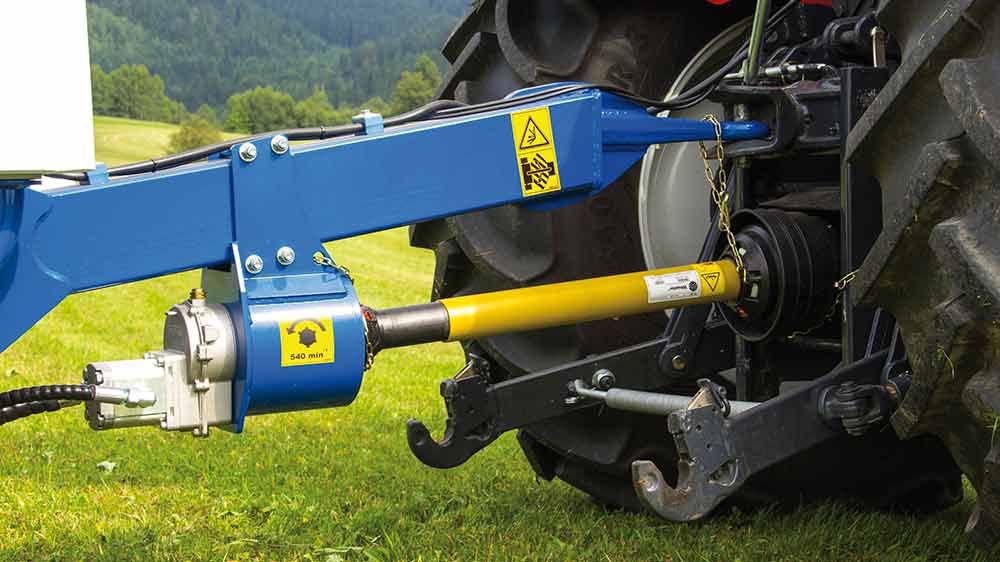

PTO drive shaft (without hydraulic oil)
Including gearbox with pump, return filter and 8 gal hydraulic oil tank
Wide-angle cardan shaft (one-sided)
Battery supply cable 5.3 meters 2 x 6 mm² with 3-pin power socket
Drawbar eye types
Standard drawbar eye D40 mm
FAQ - Frequently asked questions
What equipment does my tractor need for the G2020?
The following connections are required to transport the G2020 wrapping machine:
1. 1 pressure connection and 1 depressurized return for supplying the wrapping machine (not applicable for PTO drive)
2. 3-pin socket for the electrical supply with direct line to the battery (12V/30A), cable cross-section 2×6 mm²
3. 7-pin power outlet for the entire lighting system (excluding work lights)
Oil requirements: from 20 l/min at max. 190 bar
Can the G2020 also be used on hillsides?
Its low center of gravity makes the G2020 particularly agile and suitable for slopes, so it even excels on difficult terrain.
How do you control the G2020 wrapping machine?
Bale pick-up and deposit are controlled using the electronic joystick. The cycles “wrapping process” and “film-holding and cutting” start automatically. The program control STANDARD is included in the scope of delivery.
From which side are bales picked up by the G2020?
The bale is picked up at the rear and then deposited again.
