#ifarmitmyway
Film Storage
GFM
GFM | Film Storage

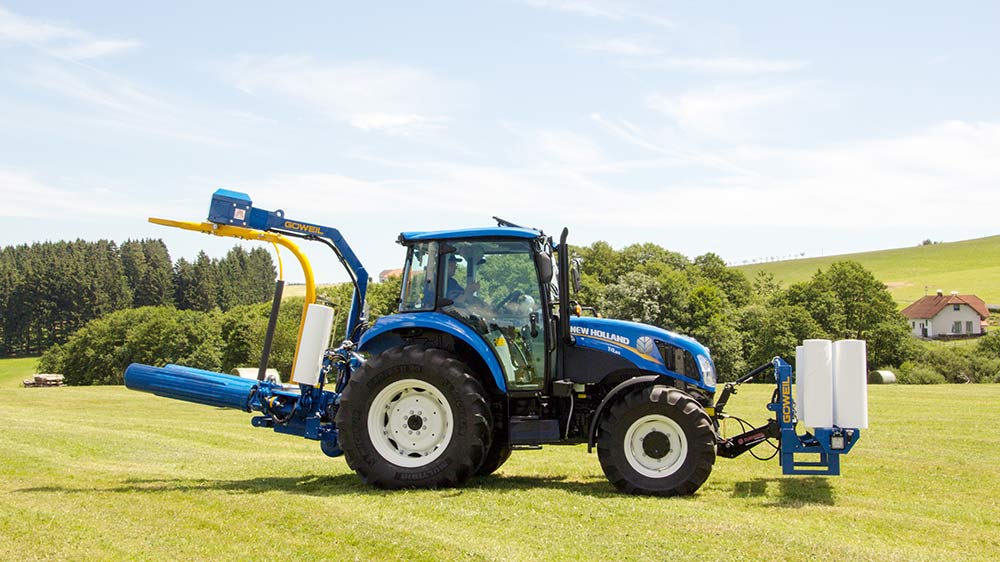

The GFM film storage has been specially designed for the transport of 16 rolls of film or 14 rolls of film and two rolls of net / film.
Basic Model
Base frame with Cat. I and Cat. II three-point linkage
Hydraulic cylinder for lowering the film storage
Take advantage of our demonstration service and see for yourself.
Technical data
(Basic model)
| Weight | 250 kg |
| Length | 2,340 mm |
| Width | 755 mm |
| Height | 1,080 mm |
Required connections
| Double-acting hydraulic control device |
Possible attachments
(excluding installation)
| Euro-attachment |
| Dieci Dedalus, Kramer, Schäffer small, Faucheux, Weidemann hydr., Giant, Genie |
| Merlo ZM3, Dieci/New Holland, Schäffer big, Zettelmeyer 602, Liebherr L514, Faresin, CAT TH 407 C, Skid Steer, SMS, Claas Scorpion |
| Adapter Weiste triangle Cat. II |
| CAT 907H/Liebherr L507, JCB Q-Fit, Manitou, Fendt Cargo T955/Sennebogen |
| Bobcat |
| Other attachments – on request |
| Overview Mounting options |
Additional equipment
Lighting kit
4 LED work lights and 2 marker lights – can be controlled via radio control
Bale transport spike double conversion kit
For transporting two unwound round bales (max. bale diameter
1.60 m) or square bales at the same time.
Reinforced tines (Ø: 42 mm, length 1100 mm)
Payload: max. 1500 kg
FAQ - Frequently asked questions
Which connections do I need for the GFM film storage?
A double-acting hydraulic connection is required for the GFM film storage.
How heavy is the GFM film storage?
The total weight of the GFM is 250 kg.
How many rolls can I transport with the GFM film storage?
The GFM film storage was developed specifically for transporting 16 rolls of film or 14 rolls of film and two rolls of net or wide film.
How wide is the GFM film storage?
The film storage is 2,330 mm wide .
