Round Bale Fork with Stand
BTGHA | Round Bale Transport Fork with tipper

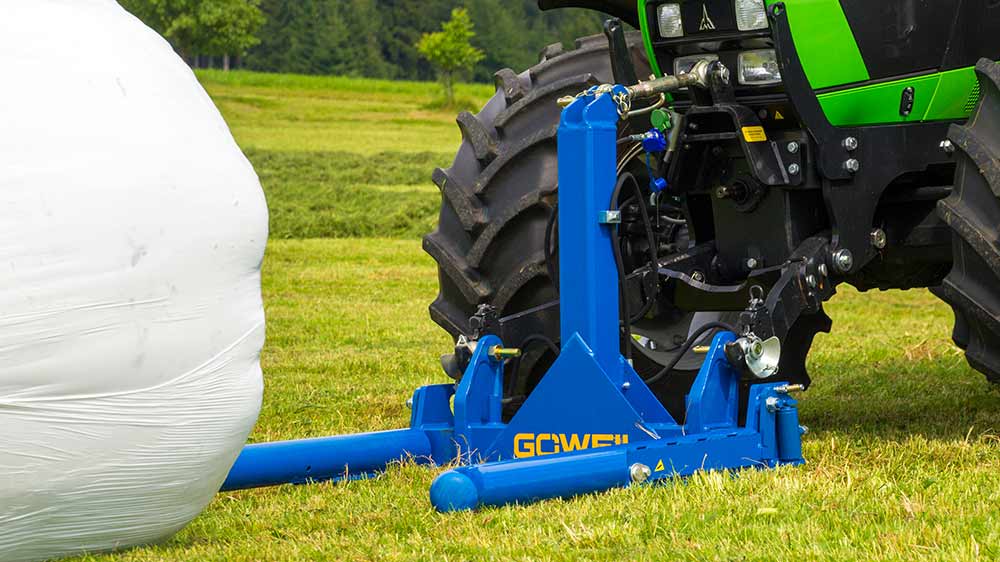

The round bale transport fork was designed for transporting and, specifically, for positioning wrapped or unwrapped round bales with a diameter of 1.00 – 1.80 m. This allows the bales to be transported away and deposited and stored end-to-end in a particularly gentle manner. The fork pipes are unlocked using two hydraulic cylinders.
BTGHA Video
Basic Model
Base frame with Cat. I and Cat. II three-point linkage
Large fork pipes / Ø: 110 mm
Mechanically adjustable fork pipes with quick-release fastener
Two hydraulic cylinders for unlocking the fork pipes
Take advantage of our demonstration service and see for yourself.
Technical data
(Basic model)
| Weight | 136 kg |
| Length | 1,350 mm |
| Width | 1,140 mm |
| Height | 970 mm |
| Bale weight | up to 1,500 kg (2,200 lbs) |
| Bale diameters | 1,00 – 1,80 m (36” – 63”) |
| Operating pressure | max. 200 bar |
Required connections
| Single-acting hydraulic connection |
Possible attachments
(excluding installation)
| Adapter Weiste triangle Cat. II |
| Other attachments – on request |
| Overview Mounting options |
Additional equipment
Hydraulic width adjustment
Double-acting hydraulic control device required
Bale transport spike double conversion kit
For transporting two unwound round bales (max. bale diameter
1.60 m) or square bales at the sametime.
Reinforced tines (Ø: 42 mm, length 1100 mm)
Payload: max. 1500 kg
FAQ - Frequently asked questions
How are bales deposited with the BTGHA?

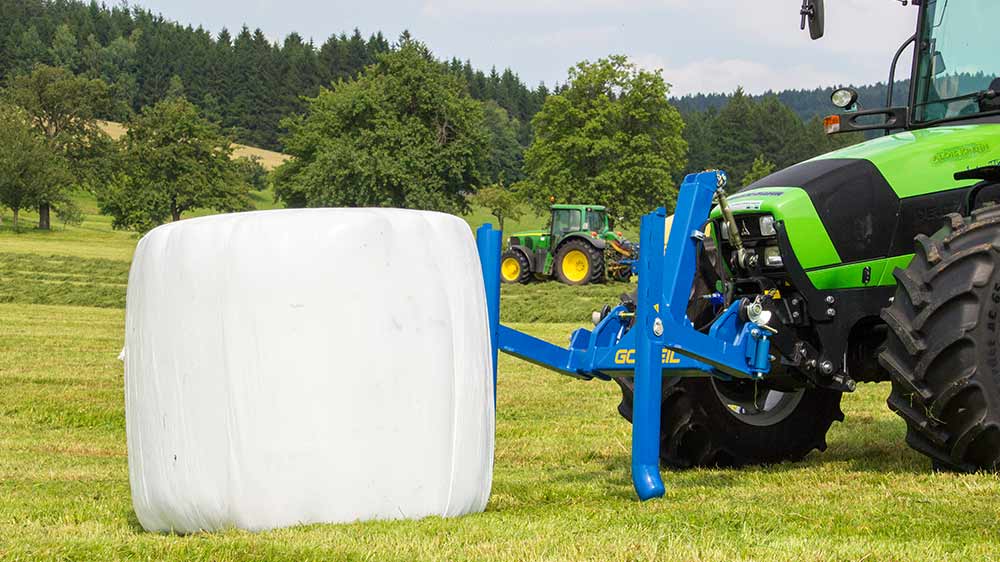

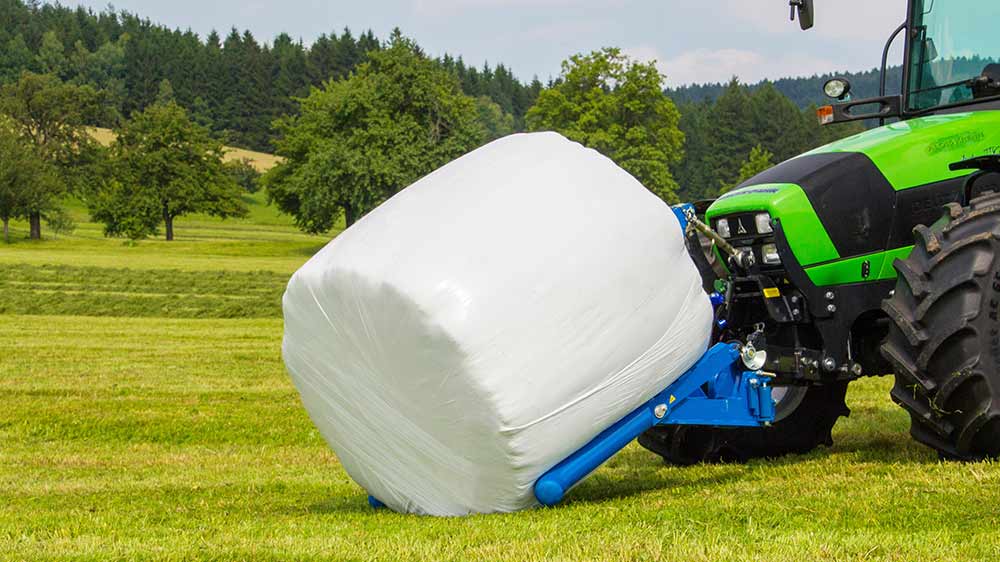

The tilt pipes are unlocked by two hydraulic cylinders so that the bales can be deposited on their ends in an extremely gentle manner.
Which hydraulic connections do I need for the BTGHA?
A single-acting hydraulic connection is required for the basic model of the transport forks. The "Hydraulic width adjustment" additional equipment requires a double-acting hydraulic connection.
