Stationary round bale wrapper with diesel engine
G3010 Profi | Round bale wrapper
The G3010 Profi round bale wrapper with diesel engine is the perfect stationary machine for the demanding use of contractors. All operations are fully automatic, allowing the operator to fully concentrate on bale handling. This saves time and costs—the output per hour is significantly increased!
Highlights
Design

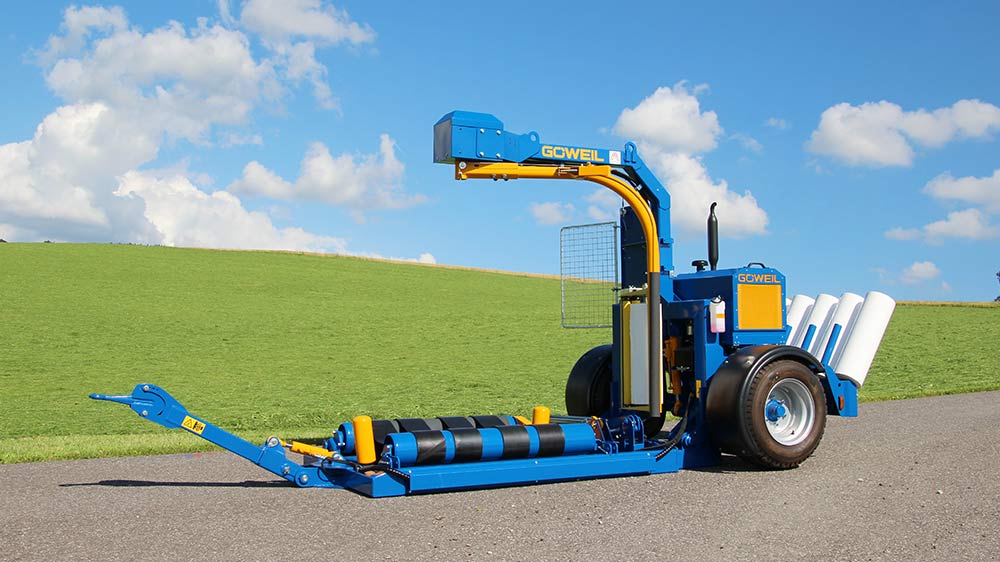

The G30 series wrappers are particularly notable for their low working height. The wrapper’s sturdy and solid design and workmanship guarantee a long service life.
Wrapping arm with film pre-stretcher
The wrapping arm is equipped with a film pre-stretcher that can accommodate 750 mm rolls of film. Three patented plastic rollers provide for uniform stretching. This saves film and guarantees tightly wrapped and airtight bales. What is more, the rollers are not sensitive to temperature. The quick-release system makes it possible to change empty rolls quickly and effortlessly.

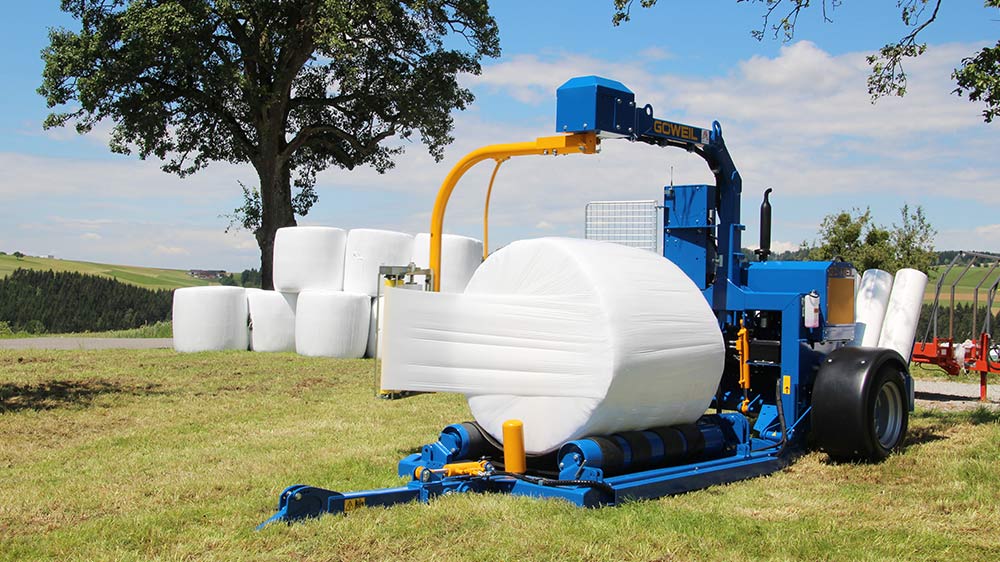

Rotating wrapping arm with stationary wrapping table
This system reliably prevents the bale from falling off as it is not subjected to any kind of centrifugal forces. While the conveyor belts ensure that the bale rotates continuously, the two rotating bale guide rollers (up to four, optional) hold the bale in place. This ensures that the film has an even overlap. When depositing bales, the wrapping table tilts to the side and the bale is gently placed next to the machine.

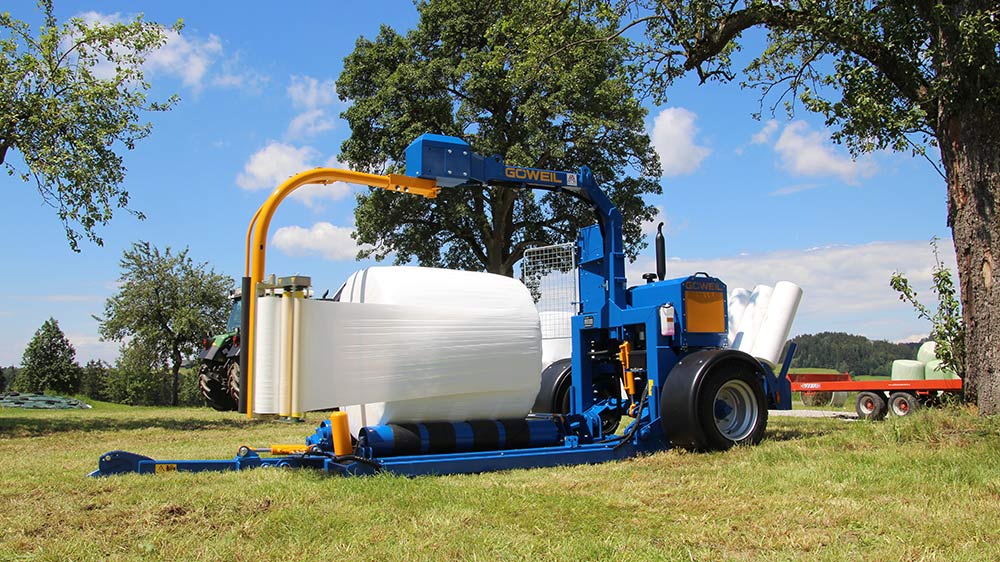

Film cutter
The stainless steel knife guarantees that the film will be cut cleanly and precisely. At the same time, the film is fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the wrapping films will unwind easily.
Control unit with hand lever
The control unit and the levers come in particularly handy during maintenance and service operations. They make it possible to control all functions and processes directly at the machine. This means that the operator can simply leave the handset in the tractor cab.

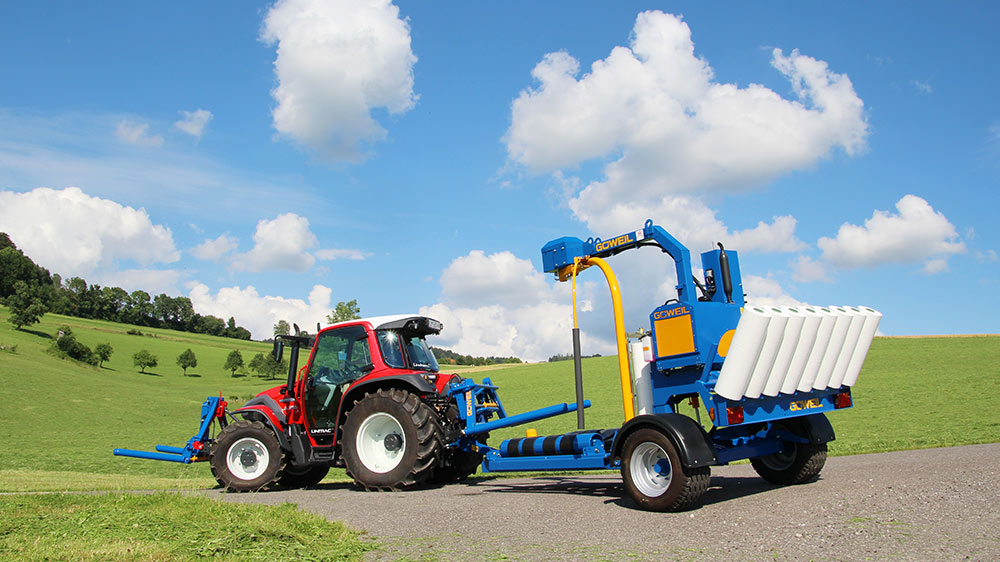

Drawbar & Axle

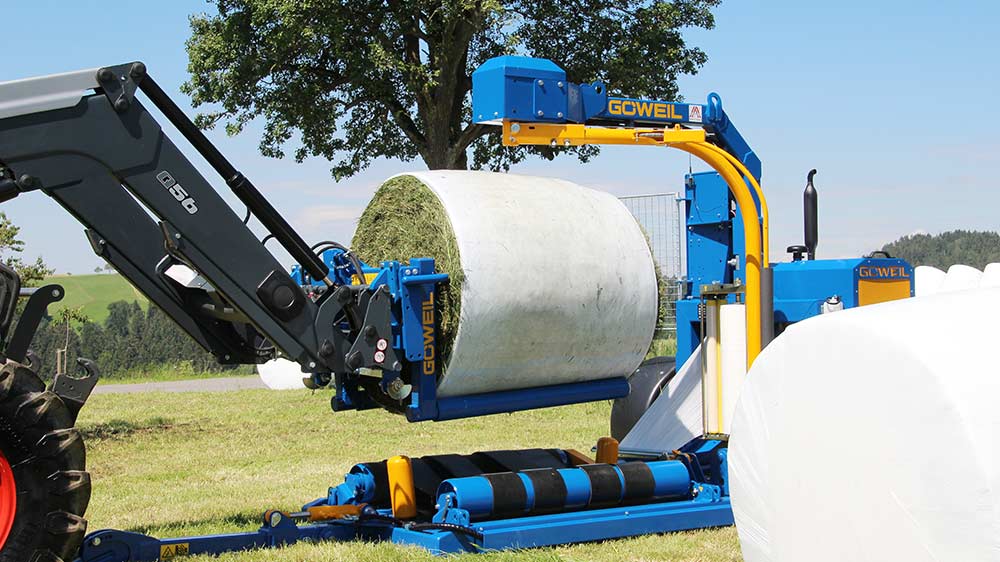

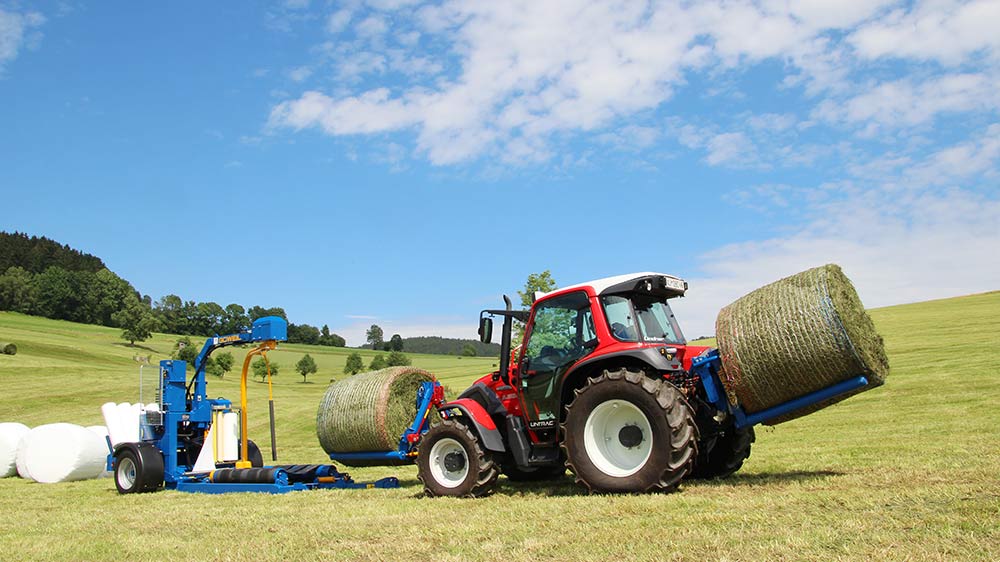

The G3010 Farmer and Profi machines are towed and turned off in the work position using the hydraulically adjustable lift axle and articulated drawbar. Thanks to their low profile, the wrappers can be easily loaded with a forklift. A front-loading washer is not required.

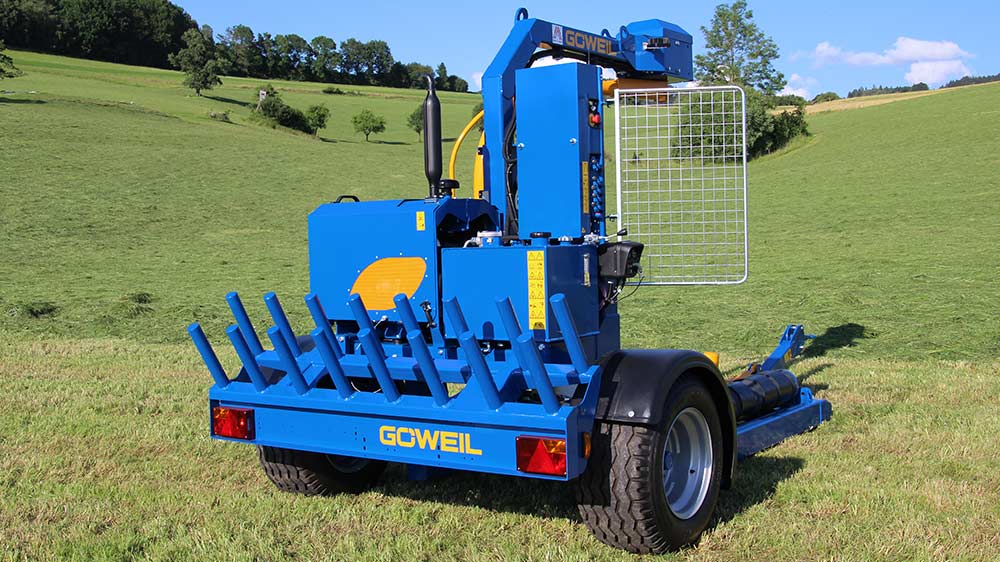

Film Storage
When working long days, you need to make sure that you have enough film. The G3010 Farmer can carry up to four rolls of film, and the G3010 Profi can carry up to 16 rolls. The brackets are mounted on the rear of the wrapper at a comfortable working height.
Reermann Agrarservice in action with two G-1 F125 Kombis
A Powerful One-Two Punch for Forage Harvesting: The Reermann Agrarservice contracting firm from Brilon serves its customers with two GÖWEIL baler-wrapper combinations. Although there is a wide selection of round balers available, the service provider deliberately chose the blue machines from Austria. In this video, we’ll take a look with you at how this came about and what the technology is capable of under these demanding, continuous operating conditions. Come along and join the forage harvesting pros from the Sauerland as they go about their work!
“We decided to go with the GÖWEIL wrapper again, and this time with the baler built in – which, from a technical standpoint, completely blew us away!”
Stefan Reermann
Agricultural Service Specialist from the Sauerland Region
Video of the G3010 Profi
Basic Model
(without hydraulic oil) - WITH EU type-approval
Single wrapping arm
Hydraulically actuated wrapping table
Bale deposit to the left or right
4 bale conveyor belts with belt guide and 2 bale guide rollers
Film pre-stretcher 750 mm
Film cutter precision cut
Film monitoring
Hydraulically adjustable lift axle
Removable, hydraulic articulated drawbar
Storage for 16 rolls of film
Tires 380/55-17 AW
3-cylinder diesel engine Kubota
- 17.5 kW diesel engine
- Water cooled
- Battery
- Electric starter
- Hours counter
- Return filter
- 44 l hydraulic oil tank
- and automatic RPM control
LED Light and indicator system
LED work lights
Fully automatic remote control PROFI and PROFI plus S terminal
All work cycles are fully automatic
Technical data
(Basic model)
| Weight | 1,670 kg |
| Length | 5,610 mm |
| Width | 2,410 mm |
| Height | 3,030 mm (10’ 6”) (with the lift axle extended) |
| Bale diameters | 0,90 – 1,60 m (36” – 63”) |
| Oil requirement | Self-sufficient oil supply |
| Bale weight: | up to 1,800 kg (2,200 lbs) |
Required connections
| 7-pin power outlet for the entire lighting system (excluding work lights) |
| 3-pin socket for electrical supply of the hand-held terminal 12 V / 10 A) |
Additional equipment
Tires 520/50-R17 FLT
Width altered to 2,545 mm (7’)
Height changes to 3,090 mm (with the lift axle extended)
Additional bale guide roller
maximum 2 items
Drawbar eye types
Customers can choose from a large selection of drawbar eye types
FAQ - Frequently asked questions
Which connections does my tractor need for the G3010 Profi?
The following connections are required to transport the G3010 Profi wrapping machine:
- 3-pin socket for electrical supply of the hand-held terminal 12 V / 10 A)
- 7-pin power outlet for the entire lighting system (excluding work lights)
Oil requirements: Self-sufficient oil supply
What kind of engine does the G3010 Profi have?
The G3010 Profi wrapping machine has a 3-cylinder Kubota diesel engine (without hydraulic oil).
