Round baler | G-1 F125
The G-1 F125 is an absolute professional machine with maximum output.
The fixed chamber baler is extremely robust and has been developed for all possible applications – whether silage, hay or straw – dry or wet – the round baler is equipped for all situations.
Highlights G-1 F125
Time-saving
The high throughput and impact force of this baler-wrapper combination cuts down on the amount of time needed in the field. Capable of handling speeds up to 40 km/h, the Kombi also allows the operator to rapidly cover long distances.
Cost-saving
The baler-wrapper combination reduces the cost of personnel and machinery to a minimum.
Superior quality
Round bales are wrapped in a perfectly clean manner and within an extraordinarily short period of time. The rapid exclusion of air creates the best possible conditions for the fermentation of the feed, allowing for its perfect preservation and exceptional quality. And that means the best shelf life and the highest-quality feed!
High-performance
The G-1 F125 Kombi is a machine designed for decidedly professional applications and, as such, is the ideal choice for large businesses and contract harvesters. Whether you need to use it for bales of silage, hay or straw.
Highlights of the fixed chamber baler
Bongard Dairy Farm relies on the G-1 F125 round baler
Swathing and baleing in a single step: Using this unusual combination of equipment, Leon Bongard collects the feed for the farm’s 140 dairy cows. His father, Uwe, is right on his heels with the wrapper, ready to wrap the bales in film. Four years ago, the decision was made to decommission the old vertical silos and instead store the grass in round bales. We’ll take a closer look together over the next few minutes at how much has changed since then and what role the feeding robot plays in all of this. For two days, we’ll be accompanying Uwe and Leon on their dairy farm in northern Germany with our cameras and watching them as they harvest feed.
“The GÖWEIL round baler can process any product and delivers the best cut quality!”
Uwe & Leon Bongard
A farming family from North Rhine-Westphalia
Video of the G-1 F125
Workflow
Feed Pick-Up
The feed is scooped up by the pickup of the baler and shaped into a bale in the bale chamber.
Bale transfer
➡ Direct bale transfer: quick, clean and straightforward
The wrapping table moves under the bale chamber. Once fully wrapped, the bale is transferred from the bale chamber to the wrapping table – without ever touching the ground.
➡ Secure bale guiding even in slope positions.
The four bale guide rollers ensure that the bales are guided along securely. This guarantees that the bale is transferred in a secure and reliable manner – even in slope positions. The transfer itself merely takes a few seconds. The tailgate already closes while the wrapping table is moving to the wrapping position. The baling process can continue without any interruption.

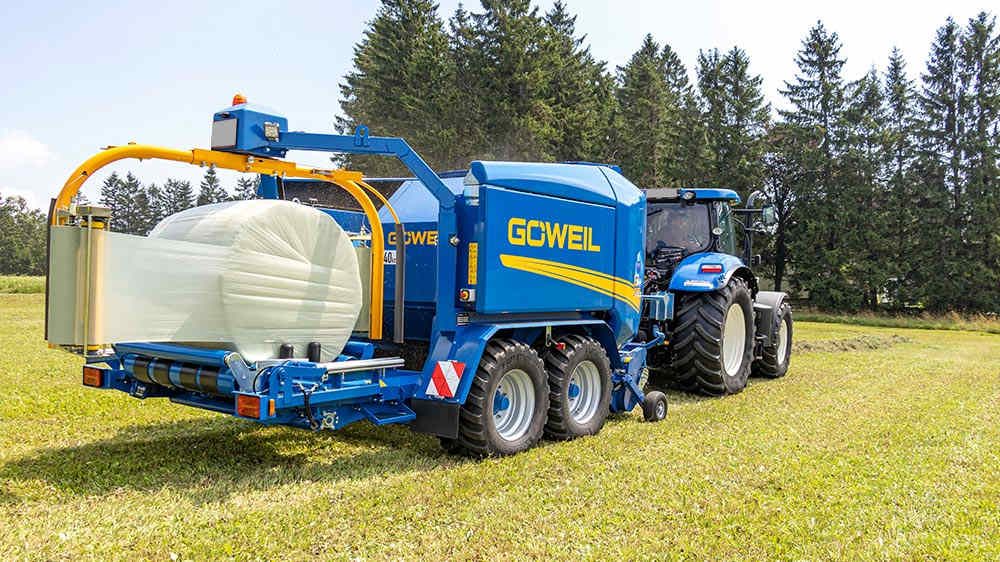

Wrapping Process
The twin wrapping arm and the two 750 mm film stretching units ensure that the bale is wrapped in no time at all. The wrapping process will always be finished faster than the baling process. Since always guided securely, the bale is wrapped perfectly even in slope positions.
Bale delivery
Once the round bale is fully wrapped, the film is cut off. When the bale is dropped, the wrapping table moves to the rear and lowers all the way to the ground. This provides for a gentle deposit of the bales.
Workflow
Feed Pick-Up
The feed is scooped up by the pickup of the baler and shaped into a bale in the bale chamber.
Bale transfer
➡ Direct bale transfer: quick, clean and straightforward
The wrapping table moves under the bale chamber. Once fully wrapped, the bale is transferred from the bale chamber to the wrapping table – without ever touching the ground.
➡ Secure bale guiding even in slope positions.
The four bale guide rollers ensure that the bales are guided along securely. This guarantees that the bale is transferred in a secure and reliable manner – even in slope positions. The transfer itself merely takes a few seconds. The tailgate already closes while the wrapping table is moving to the wrapping position. The baling process can continue without any interruption.
Wrapping Process
The twin wrapping arm and the two 750 mm film stretching units ensure that the bale is wrapped in no time at all. The wrapping process will always be finished faster than the baling process. Since always guided securely, the bale is wrapped perfectly even in slope positions.
Bale delivery
Once the round bale is fully wrapped, the film is cut off. When the bale is dropped, the wrapping table moves to the rear and lowers all the way to the ground. This provides for a gentle deposit of the bales.

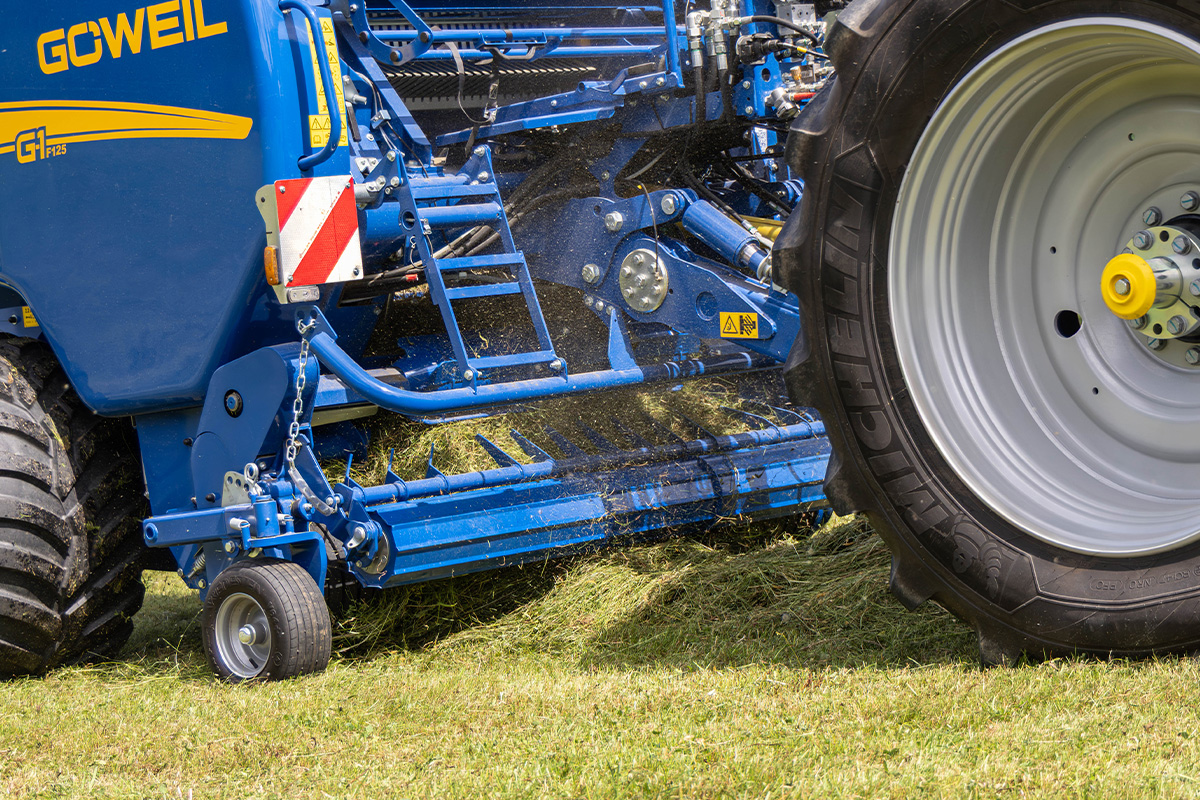

Pick-Up
The starting point of every firmly compressed round bale is the clean pickup of the base feed: Its swivel suspension allows the 6-row swivel pick-up to deliver maximum conveyance capacity along with superior ground adaptation and enables it to absorb even the largest swaths without a hitch.
Pendulum-Pick-Up
The suspended installation in a central position creates a swing range of 150 mm. It provides for top-notch ground adaptation and compensates for any unevenness in the terrain with perfect ease.
Doing without a cam track, the pendulum pickup offers a DIN rake width of 2.20 m and large conveying screws on the sides that guarantee an optimum flow of material to the rotor.
Equipped with tines spaced 51 mm apart across six rows, the pickup delivers firstrate raking performance even when handling extremely wide swaths.

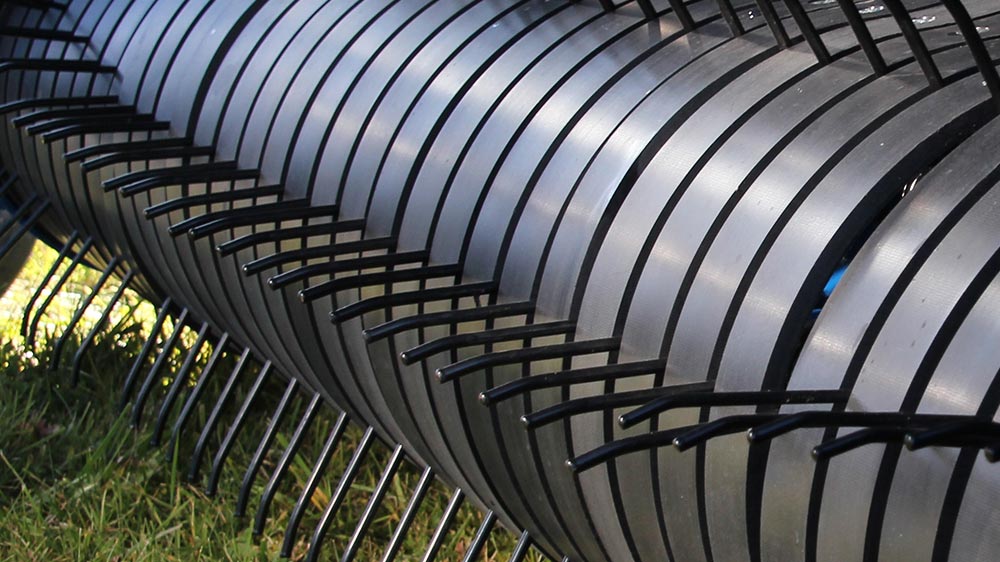

Plastic Strippers
Another unique feature are the plastic strippers. Exceptionally resilient, these strippers withstand even the greatest amount of stress and will not bend if colliding with foreign objects. Stripping the material off with great efficiency, the tines also enhance the flow of material.
Roller hold-down device
with feed comb
Comprised of Roller hold-down device with feed comb boost the material flow even when dealing with uneven swaths and fill the bale chamber in a continuous and uniform manner.
Smoothly Running Touch Wheels
Fitted with pneumatic tires, the touch wheels work in perfect harmony with the pendulum pickup and run with maximum smoothness. Adjusting the height of the touch wheels is quick and easy thanks to perforated rails that eliminate the need for any tools. Customers can also opt for swiveling touch wheels.
Feeding system
Short and precisely cut feed is the basis for the production of high-quality and high-energy silage. The material in the GÖWEIL baler flows through its own special passageway – the rotor! This feeding system guarantees optimum feed pick-up under all sorts of harvest conditions.
One rotor for all harvest conditions
Fitted at the heart of the feeding system is a 6-star rotor that offers enormous absorption capacity. Thanks to its large diameter of 570 mm and the welded-on rows of HARDOX tines, the rotor will always cut the swaths of feed cleanly and convey them reliably into the bale chamber – whether they are large and dry or contain feed that is short and still wet.
Installed in front of the rotor is a mechanically powered feed roller. Precompressing the material with outstanding efficiency, the roller increases the throughput significantly. The newly developed starter roller housed in the bale chamber provides for optimum bale rotation and a reliable start.
Perfect flow of material
The rotational direction of the rotor built into the G-1 F125 is upward. This movement channels the material from the rotor through the cutting unit and into the bale chamber.
Cutting floor & Cutting unit
As the cutting unit is positioned above the rotor, changing the blades is a breeze and can be accomplished without any tools. This offers an advantage that is particularly beneficial in baler-wrapper combinations. The cutting unit is fitted with 30 twin-blade cutting edges and makes it possible to achieve a cutting length of 35 mm. The narrow spacing between rotor tine and knife ensures that the feed is chopped with pristine accuracy. The replacement knife bar allows the operator to carry along 30 replacement knives or change the number of cutting knives as needed. A hydraulic bar safety device protects the knives against foreign objects and moves them immediately into their cutting position.
Auto-Flow-Control (AFC)
The AFC (Auto Flow Control) monitors the entire flow of material and intervenes in fully automatic fashion as soon as detecting a problem in the conveying duct. This ensures that clogs at the rotor or pickup are removed fast and without effort!
Here is how it works:
Unclogging the Rotor
The rotor’s overload safeguard trips whenever the conveying duct for the quantity of feed to be delivered becomes too narrow. The hydraulic cutting floor opens towards the top, and the knives flip back. When the rotor starts up again, the excess material is guided unobstructed into the bale chamber. The cutting floor and the knives subsequently return to their original positions, allowing the feed pick-up to resume without hindrance.
Unclogging the pick-up
An overload safeguard will also be tripped if too much feed has accumulated at the pick-up. Normally powered mechanically, the feed roller will then be briefly driven and supported hydraulically to allow it to keep conveying the material. Concurrently with the feed roller the cutting floor swivels up, allowing the material to find its way directly into the bale chamber.
Bale chamber
At the core of the machine is the bale chamber, which offers a size of 1.20 m x 1.25 m as well as 18 solid forming rollers. The steel rollers are 4 mm thick and reinforced on the inside, while their ribbed profile ensures supreme bale density and the reliable rotation of the bale.
Bale chambers & Co
Two drive rollers with a shaft diameter of 65 mm and the additional roller shafts with a diameter of 60 mm run continuously on double-row pendulum roller bearings and provide for exquisite stability and an exceptionally long lifetime. A specially designed labyrinth prevents dust and dirt from penetrating.
Starter & Cleaning Roller
Situated directly behind the rotor, the starter roller provides for the best possible bale rotation and a reliable bale start thanks to its special profile – whether the material is silage, hay or straw. A cleaning roller feeds any material that has dropped down back into the bale chamber – keeping the machine from becoming soiled.

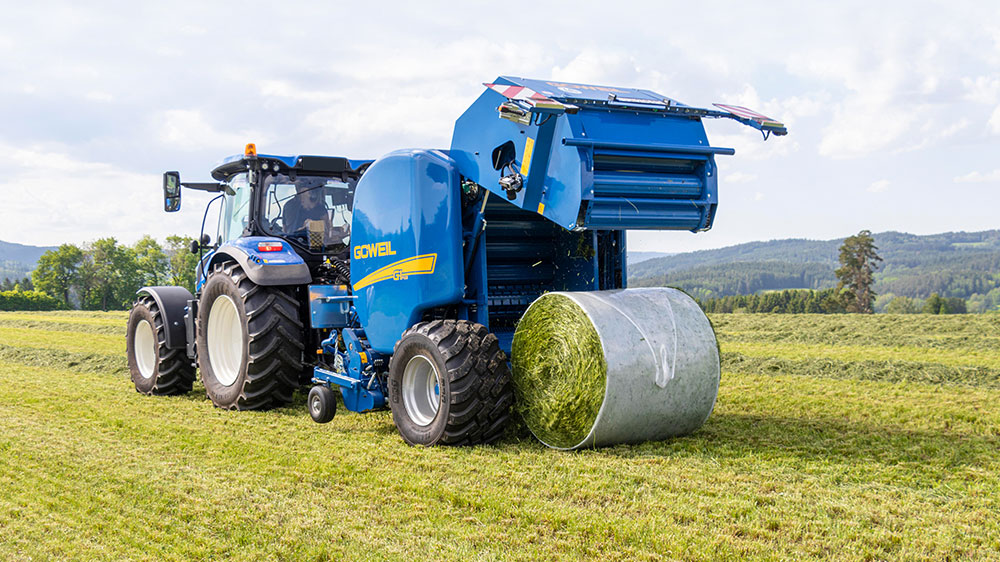

Tailgate
The tailgate opens and closes with the help of two hydraulic cylinders. Depending on the program setting, the process will be completed automatically or manually.
Bale ramp
An optional bale ramp can be used to deposit the bale outside of the swivel range of the tailgate.
Resetting the machine is not necessary.
Bale catcher
The patented bale catcher allows for the fully automatic catching of the bale, preventing the bale from rolling away uncontrollably when dropped in steep slope positions. The bale catcher eliminates the need for stopping the bale manually using the tailgate to prevent the bale from rolling away when it exits the bale chamber.
Silage additive dosing unit
The dosing unit uses two spray nozzles to add lactic acid bacteria to the silage, thereby enhancing its quality even further. The silage additive dosing unit can be calibrated for acids of different viscosity. The driver stays in control of the quantity thanks to an inspection glass and a display.
Consisting of: 100 l tank, 2-point extraction (complete emptying) LSP junior NK (acid-resistant), pump with filter, electronic flow meter Dosistar VD 390, two nozzles 0.1 in stainless steel design,
Film- & Net binding
The round baler is equipped with film and net binding as standard. In addition, a dual binding unit is available for film and net.

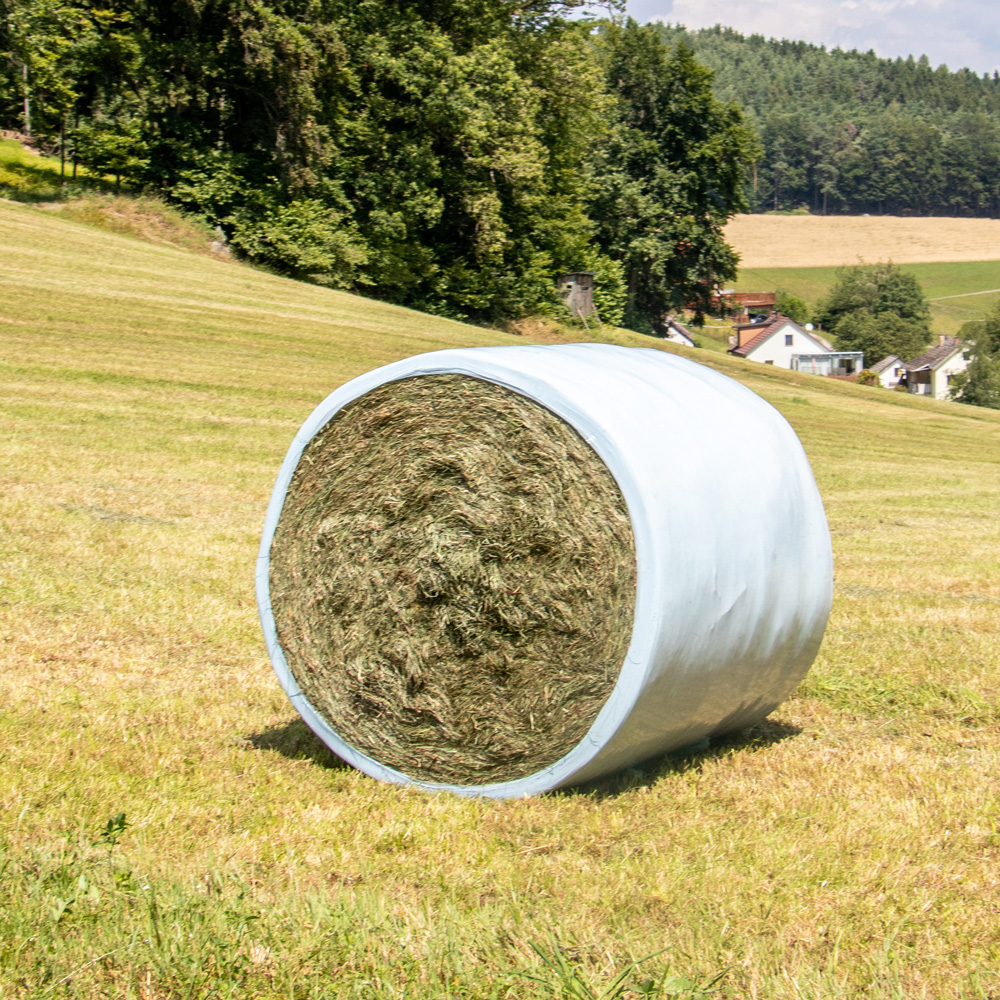

Film binding unit
The use of a wide film offers decisive advantages that enhance the quality of the silage:
- A wide film produces bales that are more compact and better protected by the film layers. This film also provides an additional barrier preventing oxygen from penetrating.
- Opening and recycling the bales becomes easier as the wide and the wrapping film can be disposed of jointly.
The operator can insert common wide films and nets with a width of up to 1.50 m. Binding can be started automatically or manually. The hydraulically adjustable brake roller ensures that the bale is wrapped tightly during net and film binding. The brake pressures and the number of layers can be set directly using the control.

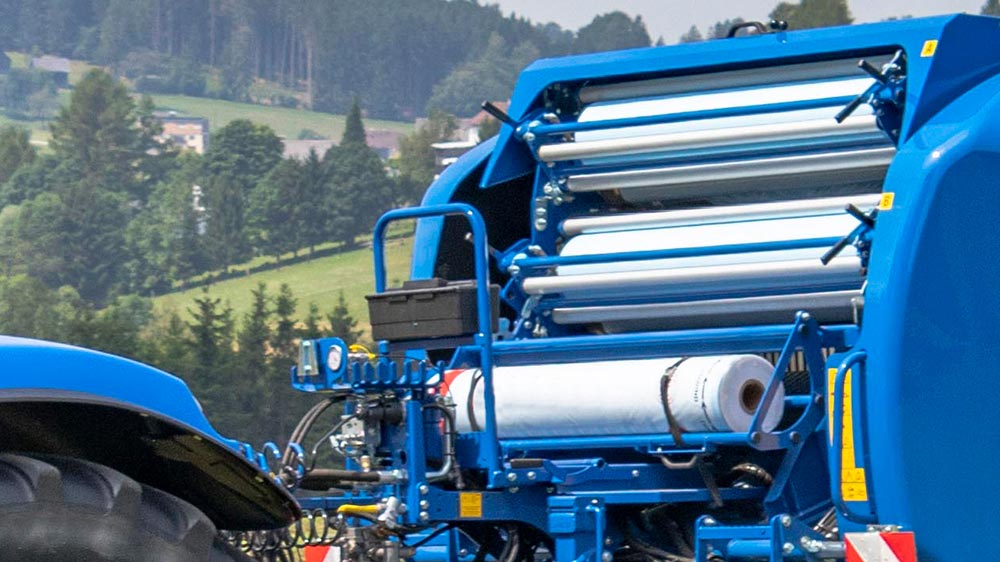

Twice the binding in half the time
Equipped with the world’s first dual binding unit, the G-1 breaks new ground for round balers. This optional binding system wraps the finished bale simultaneously in two nets or wide films. The result: This feature cuts in half both the time required for binding the bale and for changing the net or film! Reducing the workload significantly, this time savings will be much appreciated especially on the busiest days of the harvest. If the operator needs to alternate between silage, hay or stray bales on the same day, the machine offers them the option of using the dual film binding unit as a single binding unit. In this case, the dual binding unit is loaded with one net roll and with one roll of film. The operator simply uses the terminal to set one binding unit up for net binding or the other unit for film binding. Changing the film or the net does not cause any unnecessary idle time!

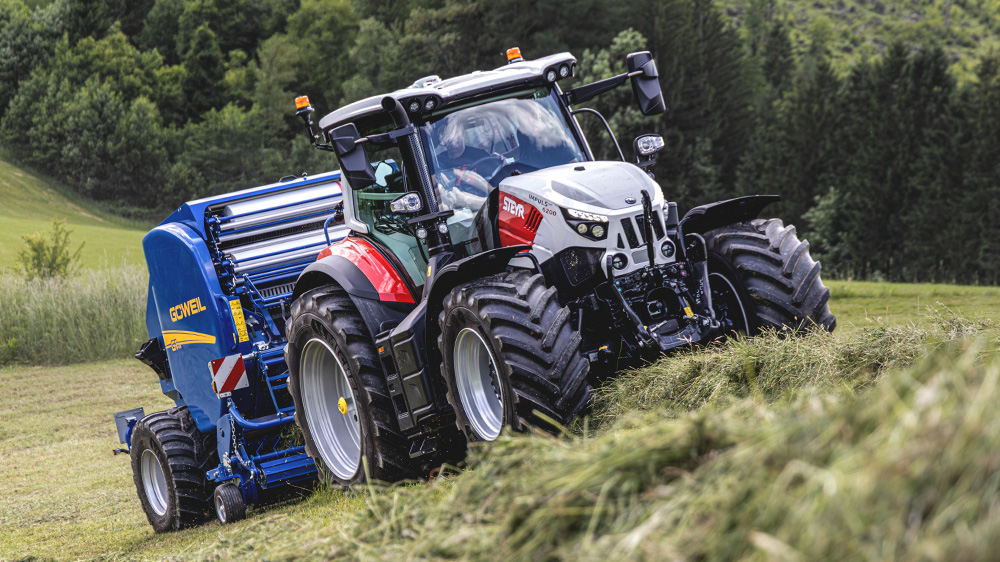

Drive axle

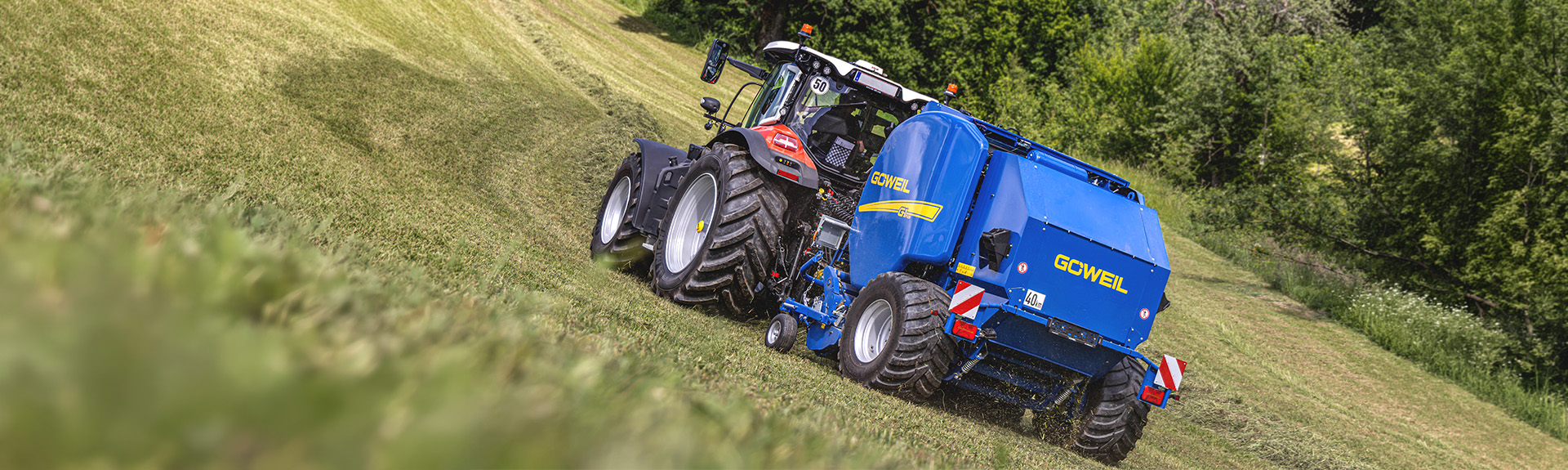

Round baler for mountain areas
Available as additional equipment, the drive axle is of tremendous benefit especially during work in steep slope positions. It provides a powerful, yet soil-preserving push uphill, while supporting the braking action during downhill travel. The driver can concentrate fully on the work.
The drive axle offers maximum safety and superior comfort in any slope position – uphill and downhill.
The sensor system integrated in the drawbar controls the operating states – Drive, Neutral, and Brake – in a completely autonomous way. The driver can rely on the system providing maximum traction at maximum soil protection, allowing them to solely concentrate on their work. A clearly organized display continuously informs the driver of all relevant parameters.
The drive is powered hydraulically by two radial piston / wheel hub engines. The switch between forward and reverse is initiated automatically by a signal given from the tractor. The percentage of the driving force with which the drive is supposed to power the machine in first and second gear is controlled via the terminal.
When the machine is driving uphill – either in reverse or forward – the drive switches automatically from drive mode to hydrostatic brake mode. To prevent the wheels from locking up, the speed of the two drive wheels is constantly monitored and readjusted automatically. This ensures that the wheels are constantly in motion during uphill travel (ABS).
When the machine is traveling on the road, the radial piston engines are automatically released mechanically and will freewheel (no mechanical resistance).
Drive
GÖWEIL's split drive concept ensures that the "Automatic Flow Control" (AFC) runs smoothly and guarantees a particularly high throughput rate.
No Downtime!
The power transferred by the PTO drive shaft to the main gearbox is spread across the drive chains of rotor, pickup and bale chamber and safeguarded individually by two cam switch couplings. The couplings are monitored by the ISOBUS program control.
When the cam-type clutch of the rotor responds to an excess quantity of feed in the conveying duct, the hydraulic cutting floor will open in fully automatic fashion. When the rotor starts up again, the excess feed is guided unobstructed into the bale chamber. The cutting floor closes automatically, allowing the baling process to resume without hindrance.
When the cam switch coupling responsible for the bale chamber trips, the tailgate will open automatically by a few centimeters and allow for the bale to be started and bound without hindrance.
The drive train conceived by GÖWEIL provides for a smooth work flow.

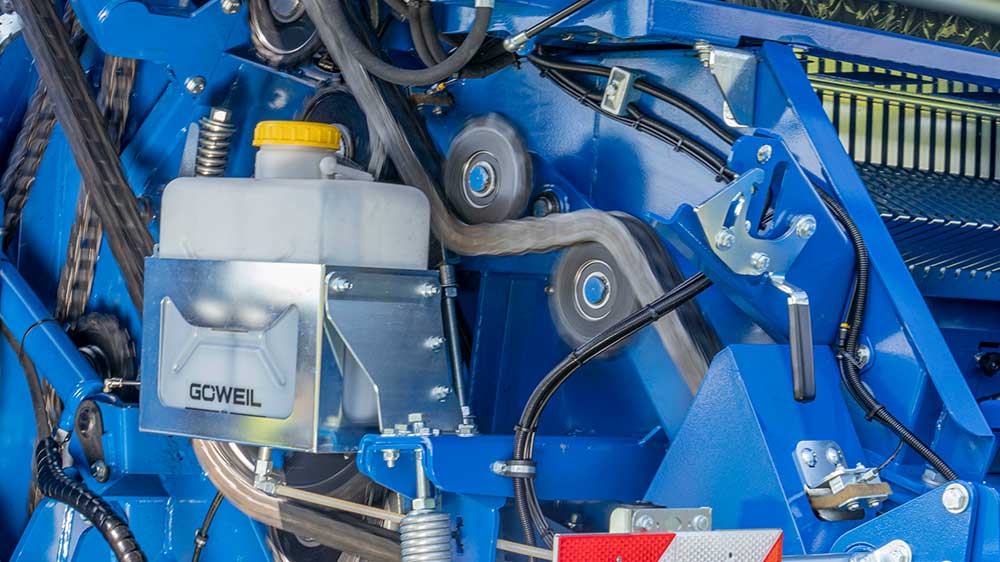

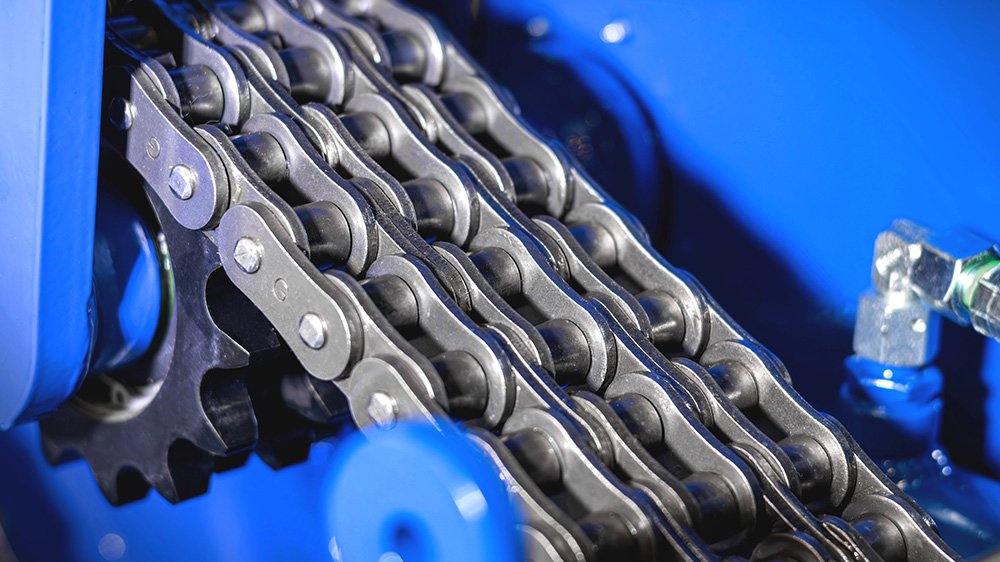

Maximum performance thanks to high-tensile chains
High-quality components are an essential prerequisite for the drive train’s smooth and trouble-free operation. The chains used for the main drive and for driving the pickup and the rotor in the machines of the latest generation have been increased in size yet again in order to boost the performance of the drive system even further. This extends the lifetime of the machine considerably and reduces the operation costs to a minimum.
Well-built roller bearings
All baler rollers are fitted with sturdy and durable double-row pendulum roller bearings with a diameter of 60 mm. Additionally, the two drive rollers are equipped with 65 mm bearings.

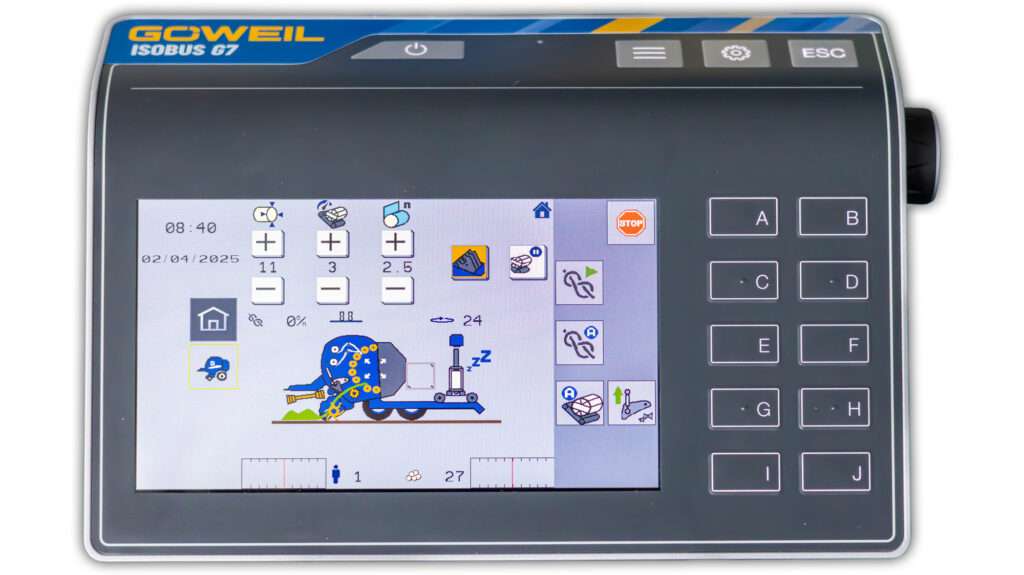

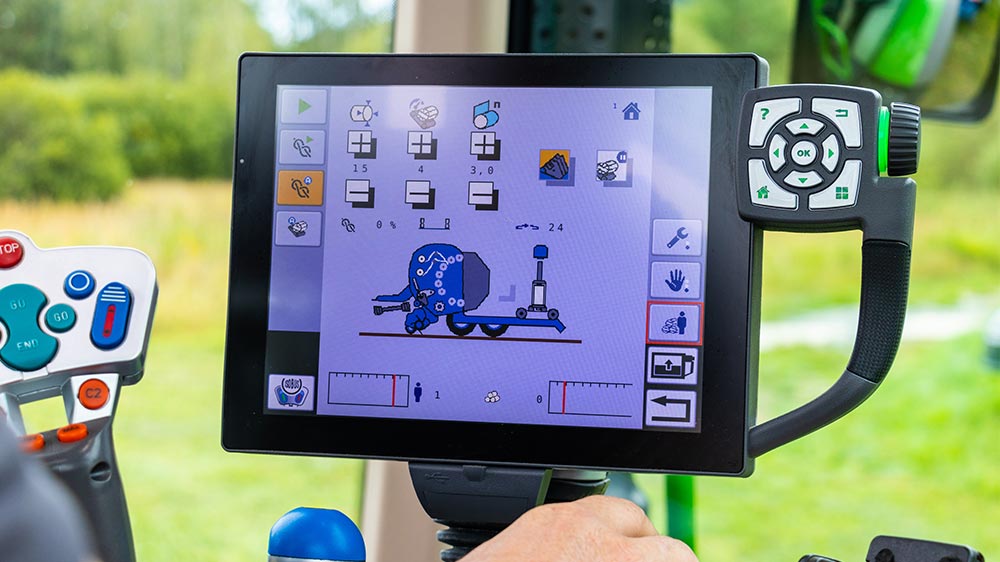

ISOBUS Control
ISOBUS is an internationally standardized protocol that is in charge of the communication between the tractor and the mounted implements. It allows for the real-time display of the data on the terminal housed in the tractor. The operator uses the terminal to monitor and control the machine. A standardized plug connection system has now eliminated the need for using more than one terminal for different implements.
GÖWEIL is making this baler generation available with ISOBUS as the standard option. The interface of the control is clearly arranged and easy to use. What is more, the color display shows a greater amount of information. The camera system affords the operator a good view of the work flow and the machine.
The following terminal is available as an option for GÖWEIL:
- ISOBUS terminal G7 (7.0") with 10 buttons and encoder
The machines are, of course, compatible with all other ISOBUS-capable terminals.
ISOBUS monitors and controls the entire work flow in fully automatic fashion. The clearly organized display keeps the driver informed about all steps processed by the machine. It is also possible to control all relevant work steps of the machine – quickly and easily – by hand using the terminal.
The control panel with push buttons used for the G-1 F125 and the G-1 F125 Kombi comes in particularly handy when the wrapper requires maintenance and servicing. This way, the operator can control the most important functions directly at the machine.
Maintenance
A standard feature on the machine, the automatic central lubricator is designed to deliver superior ease of maintenance and ensures an exceptionally long lifetime for the machine.

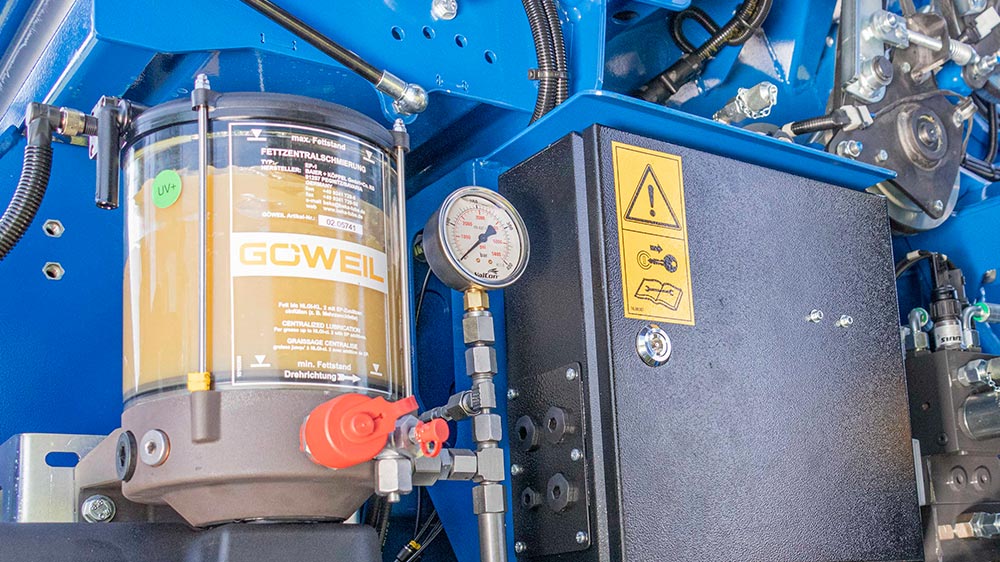

Maintenance-Free thanks to central lubricator
The fully automatic grease lubricator is used to supply sufficient lubrication to all bearings of the rollers and of the rotor. The oil lubricator provides a constant supply of oil to all chains on the bale chamber, the rotor and the pickup. Brushes spread the oil evenly across the chains.
Sufficient Supply
The large-size reservoirs for grease and oil provide for long service intervals.
Wrapping Technology
The robust and solid construction and workmanship of the frame guarantee an exceptionally long lifetime of the baler-wrapper combination. The G-1 F125 Kombi offers outstanding agility and is gentle on the grass thanks to its compact design and the narrow spacing of its wheelbase. In addition, its low center of gravity allows for a level of maneuverability on slopes that is second to none.
Chassis
The tandem axle chassis is distinguished by its even larger-sized wheels: Its comes standard with 560/45-R22,5 Flotation Trac tires made by Vredestein. Uniform weight distribution and the narrow axle spacing allow the baler-wrapper combination to offer superior handling and control. The load on the ground in the field is reduced significantly – which also allows the Kombi to run smoothly at 40 km/h even when traveling over soft ground or on the road. Despite the wider tires, the vehicle width remains at 3.00 m.
For extreme conditions, 710/35-R22.5 tires from Nokan are available as an option (vehicle width increases to 3.30 m).
Depending on your preference, the G-1 F125 Kombi can be equipped with a dual-line air brake system or a hydraulic dual-line brake system.
Load Sensing
The standard hydraulic “Load Sensing” control system automatically adjusts the oil volume to consumption. This control system, thereby, not only performs several functions simultaneously, it also reduces fuel consumption at the same time. This results in a greater bale output per hour. The machine can also be operated in conjunction with tractors without load sensing pump.
Control unit with push buttons
The control unit comes in particularly handy when the machine requires maintenance and servicing. It allows the operator to control all functions directly at the wrapper. This makes such steps as changing the film quick and easy.
Twin wrapping arm with film stretching unit
The twin wrapping arm is equipped with two 750 mm film stretching units. Three patented plastic rollers provide for uniform stretching. What is more, the rollers are not sensitive to temperature. This saves film and guarantees tightly wrapped and airtight bales.
The pre-stretchers are height-adjustable. This ensures that the bales will always be wrapped perfectly around their own center. The quick-release system makes it possible to change empty rolls quickly and effortlessly. The film monitoring unit will cut off the wrapping process if the film runs out or tears. When a roll of films runs out, the machine will automatically switch to single-film mode. During this process, the feed rate of the wrapping table is reduced to ensure an overlap of 50 %.
Rotating wrapping arm with stationary wrapping table
This system reliably prevents the bale from falling off as it is not subjected to any kind of centrifugal forces. The conveyor belts and the four rotating bale guide rollers guarantee that the bale will continually move forward and, consequently, ensure a uniform overlap of the film. When it is time to drop the bales, the mobile wrapping table is lowered all the way to the ground. This provides for a gentle deposit of the bales.

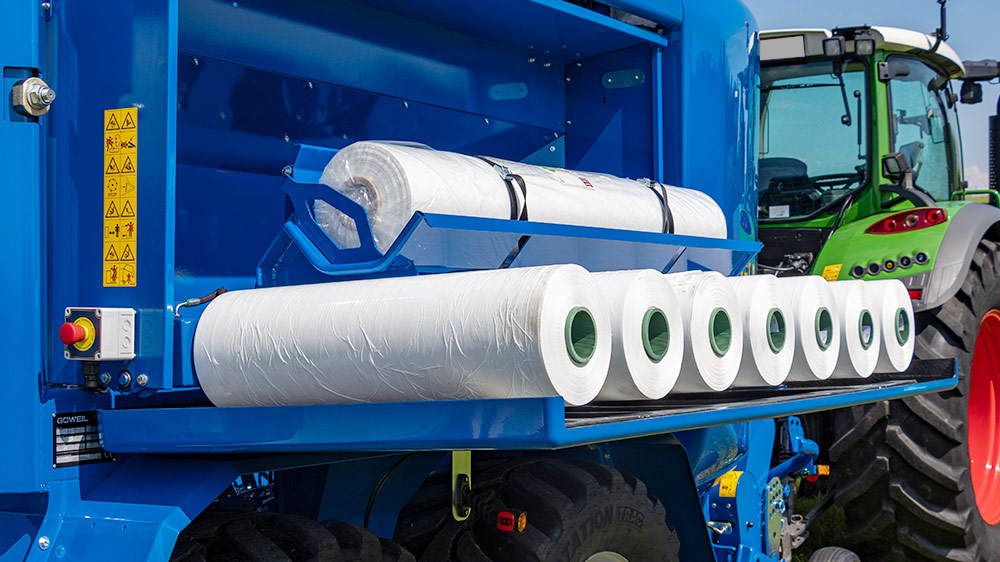

Closed film storage
The new film storage scores high marks with its improved design and functionality. The closed, hydraulically folding film storage has space for 14 rolls of wrapping film plus 2 rolls of wide film or netting and keeps the rolls protected against the weather and damage. The tilting device lets the operator load or remove film with ease and at a comfortable working height. This makes it possible to wrap approximately 300 to 400 bales depending on the number of film layers.

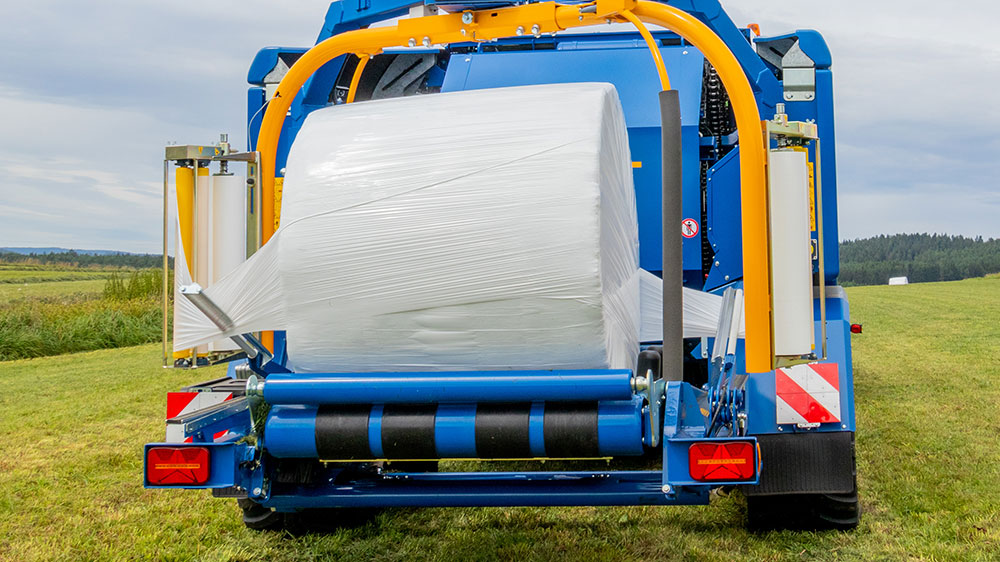

Automatic film cutting and holding system
The stainless steel knives guarantee that the wrapping film will be cut cleanly and precisely. At the same time, the films are fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the wrapping films will unwind easily.
Basic model with EU type-approval
Hydraulic system
Load sensing (can also be operated in conjunction with tractors without load sensing pump)
Pick-Up
- Camless pendulum pickup
- DIN rake width: 2.20 m
- Rows of tines: 6
- Tine spacing: 51 mm
- Plastic strippers
- Roller hold-down device with feed comb
- Touch wheels with pneumatic tires
Infeed
- 6-star rotor
- Hydraulic drop floor
- Cutting unit with 30 twin blade reversible knives
- Cutting length: 35 mm
- Hydraulic bar safety device
Bale chamber
- 18 steel rollers (4 mm) reinforced on the inside (including cleaning & starter roller)
- Double-row pendulum roller bearings
Binding unit
- Net binding
- Hydraulically adjustable brake roller
- Automatic monitoring
Drawbar
- Rigid drawbar
Chassis & tires
- Single axle
- Round Dance: 500/60-R22.5 FL630 Plus
- Brake system Dual-line air brake system
Drive
- PTO speed: 1,000 rpm
- AFC Auto Flow Control: split drive concept
- Split drive: Overload safeguard with 2 cam switch couplings
- Chains:
- Main drive – bale chamber: 24 OH
- Secondary drive of bale chamber: 100 HSP
- Rotor: 80 HSP Triplex
- Pick-Up: 80 HSP
Maintenance
- Fully automatic central lubricator for grease and oil
Control system
- Fully automatic ISOBUS program control (without touch display)
Technical data (Basic model)
| Height – single binding unit |
|
| Height – dual binding unit |
|
| Length | 4,735 mm |
| Width tires (500/60-R22.5) | 2,550 mm (9’ 10”) (standard) |
| and drive axle | 2,690 mm (optional) |
| Width tires (600/50-R22.5) | 2,770 mm (optional) |
| and drive axle | 2,890 mm (optional) |
| Width tires (710/40-R22.5) | 2,970 mm (optional) |
| Weight | 5,580 kg |
| Bale size | 1,20 x 1,25 m |
Required connections
| Load Sensing connection (for LS mode) or one pressure connection and one depressurized return for the supply of the round baler |
| Electrical power supply to the machine via ISOBUS connector or the included wiring harness |
| 7-pin socket for the entire lighting system, except work lights |
Power requirement of the towing vehicle
| Oil requirement | From 40 l/min at 200 bar optimal: from 65 l/min at 200 bar |
| Power requirement | at least 90 kW (at least 120 HP) |
Additional equipment
Tires 600/50-R22.5 Flotation Trac
Width altered to 2,770 mm | With drive axle: Width altered to 2,890 mm (7’)
Tires 710/40-R22.5 Flotation Trac
Width altered to 2,970 mm (7’)
Swiveling touch wheels
Bale ramp
A bale ramp can be used to deposit the bale outside of the swivel range of the tailgate. Resetting the machine is not necessary.
Bale catcher
Makes it easier to perform the bale deposit on slopes (Cannot be used in combination with the bale ramp!)
Film and Net Binding Unit with a Camera System
2 cameras for monitoring binding and bale deposit, including color monitor
Dual binding unit
The bale is wrapped simultaneously in two nets or wide films. This cuts the binding time for the bale in half. Alternatively, the dual binding unit can be used as a single binding unit and loaded with one roller of net and
one roller of wide film.

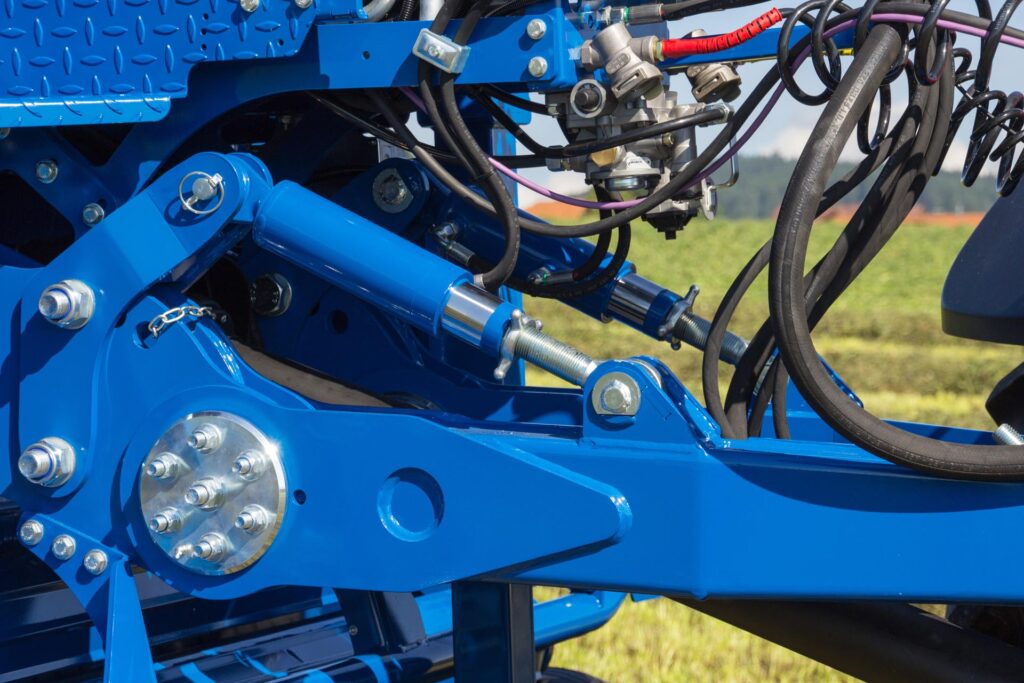

Hydraulic articulated drawbar
- Hydraulic articulated drawbar with two double-acting cylinders
Hydraulic articulated drawbar with suspension
- Hydraulic articulated drawbar affords the operator an exceptionally smooth ride
Drive axle, complete
- Hydraulic drive uphill
- Automatic braking function downhill
- ABS system
- Automatic regulation
- Parameters can be set on the terminal
Only in combination with tires 500/60-R22.5 and 600/50-R22.5
ISOBUS terminal G7 (7.0") with 10 buttons and encoder
ISOBUS-capable power supply for tractor
- Wiring harness is required if ISOBUS is not available on the tractor
LED work lights
Camera system
2 cameras for monitoring binding and bale deposit, including color monitor
Cannot be combined with net and film binding
Silage additive dosing
- Dosistar control unit
- Pump with filter
- Electronic flow measurement
- Various nozzles
- 100 l tank
Cleaning kit with air pressure
Consisting of compressed air hose and air gun, used for cleaning the round baler
Only in combination with air brake system!
Drawbar eye types
- Customers can choose from a large selection of drawbar eye types
Country-specific additional equipment
Hydraulic dual-line brake system – with emergency brake valve and pressure accumulator
Beacon light
FAQ - Frequently asked questions
How many blades does the G-1 F125 have?
The cutting unit is fitted with 30 twin-blade cutting edges and makes it possible to achieve a cutting length of 35 mm.
What does dual binding mean in relation to the G-1 F125 Kombi?
Thanks to the dual binding unit, the bale is simultaneously bound by two nets or wide films. This cuts the binding time for the bale in half. It is also possible to insert one roll of net and one roll of film, and change the type of binding using the terminal. The single binding unit is used for this method.
How does my tractor need to be set up in order to be able to operate the baler-wrapper combination?
The tractor must have at least 120 HP (90 kW) and needs the following connections:
- Load Sensing connection (for LS mode) or one pressure connection and one depressurized return for the supply of the round baler
- Electrical power supply to the machine via ISOBUS connector or the included wiring harness
- 7-pin socket for the entire lighting system, except work lights
Can you also bale straw with the baler-wrapper combination?
- Yes.
Which bale diameters can the round baler from GÖWEIL process?
The G-1 F125 round baler is a fixed chamber baler; the bale diameter is 1.25 m.
How powerful does my tractor need to be to use the G-1 F125 Kombi?
- The power requirement from the tractor is at least 90 kW.
