Round Bale Transport Fork, mechanical
BTGME
Bale Fork / silo bale fork / straw bale fork
BTGME | Round Bale Transport Fork, Mechanical

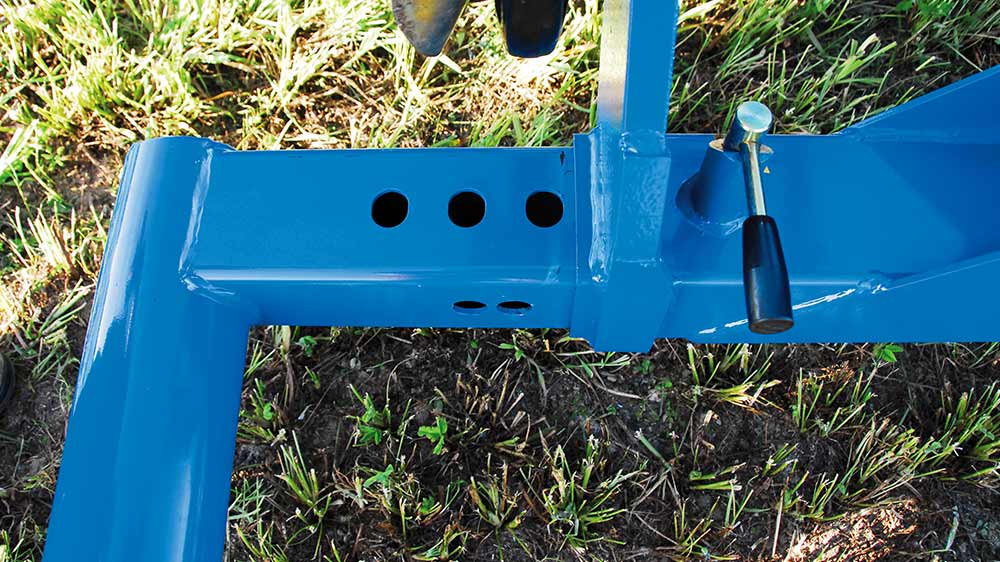

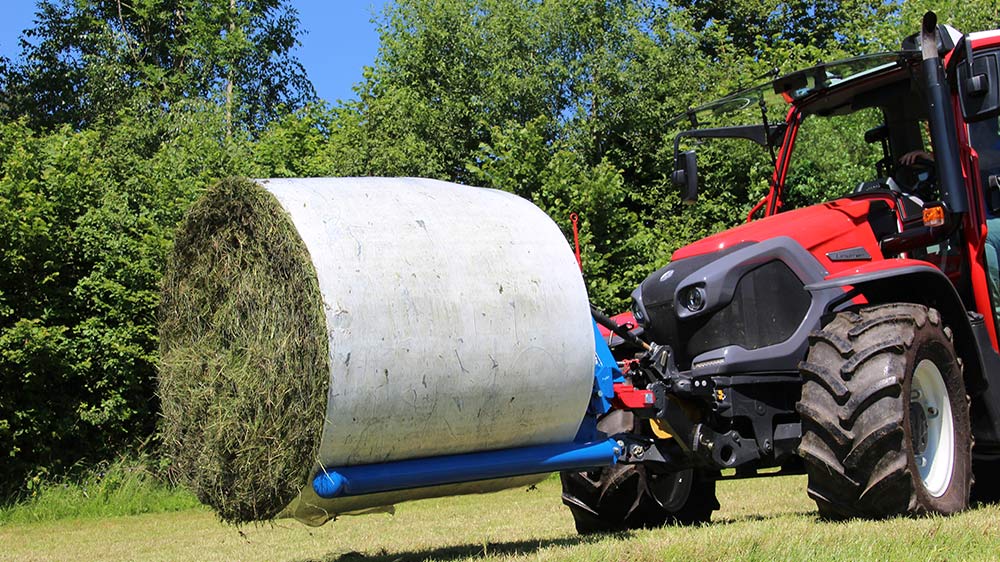

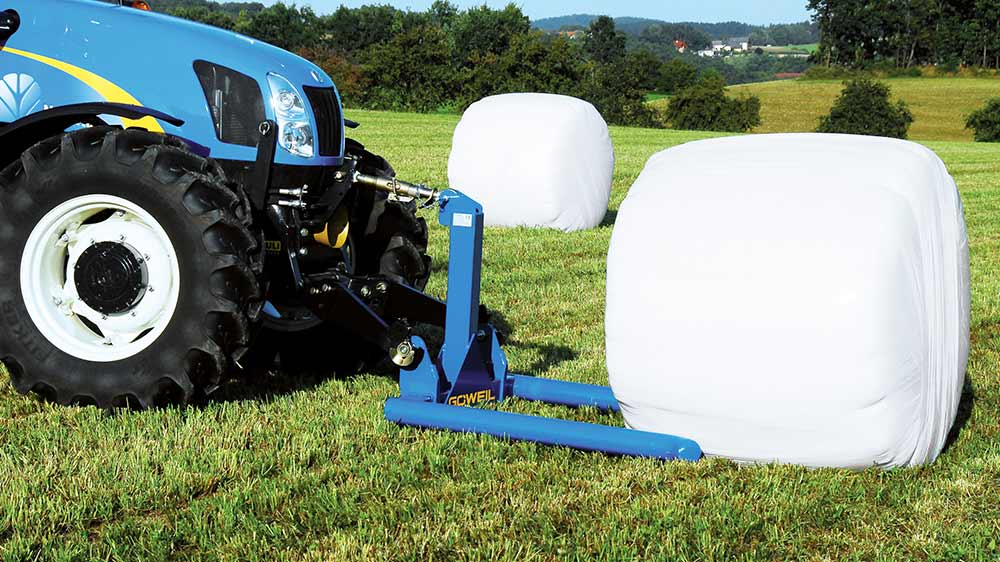

The round bale transport fork is designed for the gentle transport of wrapped and unwrapped round bales with a diameter of 1.00–1.80 m. The opening width can be mechanically adjusted in 50-mm increments using a quick-release fastener. The transport arms of the round bale transport fork can be raised for road transport.
Basic Model
Base frame with Cat. I and Cat. II three-point linkage
Large fork pipes / Ø: 110 mm
Quick-release fastener for width adjustment
Take advantage of our demonstration service and see for yourself.
Technical data
(Basic model)
| Weight | 90 kg |
| Length | 1,380 mm |
| Width | 1,140 mm |
| Height | 970 mm |
| Bale weight | up to 1,500 kg (2,200 lbs) |
| Bale diameters | 1,00 – 1,80 m (36” – 63”) |
Possible attachments
(excluding installation)

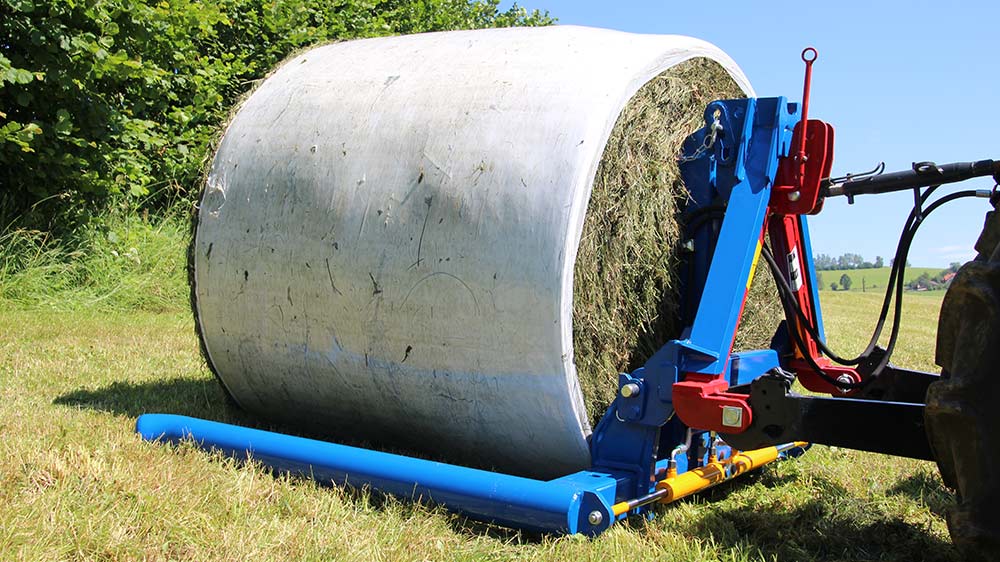

| Adapter Weiste triangle Cat. II |
| Other attachments – on request |
| Overview Mounting options |
Additional equipment
Hydraulic width adjustment
Double-acting hydraulic control device required
Bale transport spike double conversion kit
For transporting two unwound round bales (max. bale diameter
1.60 m) or square bales at the sametime.
Reinforced tines (Ø: 42 mm, length 1100 mm)
Payload: max. 1500 kg
FAQ - Frequently asked questions
What is the maximum bale weight that can be processed by the BTGME?
The maximum weight of the bales is 1,500 kg.
Is the width of the BTGME hydraulically adjustable?
The opening area can be adjusted continuously using two hydraulic cylinders Double-acting hydraulic connection required.
