Stationary square bale wrapper with diesel engine
G3010 Q Profi | Square bale wrapper
Equipped with a powerful diesel engine delivering 17.5 kW, the stationary square bale wrapper G3010 Q Profi is the perfect machine for contract harvesters. The work cycles "wrap bale" and "stack bale" are executed simultaneously. Thanks to the PROFI program control, the execution of all work cycles is fully automatic.
Highlights
Secure bale Guiding
The roller tubes arranged on both sides are connected to each other by control rods. This results in forced control which, in conjunction with the conveyor belt, produces a clamping effect on the bale. The wrapper is able to guide the bale securely even with rectangular bale dimensions. A quick adjustment can adapt the belt length to different bale dimensions.
Control system PROFI
A genuine highlight is the user-friendly and easy-to-use program control PROFI. The process steps are carried out fully automatically . All functions and parameters can also be set manually.

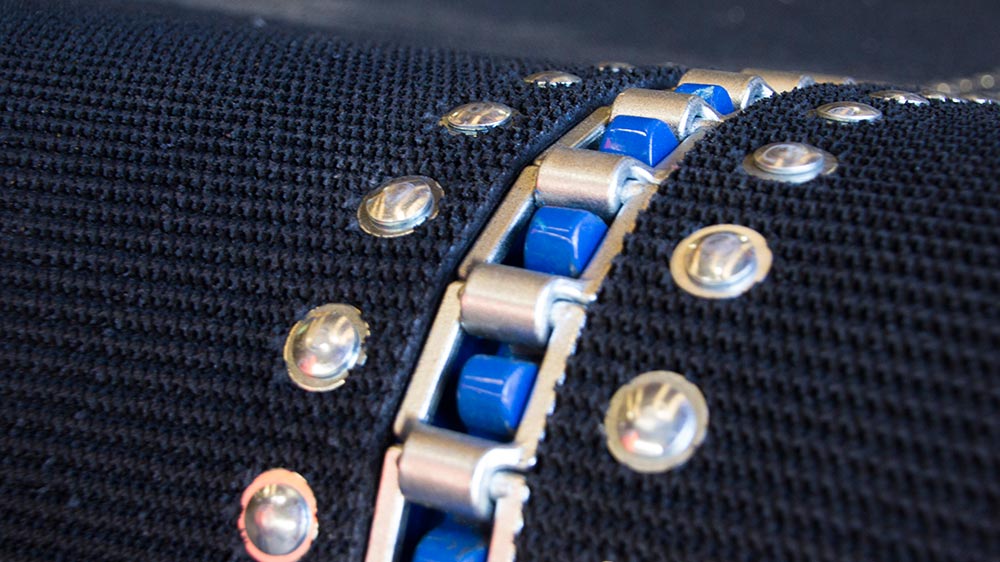

Continuous belt
The wide, continuous belt guarantees uniform wrapping of each and every bale – even if it is misshapen.
engine

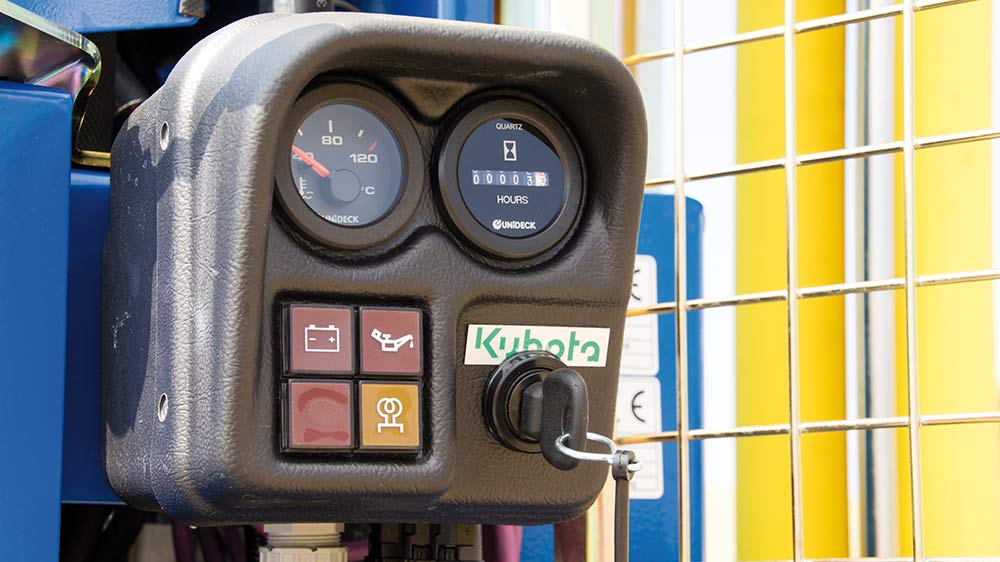

The square bale wrapper comes standard with a water-cooled 17.5 kW KUBOTA diesel engine equipped with a battery, alternator, hour meter, and electric starter, as well as a hydraulic system.
Reermann Agrarservice in action with two G-1 F125 Kombi vehicles
A powerful one-two punch for forage harvesting: The Reermann Agrarservice contracting firm from Brilon serves its customers with two GÖWEIL baler-wrapper combinations. Although there is a wide selection of round balers available, the service provider deliberately chose the blue machines from Austria. In this video, we’ll take a look with you at how this came about and what the technology is capable of under tough, continuous use. Come along and join the forage harvesting pros from the Sauerland as they go about their work!
“We decided to go with the GÖWEIL wrapper again, and this time with the baler built in – which, from a technical standpoint, totally blew us away!”
Stefan Reermann
Agricultural Service Specialist from the Sauerland Region
Video of the G3010 Q Profi
Basic Model
(without hydraulic oil) - WITH EU type-approval
Single wrapping arm
Hydraulically tilting wrapping table with mechanical belt length adjustment
Bale deposit to the left or right
Wide, continuous bale conveyor belt with belt guide and 2 bale guide rollers
Film pre-stretcher combined
For film widths between 500 mm and 750 mm (20” and 30”); the overlap can be adjusted as well
Film cutter precision cut
Hydraulically adjustable lift axle
Removable, hydraulic articulated drawbar
Storage for 16 rolls of film
Tires 380/55-17 AW
3-cylinder Kubota diesel engine (without hydraulic oil)
23 hp diesel engine, water cooled,
battery, electric starter, hours counter, return filter and 12 gal hydraulic oil tank and automatic RPM control

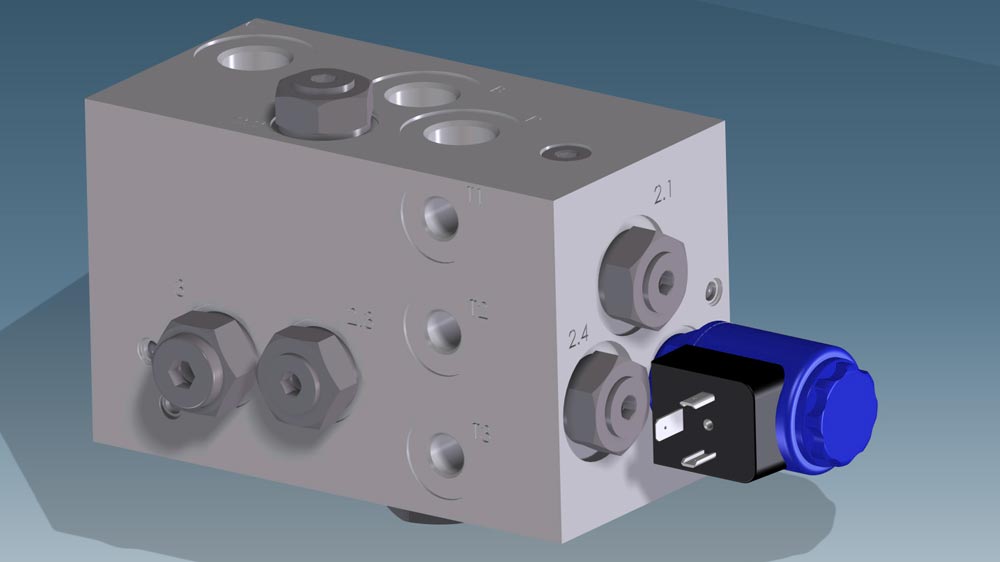

Feed rate shut-off valve
This ensures that the film will overlap accurately for rectangular bales
LED Light and indicator system
LED work lights

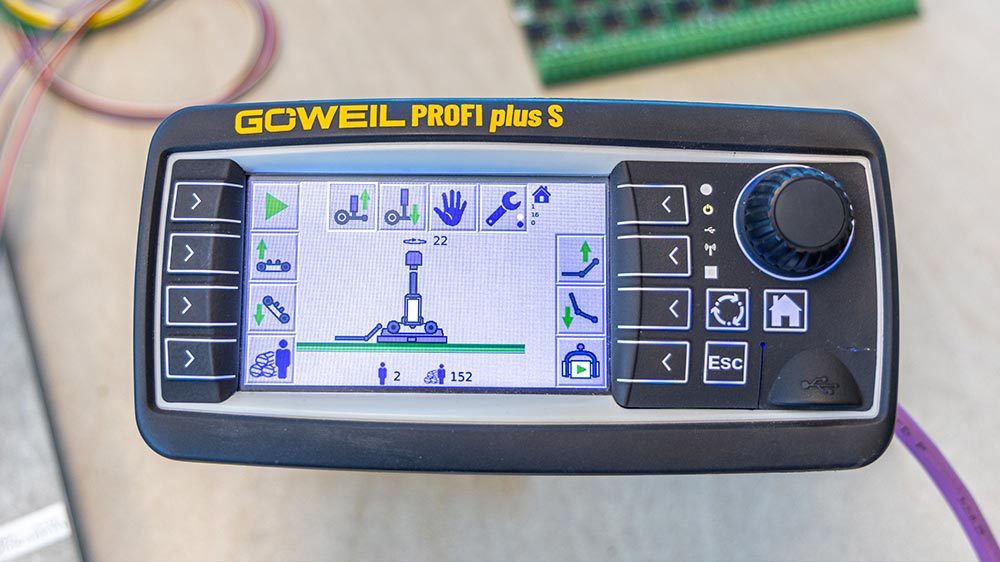

Fully automatic remote control PROFI and PROFI plus S terminal
All work cycles are fully automatic
Technical data
(Basic model)
| Weight | 1,850 kg |
| Length | 5,610 mm |
| Width | 2,410 mm |
| Height | 3,180 mm (10’ 6”) (with the lift axle extended) |
| For all bale dimensions: | from 0.80 x 0.50 to 1.20 x 1.40 m |
| Bale length: | from 0.80 up to 1.60 m |

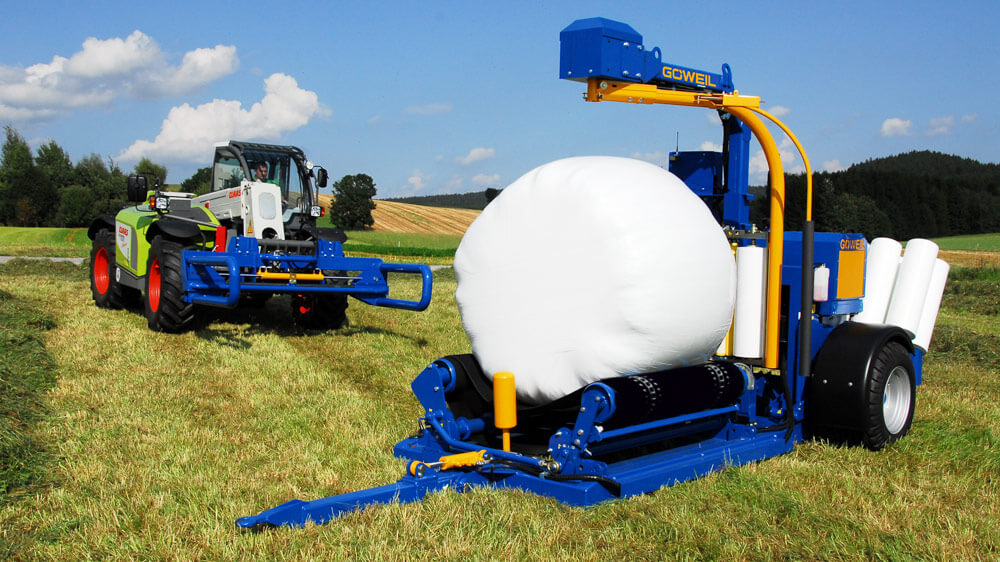

| Round bale diameter | 0.90 – 1.50 m (36” – 60”) |
| Oil requirement | Self-sufficient oil supply |
| Bale weight round / square: | max. 1,800 / 1,000 kg (max. 4,000 / 3,300 lbs) |
Required connections
| 7-pin power outlet for the entire lighting system (excluding work lights) |
| 3-pin socket for electrical supply of the hand-held terminal 12 V / 10 A) |
Additional equipment
Tires 520/50-R17 FLT
Width altered to 8’ 4”,
Height altered to 10’8” (with the lift axle extended)
Additional bale guide roller
Axle suspension
Battery supply cable 5.3 meters 2 x 6 mm² with 3-pin power socket
Drawbar eye types
J, K, L (specify when ordering)
FAQ - Frequently asked questions
What equipment does my tractor need for the G3010 Q Profi?
Required connections
7-pin power outlet for the entire lighting system (excluding work lights)
Can I vary the side of the G3010 Q Profi on which bales are deposited?
Yes, bale deposit is carried out to the left and right with the G3010 Q Profi.
What does square pause mean in relation to the G3010 Q Profi?
The term "square pause" means that the wrapping table is stopped during the wrapping process to achieve the correct overlap of the wrapping film, especially on the long side of the bales.
How does the RPM control for the engine work on the G3010 Q Profi?
The "RPM control for diesel engine" additional equipment switches automatically to idle speed after the wrapping process or during longer pauses.
