Trailed round bale wrapper with twin wrapping arm
G5012 | Round bale wrapper

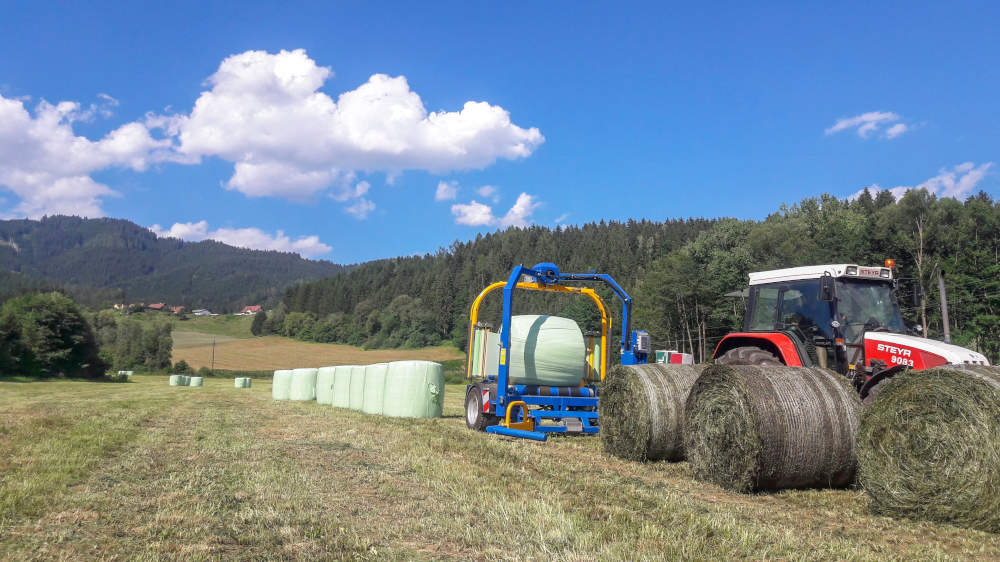

The G5012 trailed round bale wrapper is equipped with a twin wrapping arm and a bale Pick-Up . This cuts the time that is necessary to wrap the bale in half! You will save time and money especially on long workdays. The G5012 is equipped with the STANDARD program control.
Highlights

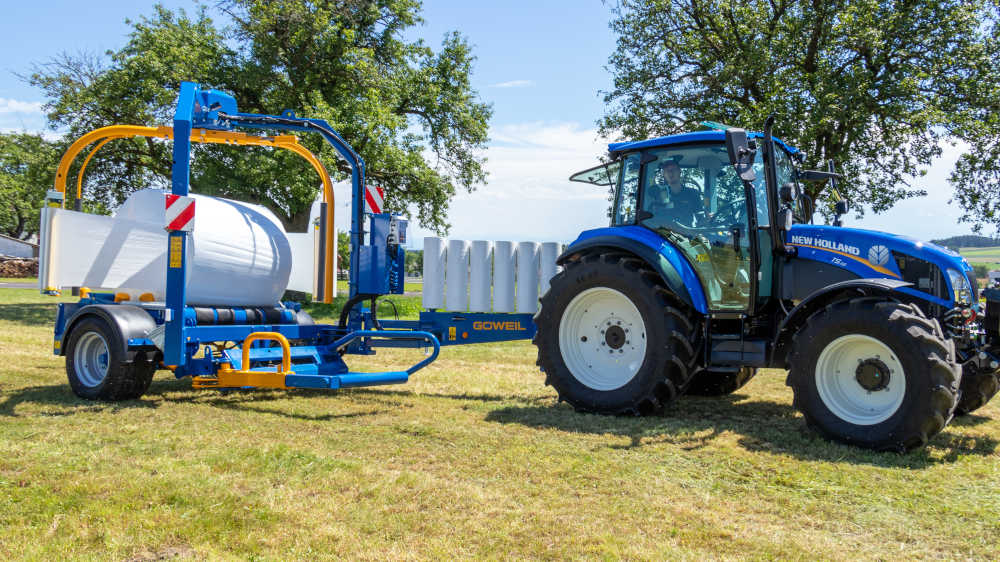

Design
The wrapper’s sturdy and solid design and workmanship guarantee a long service life. Thanks to its compact and wide design, the round baler offers particularly good performance on slopes and excellent maneuverability. In addition, its low center of gravity allows for a level of maneuverability on slopes that is second to none. The standard 380/55-17AW tires ensure uniform weight distribution and are gentle on the soil.

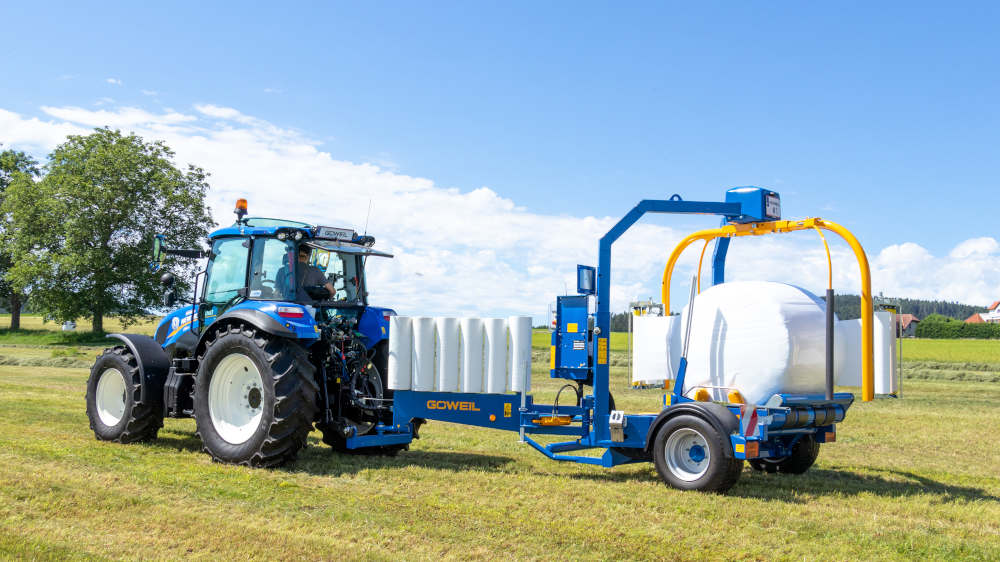

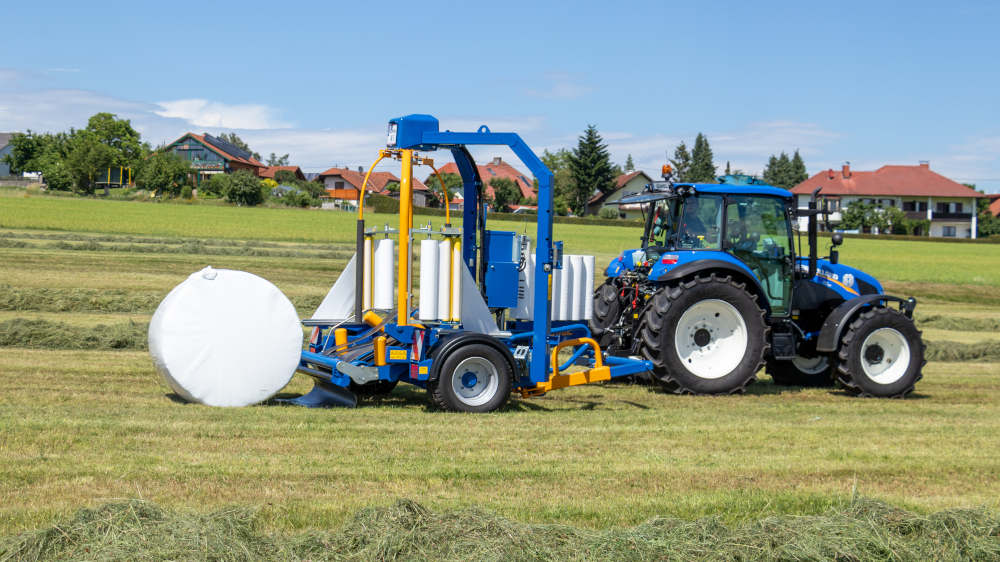

Rotating wrapping arm with stationary wrapping table
This system reliably prevents the bale from falling off as it is not subjected to any kind of centrifugal forces. The conveyor belts and the four rotating bale guide rollers guarantee that the bale will continually move forward and, consequently, ensure a uniform overlap of the film. When it is time to drop the bales, the mobile wrapping table is lowered all the way to the ground. This provides for a gentle deposit of the bales.

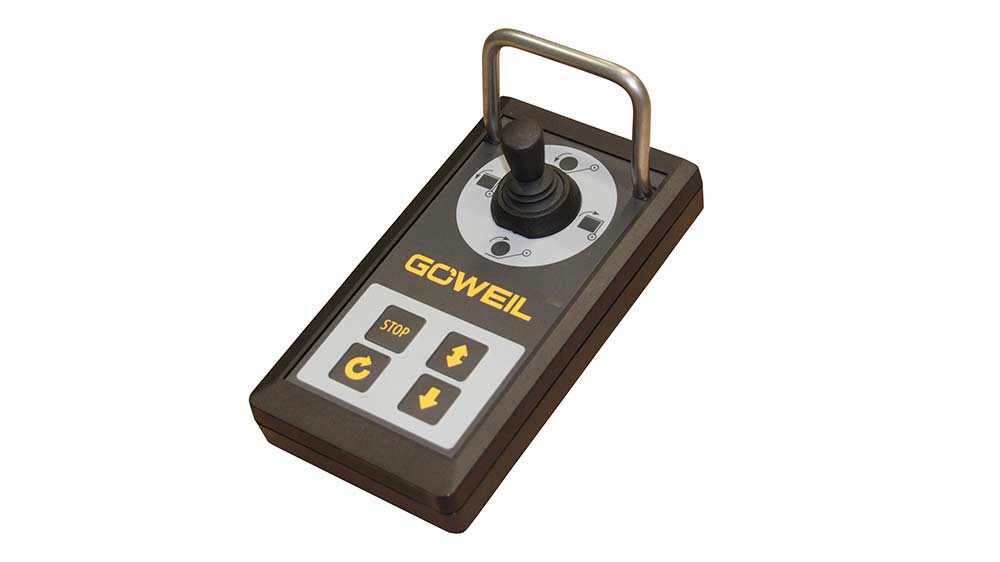

Control system
A genuine highlight is the user-friendly and easy-to-use program control STANDARD with wireless operation and electronic joystick.

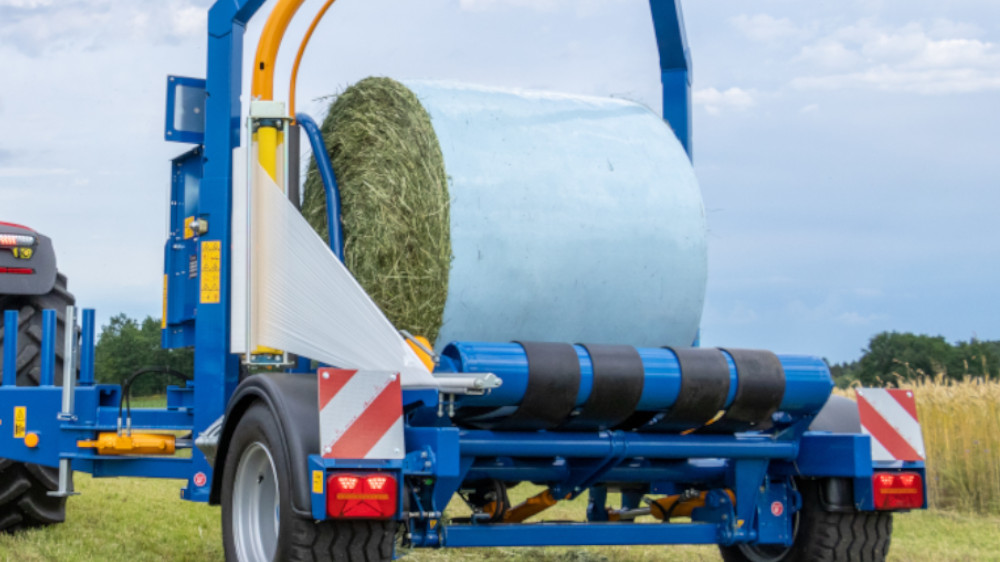

Wrapping arm with film pre-stretcher
The film pre-stretcher is designed for 750-mm film rolls. The three patented plastic rollers provide for perfectly uniform stretching. What is more, the rollers are not sensitive to temperature. This saves film and guarantees tightly wrapped and airtight bales. The wrapping arm is available in two sizes – an added bonus is that the stretching unit is height-adjustable. This ensures that the bales will always be wrapped perfectly around their own center. The quick-release system makes it possible to change empty rolls quickly and effortlessly.

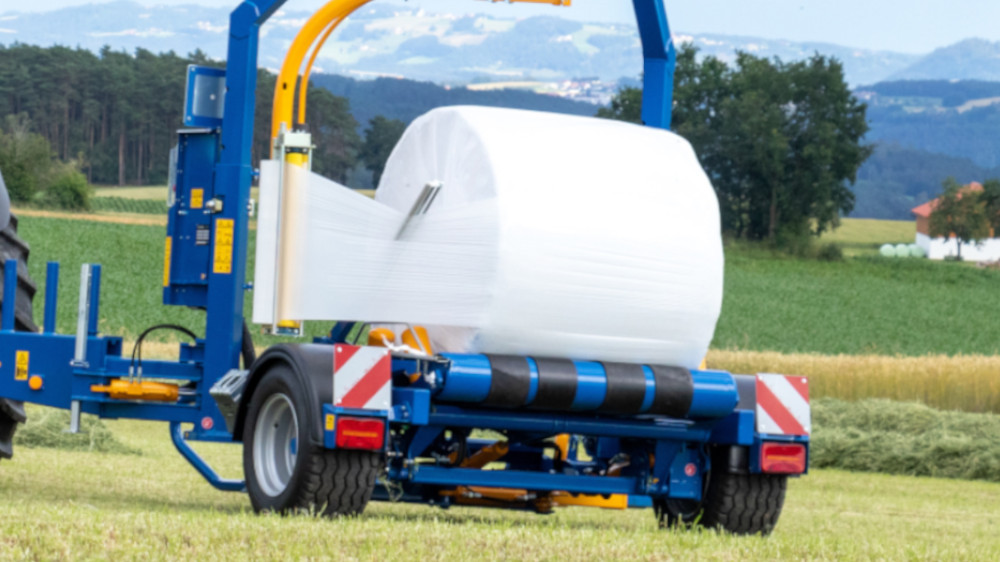

Automatic film cutting and holding system
The stainless steel knife guarantees that the film will be cut cleanly and precisely. At the same time, the film is fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the film will unwind easily.

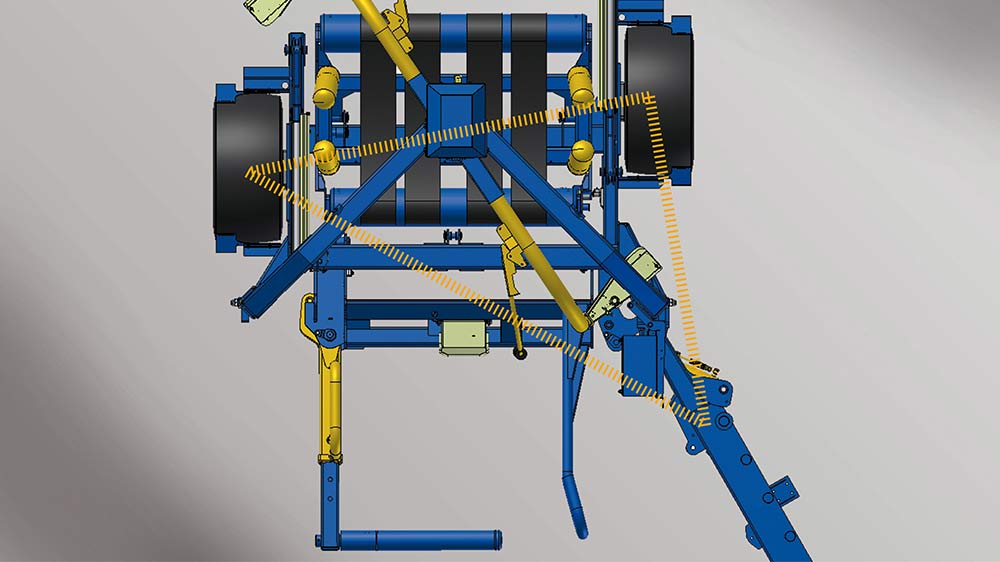

Axle
The machine is built on an offset axle. The work position is shifted to the right, resulting in balanced weight distribution.
The advantages:
- The weight is perfectly distributed, especially when picking up bales
- The wrapper can also be towed by smaller tractors
- Stability on slopes is excellent

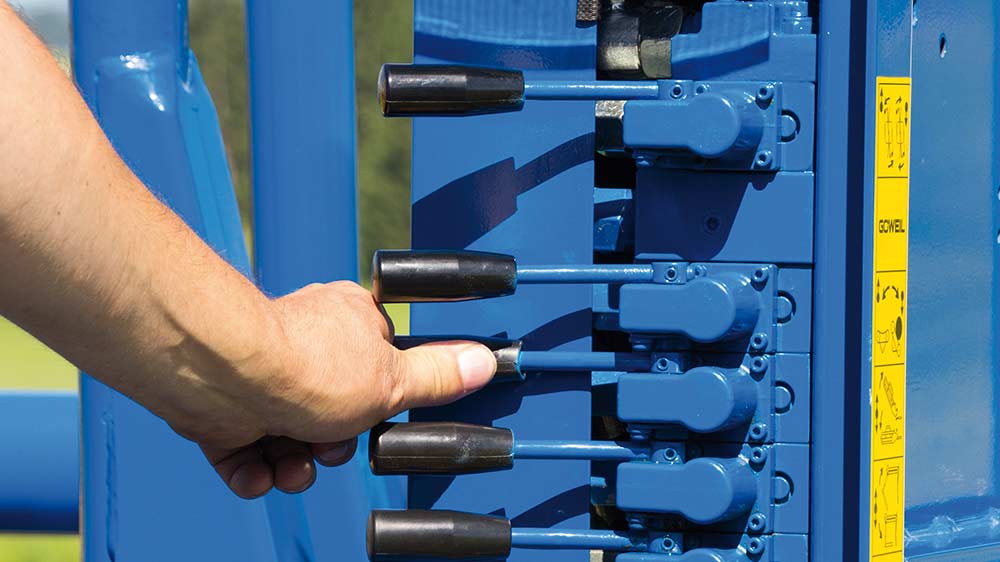

Control lever
The control unit and the levers come in particularly handy during maintenance and service operations. This allows all functions and processes to be carried out directly at the machine.
The operator can easily leave the program control for example, when changing the film in the tractor cab.

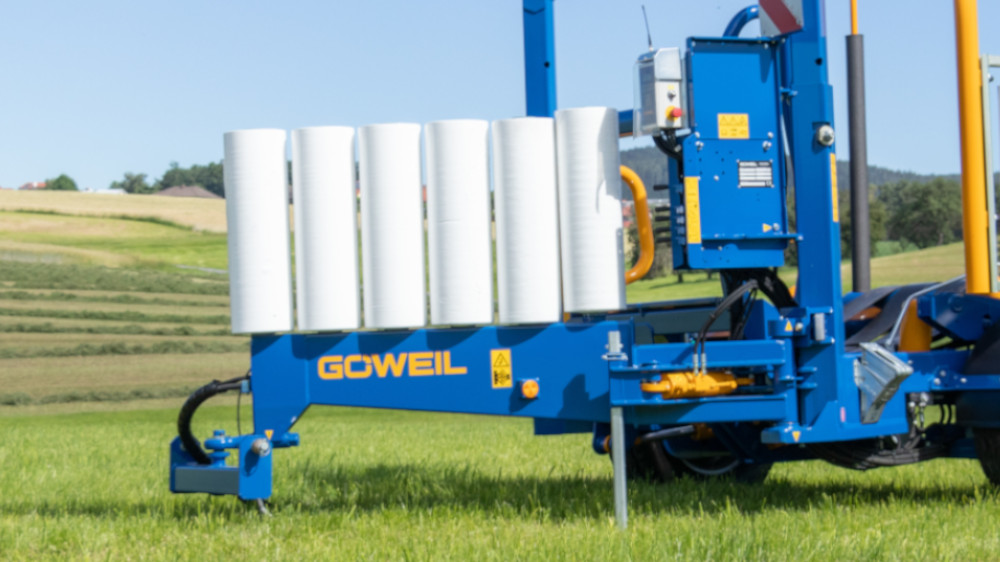

Film Storage
When working long days, you need to make sure that you have enough film. The film storage lets you carry along up to six rolls of film. The brackets are mounted on the drawbar. This makes it easy to load and unload the rolls of film at a comfortable working height.

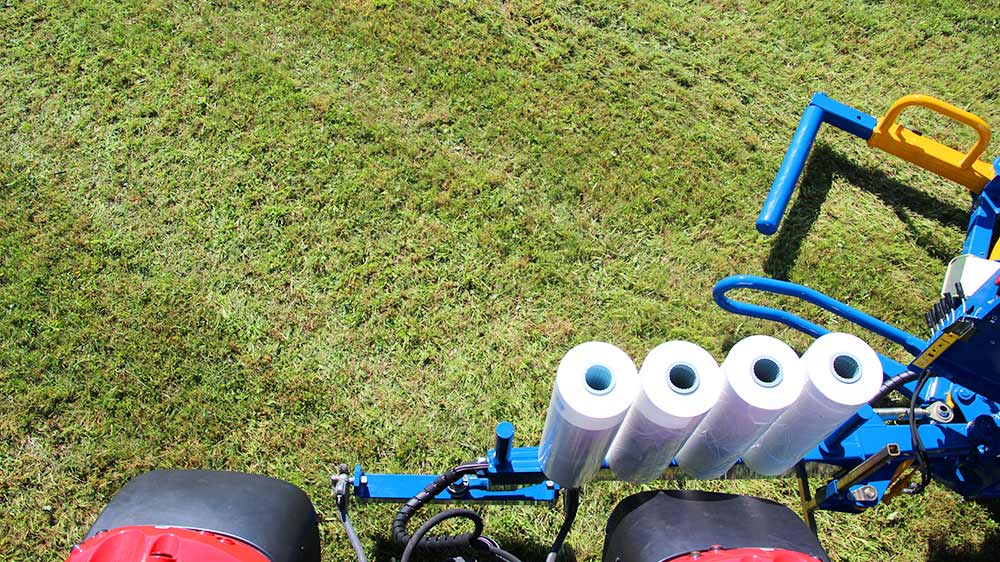

Pivoting drawbar
The hydraulically adjustable pivoting drawbar ensures optimal operation during the wrapping process – bales are picked up from the front in the direction of travel and fed to the baler, and then deposited in the bale deposit at the rear. The standard lower-link hitch makes the wrapper particularly maneuverable. In tight field conditions, a small turning radius is often a decisive advantage!

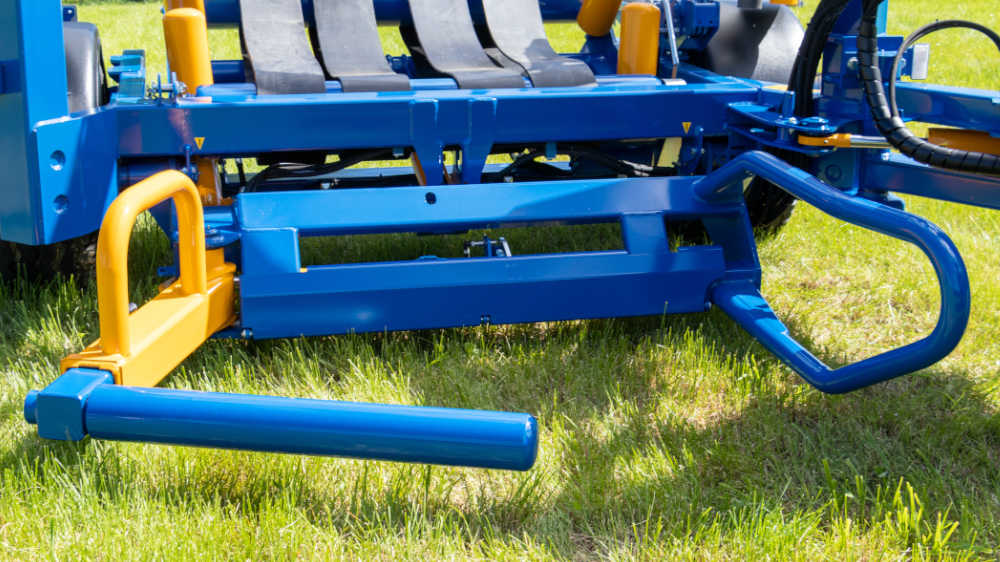

Bale pick-up
The hydraulic loading arm softly grabs the bale and places it gently on the wrapping table, which is tilted backwards while the bale is being picked up.
The loading arm can be adjusted to five different positions, ensuring that it is always perfectly suited to the bale diameter. Thanks to the pivoting, ball-mounted reception tube, the bale is never pinched or damaged. It also guarantees that the bale is picked up reliably even in difficult terrain. The bale pick-up also proves to be exceptionally convenient when you need to transport two bales.
Reermann Agrarservice in action with two G-1 F125 Kombi units
A Powerful One-Two Punch in Forage Harvesting: The Reermann Agrarservice contracting firm from Brilon serves its customers with two GÖWEIL baler-wrapper combinations. Although there is a wide selection of round balers available, the service provider deliberately chose the blue machines from Austria. In this video, we’ll take a look with you at how this came about and what the technology is capable of under these demanding, continuous-use conditions. Come along and join the forage harvesting pros from the Sauerland as they go about their work!
“We decided to go with the GÖWEIL wrapper again, and this time with the baler built right in – which, from a technical standpoint, totally blew us away!”
Stefan Reermann
Agricultural Service Specialist from the Sauerland Region
Video of the G5012
Basic Model
(without hydraulic oil) - WITH EU type-approval
Load-Sensing
Can also be operated with tractors without load-sensing pump
Twin wrapping arm
(Standard: 1.50 m; optional: 1.25 m)
Hydraulically actuated wrapping table
Bale deposit to the rear
Hydraulically rotatable bale pick-up
Bale pick-up from the front
4 bale conveyor belts including belt guide and 4 bale guide rollers
Film pre-stretcher 750 mm
Film cutter precision cut
Storage for 6 rolls of film
Hydraulic pivoting drawbar with manual operation and lower linkage hitch
Tires 380/55-17 AW
LED Light and indicator system
LED work lights
Program control STANDARD
The "bale pick-up" function is performed manually using the electronic joystick. The cycles “wrapping process” and “film-holding and cutting” start automatically
while “bale drop” starts at the push of a button.
Technical data
(Basic model)
| Weight | 1,780 kg |
| Length | 3,940 mm |
| Width | 2,750 mm |
| Height | 3,060 mm |
| Bale diameters | 0.90 – 1.50 m (36” – 60”) (with standard wrapping arm) |
| Bale diameters | 0.90 – 1.35 m (36” – 53”) (height altered to 2,760 mm) |
| Oil requirement | from 20 l/min at max. 190 bar |
| Bale weight | up to 1,800 kg (2,200 lbs) |
Required connections
| Load Sensing connection (for LS mode) or one pressure connection and one depressurized return for the supply of the round baler |
| 1 double-acting and 1 single-acting control device for the pivoting drawbar |
| 3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2×6 mm²) |
| 7-pin power outlet for the entire lighting system (excluding work lights) |
Additional equipment
Tires 480/45-17 AW
Width altered to 2,880 mm (7’)
Film monitoring
Stops the wrapping process if film tears or runs out
PTO drive shaft
(without hydraulic oil)
Including gearbox with pump, return filter, hydraulic oil tank and lower linkage link
Cardan shaft
Additional roller for wrapping table
Prevents the bale from dropping off the wrapping table in steep terrain
Bale drop mat
(including additional roller)
For a gentle bale drop onto the field
Bale tipper
(including additional roller)
When the wrapping process is complete, the bale is positioned on its right front side with the direction of travel
Battery supply cable 5.3 meters 2 x 6 mm² with 3-pin power socket
FAQ - Frequently asked questions
Which tires are available for the G5012?
Basic model tires: 380/55-17 AW
tires Additional equipment: 480/45-17 AW
Does the G5012 wrapping machine come with a bale tipper? And how does this work?
The bale tipper is available as additional equipment. When the wrapping process is complete, the bale is positioned on its right front side with the direction of travel.
What is the wrapping time with the twin wrapping arm of the G5012?
The duration depends on the bale size and the number of film layers.
How do you control the G5012 wrapping machine?
The "bale pick-up" function is performed manually using the electronic joystick. The cycles “wrapping process” and “film-holding and cutting” start automatically, while “bale drop” starts at the push of a button. The program control STANDARD with wireless operation is included in the scope of delivery.
