Three point square bale wrapper
G3010 Q | Square bale wrapper

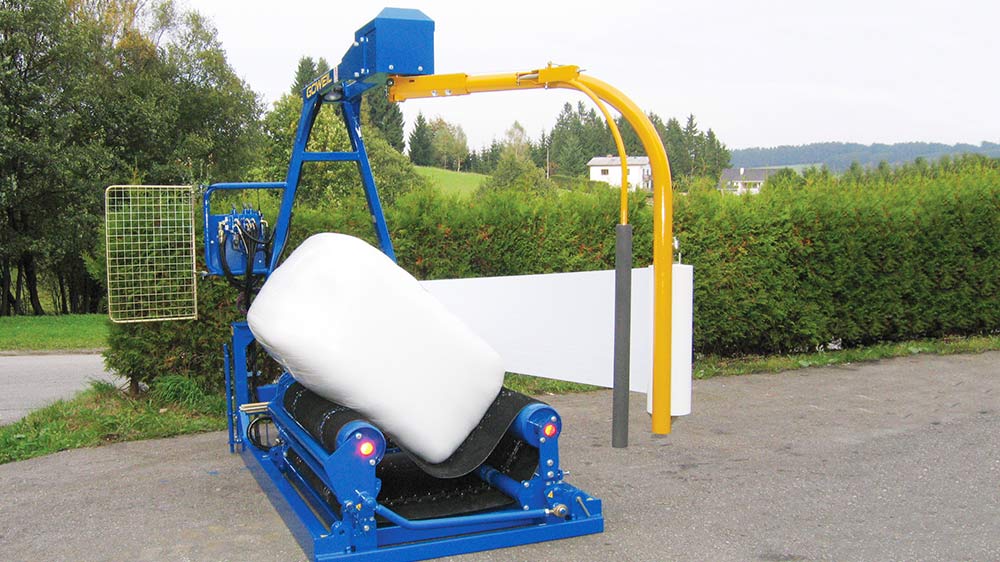

The G3010 Q three point square bale is distinguished by its robust design as well as its low working height. The wide, continuous belt guarantees uniform wrapping of each and every bale – even if it is misshapen. The three point square bale wrapper is equipped with the STANDARD program control.
Highlights
Secure bale Guiding
The roller tubes arranged on both sides are connected to each other by control rods. This results in forced control which, in conjunction with the conveyor belt, produces a clamping effect on the bale. The wrapper is able to guide the bale securely even with rectangular bale dimensions. A quick adjustment can adapt the belt length to different bale dimensions.
Control Standard
A genuine highlight is the user-friendly and easy-to-use program control STANDARD.

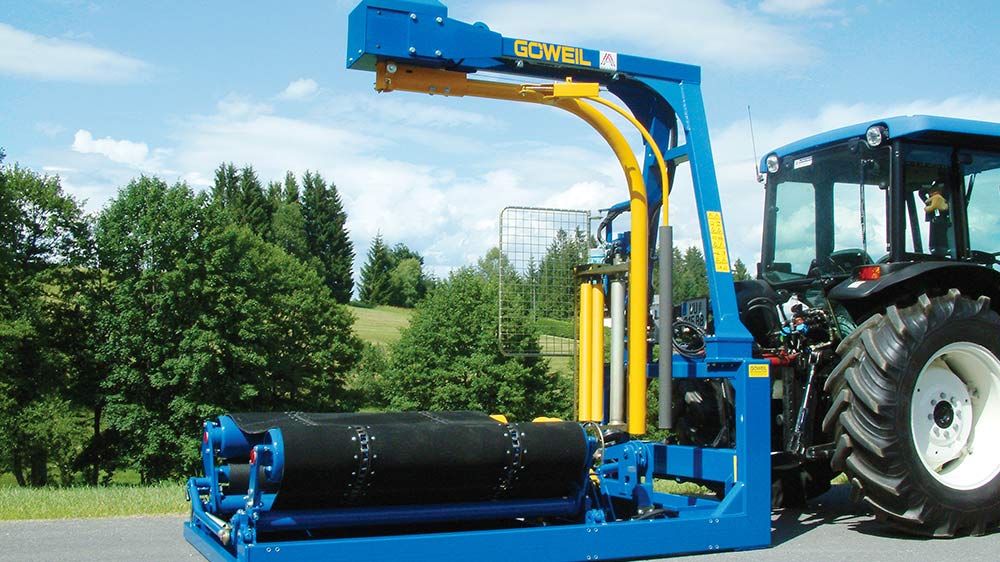

Continuous belt
The wide, continuous belt guarantees uniform wrapping of each and every bale – even if it is misshapen.
engine

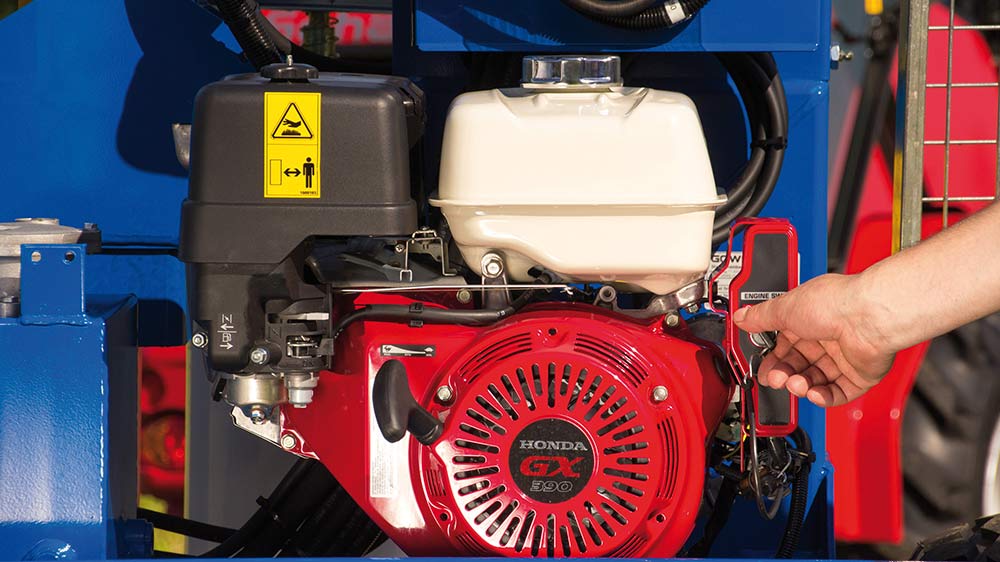

An 8.2 kW gasoline engine with a battery, alternator, electric starter, and hydraulic system is available as an option.

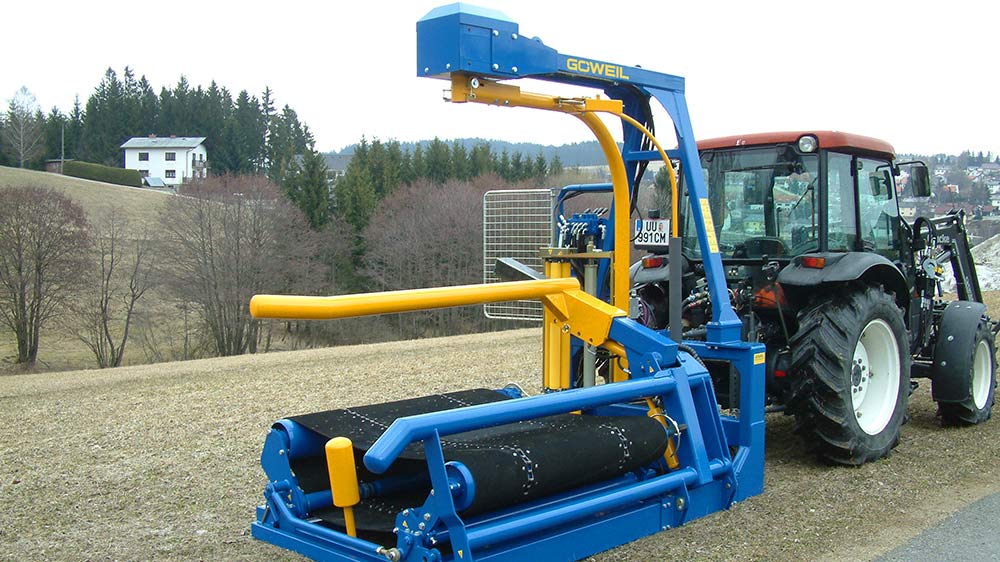

Hydraulic Bale Pick-Up
The G3010 Q can be optionally equipped with a hydraulic bale pick-up for square and round bales. Bales are loaded on the right side, facing away from the direction of travel.
Reermann Agrarservice in action with two G-1 F125 Kombis
A Powerful One-Two Punch in Forage Harvesting: The Reermann Agrarservice contracting firm from Brilon serves its customers with two GÖWEIL baler-wrapper combinations. Although there is a wide selection of round balers available, the service provider deliberately chose the blue machines from Austria. In this video, we’ll take a look with you at how this came about and what the technology is capable of under these demanding, continuous operating conditions. Come along and join the forage harvesting pros from the Sauerland as they go about their work!
“We decided to go with the GÖWEIL wrapper again, and this time with the baler built in – which, from a technical standpoint, completely blew us away!”
Stefan Reermann
Agricultural Service Specialist from the Sauerland Region
Video of the G3010 Q
Basic Model
Single wrapping arm
Hydraulically actuated wrapping table
Bale deposit to the left or right
Wide, continuous bale conveyor belt with belt guide and 2 bale guide rollers
Film pre-stretcher combined
For film widths between 500 mm and 750 mm (20” and 30”); the overlap can be adjusted as well
Film cutter precision cut
Feed rate shut-off valve
This ensures that the film will overlap accurately for rectangular bales
Three-point linkage Cat. II
LED work lights

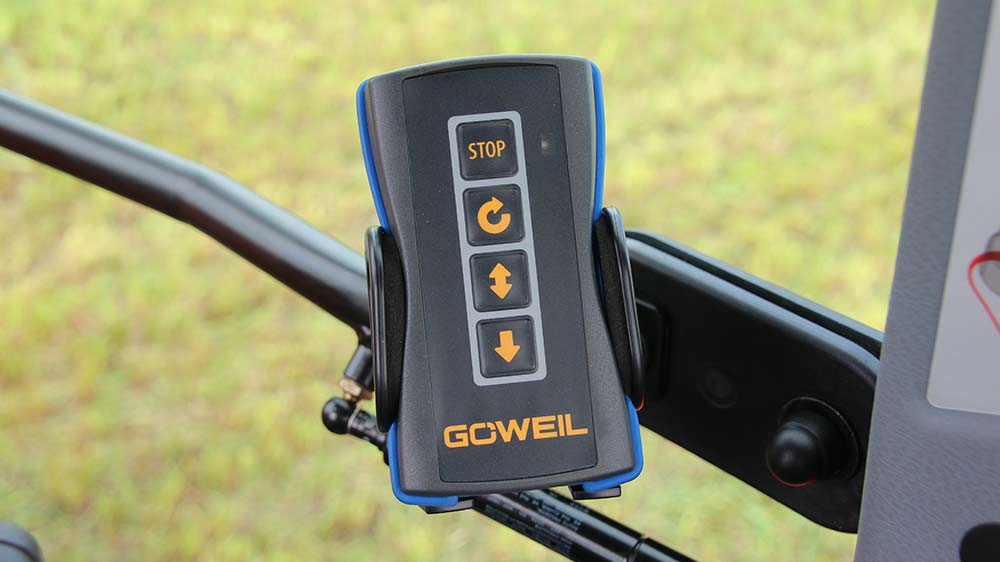

Program control STANDARD with radio remote control
The cycles “wrapping process” and “film-holding and cutting” start automatically
, while “bale drop” starts at the push of a button.
Technical data
(Basic model)
| Weight | 1,130 kg |
| Length | 2,705 mm |
| Width | 1,720 mm |
| Height | 2,760 mm |
| For all bale dimensions: | from 0.80 x 0.50 to 1.20 x 1.40 m |
| Bale length: | from 0.80 up to 1.60 m |
| Round bale diameter | 0.90 – 1.50 m (36” – 60”) |
| Oil requirement | from 20 l/min at max. 190 bar |
| Bale weight round / square: | max. 1,800 / 1,000 kg (max. 4,000 / 3,300 lbs) |
Required connections
| 1 pressure connection and 1 depressurized return for the supply of the wrapper |
| 3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2×6 mm²) |
Additional equipment
Film monitoring
Stops the wrapping process if film tears or runs out
Additional bale guide roller
LED Light and indicator system
Required connection: 7-pin socket for the entire lighting system
(except work lights)
Electric drive
(without hydraulic oil) – tractor operation still possible
5 hp electric motor, return filter and 8 gal hydraulic oil tank, fully assembled
Required connection for electric motor: 400 V / 50 Hz, CEE 16 A, protection class IP55
PTO drive shaft
(without hydraulic oil)
Including gearbox with hydraulic pump, slip-on tractor PTO drive shaft, return filter and 30 l hydraulic oil tank
1-cylinder Honda gasoline engine
(without hydraulic oil) – tractor operation still possible
11 hp gasoline engine with battery, electric starter, return filter and 8 gal hydraulic oil tank
Battery supply cable 5.3 meters 2 x 6 mm² with 3-pin power socket
FAQ - Frequently asked questions
Can you also wrap double bales with the G3010 Q?
No, the wrapping of double bales function is available as additional equipment for the G3020 Q Profi. This function is included on the basic model of the G4010 Q Profi and G4020 Q Profi.
What equipment does my tractor need for the G3010 Q?
Required connections
– One pressure connection and one depressurized return for supplying the wrapping machine
– 3-pin socket for the electrical supply with direct line to the battery (cable cross-section 2×6 mm²)
What size bales can the G3010 Q wrap?
The G3010 Q three-point machine can wrap both square and round bales.
Square bale dimensions: 1.20 x 1.20 m, bale length up to 1.60 m
Round bale dimensions: 0.90 – 1.50 m diameter
How does bale deposit work with the G3010 Q?
Bale deposit is carried out to the left and right with the G3010 Q.
