3 point linkage round bale wrapper
G3010 | Round bale wrapper
The three-point linkage round bale wrapper is the ideal wrapping machine for customers with smaller bale counts per year. The G3010 impresses with its uncomplicated, efficient operation and can be optionally equipped with a bale pick-up.
Highlights

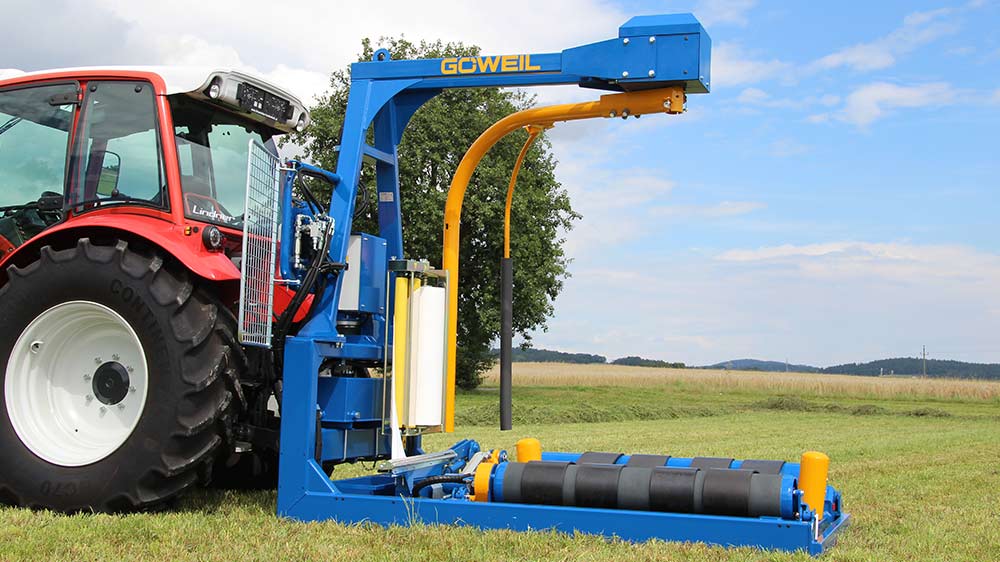

Design
The G30 series wrappers are particularly notable for their low working height. The wrapper’s sturdy and robust design and workmanship ensure a long service life.

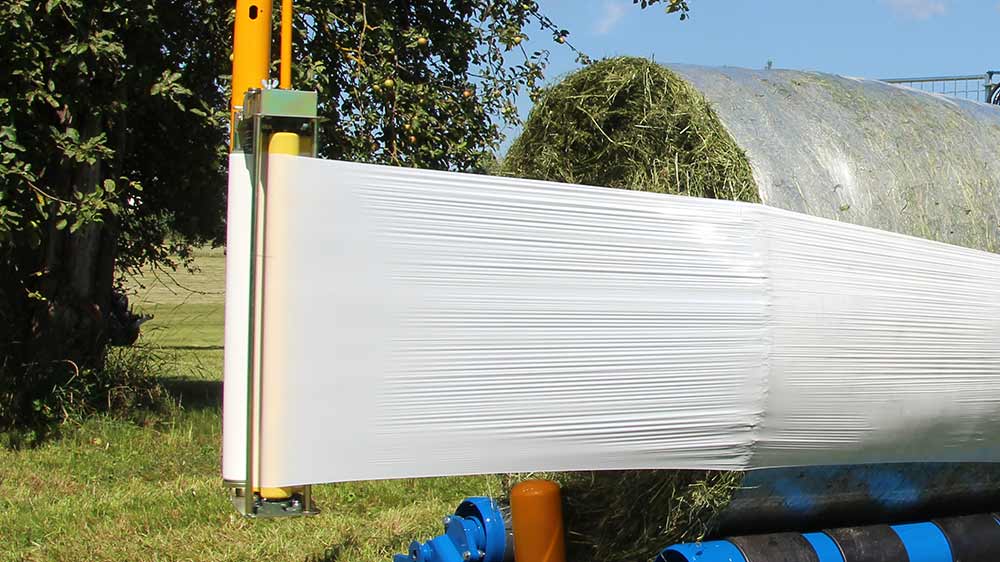

Wrapping arm with film pre-stretcher
The wrapping arm is equipped with a film pre-stretcher that can accommodate 750 mm rolls of film. Three patented plastic rollers provide for uniform stretching. This saves film and guarantees tightly wrapped and airtight bales. What is more, the rollers are not sensitive to temperature. The quick-release system makes it possible to change empty rolls quickly and effortlessly.
Rotating wrapping arm with stationary wrapping table

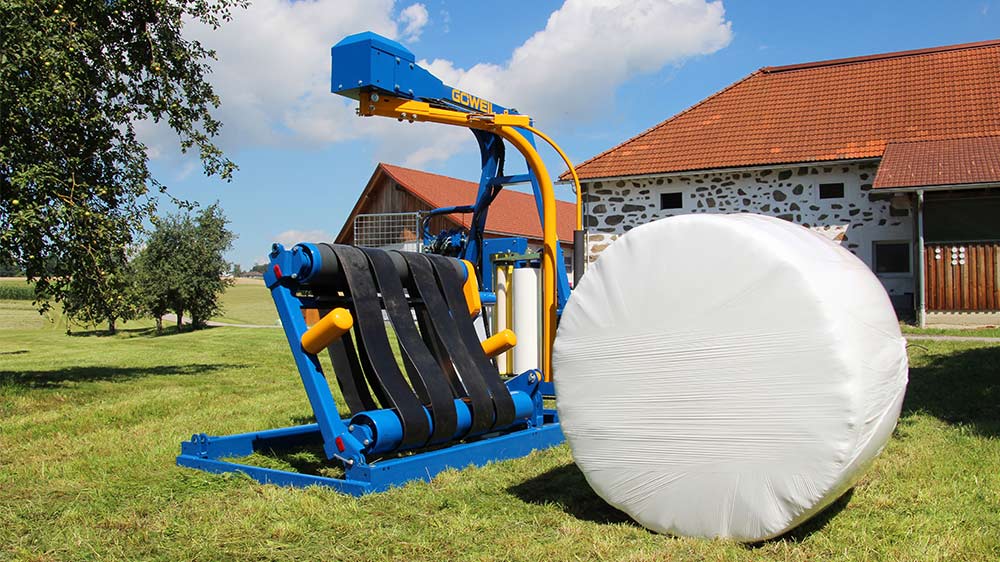

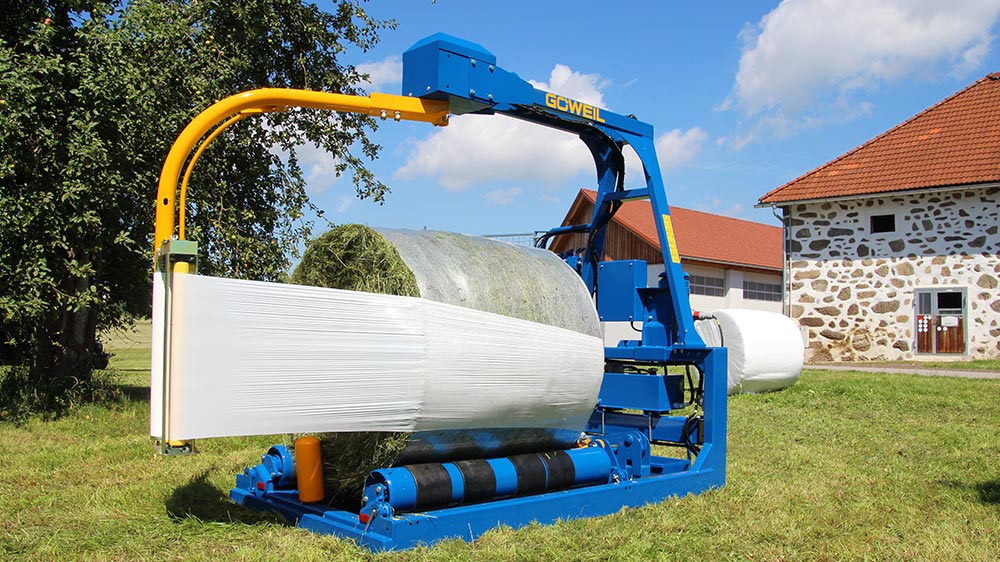

This system reliably prevents the bale from falling off as it is not subjected to any kind of centrifugal forces. While the conveyor belts ensure that the bale rotates continuously, the two rotating bale guide rollers (up to four, optional) hold the bale in place. This ensures that the film has an even overlap. When performing the bale deposit, the wrapping table tilts to the side and the bale is gently placed next to the machine.

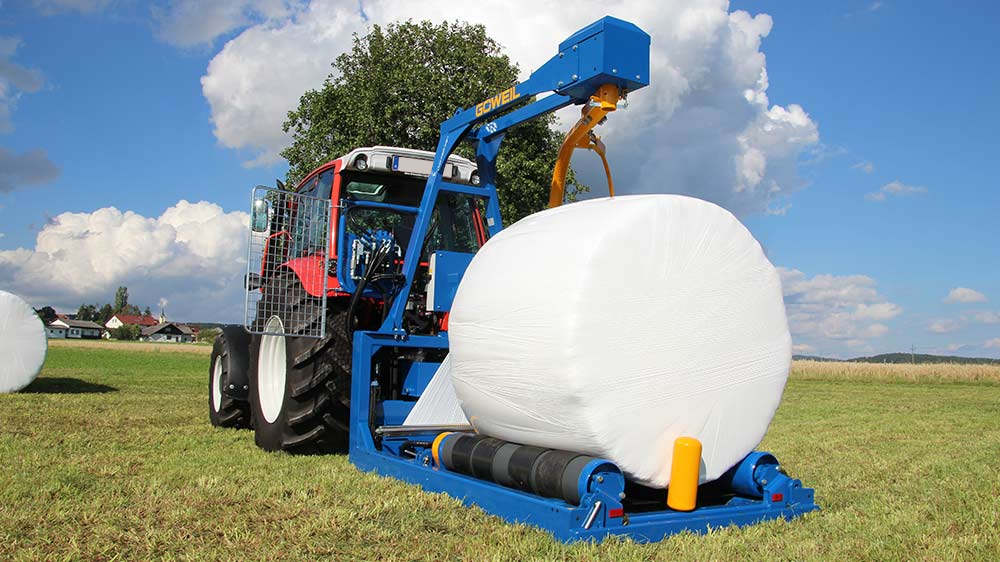

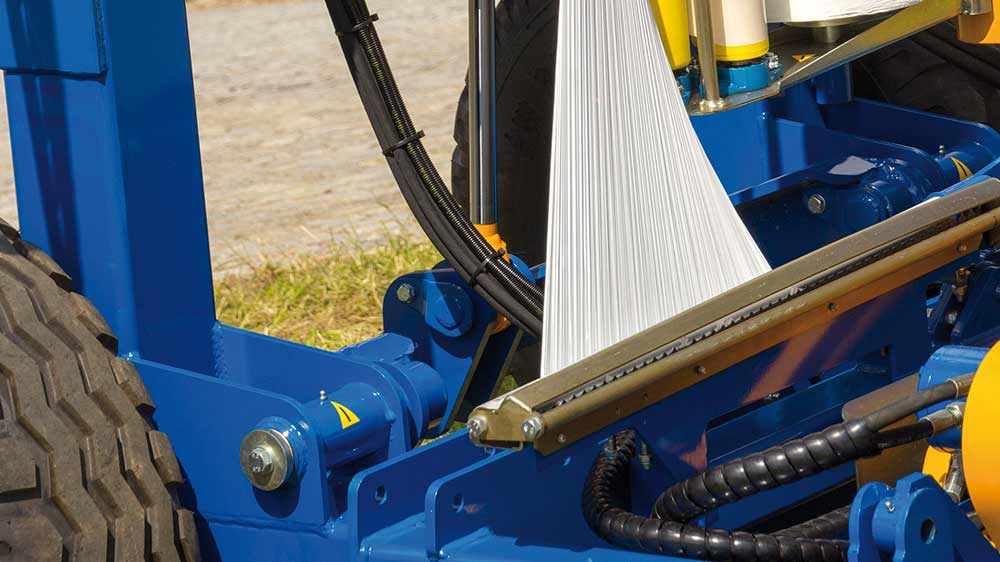

Film cutter
The stainless steel knife guarantees that the film will be cut cleanly and precisely. At the same time, the film is fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the wrapping films will unwind easily.

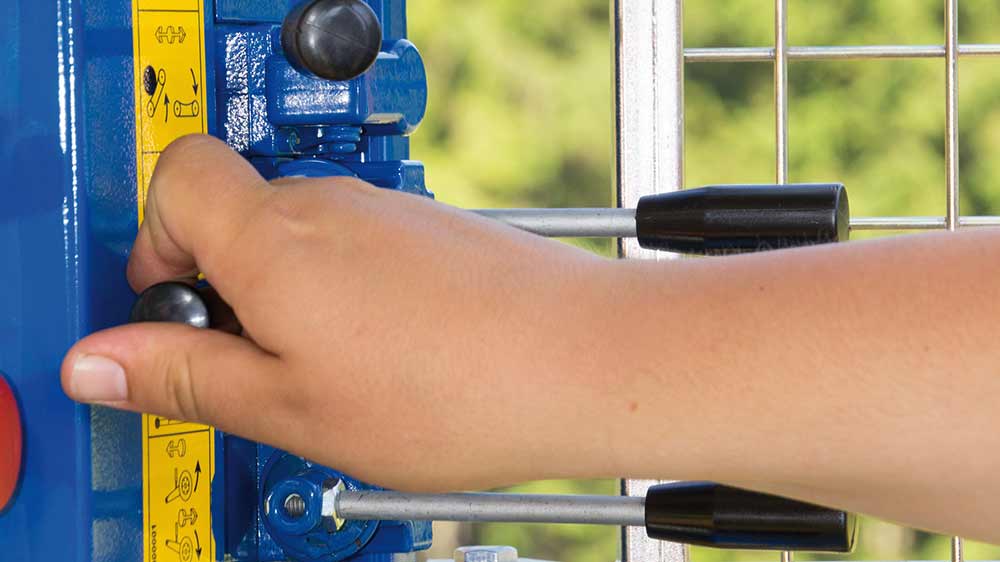

Control unit with hand lever
The control unit and the levers come in particularly handy during maintenance and service operations. They make it possible to control all functions and processes directly at the machine. This means that the operator can simply leave the handset in the tractor cab.
Drive Types

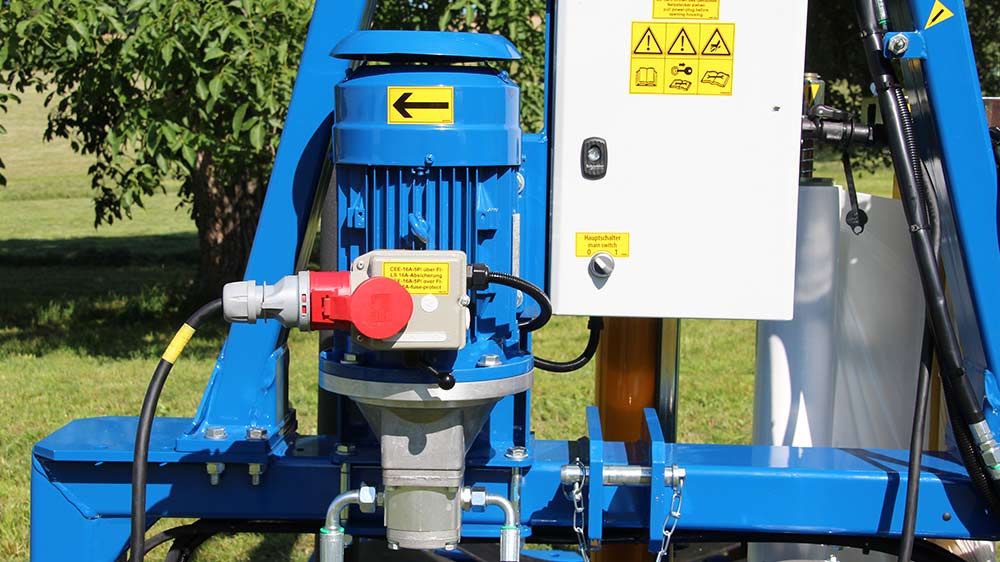

In the basic model, the wrapper is powered by the tractor. Upon request, the G3010 wrapper can be equipped with an external drive motor. You can choose between a PTO drive, an electric drive (4 kW engine), or a gasoline engine (8.2 kW) with a battery, electric starter, and hydraulic system.

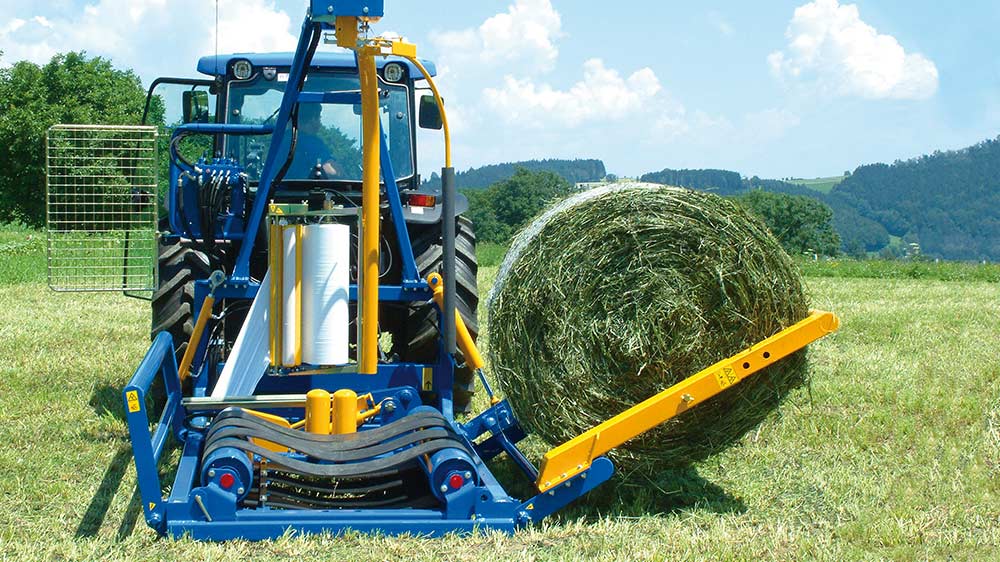

Bale pick-up
The G3010 wrapper can be equipped with a hydraulic bale Pick-Up as an option. By adjusting the lifting fork, it is possible to pick up the bale while moving forward or backward.
Reermann Agrarservice in action with two G-1 F125 Kombi units
A Powerful One-Two Punch in Forage Harvesting: The Reermann Agrarservice contracting firm from Brilon serves its customers with two GÖWEIL baler-wrapper combinations. Although there is a wide selection of round balers available, the service provider made a conscious decision to choose the blue machines from Austria. In this video, we’ll take a look with you at how this came about and what the technology is capable of here under harsh, continuous use. Come along and join the forage harvesting pros from the Sauerland as they go about their work!
“We decided to go with the GÖWEIL wrapper again, and this time with the baler built in – which totally blew us away from a technical standpoint!”
Stefan Reermann
Agricultural Service Specialist from the Sauerland Region
Video of the G3010
Basic Model
Single wrapping arm
Hydraulically actuated wrapping table
Bale deposit to the left or right
4 bale conveyor belts with belt guide and 2 bale guide rollers
Film pre-stretcher 750 mm
Film cutter precision cut
Three-point linkage Cat. II
LED work lights
Program control STANDARD with radio remote control
The cycles “wrapping process” and “film-holding and cutting” start automatically, while “bale drop” starts at the push of a button
Technical data
(Basic model)
| Weight | 865 kg |
| Length | 2,705 mm |
| Width | 1,720 mm |
| Height | 2,670 mm |
| Bale diameters | 0,90 – 1,60 m (36” – 63”) |
| Oil requirement | from 20 l/min at max. 190 bar |
| Bale weight | up to 1,800 kg (2,200 lbs) |
Required connections
| 1 pressure connection and 1 depressurized return for the supply of the wrapper |
| 3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2×6 mm²) |
Additional equipment
Film monitoring
Stops the wrapping process if film tears or runs out.
Additional bale guide roller
maximum 2 items
LED Light and indicator system
Required connection: 7-pin power outlet for the entire
lighting system (excluding work lights)
Electric drive
(without hydraulic oil) – tractor operation still possible
5 hp electric motor, return filter and 8 gal hydraulic oil tank, fully assembled
Required connection for electric motor: 400 V / 50 Hz, CEE 16 A, protection class IP55
PTO drive shaft
(without hydraulic oil) Including gearbox with hydraulic pump, slip-on tractor PTO drive shaft, return filter and 30 l hydraulic oil tank
1-cylinder Honda gasoline engine
(without hydraulic oil) – tractor operation still possible
11 hp gasoline engine with battery, electric starter, return filter and 8 gal hydraulic oil tank
Battery supply cable 5.3 meters 2 x 6 mm² with 3-pin power socket
FAQ - Frequently asked questions
Can I combine an electric motor and the tractor connections on the G3010?
Yes, the following connection for the electric motor is required for this: 400 V / 50 Hz, CEE 16 A, protection class IP55
What equipment does my tractor need for the G3010?
The following connections are required to transport the G3010 wrapping machine:
1. 1 pressure connection and 1 depressurized return for supplying the wrapping machine (not applicable for PTO drive)
2. 3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2×6 mm²)
Oil requirements: from 20 l/min at max. 190 bar
What are the mounting options for the G3010 wrapping machine?
The G3010 is equipped for the Cat. II three-point linkage.
How heavy is the G3010?
The weight of the basic model of the G3010 is 865 kg.
