Double Transport Frame
DTR

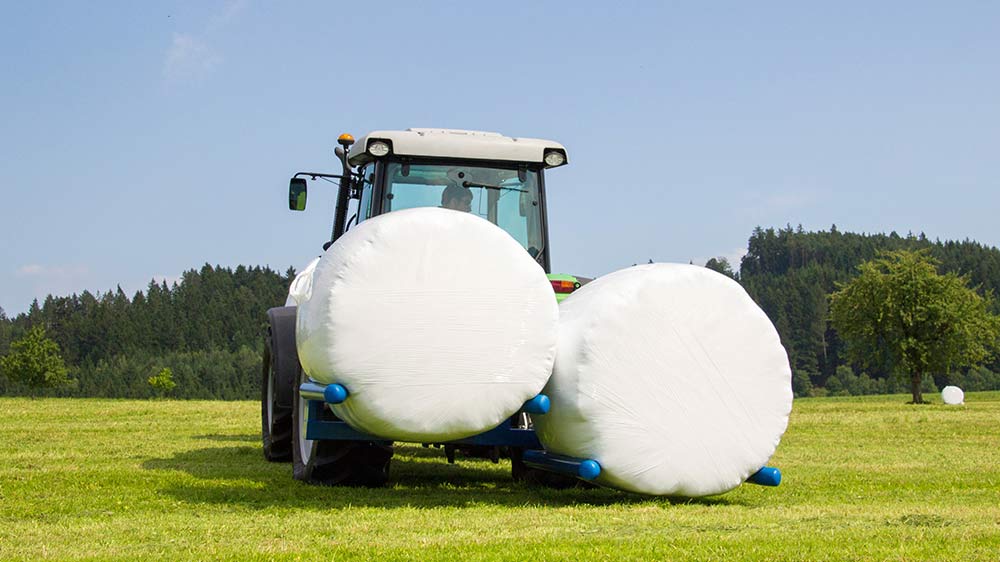

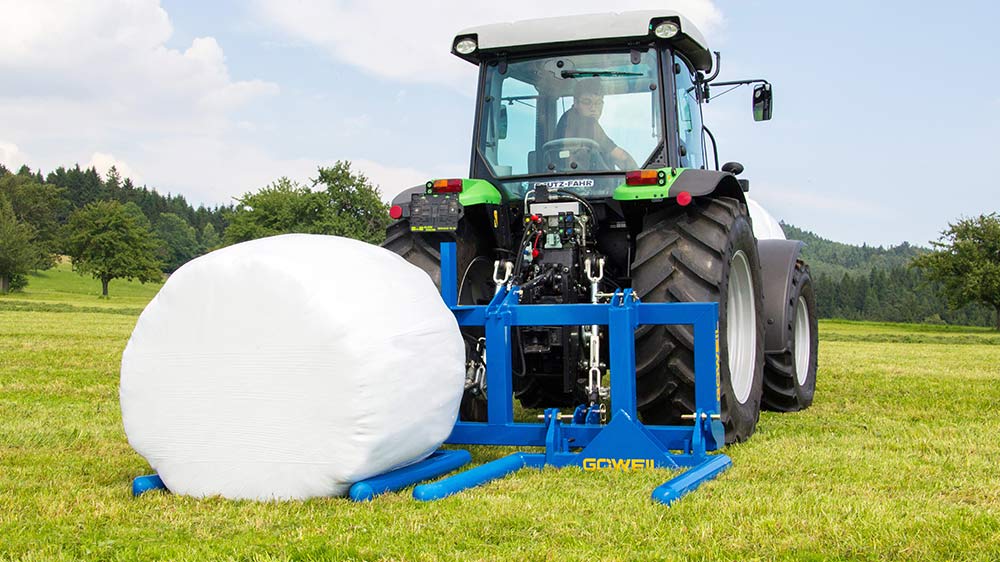

Double round bale spear for 2 wrapped bales
DTR | Double Transport Frame
DTR Video
Basic Model

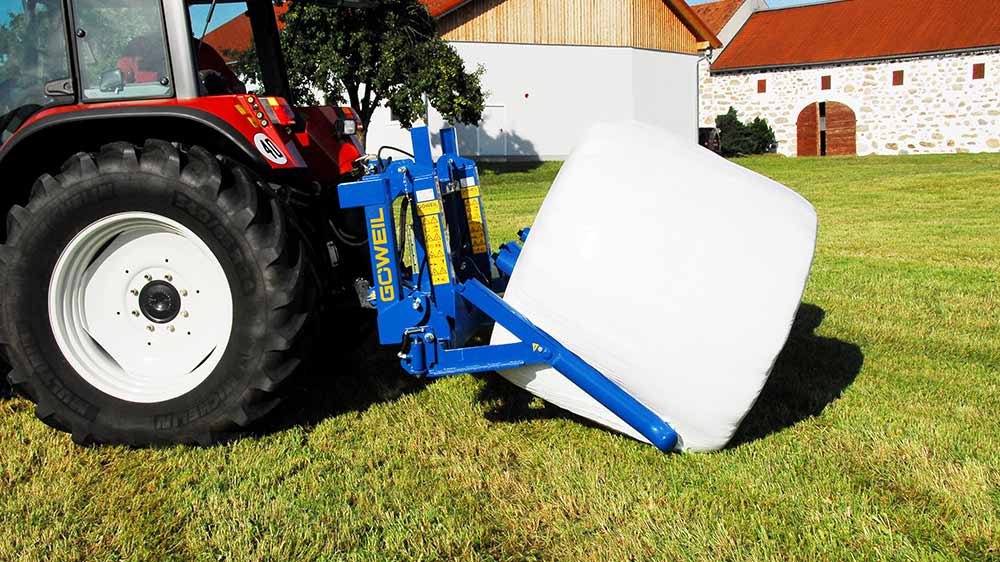

Without BTGME / BTGME / BTGHA bale transport forks

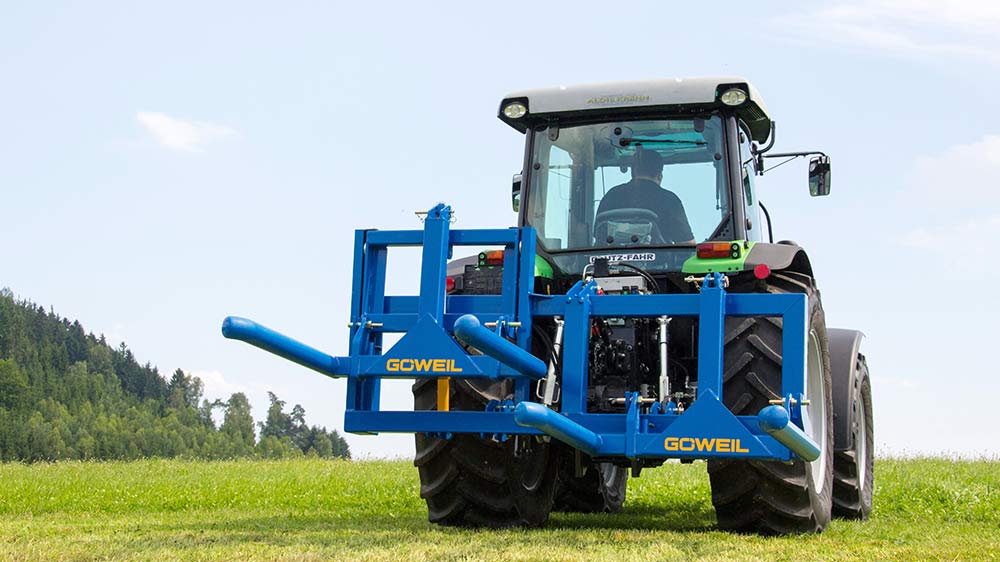

Base frame with Cat. I and Cat. II three-point linkage
Hydraulically movable transport carriage
Take advantage of our demonstration service and see for yourself.
Technical data
(Basic model)
| Weight | 218 kg (without bale fork) |
| Length | 450 mm |
| Width | 2,440 mm |
| Height | 1,130 mm |
| Bale weight | up to 3,000 kg (2,200 lbs) |
| Bale diameters | max. 1.60 m (63”) |
| Operating pressure | max. 200 bar |
Required connections
| Double-acting hydraulic control device |
Possible attachments
(excluding installation)
| Adapter Weiste triangle Cat. II |
| Other attachments – on request |
| Overview Mounting options |
Additional equipment
Hydraulic width adjustment
Double-acting hydraulic control device required
Bale transport spike double conversion kit
For transporting two unwound round bales (max. bale diameter
1.60 m) or square bales at the same time.
Reinforced tines (Ø: 42 mm, length 1100 mm)
Payload: max. 1500 kg
FAQ - Frequently asked questions
Which connections do I need for the double transport frame?
A double-acting hydraulic connection is required for the DTR.
What is the maximum bale size that can be transported by the double transport frame?
Two round bales with a diameter of up to 1.60 m can be transported at the same time with the double transport frame.
