Round Bale Splitter
RBS | Round-Bale-Slicer

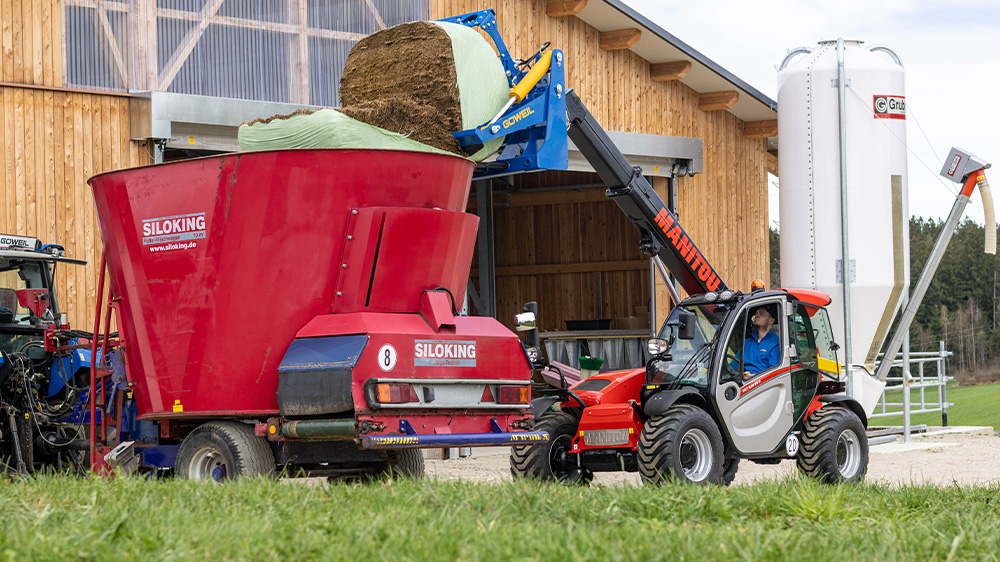

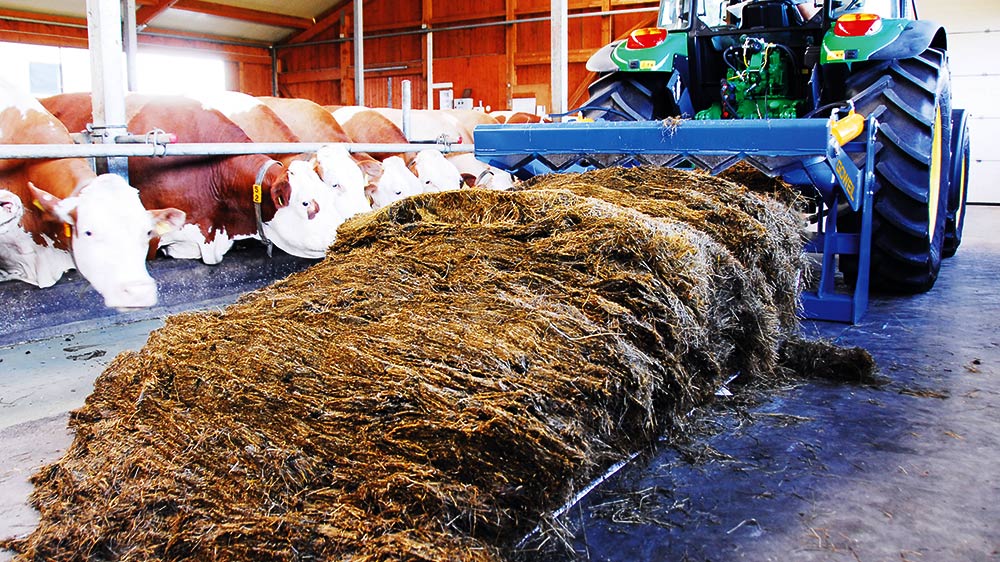

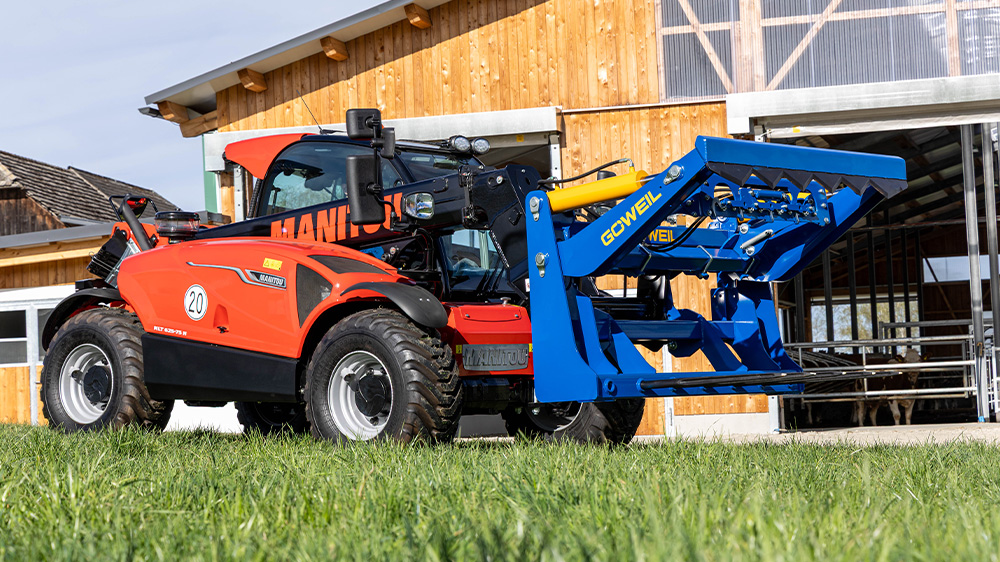

The RBS round bale slicer was designed specifically for the purpose of cutting and transporting bales of silage, hay and straw. This round bale slicer makes it a cinch to split bales up and distribute them as fodder. Apart from ensuring a reliable and strong cut, the serrated knife guarantees that the bale will be cut all the way through.
Highlights
Film holder

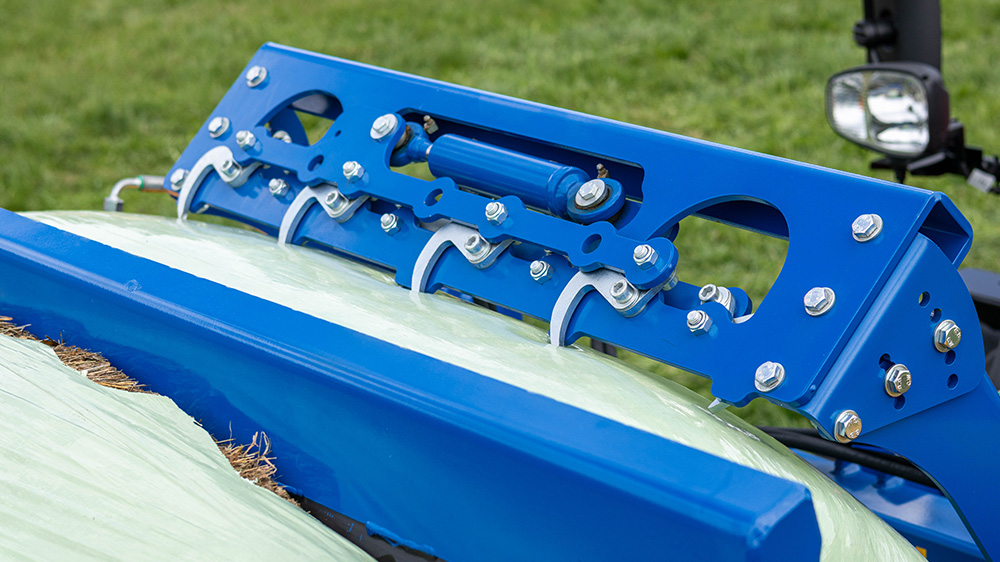

The film holder allows the operator to cleanly separate film and net from the fodder without the hassle of having to step down from the tractor. Eight hooks hold film and net safely in place while the bale is being cut through. This saves the operator the trouble of removing the film manually beforehand. Operation is controlled using a double-acting control device.
RBS Video
Basic Model
Base frame with 5 reinforced tines (Ø: 42 mm, length: 1,000 mm)
Scraper bar made of HARDOX 500
Cat. I and Cat. II three-point linkage
Technical data
(Basic model)
| L x W x H | 1,420 x 1,790 x 1,030 mm |
| Weight | 440 kg |
| Height with cutting lever | 1,720 mm |
| Opening Range | max. 1,520 mm (63”) |
| Operating pressure | max. 200 bar |
| Bale diameters | 0,90 – 1,60 m (36” – 63”) |
| Bale weight | up to 1,500 kg (2,200 lbs) |
Required connections
| Double-acting hydraulic control device |
Possible attachments
| Euro-attachment |
| Merlo, Dieci Dedalus, Weidemann hydr., Kramer, Schäffer small, Faucheux, Giant, Genie |
| Hauer B, Merlo, Dieci Dedalus, Weidemann hydr., Kramer, Schäffer small, Faucheux, Giant, Genie |
| Merlo ZM3, SMS, MX, Dieci/New Holland, JCB Compact Tool Carrier, Schäffer big, Claas Scorpion, Zettelmeyer 602, CAT TH 407 C, Skid Steer |
| Adapter Weiste triangle Cat. II |

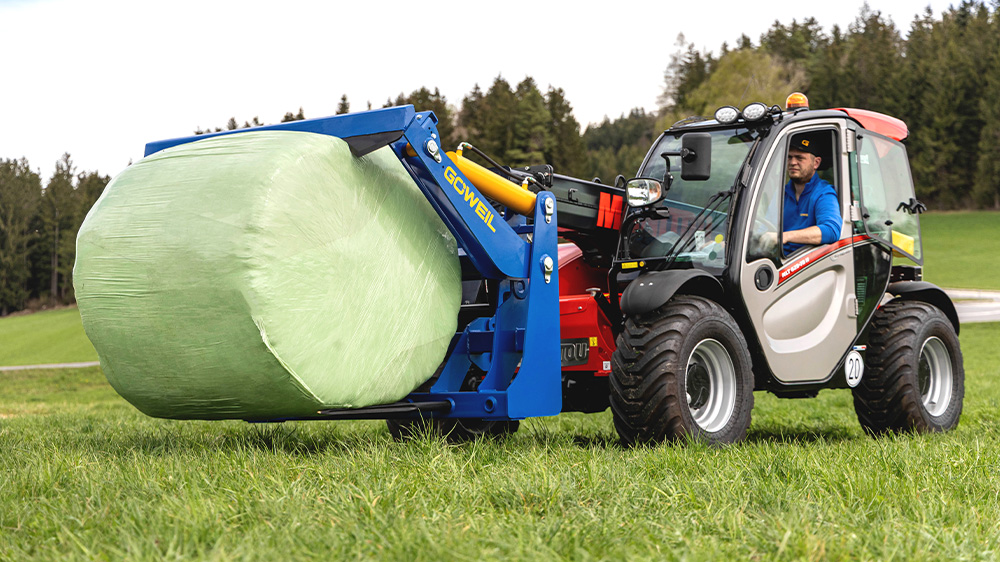

| Manitou, JCB Q-Fit, Volvo BM, CAT 907H / Liebherr L507, Atlas, Matbro Pin&Cone |
| Amkodor, Bobcat |
| Other attachments: Overview Mounting options |
Additional equipment
Pressure relief valve including check valve
(telescopic/wheel loaders require an operating pressure greater than 200 bar)

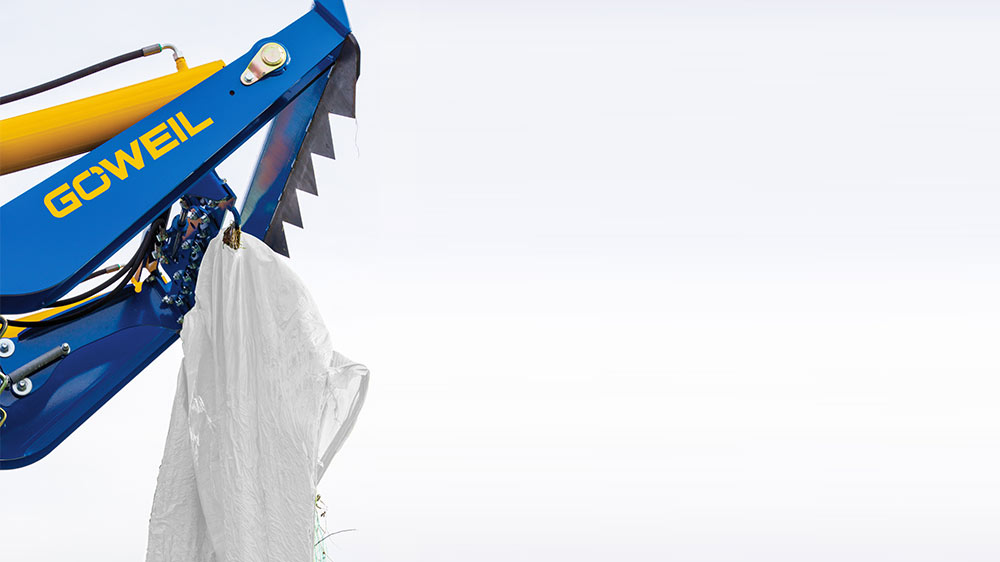

Film holder for RBS
The film and net are separated from the bale without unloading
Secures the net and film with 8 hooks across the entire
Width
Weight: 52 kg
Two additional tines
FAQ - Frequently asked questions
Which connections do I need for the RBS?
A double-acting hydraulic connection is required for the RBS.
How does the film holder work on the round bale slicer?
The film holder allows the operator to cleanly separate film and net from the fodder without the hassle of having to step down from the tractor. Eight hooks hold film and net safely in place while the bale is being cut through. The film therefore does not need to be removed beforehand. Operation is controlled using a double-acting control device.
Can you also cut hay bales with the RBS?
Yes, the RBS round bale cutter was specifically designed forcuttingandtransportingall types of bales, such as silage, hay, and straw bales.
