Bale gripper / round bale gripper
Round bale grabber | RBG 160 | RBG 140

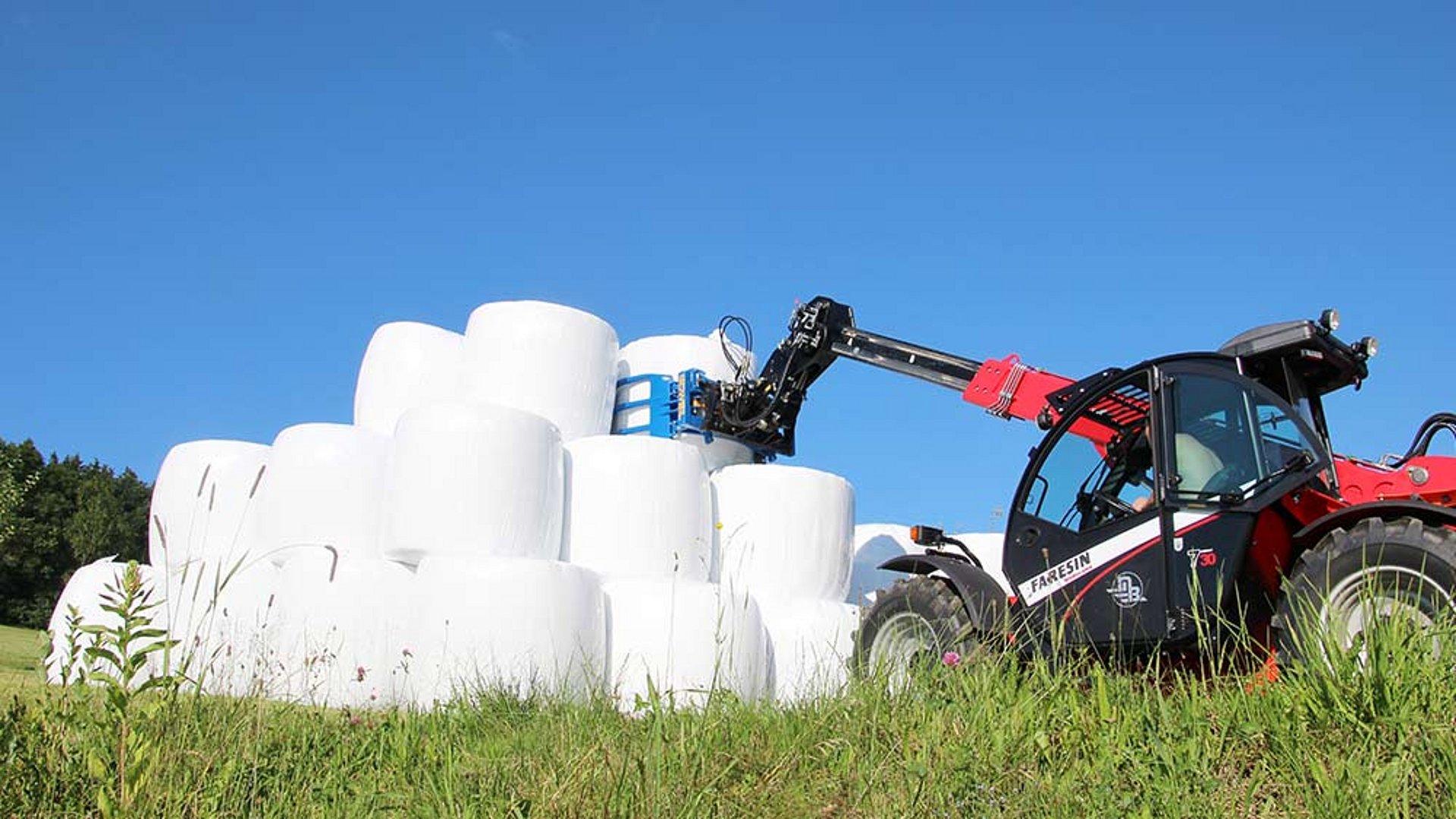

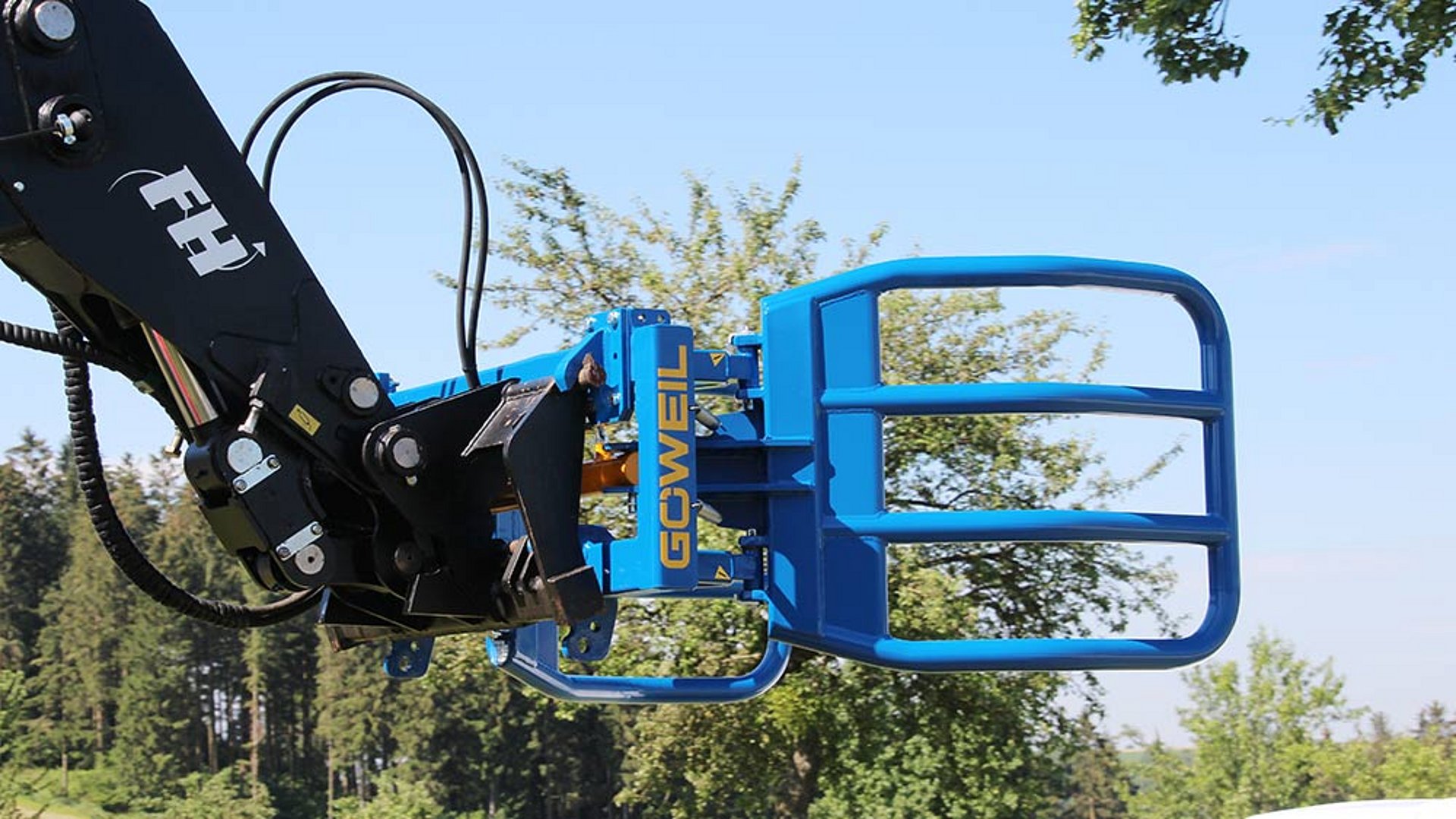

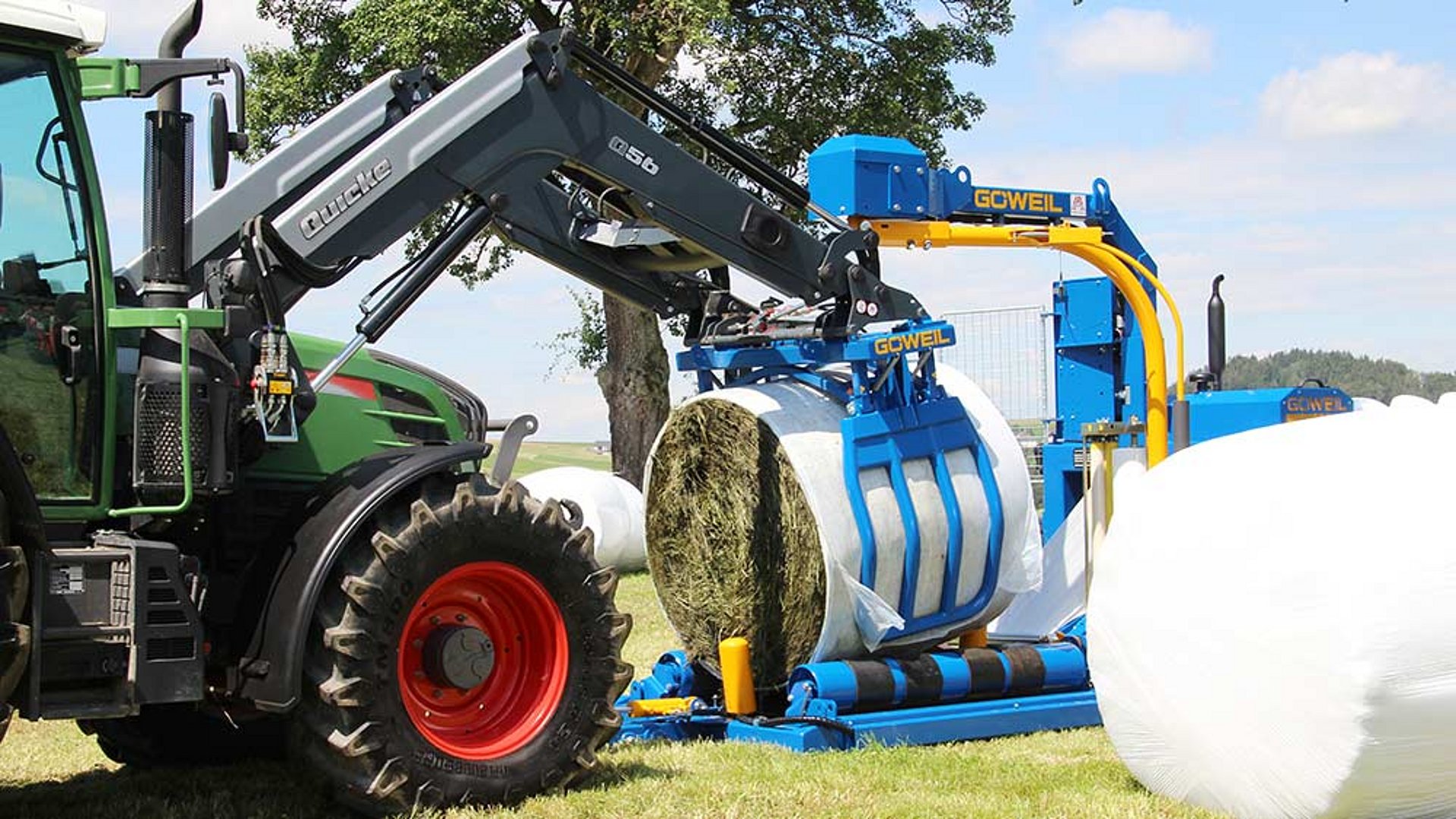

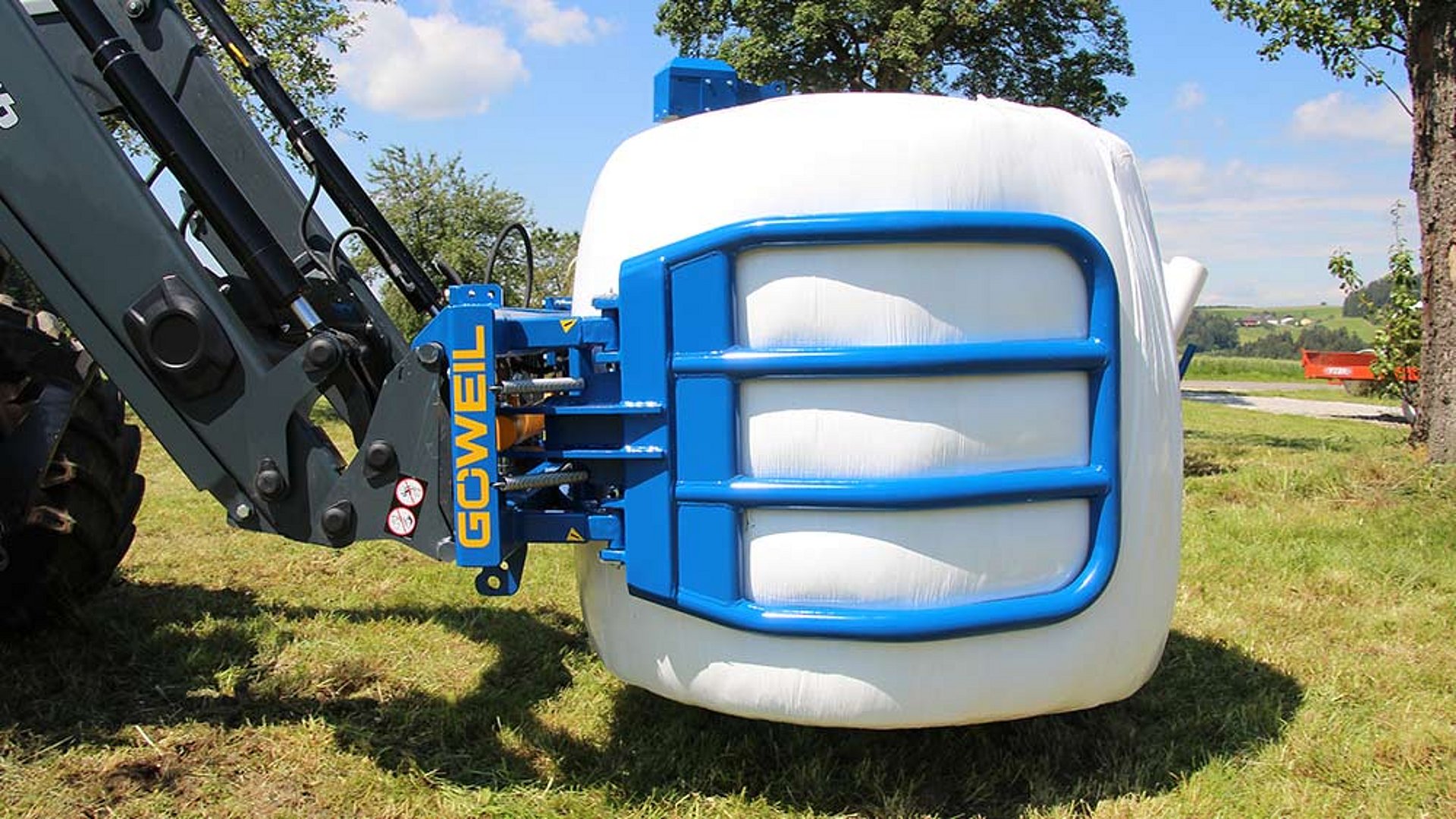

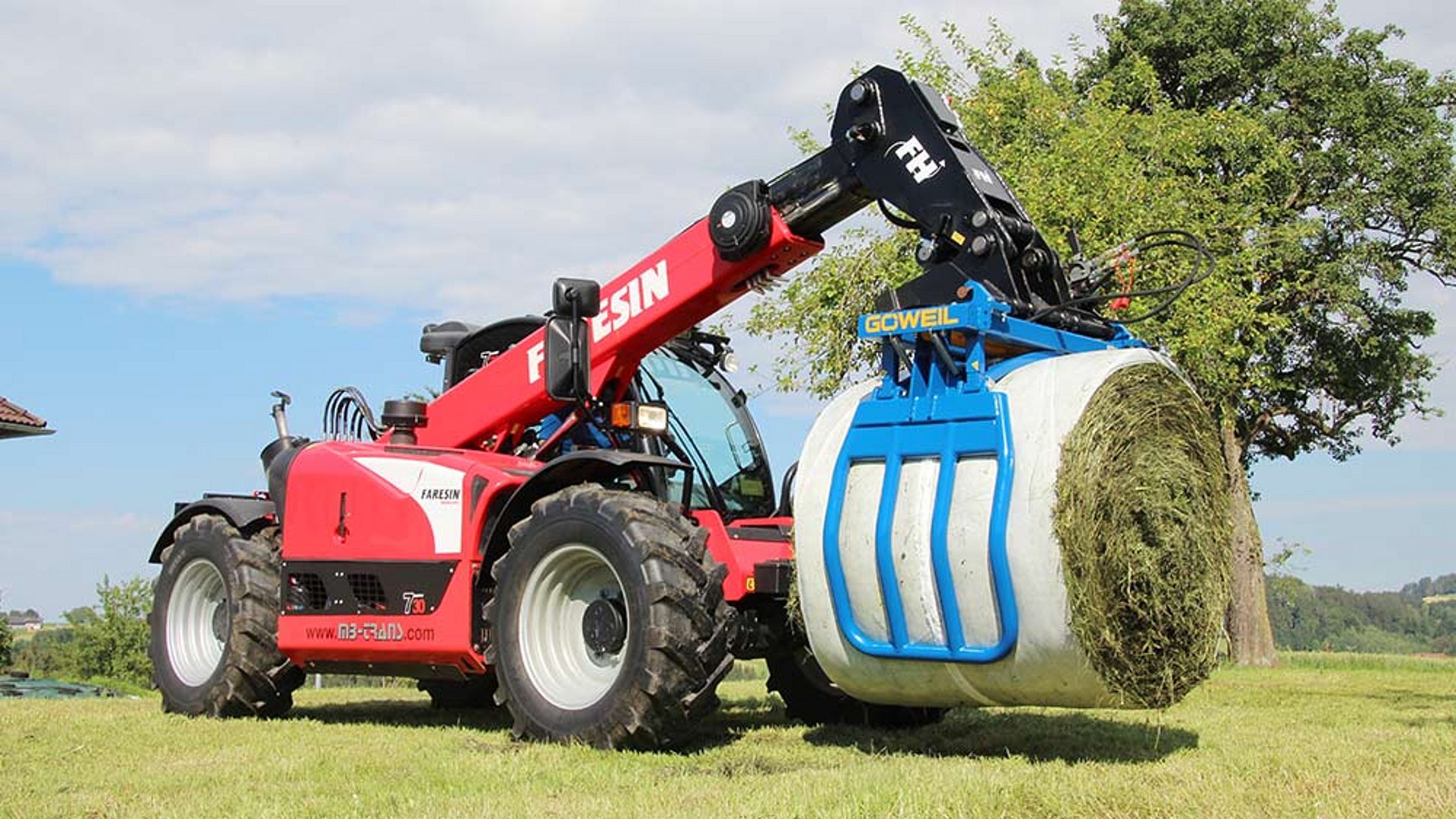

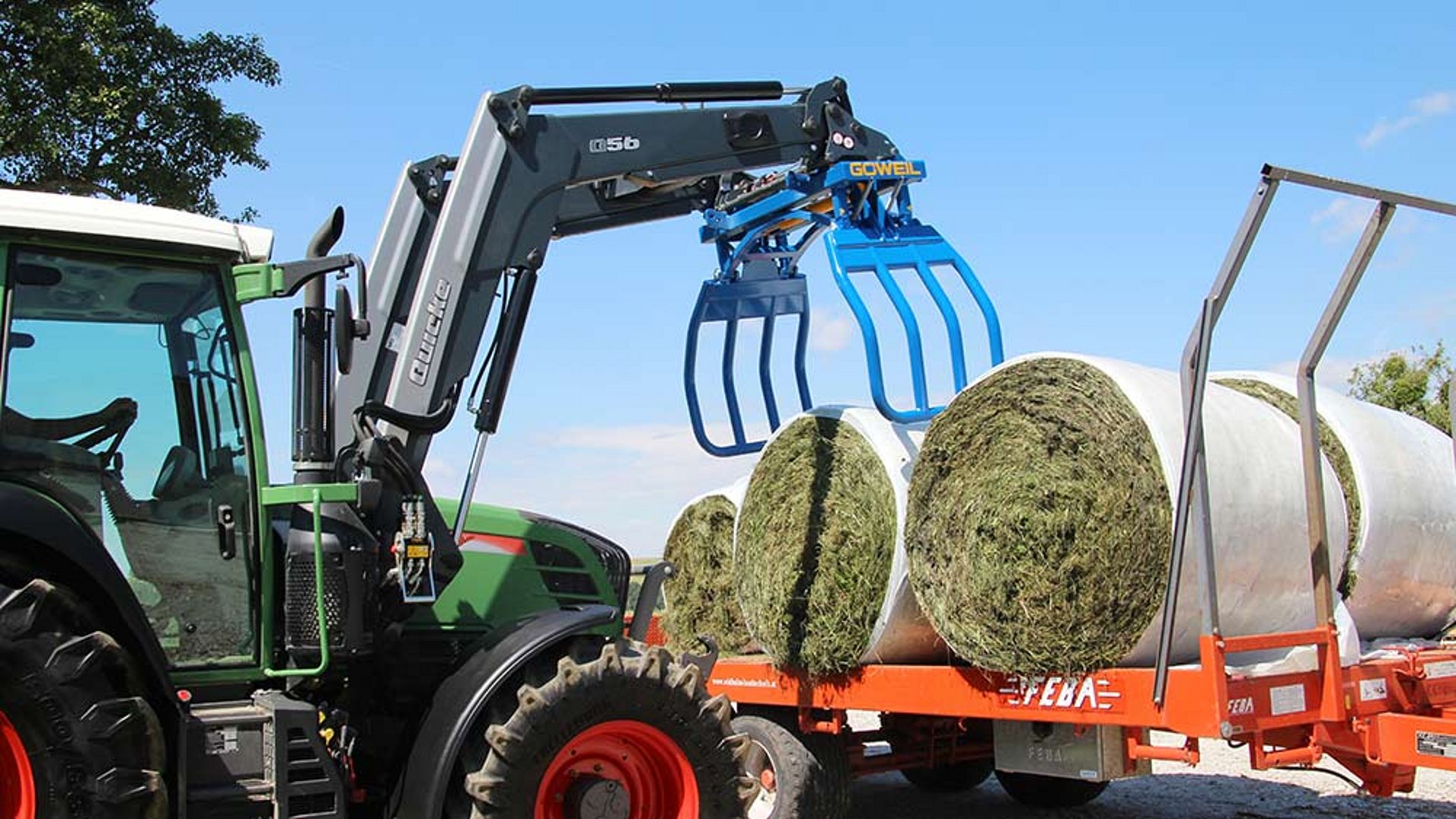

The RBG round bale grabber makes it a snap to load and stack round bales of any type (silage, hay, straw) with diameters ranging from 1.10 to 1.60 m. Thanks to its round design, the grabber is capable of holding the bale securely and handling it in a gentle manner. Since the pressure on the bale is distributed evenly, the film cannot be overstretched or become damaged. Another crucial characteristic of this round bale grabber is the unit’s short and slender design which keeps the center of gravity close to the loader.
The round bale grab is available in two versions:
RBG 160 - bale diameter of 1.10 - 1.60 m
RBG 140 - bale diameter of 0.80 - 1.40 m
Basic model
Technical data (basic model)
| RBG 160 | RBG 140 | |
| Length: | 1,260 mm (4' 2") | 1,130 mm (3' 8") |
| Width: | 1,360 mm (4' 5") | 1,360 mm (4' 5") |
| Height: | 800 mm (2' 7") | 800 mm (2' 7") |
| Weight: | 202 kg (450 lbs) | 199 kg (440 lbs) |
| Bale weight: | max. 1,800 kg (max. 3,970 lbs) | max. 1,800 kg (max. 3,970 lbs) |
Max. operating pressure: | 200 bar | 200 bar |
| Bale diameters: | 0,80 - 1,40 m | 0.80 - 1.40 m |
Required connections
Double-acting hydraulic control device |
Possible attachments
| Euro-attachment |
| Cat. I and Cat. II three-point linkage |
| Hauer B, Merlo, Dieci Dedalus, Weidemann hydr., Kramer, Schäffer small, Avant, Faucheux, Giant |
| Merlo ZM3, SMS, MX, Dieci/New Holland, JCB Compact Tool Carrier, Schäffer big, Claas Scorpion, Zettelmeyer 402, Zettelmeyer 602, Liebherr L514, Faresin, CAT TH 407 C, Skid Steer |
| Adapter Weiste triangle Cat. II Requires three-point linkage |
| Manitou, JCB Q-Fit, Atlas, Volvo BM, CAT 907H / Liebherr L507, Fendt Cargo T955/Sennebogen |
| Amkodor, Bobcat |
| Other attachments |
| Overview of attachments |
Additional equipment
For transporting smaller bales
RBG 160: Ø of 0.90 – 1.40 m (Ø of 36” – 55”)
RBG 140: Ø of 0.70 – 1.10 m (Ø of 28” - 43”)
Telescopic & wheel loaders require an operating pressure greater than 200 bar
