Wrapper for round & square bales
G4010 Q Profi | Square bale wrapper

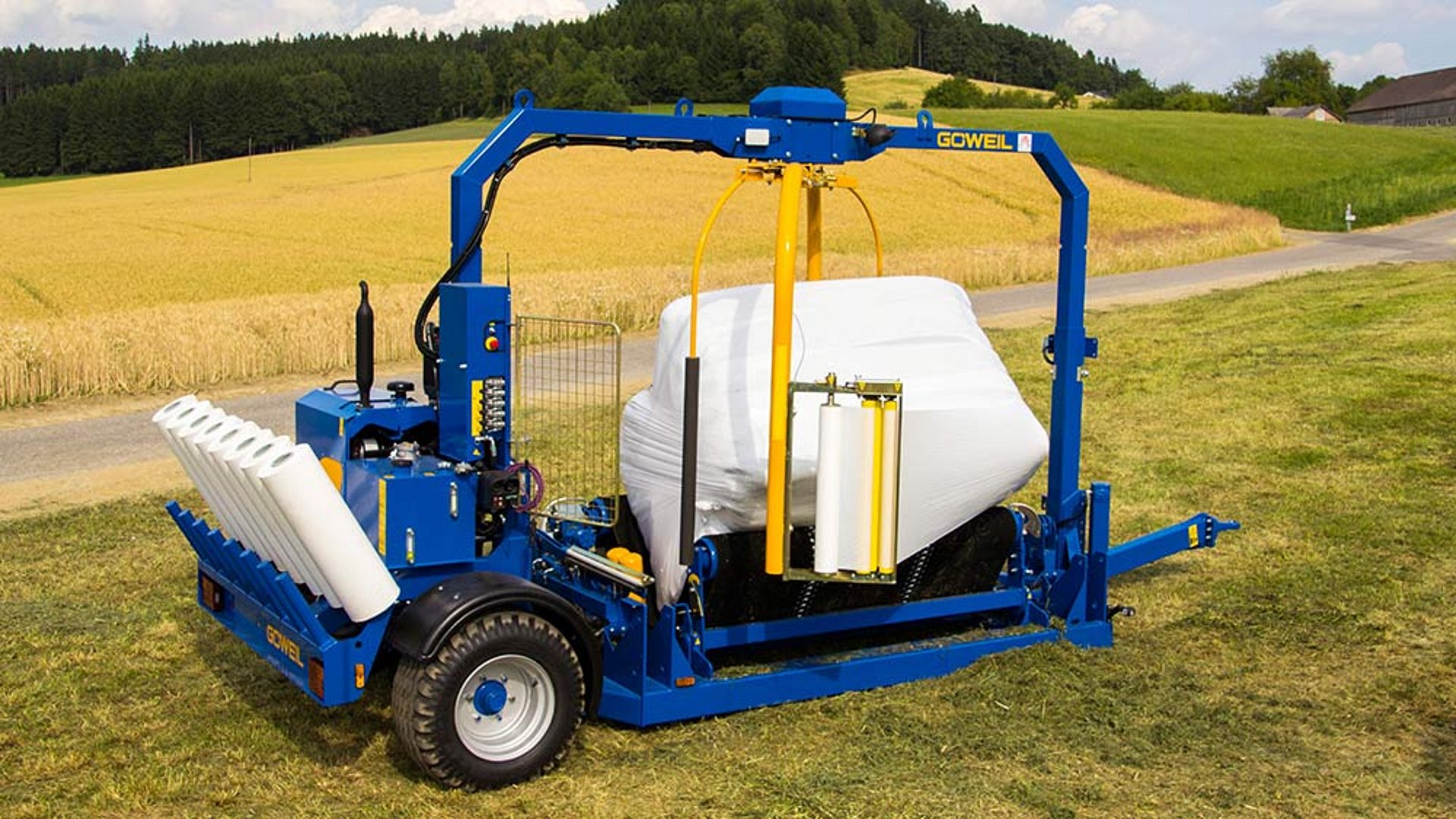

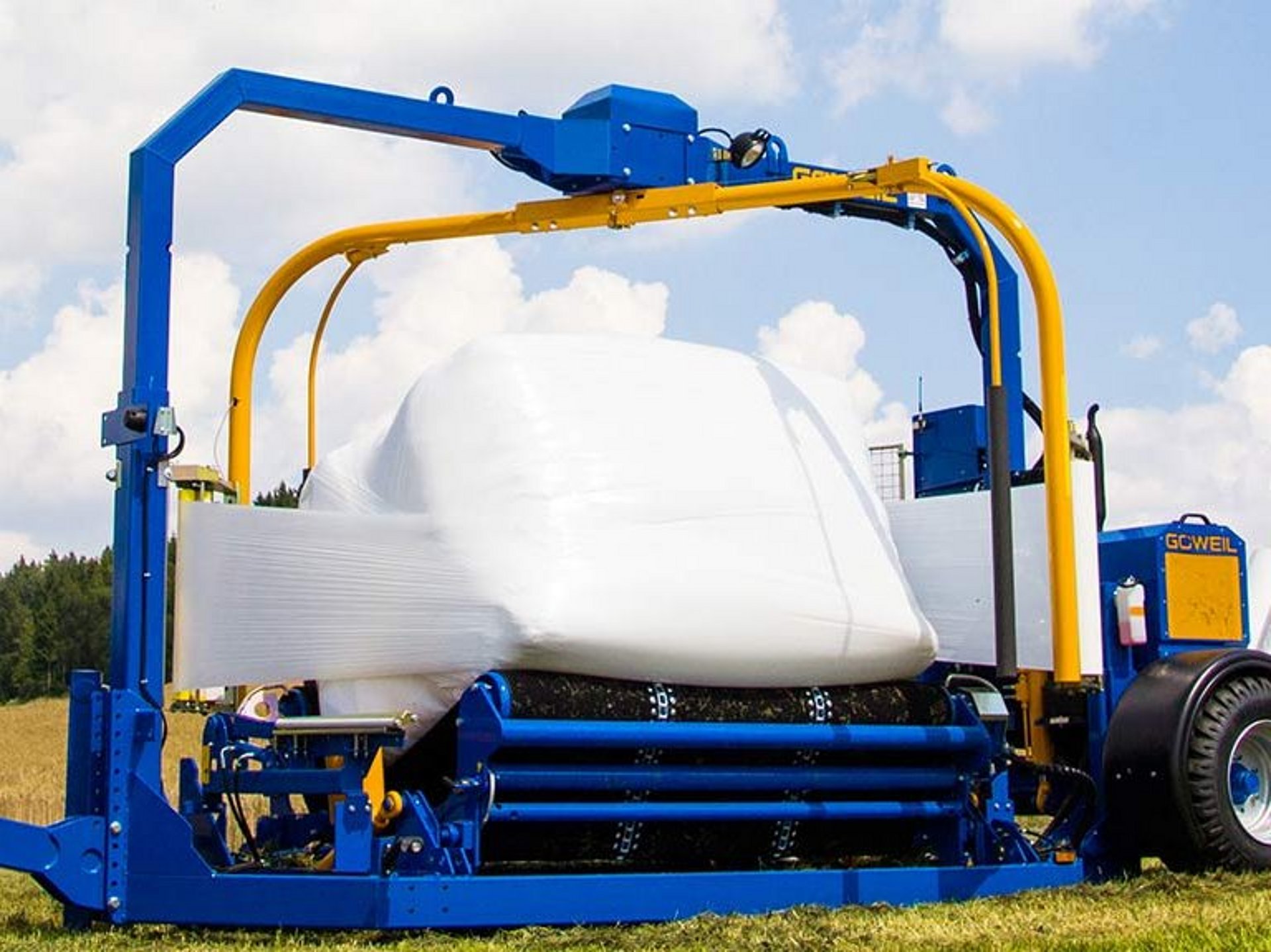

The key distinguishing features of the stationary round and square bale wrapper G4010 Q Profi are the twin wrapping arm and the fully automatic PROFI program control. This bale wrapper makes it possible to wrap square bales with a length of up to two meters. One feature that comes in particularly handy is the ability to wrap double bales. This feature increases performance and cuts down film consumption by up to 20%. Another major advantage the G4010 Q Profi round and square bale wrapper has to offer is the capacity to wrap both square and round bales.

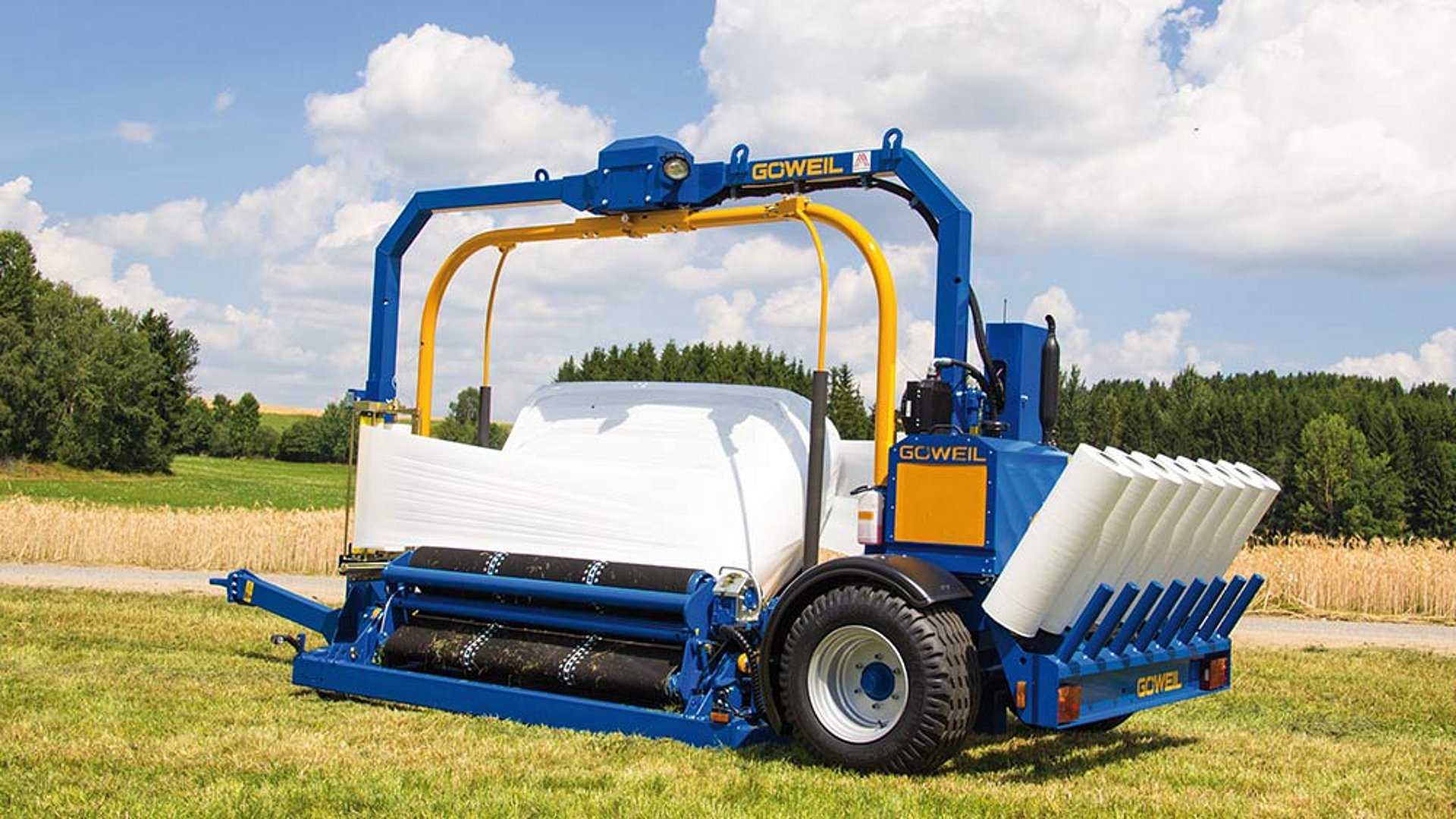

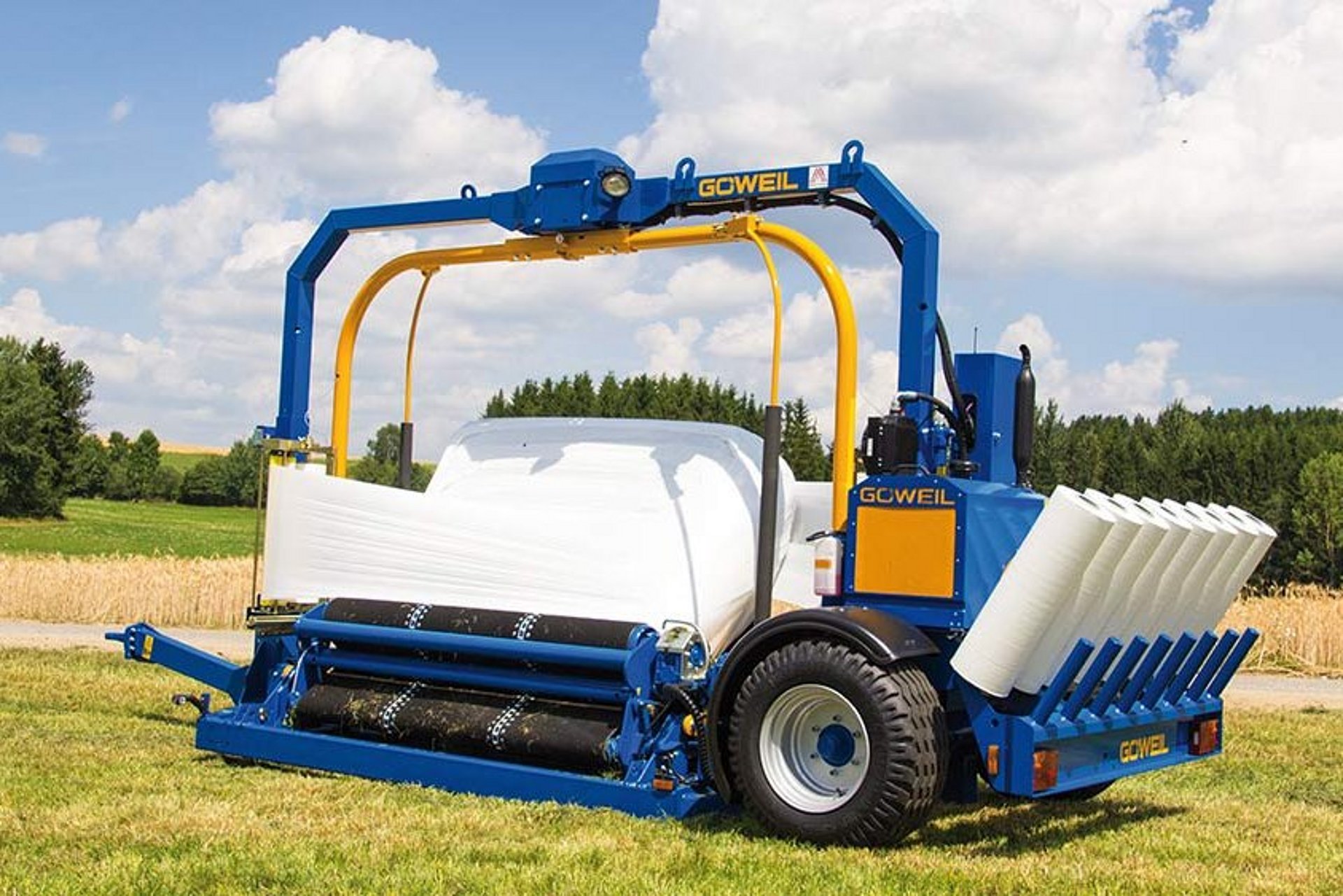

Secure Bale Guiding
The rotating rollers arranged on both sides are connected to each other with tie rods. This produces a controlled force, which in conjuntion with the belt, generates a clamping effect on the bales. The wrapper is able to guide the bale securely even with rectangular bale dimensions. A quick adjustment can adapt the belt length to different bale dimensions.
(without hydraulic oil)

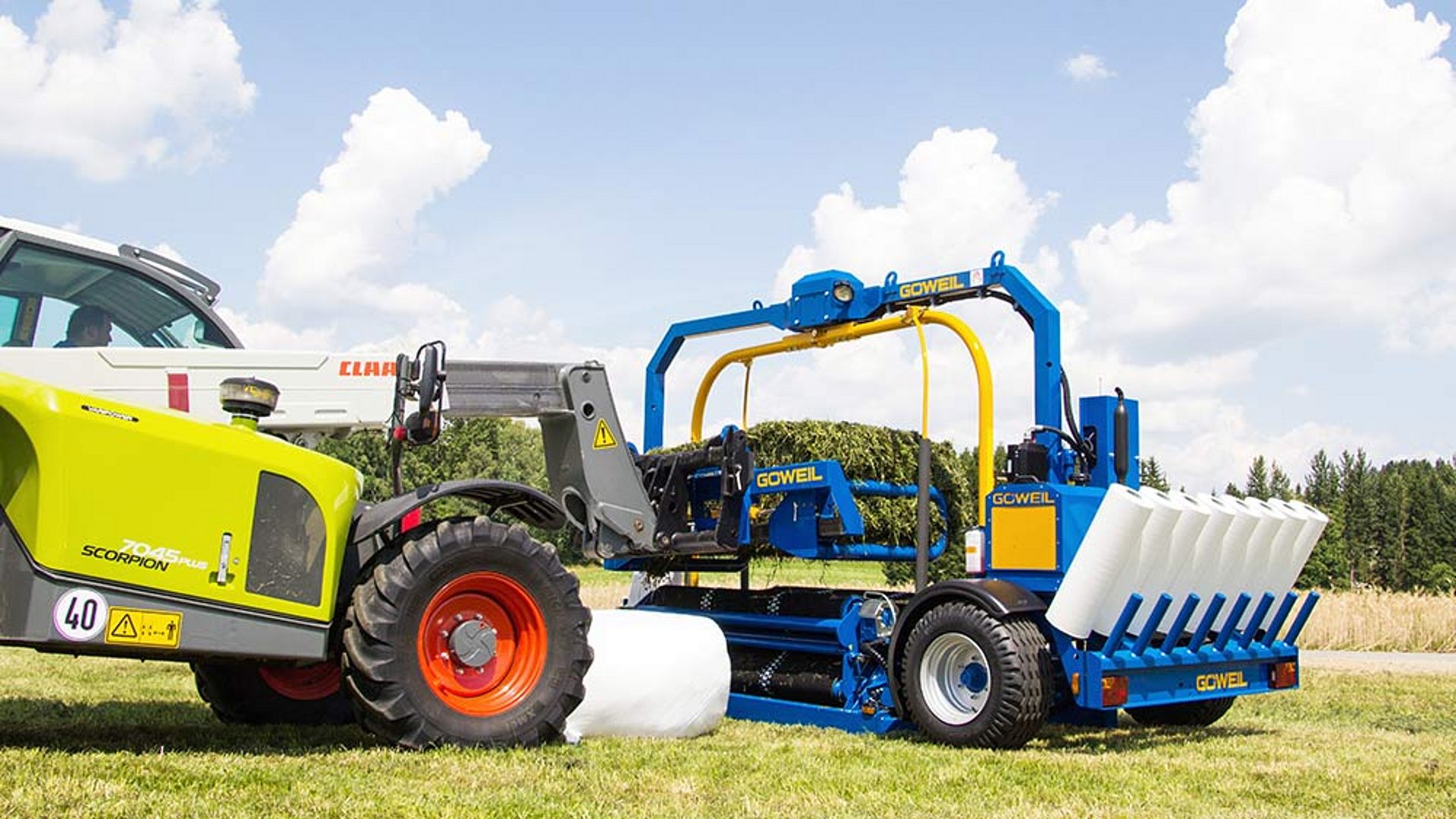

Height-adjustable drawbar with hydraulic support foot for wheel loader operation, can be controlled via radio remote control
17.5 kW diesel engine, water cooled, battery, electric starter, hours counter, pressure & return filter and 44 l hydraulic oil tank
This ensures that the film will overlap accurately for rectangular bales

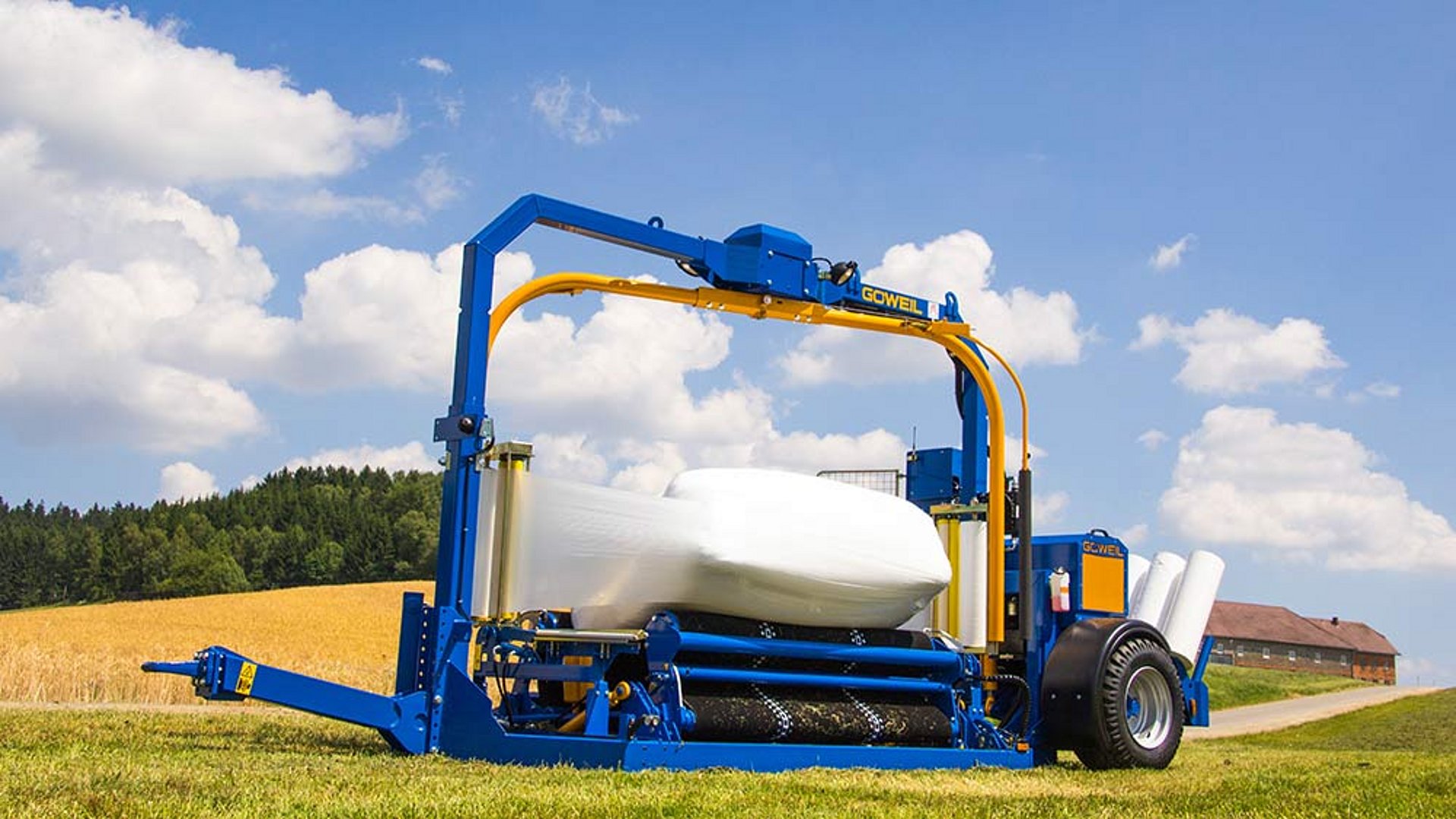

The execution of all work cycles is fully automatic
Technical data (basic model)
|Weight:||3,200 kg (6,430 lbs)|
|Length:||6,790 mm (22’ 3”)|
|Width:||2,410 mm (8’)|
|Height:||2,410 mm (11’ 6” to 12’ 2”) (with the lift axle extended)|
For all bale dimensions:
from 0.80 x 0.80 m to 1.20 x 1.40 m (32” x 32” to 48” x 56”)
with a length of up to 2.00 m (78”)
|Round bale diameter:||0.90 - 1.60 m (36” – 60”)|
Self-sufficient oil supply
|Bale weight round / square:||max. 1,800 / 1,500 kg (max. 4,000 / 3,300 lbs)|
|7-pin power outlet for the entire lighting system (excluding work lights)|
|3-pin power outlet for the electrical supply of the hand-held terminal (12 V / 10 A)|

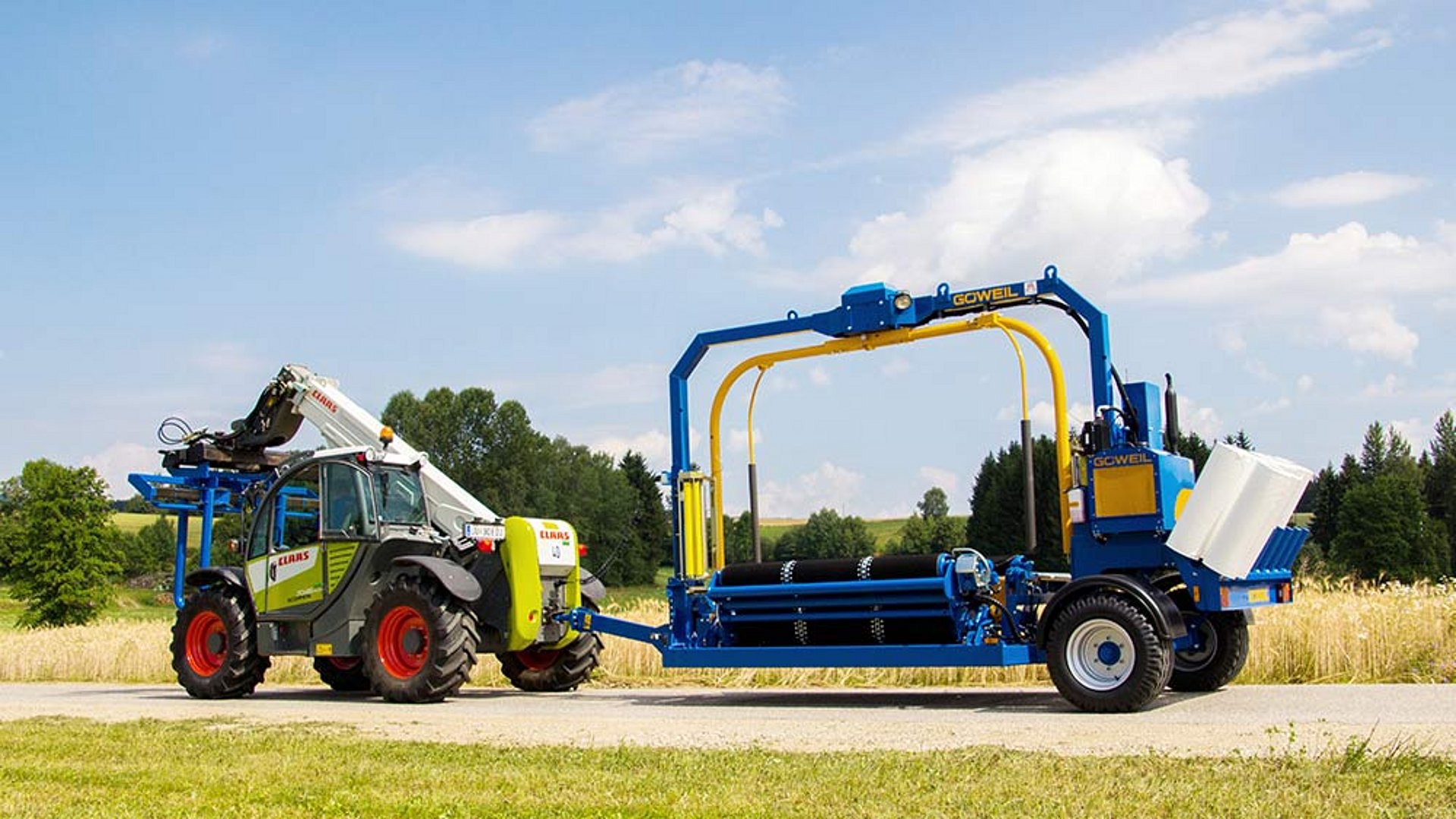

Width altered to 2,545 mm, height altered to 3,590 – 3,770 mm depending on position of upper part, with lift axle extended

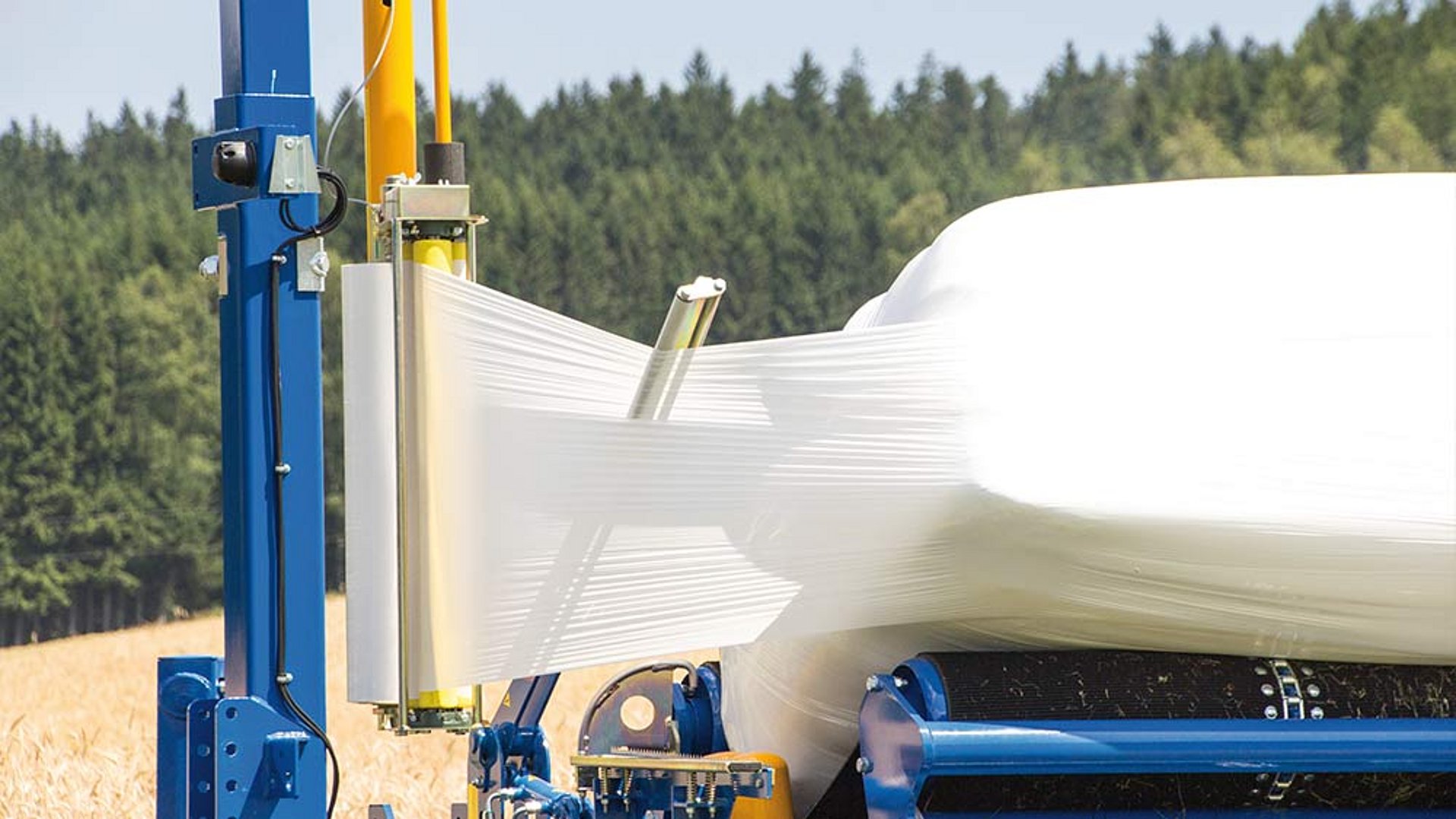

Stops the wrapping process if film tears or runs out.
Automatically switches to “single-film mode” as soon as one roll runs out. During this process the feed rate is reduced to ensure an overlap of 50 %.
Automatically switches to idle speed after the wrapping process or extended intervals
Hydraulically lowerable rubber mat that can be controlled via radio remote control
