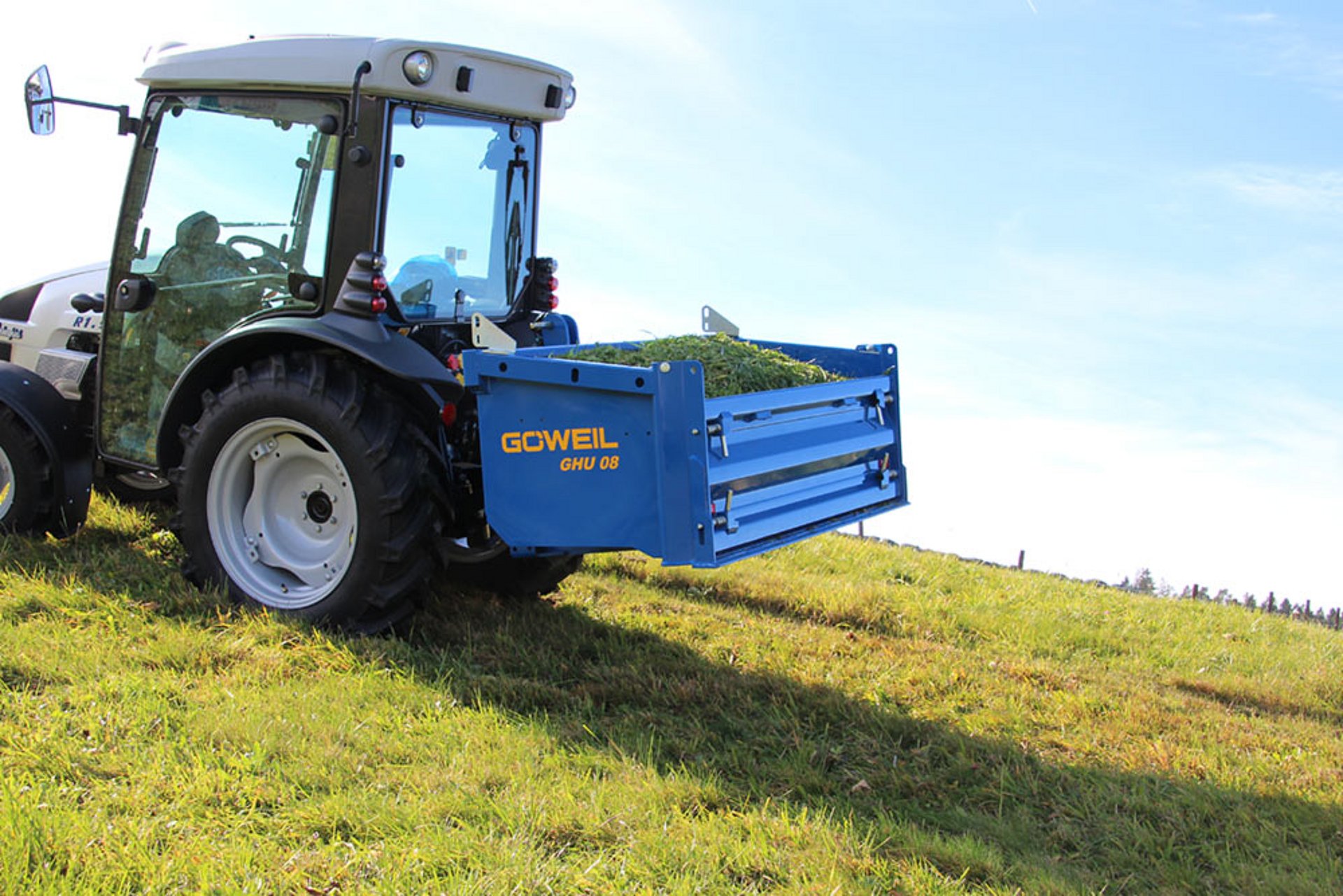

The high dump bucket GHU 08 for transporting grass

Rear bucket
GHU 08 | High Lift bucket

For tractors with 15 - 60 HP | Payload up to 2,400 kg

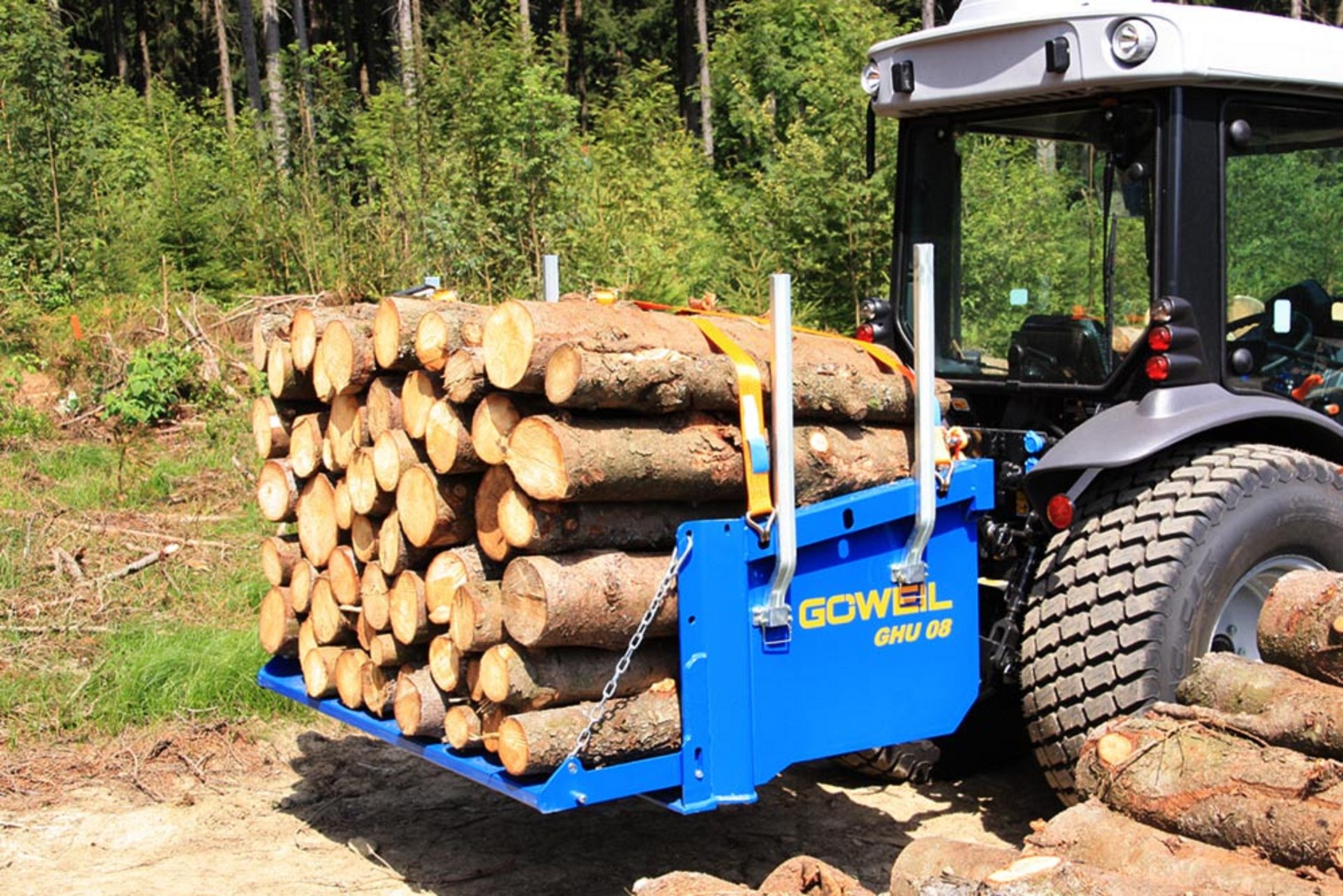

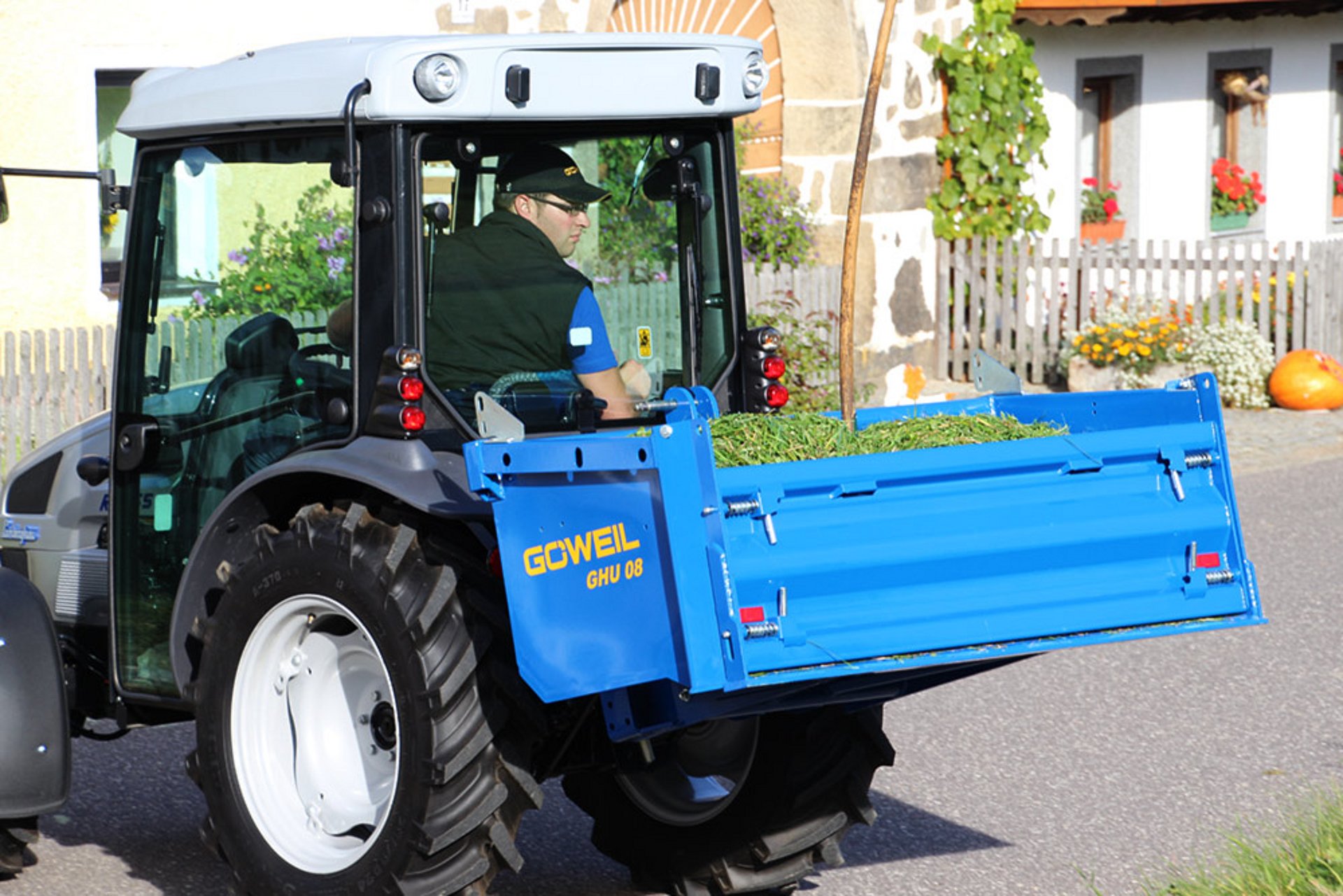

The GHU 08 high dump bucket is the ideal machine for minor jobs in agriculture as well as small transports and light-duty yard work.

Highlights

Body

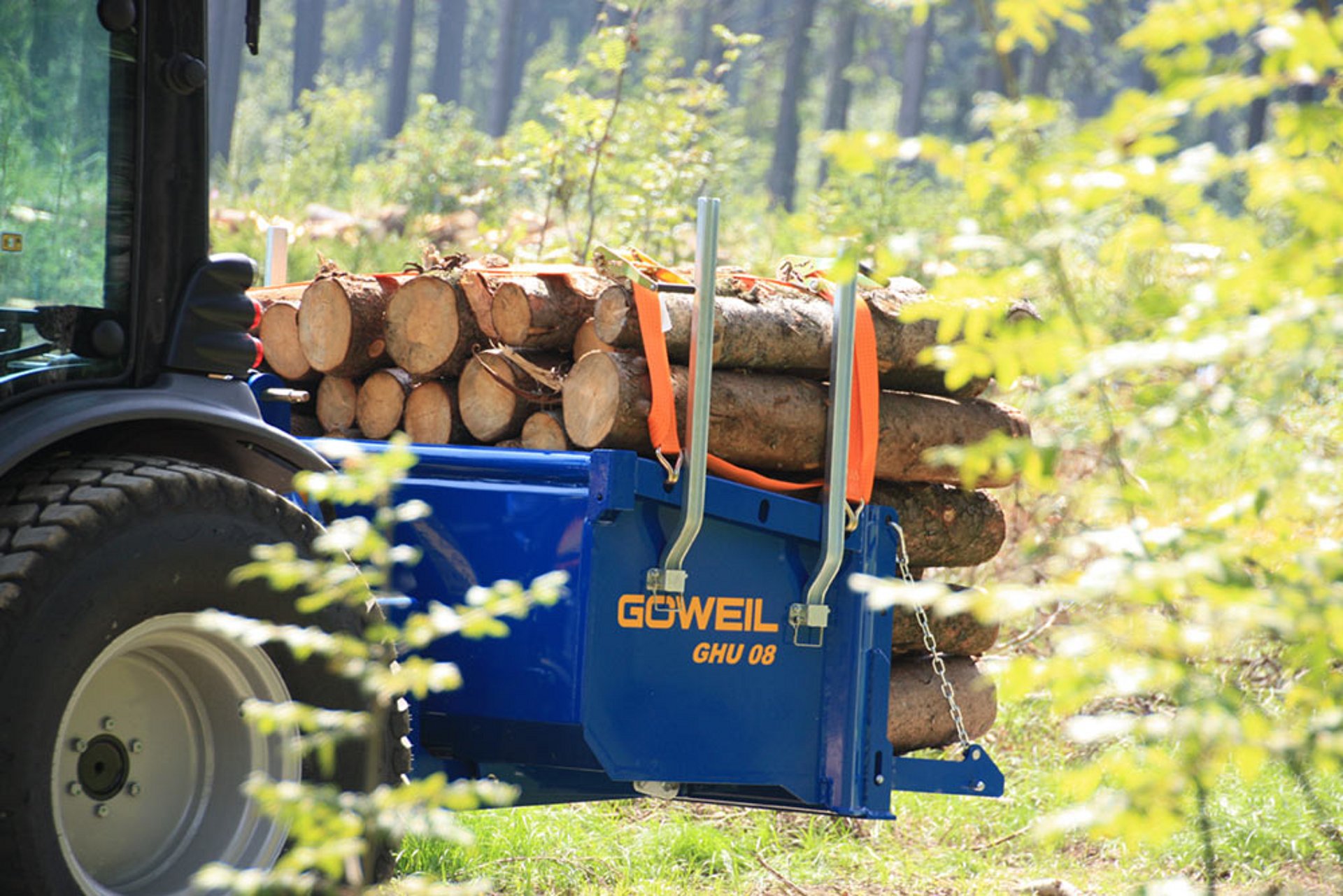

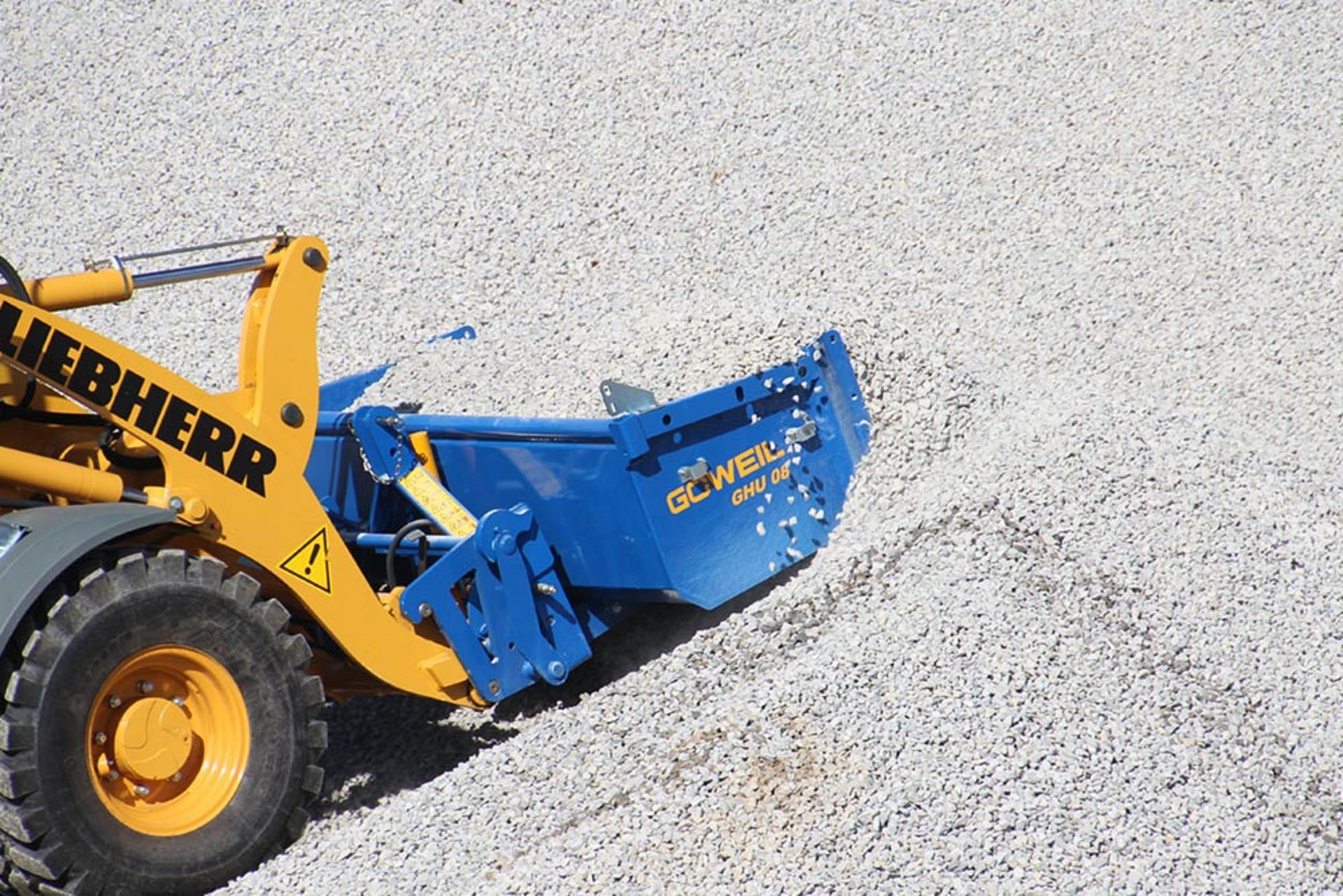

The body is reinforced by additional cast parts at the top corner joints and at the sidewalls. These reinforcements let the rear bucket withstand even greater loads. The upper edge has been enhanced by a round steel pipe. Lashing points arranged on the side allow you to attach belts.

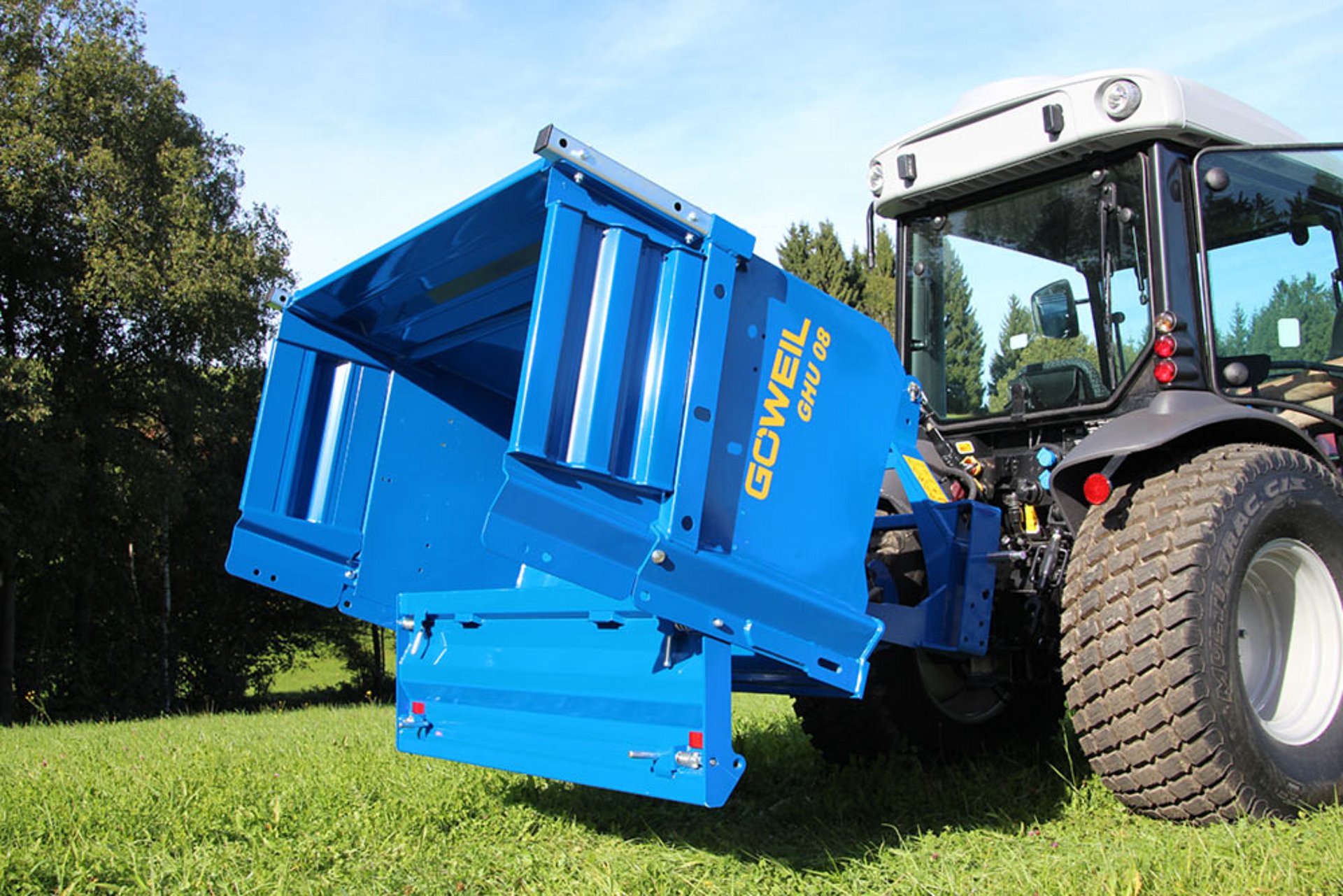

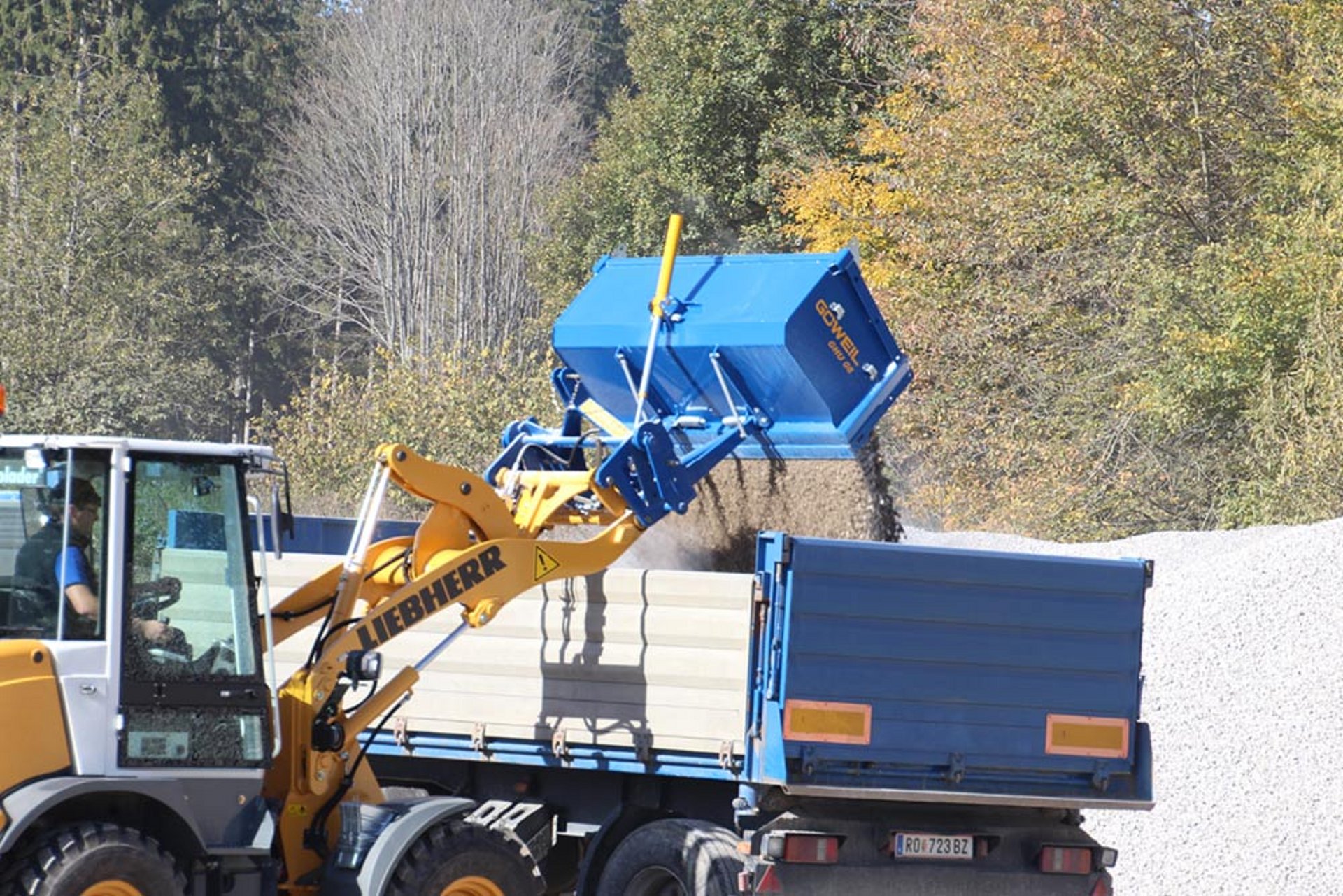

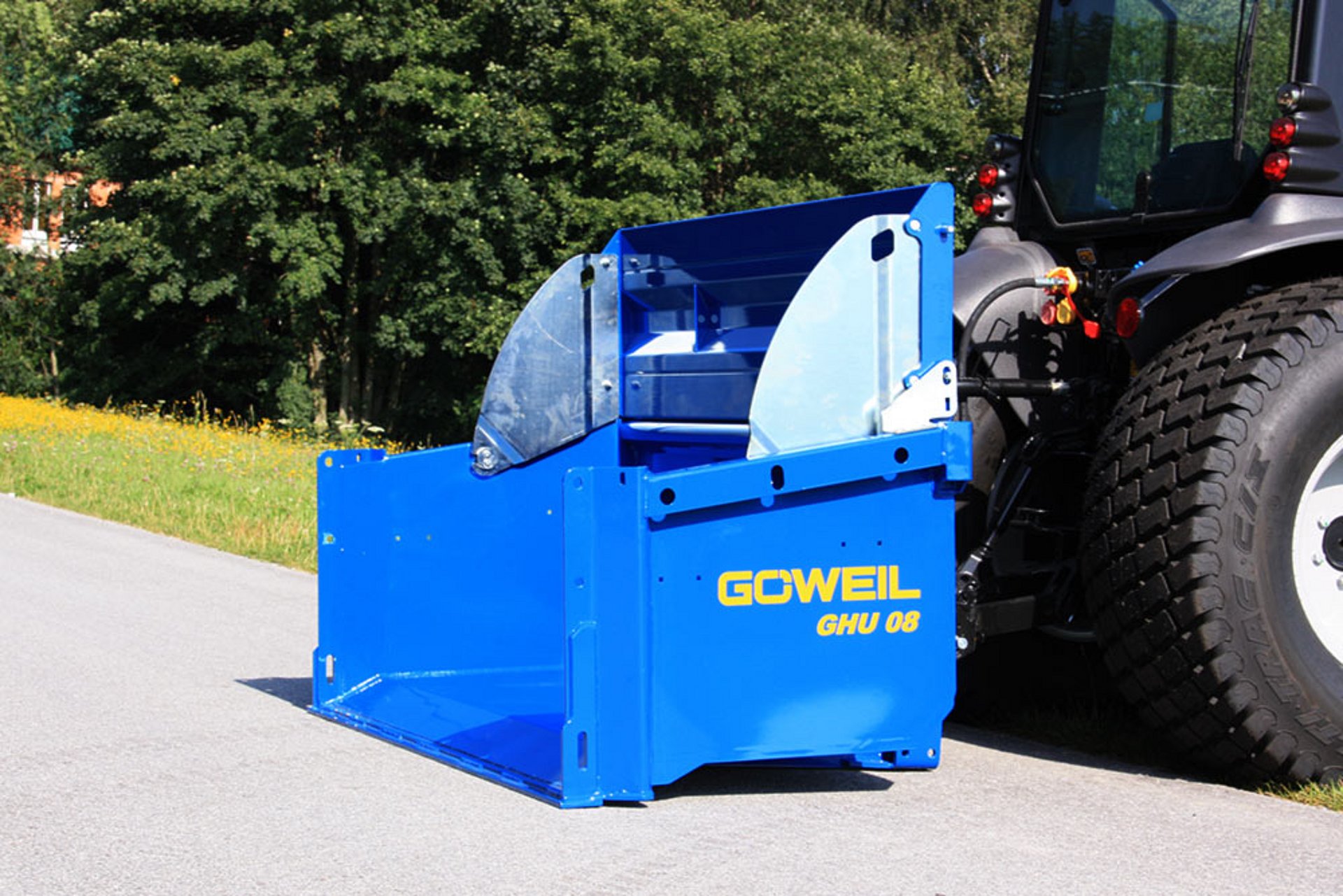

The high dump effect

The design of the high dump bucket provides for a maximum dumping height.

Additional equipment

A large variety of additional equipment options makes it a breeze to customize the GHU to your specific needs.

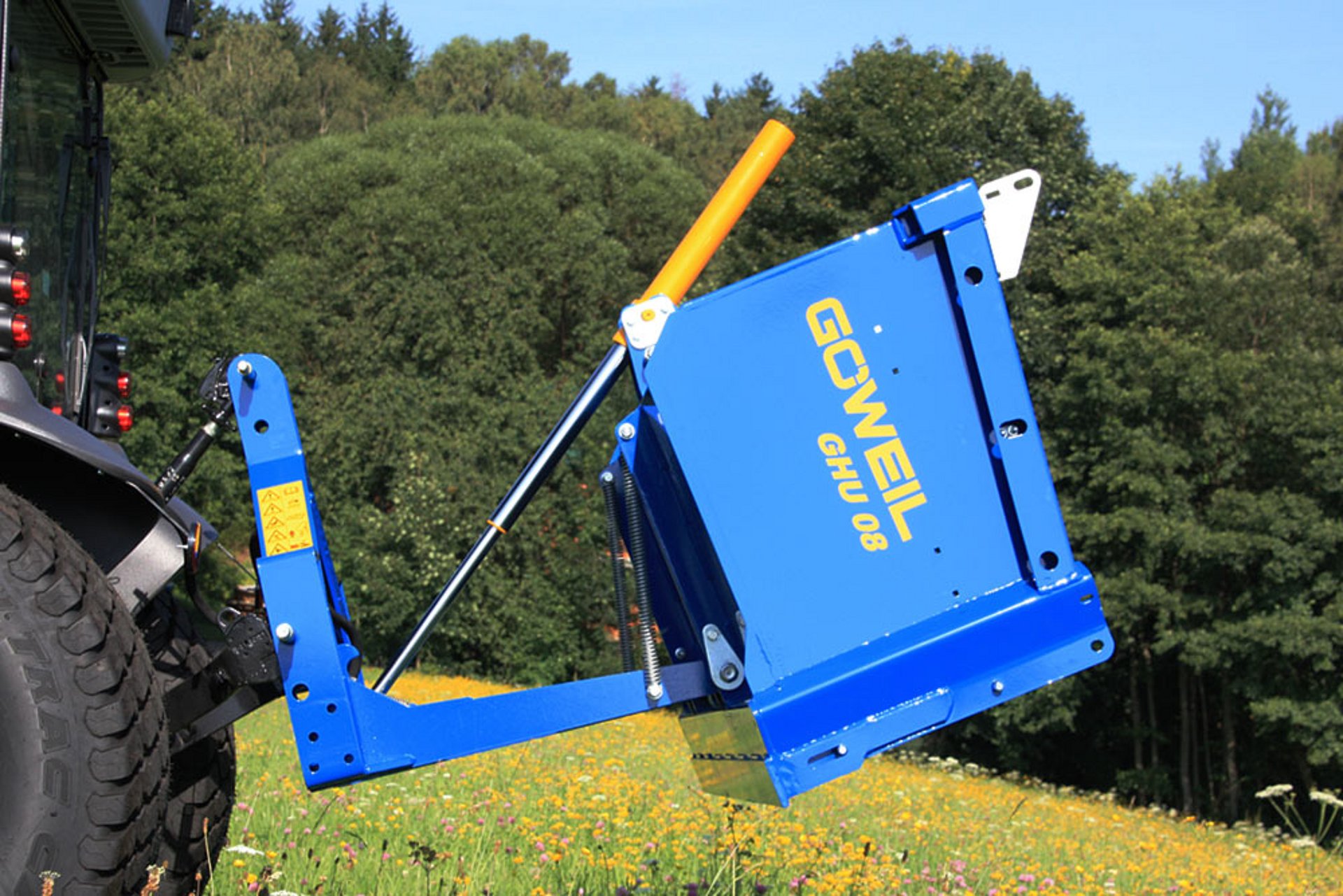

Upright, safely protected telescopic cylinder

Not only is the upright telescopic cylinder perfectly protected and integrated into the 3-point frame, it also delivers a level of strength that is truly exceptional. It can handle any load you throw at it!

Swinging sidewall

Formed by a sidewall profile, the swinging sidewall will stand up to even greater loads.




Bucket bottom

The flat bucket bottom makes it a cinch to load the GHU.

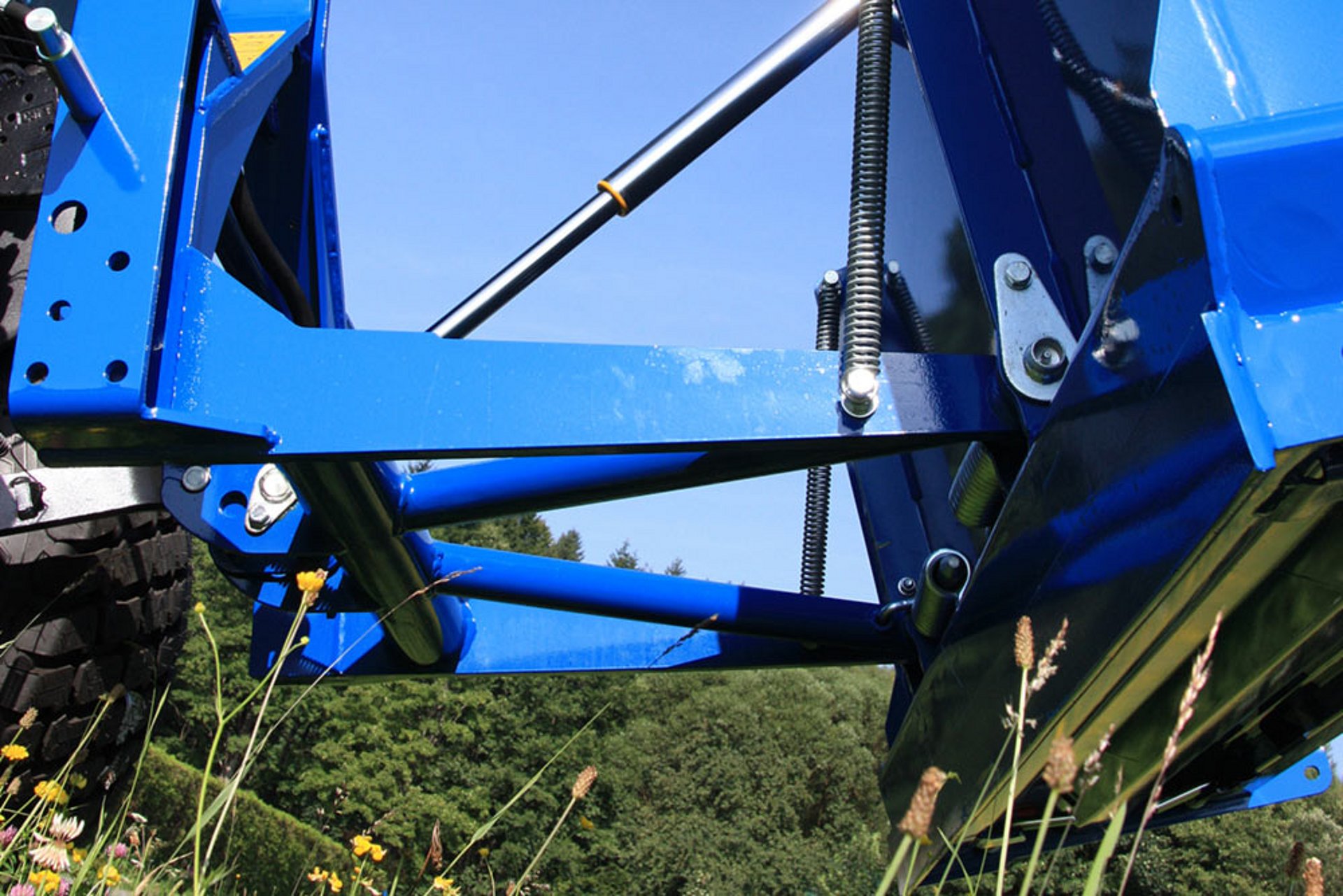

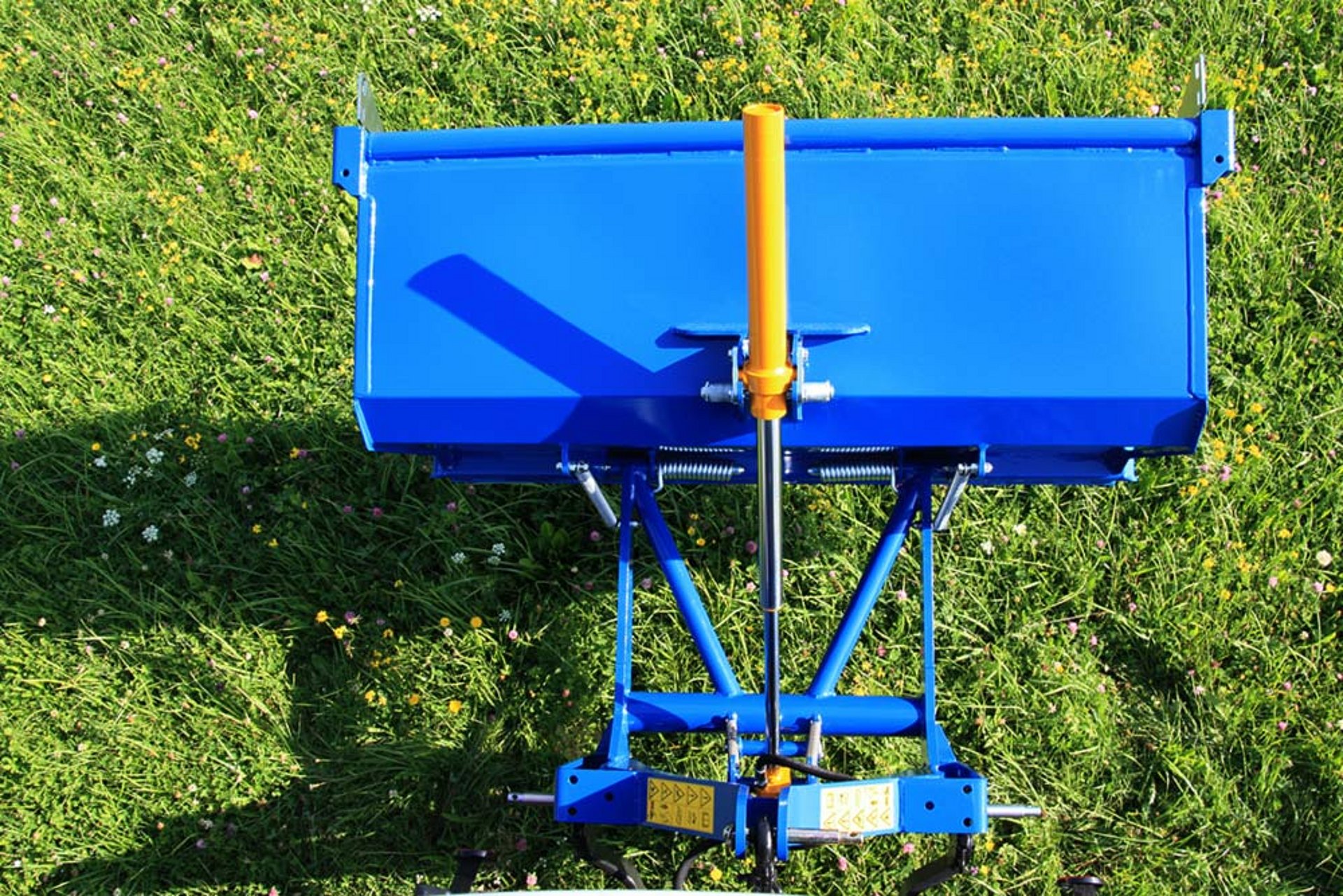

Open 3-point frame

Ideal for leveling surfaces or clearing snow. No material will stick to the frame!

Basic model

Single or double-acting 2-stage telescopic cylinder, upright in 3-point frame

Three-point linkage Cat. I

for quick lowering into end position including automatic end position locking in single-acting version

Flat bucket bottom with welded-on scraper bar made from HARDOX 500

Removable rear panel/platform swing gate

Standard sizes

Bucket depth: 800 mm - front/side wall height: 600 m

Model

Bucket width

Weight

GHU 08/1400

1,400 mm

251 kg

GHU 08/1550

1,550 mm

260 kg

GHU 08/1700

1,700 mm

269 kg

GHU 08/1850

1,850 mm

279 kg

GHU 08/2000

2,000 mm

288 kg

GHU 08/2200

2,200 mm

293 kg

Mounting options

Three-point linkage Cat. II

Euro mount including Cat. II attachment

Straightforward installation thanks to bolted attachment
3-point attachment remains fully usable
2-stage locking lugs effect an improved tilt angle, allowing for picking up larger amounts of bulk solids

Weidemann, hydraulic

Adapter Weiste triangle Cat. 0, adapter Weiste triangle Cat. II

Hauer B

Other mounting options available on request

Overview Mounting options »





Additional equipment

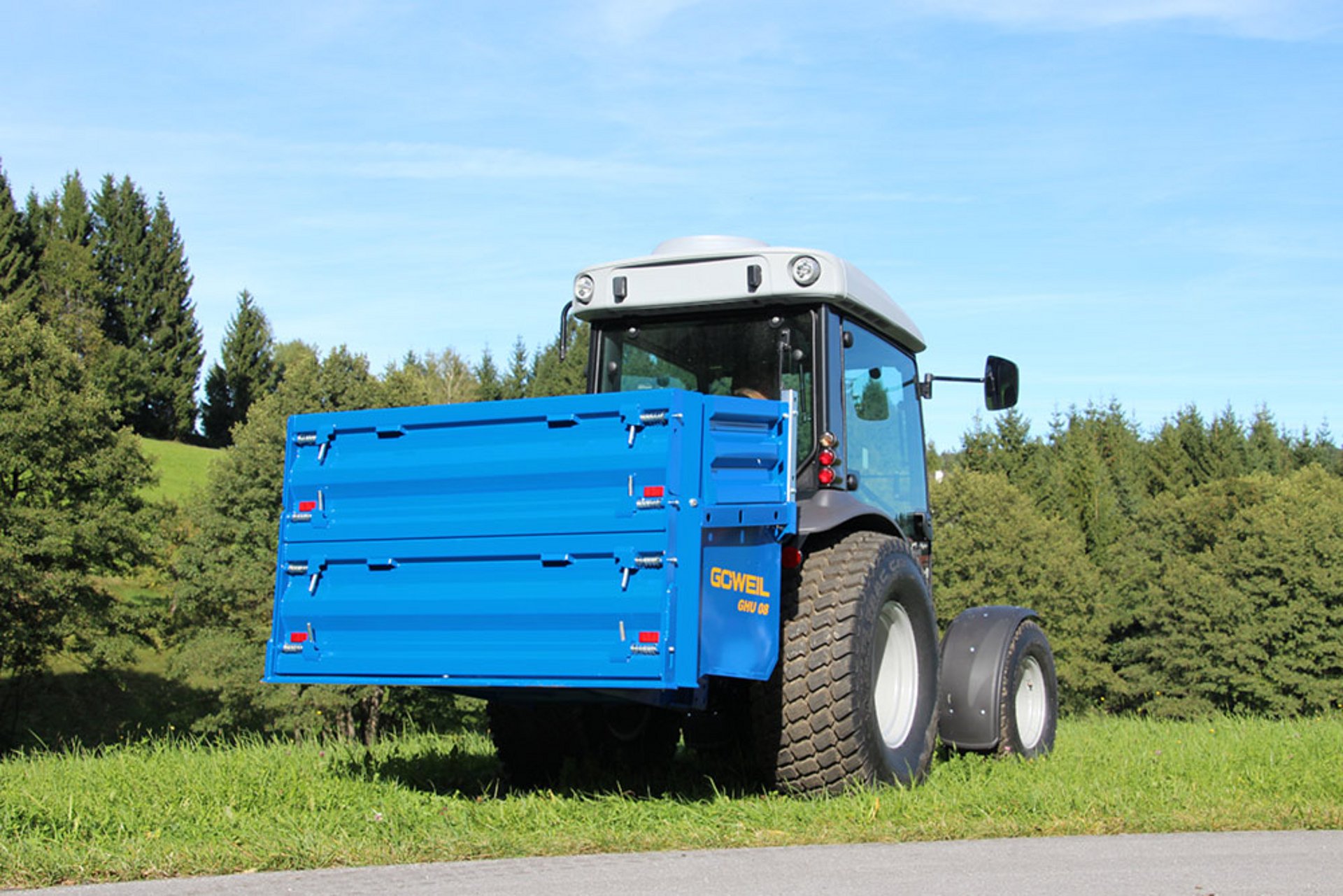

Straightforward installation (can be fitted and removed with ease and without the use of tools), increases the height of the front panel by 450 mm, can still be used as a trough extension

Consisting of 2 side sections, front panel and one holder for the sidewall, additional height of 350 mm

Bucket width: 1,400 mm, 1,550 mm, 1,700 mm, 1,850 mm, 2,000 mm, 2,200 mm

for connecting the additional rear panel with standard rear panel

Height: 500 mm
Simple installation (can be slipped on or removed without the use of tools)

John Deere Green, Fendt Green, Communal Orange (RAL 2000), Red (RAL 3000), Jet Black (RAL 9005)
