Stationary square bale wrapper with diesel engine
G3010 Q Profi | Square bale wrapper



Equipped with a powerful diesel engine delivering 17.5 kW, the stationary machine G3010 Q Profi is the perfect machine for contract harvesters. The work cycles "wrap bale" and "stack bale" are executed simultaneously. Thanks to the PROFI program control, the execution of all work cycles is fully automatic.

Highlights

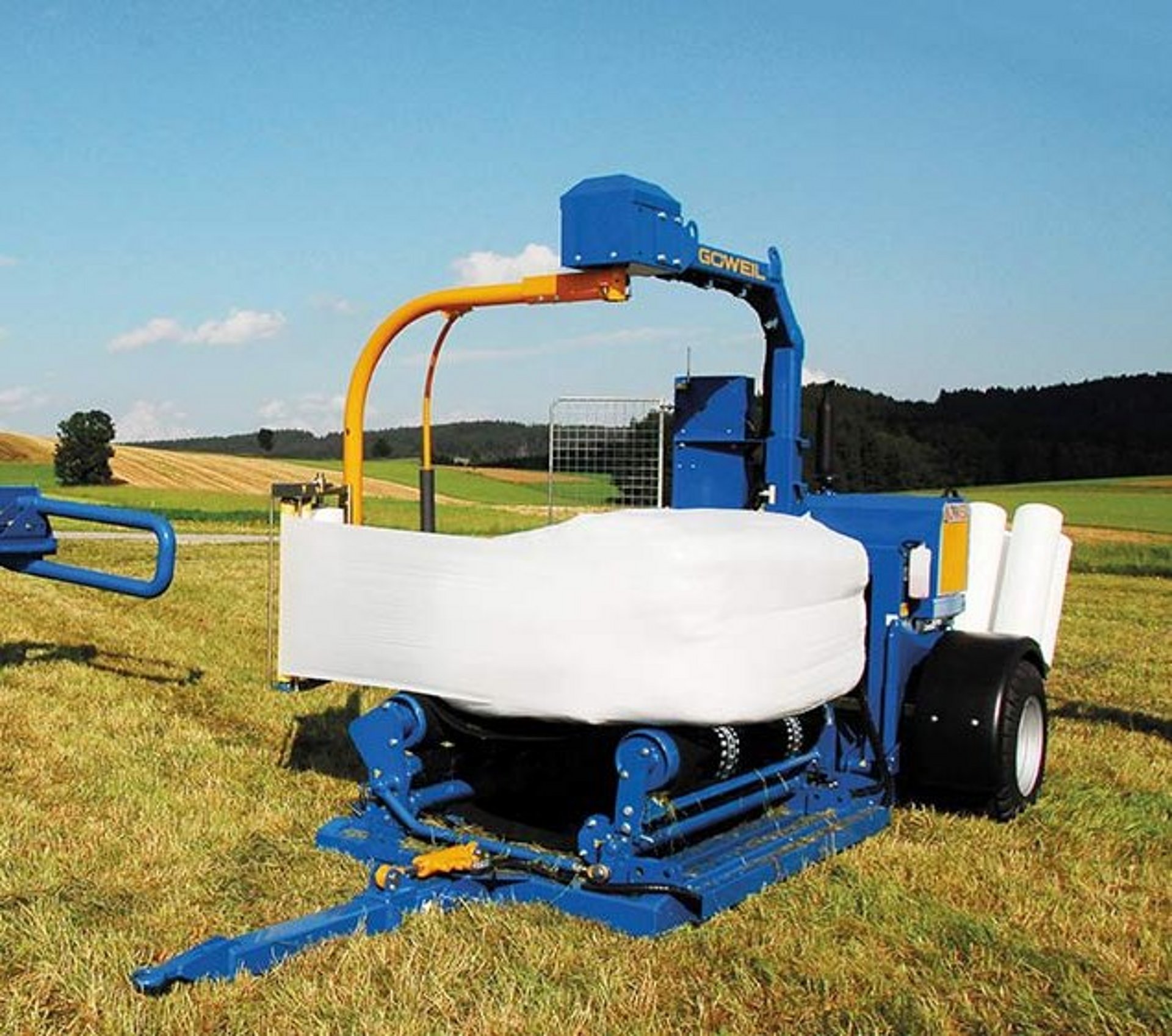

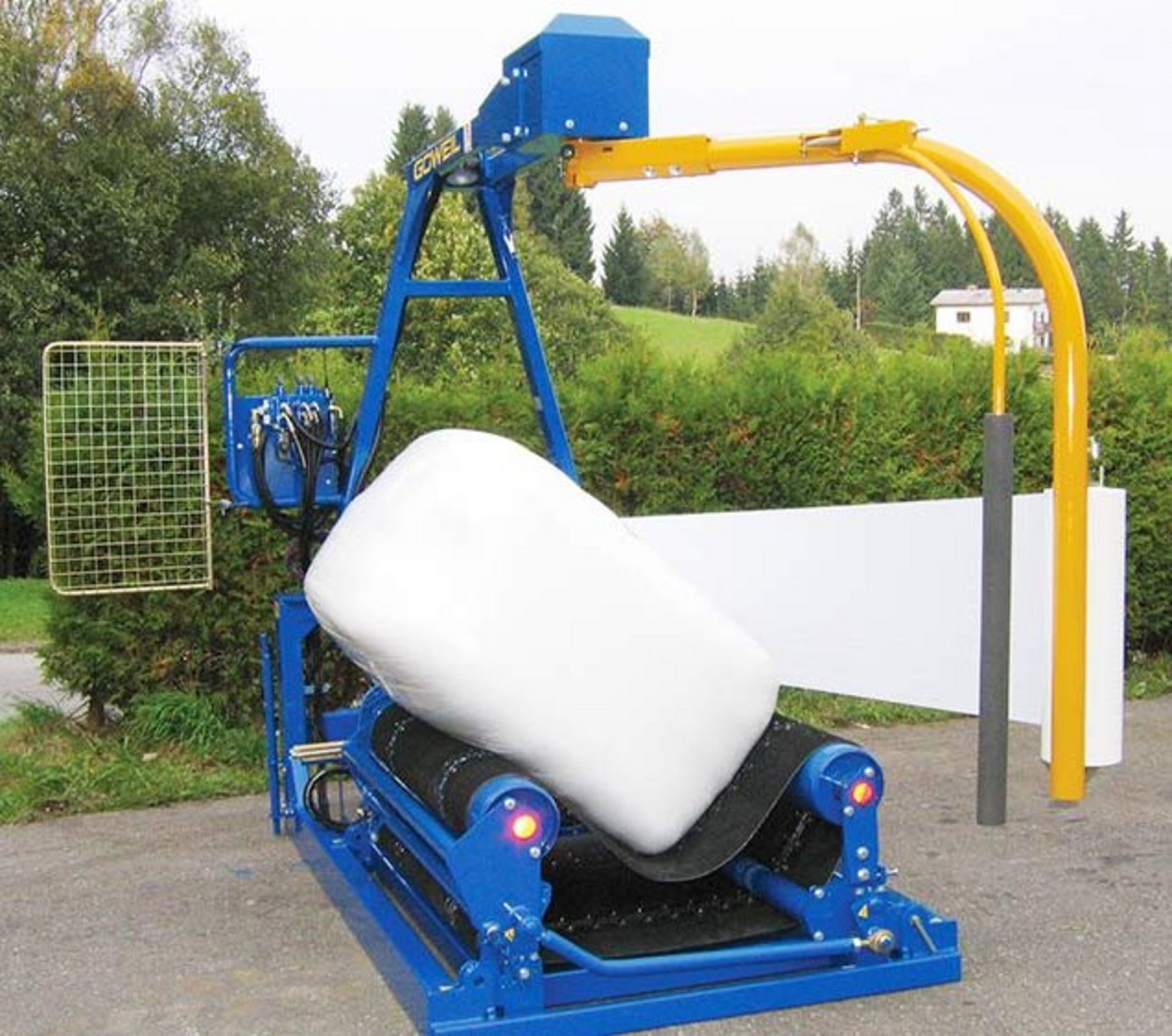

The G3010 Q Profi packages square and round bales in an equally clean and air-tight manner.

SECURE BALE GUIDING

The rotation rollers arranged on both sides are connected to each other with tie rods. This produces a forced control that generates a clamping effect on the bales in conjunction with the conveyor belt. The wrapper achieves secure bale guiding even with rectangular bale dimensions. A quick adjustment adapts the conveyor belt length to the bale dimensions.

The fully automatic PROFI program control with wireless operation offers exceptional ease of use.

CONTROL PROFI

A genuine highlight is the user-friendly and easy-to-use program control PROFI with wireless operation. All work steps are executed in fully automatic fashion. Manual control of all functions and parameters is still possible.

The continuous bale conveyor belt guarantees uniform wrapping of each and every bale.

CONTINUOUS BALE CONVEYOR BELT

The wide, continuous bale conveyor belt guarantees uniform wrapping of each and every bale - even if it is misshapen.

The feed rate shut-off valve provides for an accurate overlap of the film.

FEED RATE SHUT-OFF VALVE

This ensures that the film will overlap accurately for rectangular bales.

17.5 kW KUBOTA diesel engine with battery, generator, hours counter and electric starter as well as hydraulic system

MOTOR

The G3010 Profi is equipped as standard with a 17.5 kW KUBOTA diesel engine including battery, generator, hours counter and electric starter as well as hydraulic system.

Basic model

(without hydraulic oil)

Single wrapping arm

Hydraulically tilting wrapping table with mechanical belt length adjustment

Wide, continuous bale conveyor belt with belt guide and 2 bale guide rollers

Bale deposit to the left and the right

Combined film stretching unit 500 mm and 750 mm

Automatic film cutting and holding system

Hydraulically adjustable lift axle

Removable, hydraulic articulated drawbar

Storage for 16 rolls of film

Tires 380/55-17AW

Water-cooled, 3-cylinder engine, 17.5 kW, including battery, generator, hours counter and electric starter as well as hydraulic system fully assembled

This ensures that the film will overlap accurately for rectangular bales

Light and indicator system

Working headlight

The execution of all work cycles is fully automatic

Technical data (basic model)

Weight:1,850 kg
Length:5,600 mm
Width:2,400 mm
Height:3,150 mm (with the lift axle extended)

For all bale dimensions:

up to 1.20 x 1.40 m

Bale length:

up to 1.60 m

Round bale diameter:

0.90 – 1.50 m

Self-sufficient oil supply





Required connections

7-pin power outlet for the entire lighting system (excluding working headlights)

Additional equipment

Width altered to 2,525 mm

Overview Tires »

Stops the wrapping process if film tears or runs out

Additional bale guide roller

Automatically switches to idle speed after the wrapping process or extended intervals

Axle suspension

Dual-line air brake system

Hydraulic brake with accumulator and breakaway quick-closing device

Hydraulic brake without accumulator and breakaway quick-closing device

Customers can choose from a large selection of drawbar eye types
