Versatile use of the high-tip bucket with forklift attachment.
GHS 10

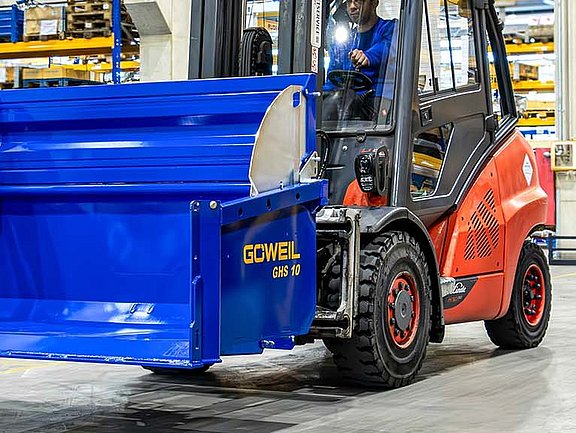

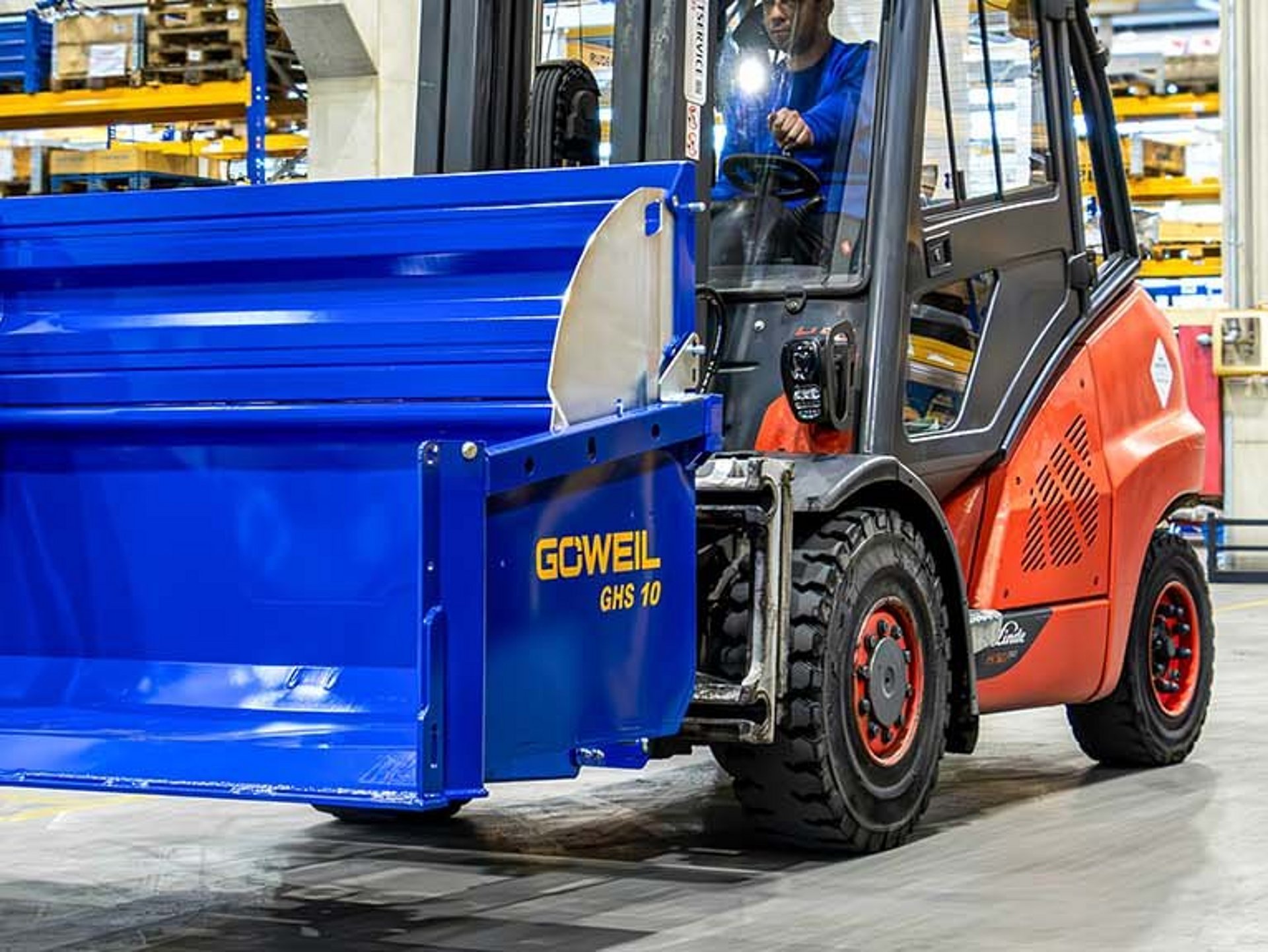

The perfect helper with forklift attachment

Forklift bucket
GHS 10 | HIGH LIFT BUCKET

from 40-100 HP | Payload up to 3,500 kg

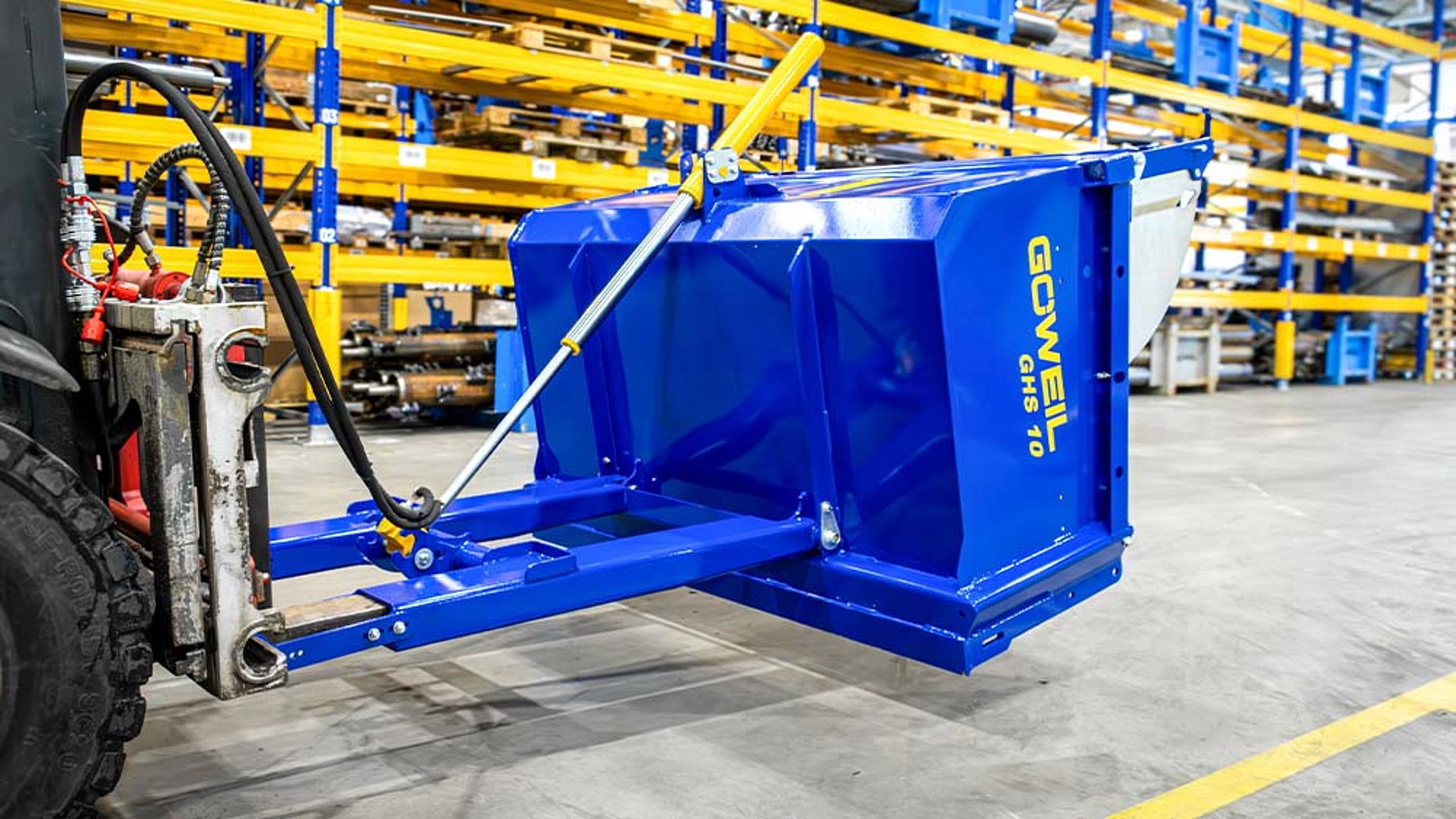

Our tried-and-true high lift bucket with forklift attachment – the GHS 10 is your universal assistant for use in commercial applications.

Highlights

Stacker attachment

We also offer models of our tried-and-tested high dump bucket that are specially designed for stackers used in commercial applications.




Body

The body is reinforced by additional cast parts at the top corner joints and at the sidewalls. These reinforcements let the rear bucket withstand even greater loads. The upper edge has been enhanced by a round steel pipe. Lashing points arranged on the side allow you to attach belts.




The high dump effect

The design of the high lift bucket provides for a maximum dumping height.

Additional equipment

A large variety of additional equipment options makes it a breeze to customize the GHU/GHK to your specific needs.




Upright, safely protected telescopic cylinder

Not only is the upright telescopic cylinder perfectly protected and integrated into the 3-point frame, it also delivers a level of strength that is truly exceptional. It can handle any load you throw at it!

Swinging sidewall

Formed by a sidewall profile, the swinging sidewall will stand up to even greater loads.




Bucket bottom

The flat bucket bottom makes it a cinch to load the GHU/GHK.




Open 3-point frame

Ideal for leveling surfaces or clearing snow. No material will stick to the frame!

Basic Model

Double-acting 2-stage telescopic cylinder

Flat bucket bottom with welded-on scraper bar made from HARDOX 500

Removable rear panel / platform swing gate

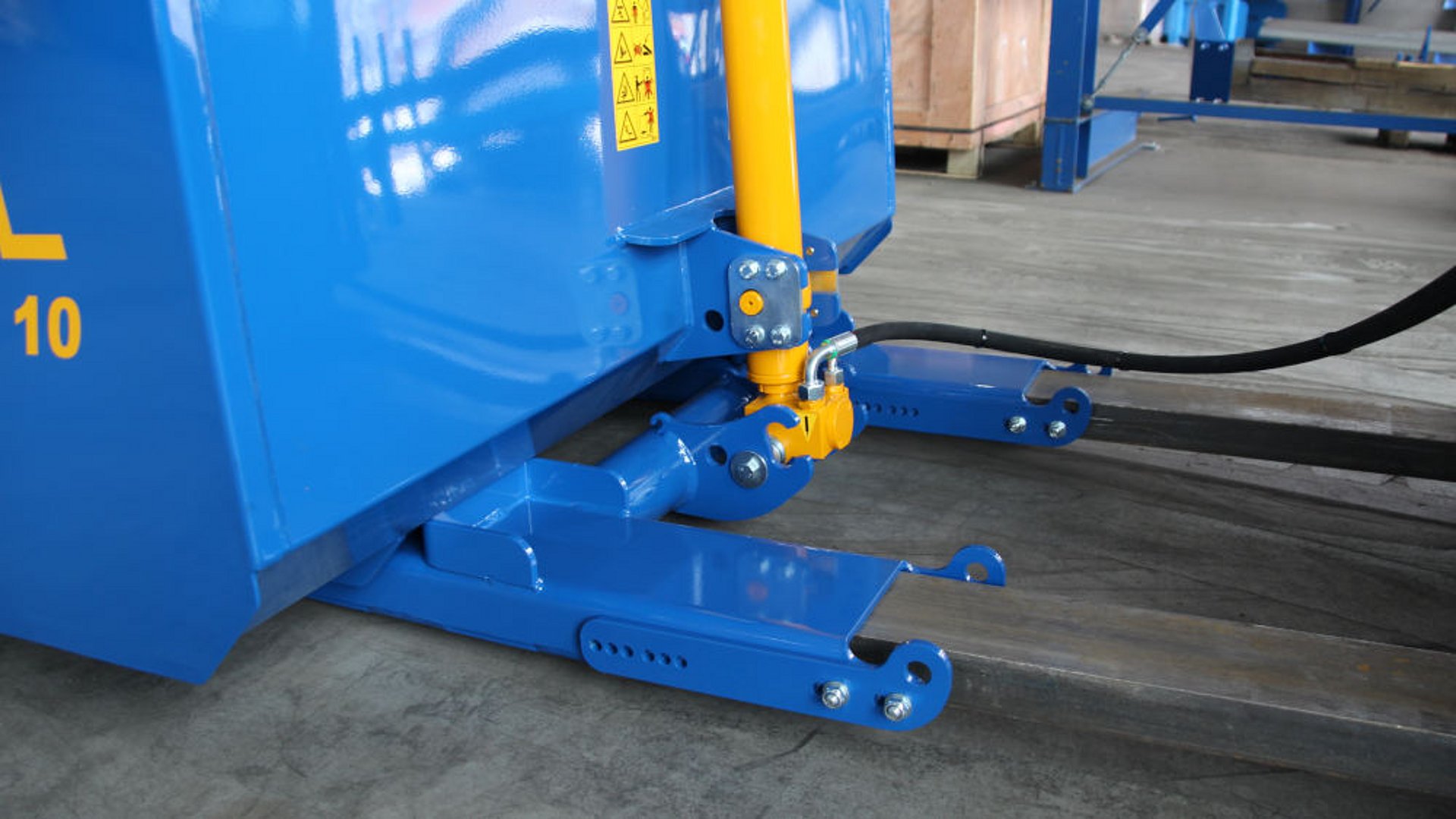

Stacker attachment via fork tines

Standard sizes

Bucket depth: 1.000 mm (40”) - front/side wall height: 700 mm (28”):

Model

Bucket width

Weight

GHS 10/1400

1.400 mm (55”)

275 kg (600 lbs)

GHS 10/1700

1.700 mm (67”)

293 kg (645 lbs)

GHS 10/1850

1.850 mm (72”)

302 kg (665 lbs)

GHS 10/2000

2.000 mm (78”)

344 kg (760 lbs)

GHS 10/2200

2.200 mm (86”)

358 kg (790 lbs)



Additional equipment

Straightforward installation (can be fitted and removed with ease and without the use of tools), increases the height of the front panel by 450 mm (18”), can still be used as a trough extension

Consisting of 2 side sections, front panel and one holder for the sidewall, additional height of 350 mm (14”)

Bucket width: 1,400 mm (55”), 1,700 mm (67”), 1,850 mm (72”), 2,000 mm (78”), 2,200 mm (86”)

for connecting the additional rear panel with standard rear panel

Height: 500 mm (20”)
Simple installation (can be slipped on or removed without the use of tools)
