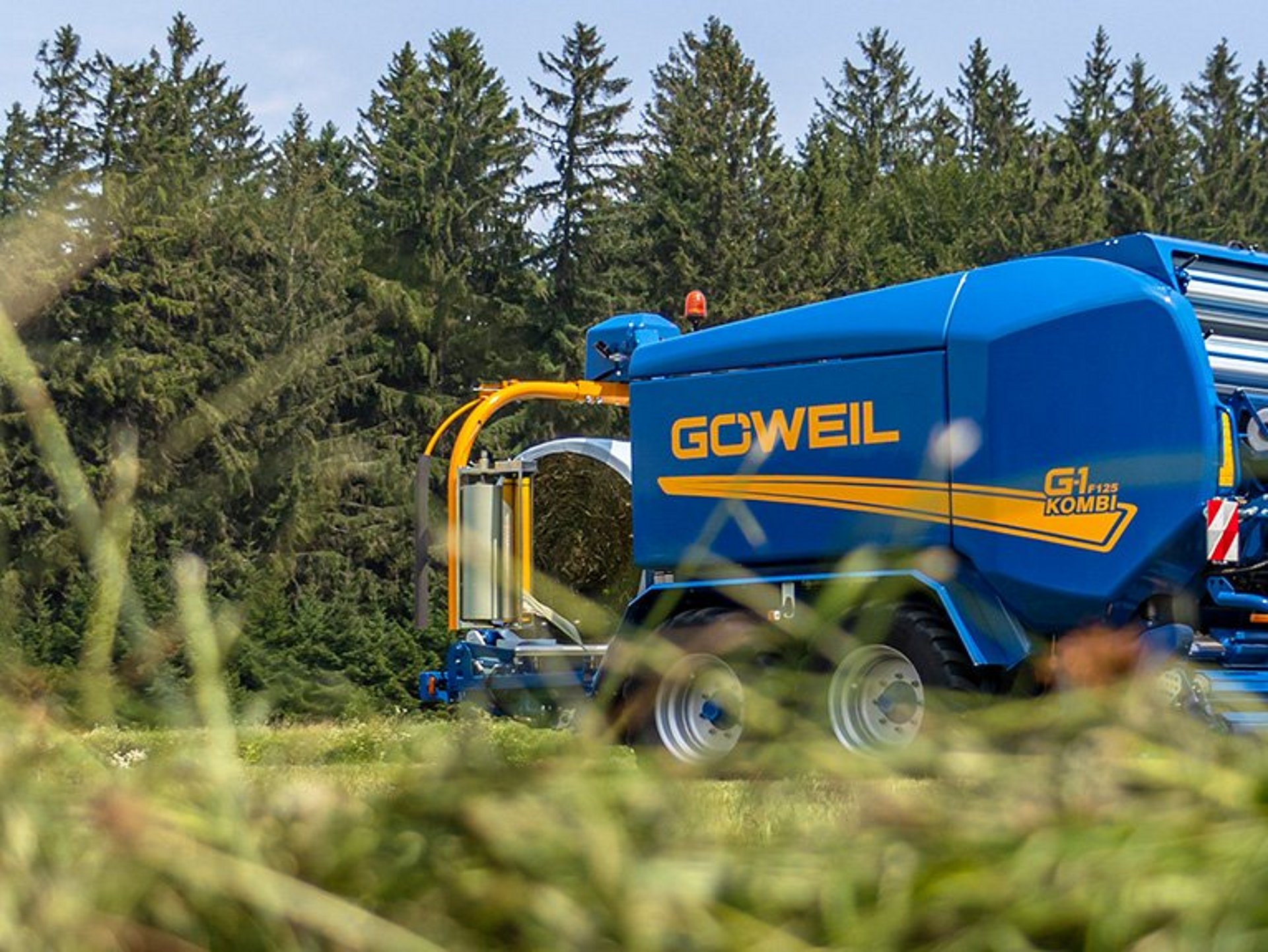

Die G-1 F125 Kombi ist die perfekte Maschine für Großbetriebe und Lohnunternehmer.
G-1 F125 Kombi
The Baler-Wrapper for True Professionals

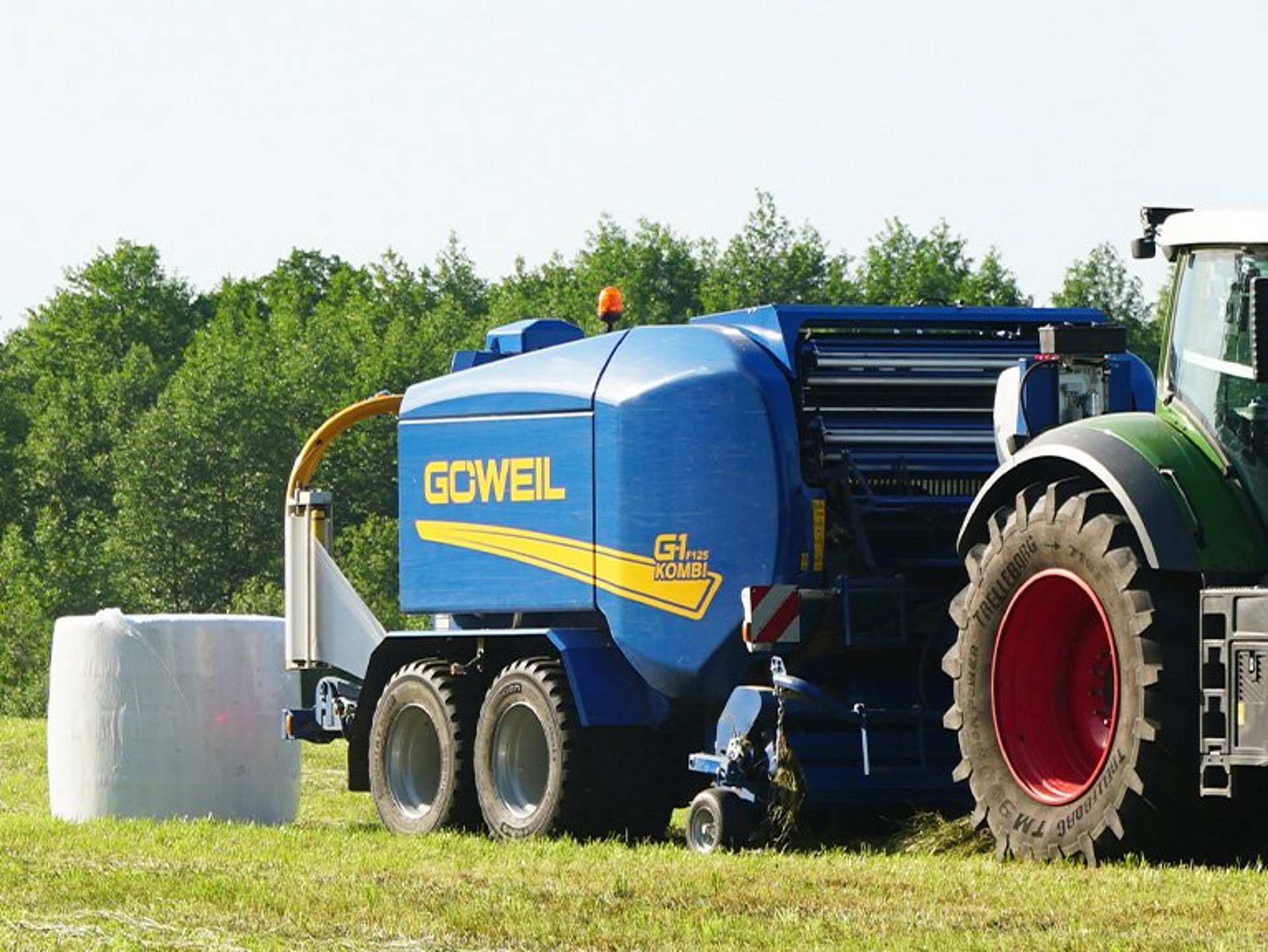

Round bale baler-wrapper combination | G-1 F125 Kombi

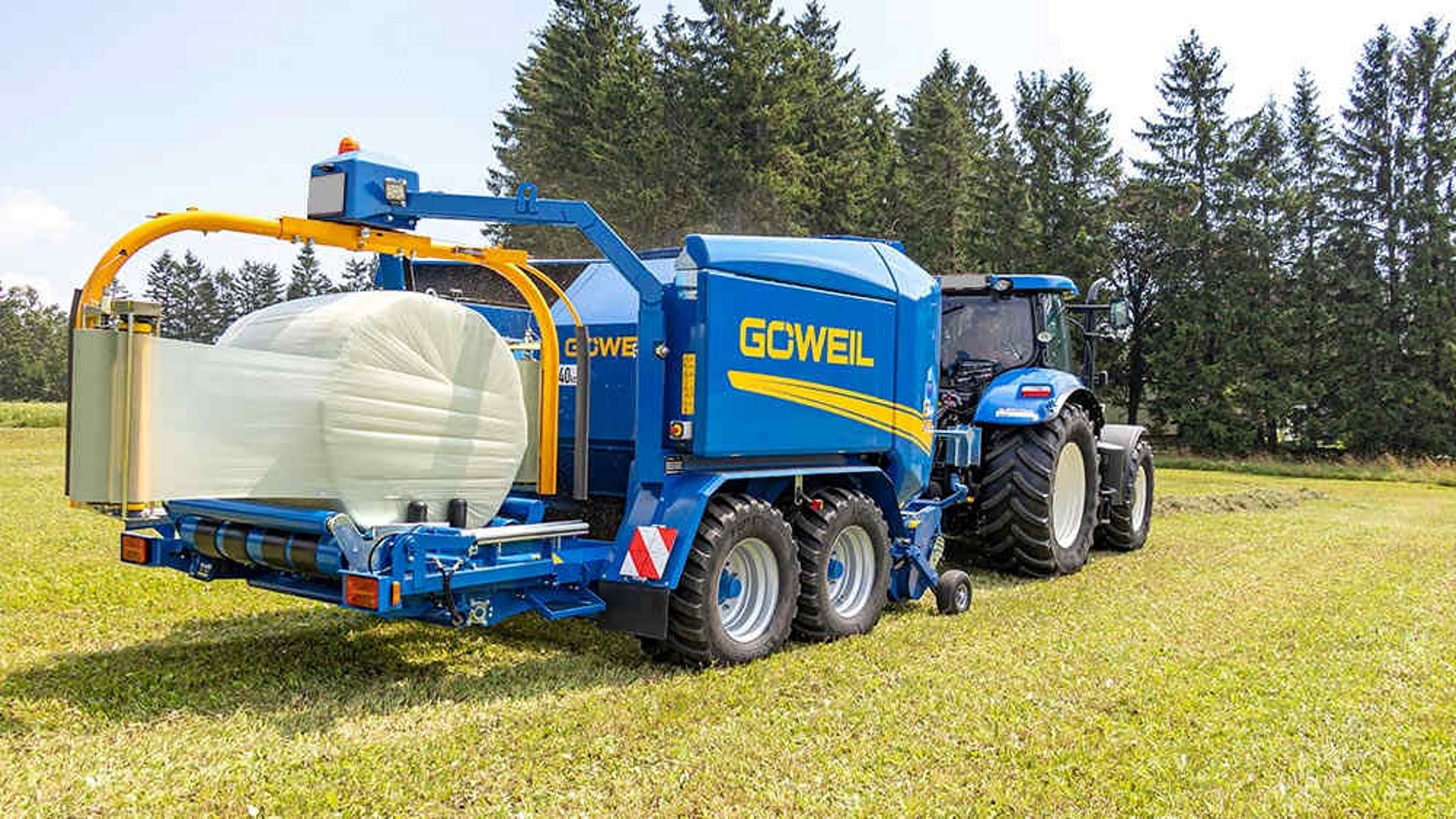

The G-1 F125 Kombi merges the work steps of baling and wrapping in one machine. This work method provides for immediate exclusion of air, resulting in unsurpassed feed quality. Better yet, it makes the work process particularly efficient - allowing one person working with only one tractor to both bale and wrap.

The G-1 F125 Kombi is a full-blown professional machine and scores high marks with a large number of highlights.

The Innovations at a glance

Gentle on the ground thanks to larger tires

The baler-wrapper combination comes standard with large-size wheels: 560/45-R22.5 Flotation Trac tires made by Vredestein. The tires ensure that weight is distributed evenly, significantly reducing the load on the ground in the field. This dramatically improves work especially when the ground is particularly soft. If dealing with extreme conditions, customers can opt for 710/35-R22.5 tires made by Nokian (optional)

Easy operation with ISOBUS

GÖWEIL is making this baler generation available with ISOBUS as the standard option. The interface of this control is clearly arranged and easy to use and shows more information on the display. While GÖWEIL makes them available with the company’s own ISOBUS terminal, the machines are, of course, compatible with all other ISOBUS-capable terminals.

Closed film storage with increased stowage space

GÖWEIL revamps the design of the machine in terms of both appearance and functionality. The closed, hydraulically folding film storage has space for 14 rolls of wrapping film plus 2 rolls of wide film or netting and keeps the rolls well protected against the weather and damage.




Improved performance

The drive system built into the baler of the latest generation has been given another major boost in performance by larger-sized chains. This extends the lifetime of the machine considerably and reduces the operation costs to a minimum.

Highlights

Time-saving

The high throughput and impact force of this baler-wrapper combination cuts down on the amount of time needed in the field. Capable of handling speeds up to 40 km/h, the Kombi also allows the operator to rapidly cover long distances.




Cost-saving

The baler-wrapper combination reduces the cost of personnel and machinery to a minimum.

Superior quality

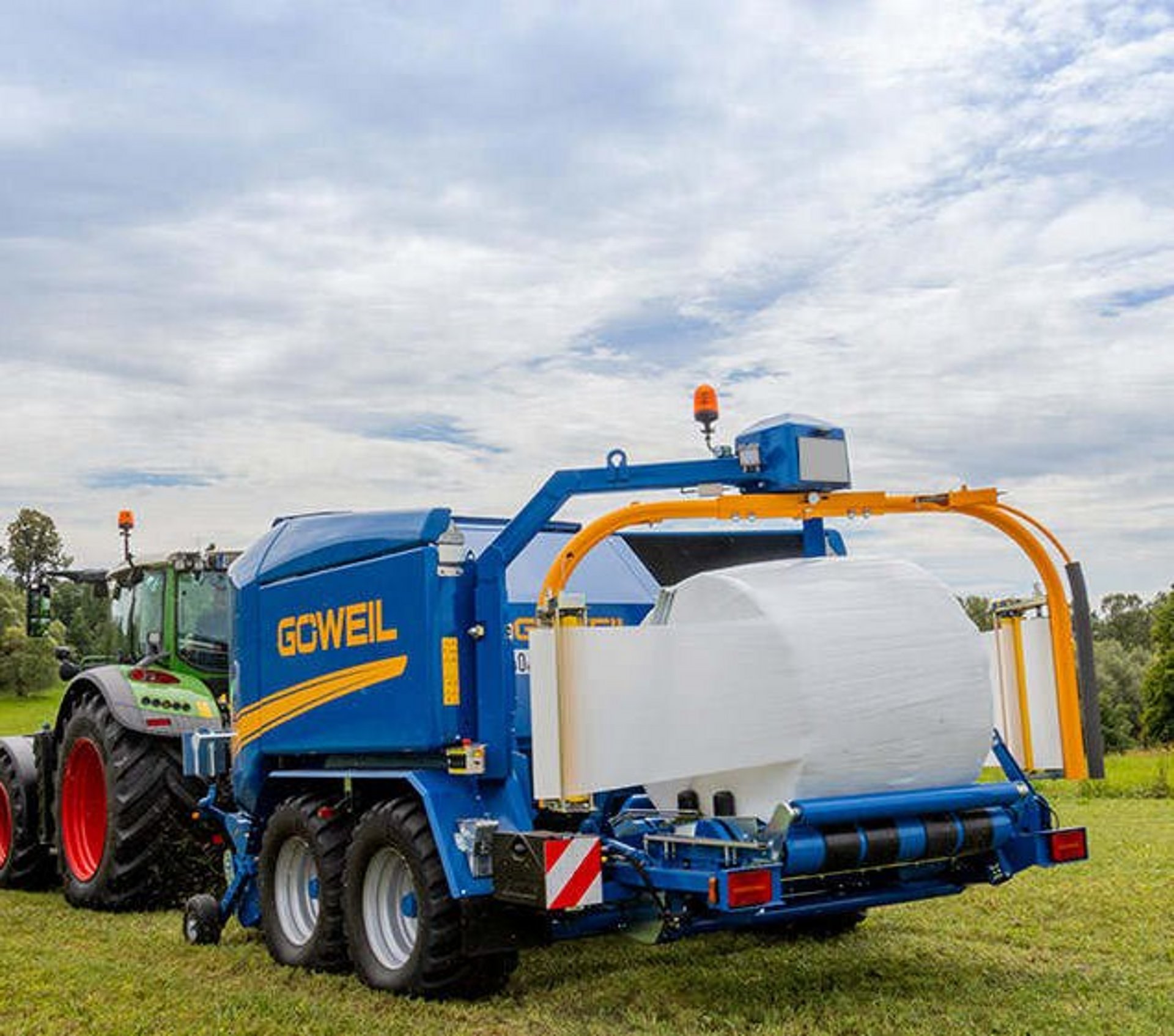

Round bales are wrapped in a perfectly clean manner and within an extraordinarily short period of time. The rapid exclusion of air creates the best possible conditions for the fermentation of the feed, allowing for its perfect preservation and exceptional quality.




Professional

The G-1 F125 Kombi is a machine designed for decidedly professional applications and, as such, is the ideal choice for large businesses and contract harvesters. Whether you need to use it for bales of silage, hay or straw – you can convert the machine at the push of a button!

Workflow

Pickup picking up the feed

Feed Pick-Up

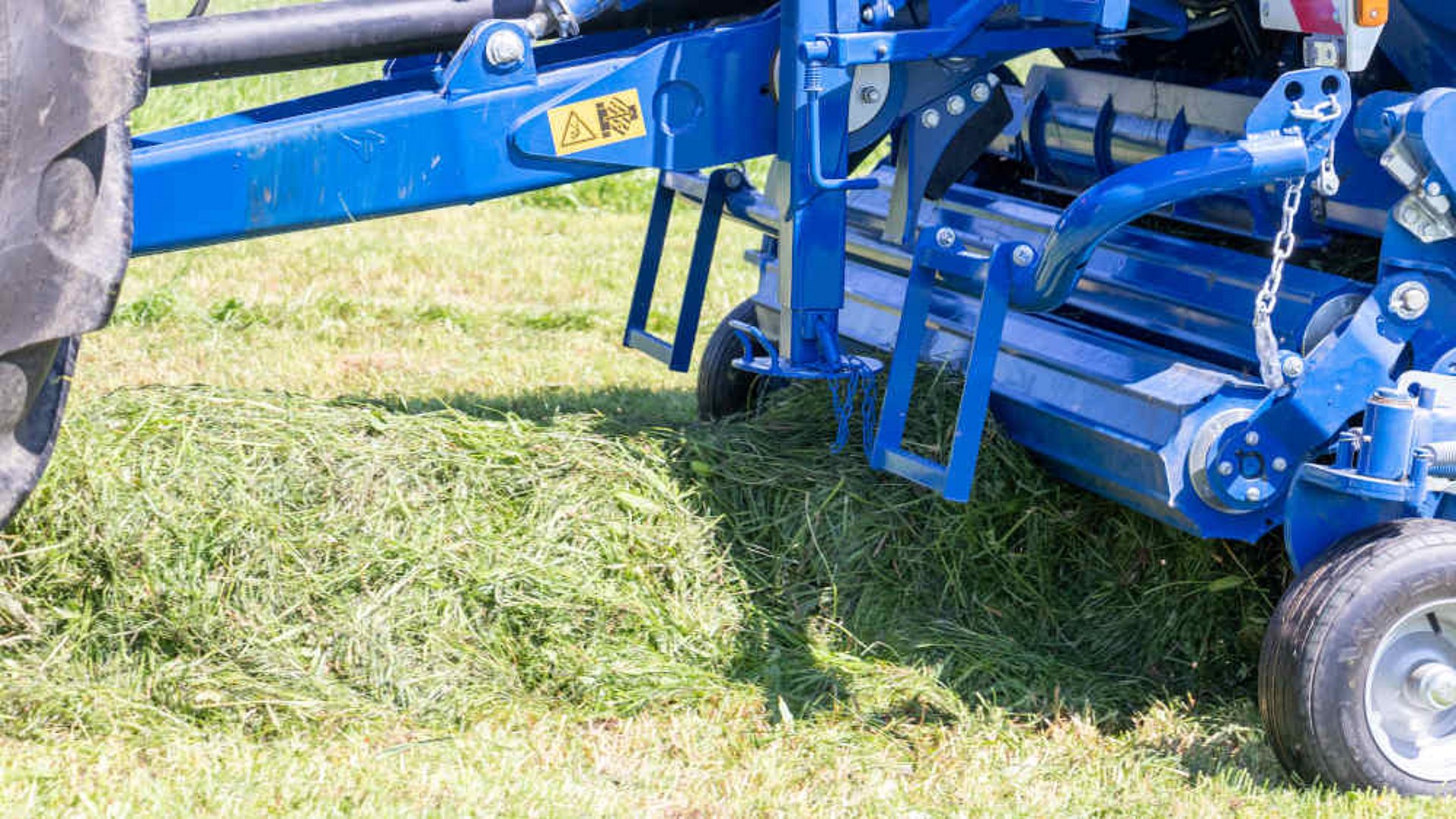

The feed is scooped up by the pickup of the baler and shaped into a bale in the bale chamber.

Bale transfer

Direct bale transfer: quick, clean and straightforward

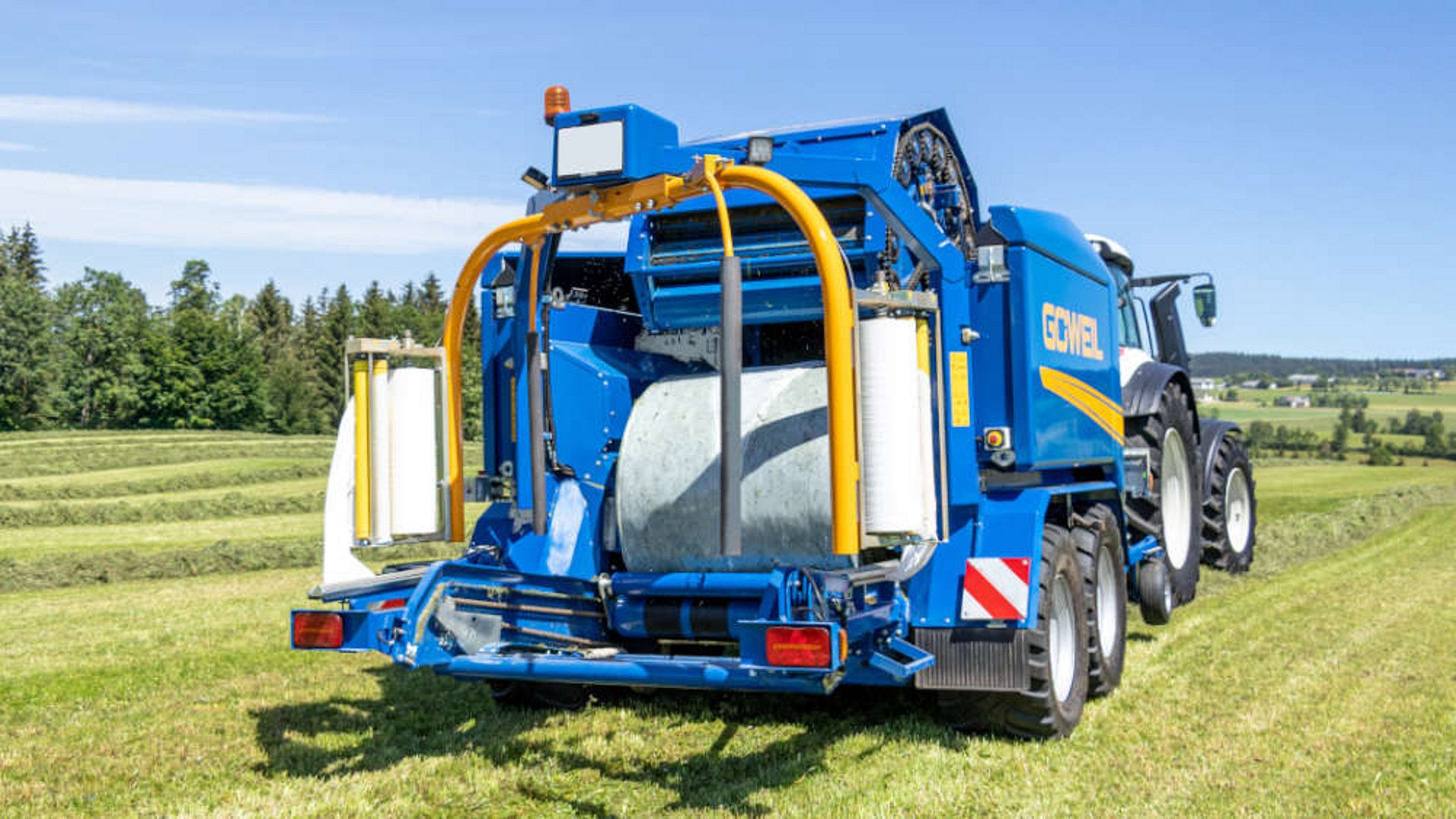

The wrapping table moves under the bale chamber. Once fully wrapped, the bale is transferred from the bale chamber to the wrapping table – without ever touching the ground.

Secure bale guiding even in slope positions

The four bale guide rollers ensure that the bales are guided along securely. This guarantees that the bale is transferred in a secure and reliable manner – even in slope positions. The transfer itself merely takes a few seconds. The tailgate already closes while the wrapping table is moving to the wrapping position. The baling process can continue without any interruption.

Reliable bale transfer
Wrapping process with twin wrapping arm

Wrapping Process

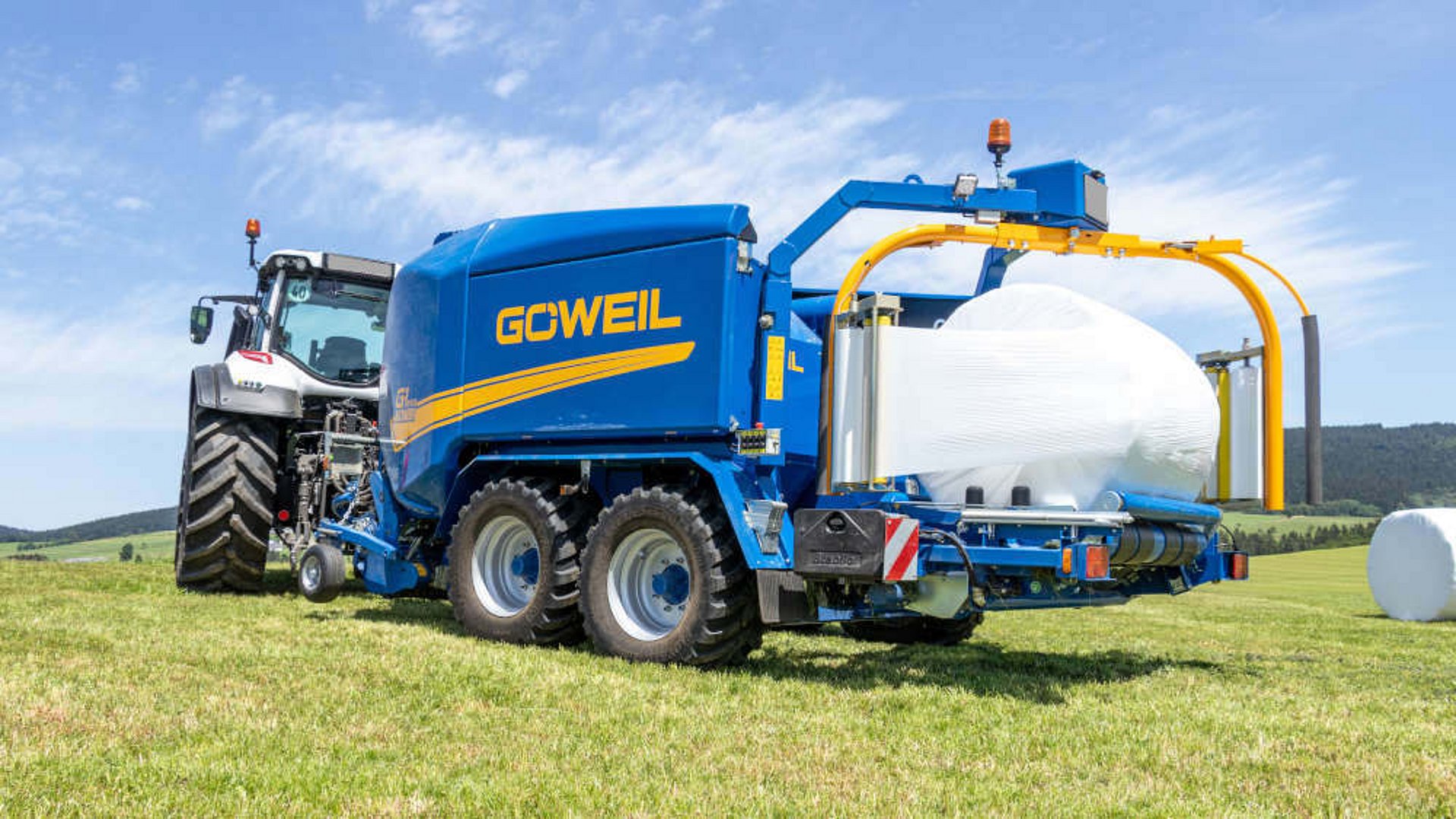

The twin wrapping arm and the two 750 mm film stretching units ensure that the bale is wrapped in no time at all. The wrapping process will always be finished faster than the baling process. Since always guided securely, the bale is wrapped perfectly even in slope positions.

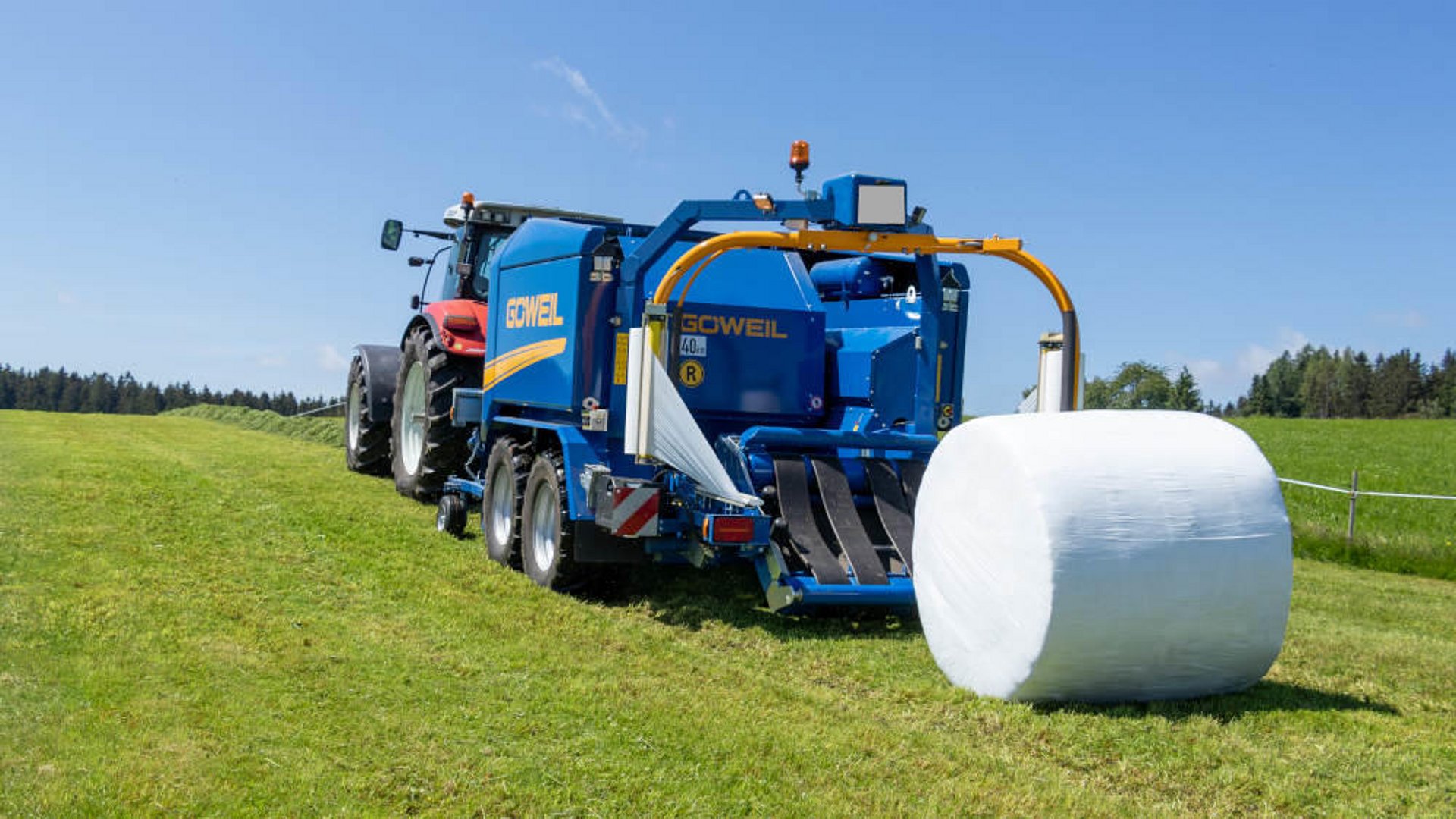

Bale deposit

Once the round bale is fully wrapped, the film is cut off. When the bale is dropped, the wrapping table moves to the rear and lowers all the way to the ground. This provides for a gentle deposit of the bales.

Gentle bale drop

Pick-Up

The starting point of every firmly compressed round bale is the clean pickup of the base feed: Its pendulum suspension allows the 6-row pendulum pickup to deliver maximum conveyance capacity along with superior ground adaptation and enables it to absorb even the largest swaths without a hitch.

Pendulum-Pick-Up

The suspended installation in a central position creates a swing range of 150 mm. It provides for top-notch ground adaptation and compensates for any unevenness in the terrain with perfect ease. Doing without a cam track, the pendulum pickup offers a DIN rake width of 2.20 m and large conveying screws on the sides that guarantee an optimum flow of material to the rotor. Equipped with tines spaced 51 mm apart across six rows, the pickup delivers firstrate raking performance even when handling extremely wide swaths.

The suspended installation in a central position creates a swing range of 150 mm.

Plastic Strippers

Another unique feature are the plastic strippers. Exceptionally resilient, these strippers withstand even the greatest amount of stress and will not bend if colliding with foreign objects. Stripping the material off with great efficiency, the tines also enhance the flow of material.

Plastic strippers and tines

Twin Roller Holding-Down Devices

Comprised of twin rollers, the standard holding-down devices with a new suspension boost the material flow even when dealing with uneven swaths and fill the bale chamber in a continuous and uniform manner.

Smoothly Running Touch Wheels

Fitted with pneumatic tires, the touch wheels work in perfect harmony with the pendulum pickup and run with maximum smoothness. Adjusting the height of the touch wheels is quick and easy thanks to perforated rails that eliminate the need for any tools. Customers can also opt for swiveling touch wheels.

Feeding System

Short and precisely cut feed is the basis for the production of high-quality and high-energy silage. The material in the GÖWEIL baler flows through its own special passageway – the rotor! This feeding system guarantees optimum feed pick-up under all sorts of harvest conditions.

One rotor for alle harvest conditions

Fitted at the heart of the feeding system is a 6-star rotor that offers enormous absorption capacity. Thanks to its large diameter of 570 mm and the welded-on rows of HARDOX tines, the rotor will always cut the swaths of feed cleanly and convey them reliably into the bale chamber – whether they are large and dry or contain feed that is short and still wet. Installed in front of the rotor is a mechanically powered infeed roller. Precompressing the material with outstanding efficiency, the roller increases the throughput significantly. The newly developed starter roller housed in the bale chamber provides for optimum bale rotation and a reliable start.

Perfect flow of material

The rotational direction of the rotor built into the G-1 F125 is upward. This movement channels the material from the rotor through the cutting unit and into the bale chamber.

The cutting unit is fitted with 30 twin-blade cutting edges and makes it possible to achieve a cutting length of 35 mm.

Drop floor & Cutting unit

As the cutting unit is positioned above the rotor, changing the blades is a breeze and can be accomplished without any tools. This offers an advantage that is particularly beneficial in baler-wrapper combinations. The cutting unit is fitted with 30 twin-blade cutting edges and makes it possible to achieve a cutting length of 35 mm. The narrow spacing between rotor tine and knife ensures that the feed is chopped with pristine accuracy. The replacement knife bar allows the operator to carry along 30 replacement knives or change the number of cutting knives as needed. A hydraulic bar safety device protects the knives against foreign objects and moves them immediately into their cutting position.

Auto Flow Control (AFC)

The AFC (Auto Flow Control) monitors the entire flow of material and intervenes in fully automatic fashion as soon as detecting a problem in the conveying duct. This ensures that clogs at the rotor or pickup are removed fast and without effort! Here is how it works:

Unclogging the Rotor

The rotor’s overload safeguard trips whenever the conveying duct for the quantity of feed to be delivered becomes too narrow. The hydraulic top floor opens towards the top, and the knives flip back.
When the rotor starts up again, the excess material is guided unobstructed into the bale chamber. The drop floor and the knives subsequently return to their original positions, allowing the feed pick-up to resume without hindrance.

Unclogging the Pick-Up

An overload safeguard will also be tripped if too much feed has accumulated at the pickup. Normally powered mechanically, the infeed roller will then be briefly driven and supported hydraulically to allow it to keep conveying the material. Concurrently with the infeed roller the drop floor swivels up, allowing the material to find its way directly into the bale chamber.

The automatic flow control (AFC) breaks down blockages in fully automatic fashion.

Bale chamber

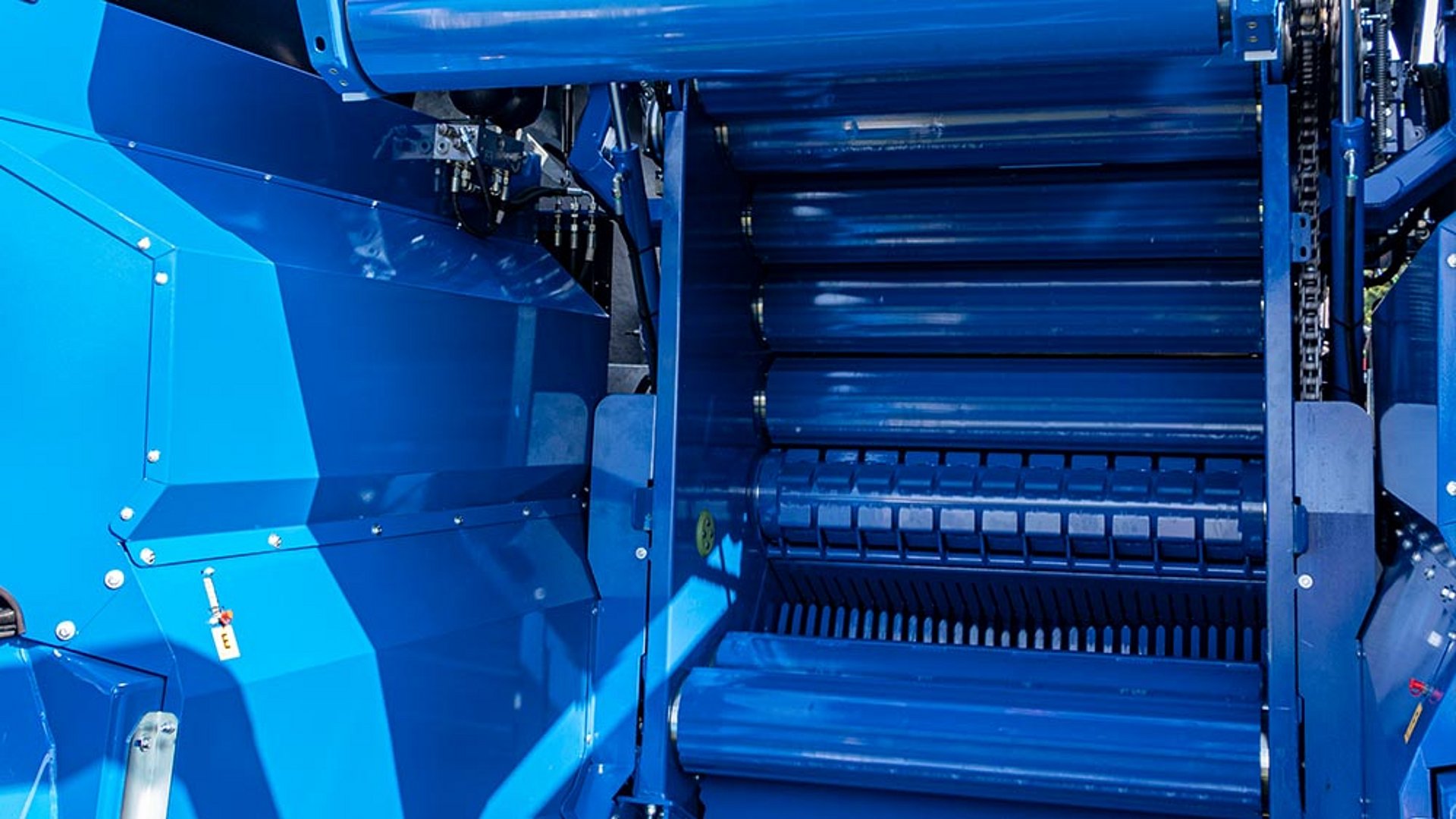

At the core of the machine is the bale chamber, which offers a size of 1.20 m x 1.25 m as well as 18 solid forming rollers. The steel rollers are 4 mm thick and reinforced on the inside, while their ribbed profile ensures supreme compression density and the reliable rotation of the bale.

Bale chambers & Co

Two drive rollers with a shaft diameter of 65 mm and the additional roller shafts with a diameter of 60 mm run continuously on double-row pendulum roller bearings and provide for exquisite stability and an exceptionally long lifetime. A specially designed labyrinth prevents dust and dirt from penetrating.

Starter & Cleaning Roller

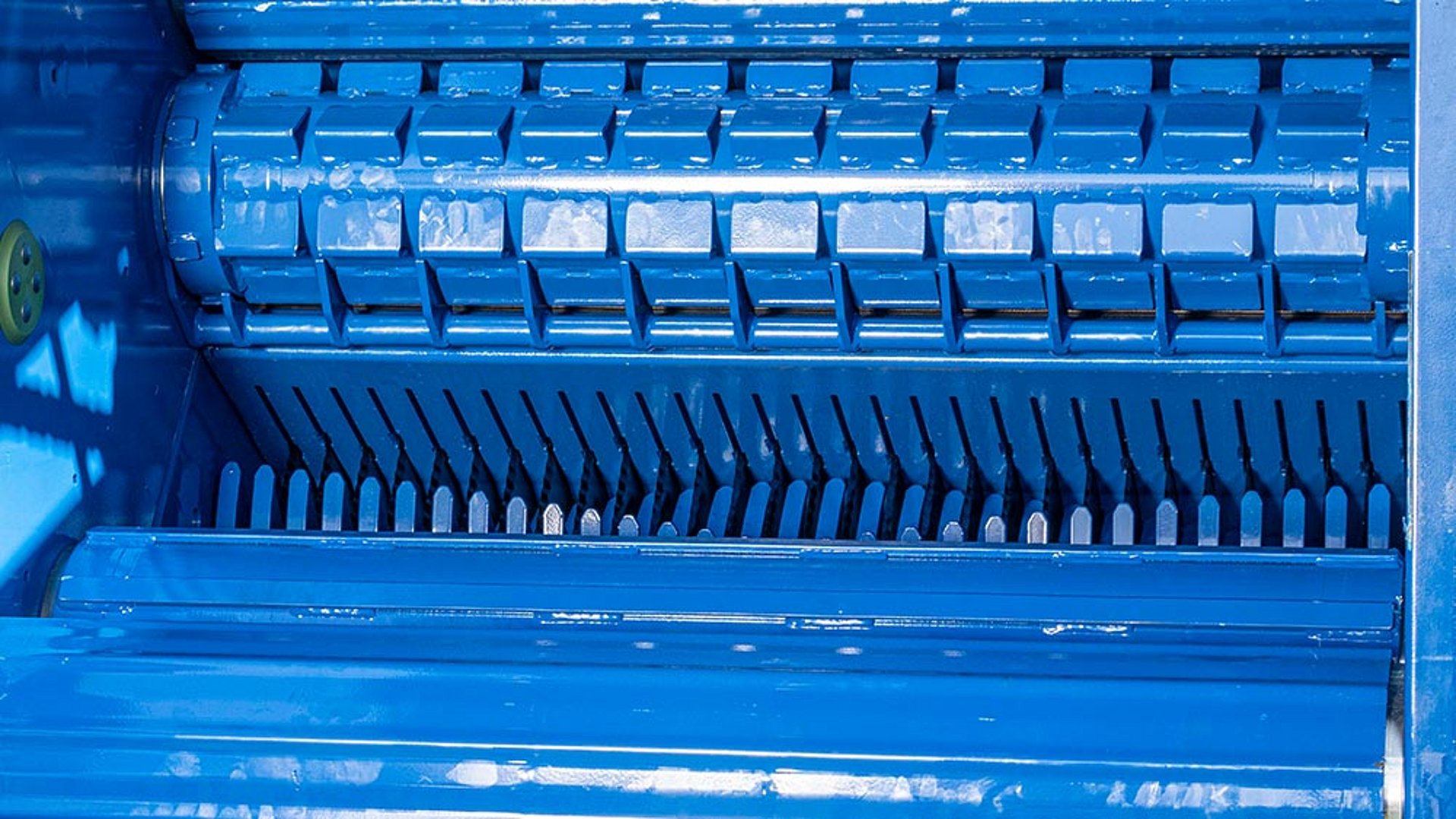

Situated directly behind the rotor, the starter roller provides for the best possible bale rotation and a reliable bale start thanks to its special profile – whether the material is silage, hay or straw. A cleaning roller feeds any material that has dropped down back into the bale chamber – keeping the machine from becoming soiled.

Heckklappe

Die Heckklappe wird mit zwei Hydraulikzylindern geöffnet und geschlossen. Je nach Programmeinstellung kann der Vorgang komplett automatisch oder manuell erfolgen.

Film- & Net binding

The G-1 F125 Kombi comes standard with a net and film binding unit. If requested, the machine can also be equipped with a dual binding unit for net and film. Naturally, the film binding units can also accommodate net rolls.

Film binding unit

The use of a wide film offers decisive advantages that enhance the quality of the silage:

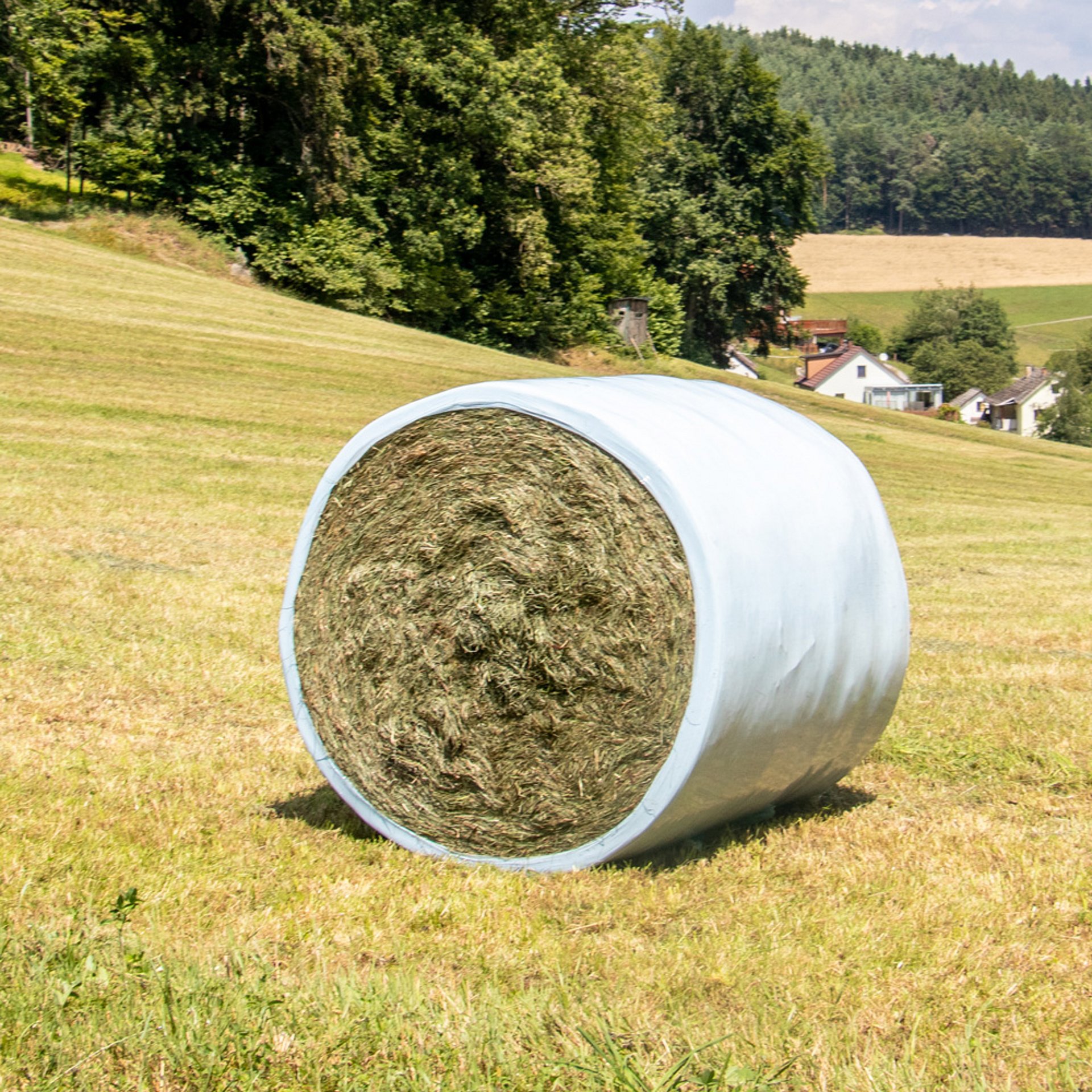

  • A wide film produces bales that are more compact and better protected by the film layers. This film also provides an additional barrier preventing oxygen from penetrating.
  • Opening and recycling the bales becomes easier as the wide and the wrapping film can be disposed of jointly.

The operator can insert common wide films and nets with a width of up to 1.50 m. Binding can be started automatically or manually. The hydraulically adjustable brake roller ensures that the bale is wrapped tightly during net and film binding. The brake pressures and the number of layers can be set directly using the control.

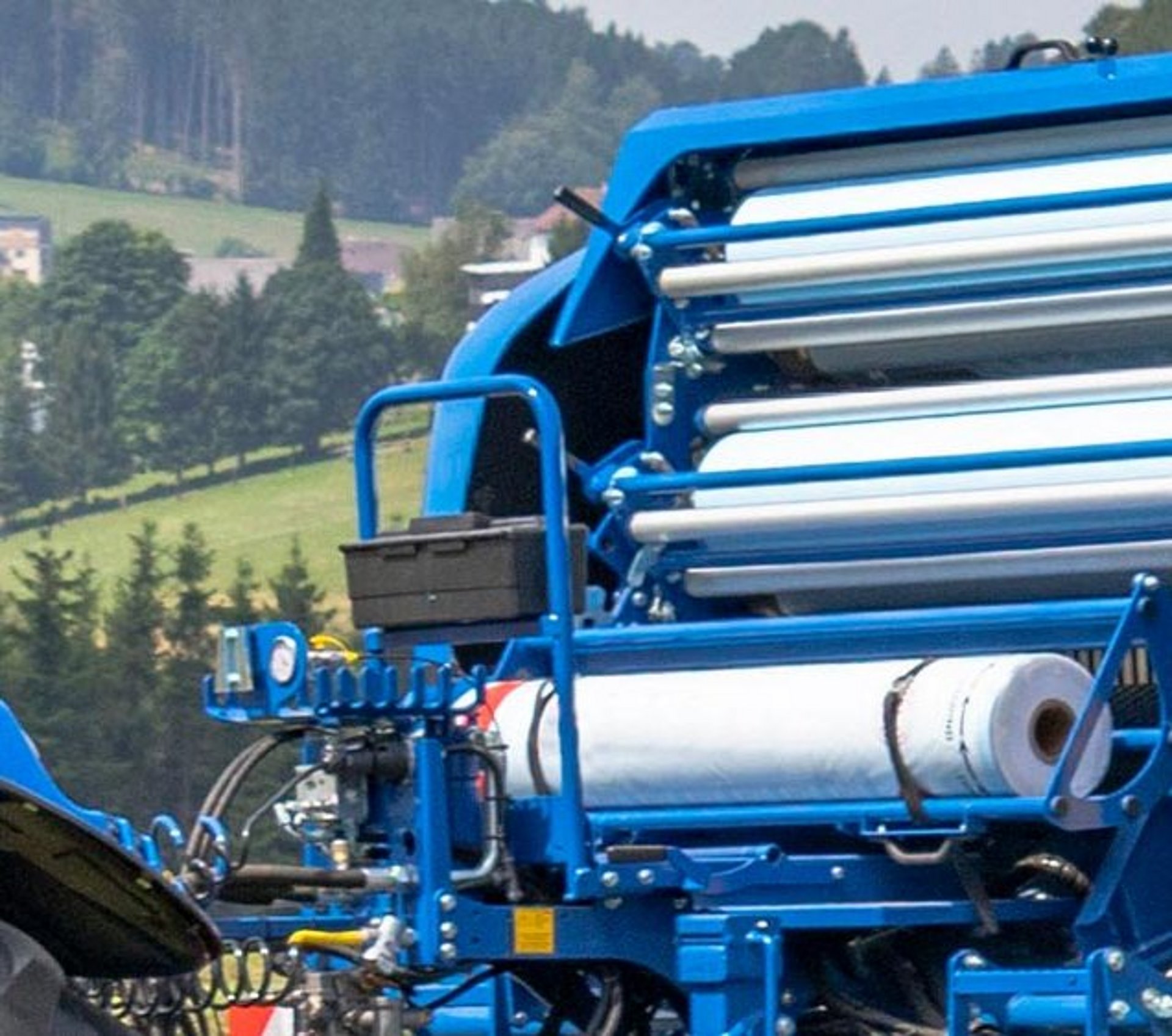

Twice the binding in half the time

Equipped with the world’s first dual binding unit, the G-1 breaks new ground for round balers. This optional binding system wraps the finished bale simultaneously in two nets or wide films. The result: This feature cuts in half both the time required for binding the bale and for changing the net or film! Reducing the workload significantly, this time savings will be much appreciated especially on the busiest days of the harvest. If the operator needs to alternate between silage, hay or stray bales on the same day, the machine offers them the option of using the dual film binding unit as a single binding unit. In this case, the dual binding unit is loaded with one net roll and with one roll of film. The operator simply uses the terminal to set one binding unit up for net binding or the other unit for film binding. Changing the film or the net does not cause any unnecessary idle time!

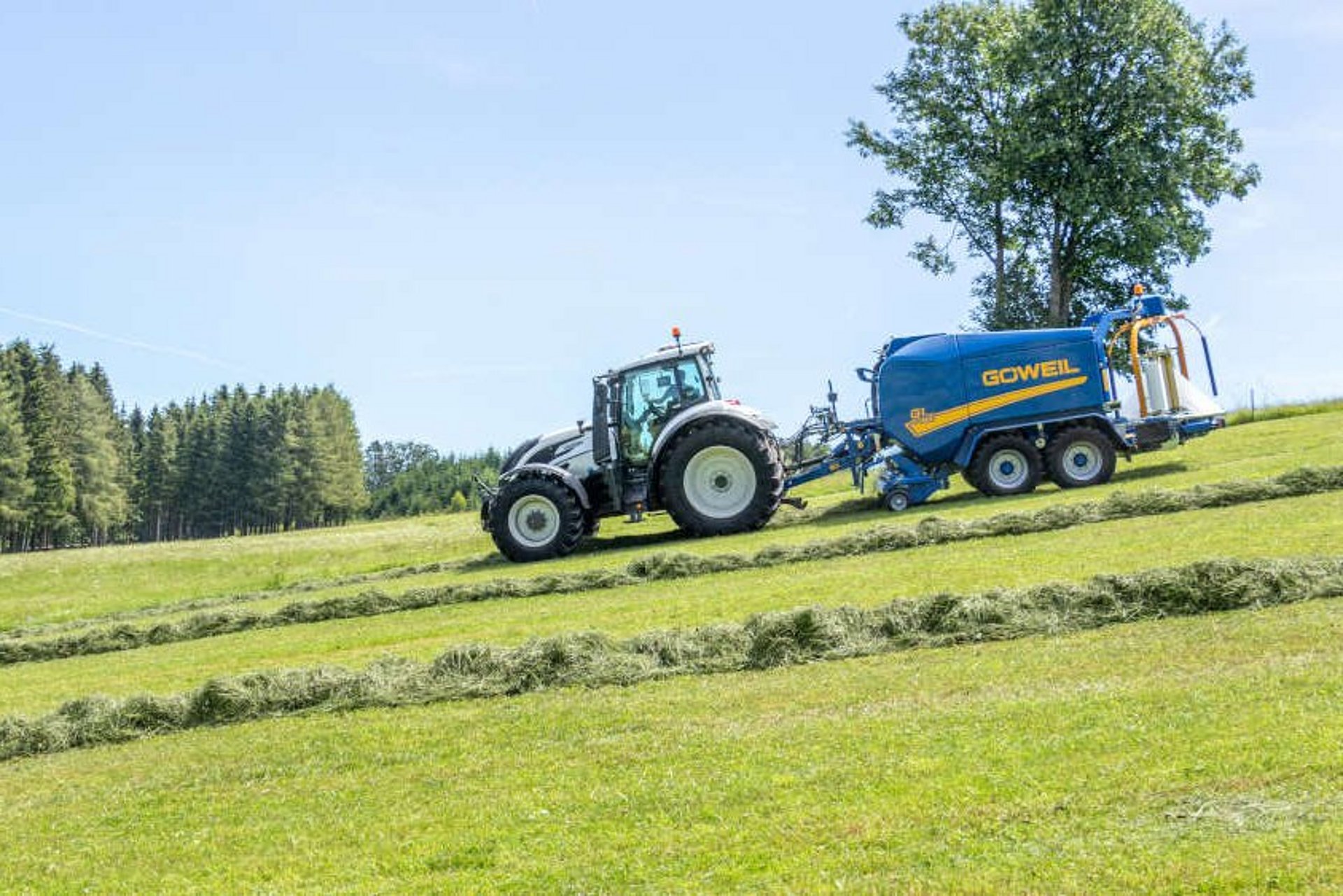

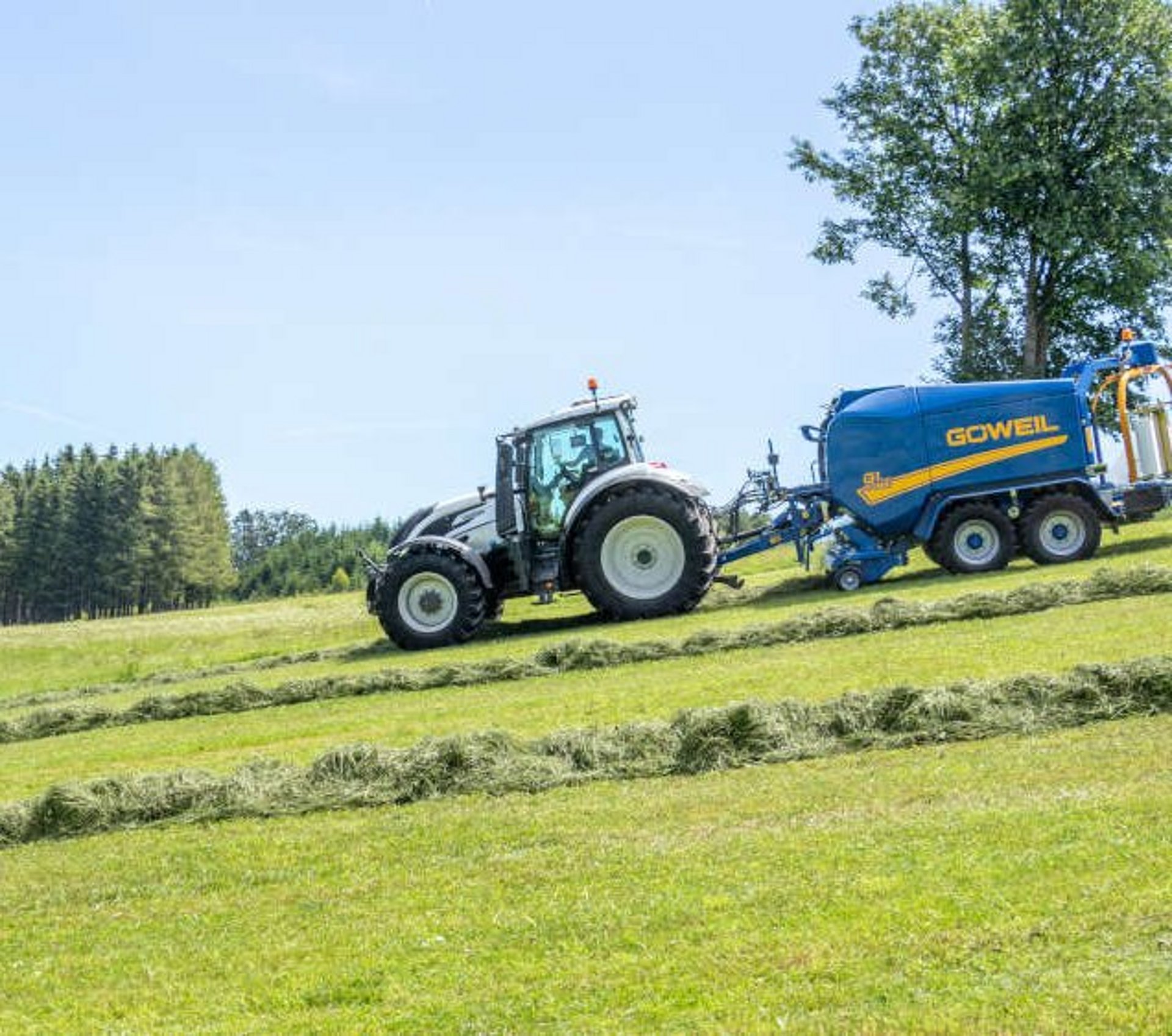

Drive axle

Available as additional equipment, the drive axle is of tremendous benefit especially during work in steep slope positions. It provides a powerful, yet soil-preserving push uphill, while supporting the braking action during downhill travel. The driver can concentrate fully on the work.

The drive axle offers maximum safety and superior comfort in any slope position – uphill and downhill.

The sensor system integrated in the drawbar controls the operating states – Drive, Neutral, and Brake – in a completely autonomous way. The driver can rely on the system providing maximum traction at maximum soil protection, allowing them to solely concentrate on their work. A clearly organized display continuously informs the driver of all relevant parameters.

The drive is powered hydraulically by two radial piston / wheel hub engines. The switch between forward and reverse is initiated automatically by a signal given from the tractor. The percentage of the driving force with which the drive is supposed to power the machine in first and second gear is controlled via the terminal.

When the machine is driving uphill – either in reverse or forward – the drive switches automatically from drive mode to hydrostatic brake mode. To prevent the wheels from locking up, the speed of the two drive wheels is constantly monitored and readjusted automatically. This ensures that the wheels are constantly in motion during uphill travel (ABS).

When the machine is traveling on the road, the radial piston engines are automatically released mechanically and will freewheel (no mechanical resistance).

The drive axle offers maximum safety and superior comfort in any slope position – uphill and downhill.



Drive

To allow the machine to withstand even the most arduous applications under tough harvest conditions, the G-1F125 was equipped with a rugged and well-engineered drive train:

No Downtime!

The power transferred by the PTO drive shaft to the main gearbox is spread across the drive chains of rotor, pickup and bale chamber and safeguarded individually by two cam switch couplings. The couplings are monitored by the ISOBUS program control.


When the cam switch coupling of the rotor responds to an excess quantity of feed in the conveying duct, the hydraulic drop floor will open in fully automatic fashion. When the rotor starts up again, the excess feed is guided unobstructed into the bale chamber. The drop floor closes automatically, allowing the baling process to resume without hindrance.

When the cam switch coupling responsible for the bale chamber trips, the tailgate will open automatically by a few centimeters and allow for the bale to be started and bound without hindrance.

The drive train conceived by GÖWEIL provides for a smooth work flow.

Maximum performance thanks to high-tensile chains

High-quality components are an essential prerequisite for the drive train’s smooth and trouble-free operation. The chains used for the main drive and for driving the pickup and the rotor in the machines of the latest generation have been increased in size yet again in order to boost the performance of the drive system even further. This extends the lifetime of the machine considerably and reduces the operation costs to a minimum.

Well-built roller bearings

All baler rollers are fitted with sturdy and durable double-row pendulum roller bearings with a diameter of 60 mm. Additionally, the two drive rollers are equipped with 65 mm bearings.

2-reihigen Pendelrollenlagern

ISOBUS Control

Isobus is an internationally standardized protocol that is in charge of the communication between the tractor and the mounted implements. It allows for the real-time display of the data on the terminal housed in the tractor. The operator uses the terminal to monitor and control the machine. A standardized plug connection system has now eliminated the need for using more than one terminal for different implements.

GÖWEIL is making this baler generation available with ISOBUS as the standard option. The interface of the control is clearly arranged and easy to use. What is more, the color display shows a greater amount of information. The camera system affords the operator a good view of the work flow and the machine.

GÖWEIL offers customers a choice between two terminals:

  • 4.3" touch display with 8 buttons and encoder (turn-and-push button)
  • 7.0" touch display with 12 buttons and encoder (turn-and-push button)

The machines are, of course, compatible with all other ISOBUS-capable terminals. For tractors without ISOBUS, there is an optional wiring harness for ISOBUS-capable power supply available.

ISOBUS monitors and controls the entire work flow in fully automatic fashion. The clearly organized display keeps the driver informed about all steps processed by the machine. It is also possible to control all relevant work steps of the machine – quickly and easily – by hand using the terminal.

The control unit with push buttons used for the G-1 F125 Kombi comes in particularly handy when the wrapper requires maintenance and servicing. This way, the operator can control the most important functions directly at the machine.

GÖWEIL offers customers a choice between two terminals

Maintenance

A standard feature on the machine, the automatic central lubricator is designed to deliver superior ease of maintenance and ensures an exceptionally long lifetime for the machine.

Maintenance-Free thanks to central lubricator

The fully automatic grease lubricator is used to supply sufficient lubrication to all bearings of the rollers and of the rotor. The oil lubricator provides a constant supply of oil to all chains on the bale chamber, the rotor and the pickup. Brushes spread the oil evenly across the chains.

Sufficient Supply

The large-size reservoirs for grease and oil provide for long service intervals.

Baling-Wrapping Technology

The robust and solid construction and workmanship of the frame guarantee an exceptionally long lifetime of the baler-wrapper combination. The G5040 offers outstanding agility and is gentle on the soil thanks to its compact design and the narrow spacing of its axles. In addition, its low center of gravity allows for a level of maneuverability that is second to none even in slope positions.

Chassis

The tandem axle chassis is distinguished by its even larger-sized wheels: Its comes standard with 560/45-R22,5 Flotation Trac tires made by Vredestein. Uniform weight distribution and the narrow axle spacing allow the baler-wrapper combination to offer superior handling and control. The load on the ground in the field is reduced significantly – which also allows the Kombi to run smoothly at 40 km/h even when traveling over soft ground or on the road. Better yet, the vehicle width remains at 3.00 m despite the wider tires.
Available as an option for extreme conditions are the 710/35-R22.5 tires made by Nokian (vehicle width is increased by 3.30 m).
Customers can opt to have their G-1F125 Kombi equipped with a dualline air brake system or a hydraulic 2-circuit brake system.




Load Sensing

The standard hydraulic “Load Sensing” control system automatically adjusts the oil volume to consumption. This control system, thereby, not only performs several functions simultaneously, it also reduces fuel consumption at the same time. This results in a greater bale output per hour. The machine can also be operated in conjunction with tractors without load sensing pump.

Control unit with push buttons

The control unit comes in particularly handy when the machine requires maintenance and servicing. It allows the operator to control all functions directly at the wrapper. This makes such steps as changing the film quick and easy.

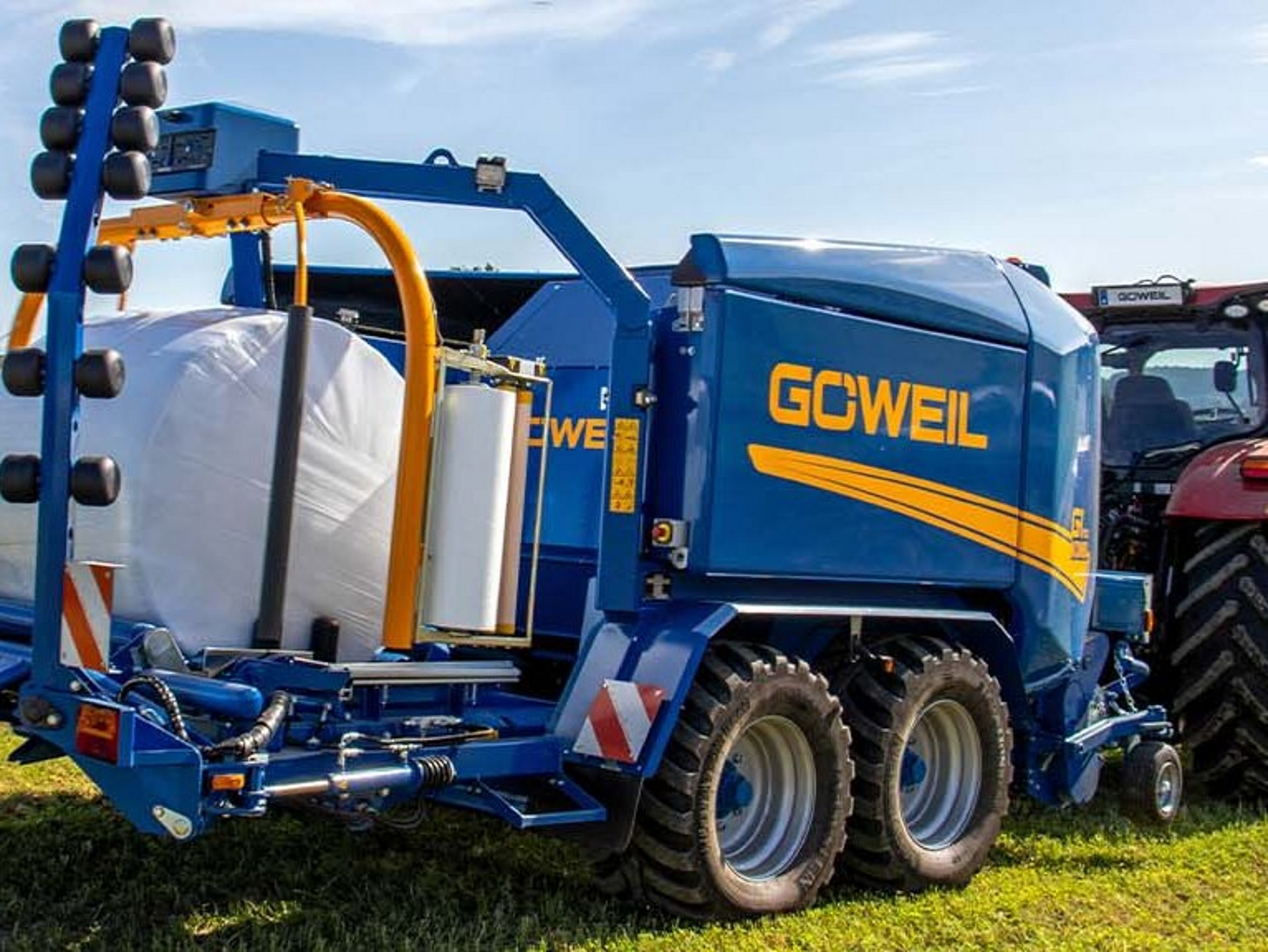

Twin wrapping arm with film stretching unit

The twin wrapping arm is equipped with two 750 mm film stretching units. Three patented plastic rollers provide for uniform stretching. What is more, the rollers are not sensitive to temperature. This property helps save film and guarantees that the bales will be wrapped firmly and in an air-tight manner.
The stretching units are height-adjustable. This ensures that the bales will always be wrapped perfectly around their own center. The quick-release system makes it possible to change empty rolls quickly and effortlessly. The film monitoring unit will cut off the wrapping process if the film runs out or tears. When a roll of films runs out, the machine will automatically switch to single-film mode. During this process, the feed rate of the wrapping table is reduced to ensure an overlap of 50 %.

Rotating wrapping arm with stationary wrapping table

This system reliably prevents the bale from falling off as it is not subjected to any kind of centrifugal forces. The conveyor belts and the four rotating bale guide rollers guarantee that the bale will continually move forward and, consequently, ensure a uniform overlap of the film. When it is time to drop the bales, the mobile wrapping table is lowered all the way to the ground. This provides for a gentle deposit of the bales.

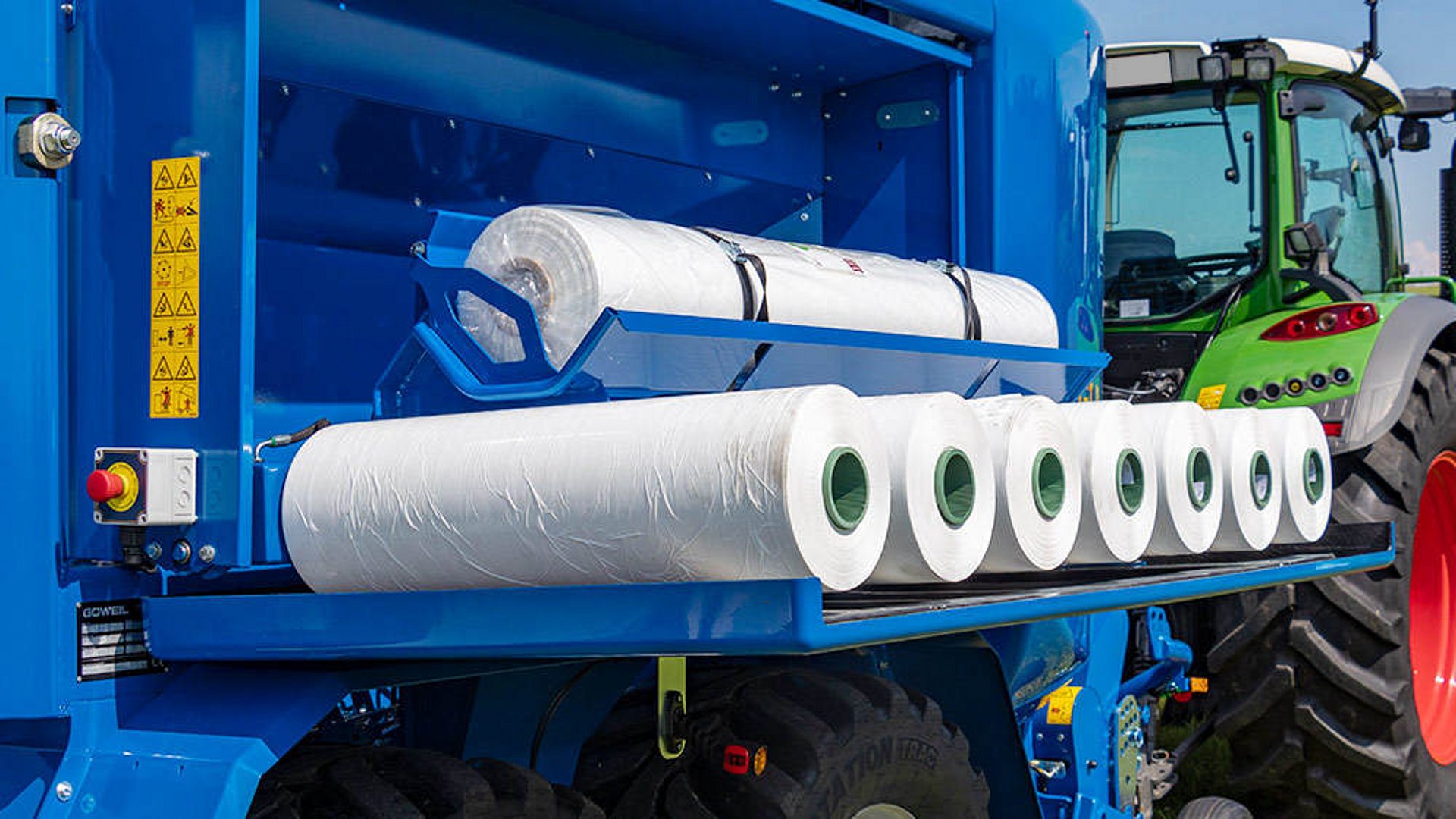

Closed film storage

The new film storage scores high marks with its improved design and functionality. The closed, hydraulically folding film storage has space for 14 rolls of wrapping film plus 2 rolls of wide film or netting and keeps the rolls protected against the weather and damage. The tilting device lets the operator load or remove film with ease and at a comfortable working height. This makes it possible to wrap approximately 300 to 400 bales depending on the bale diameter and the number of film layers.

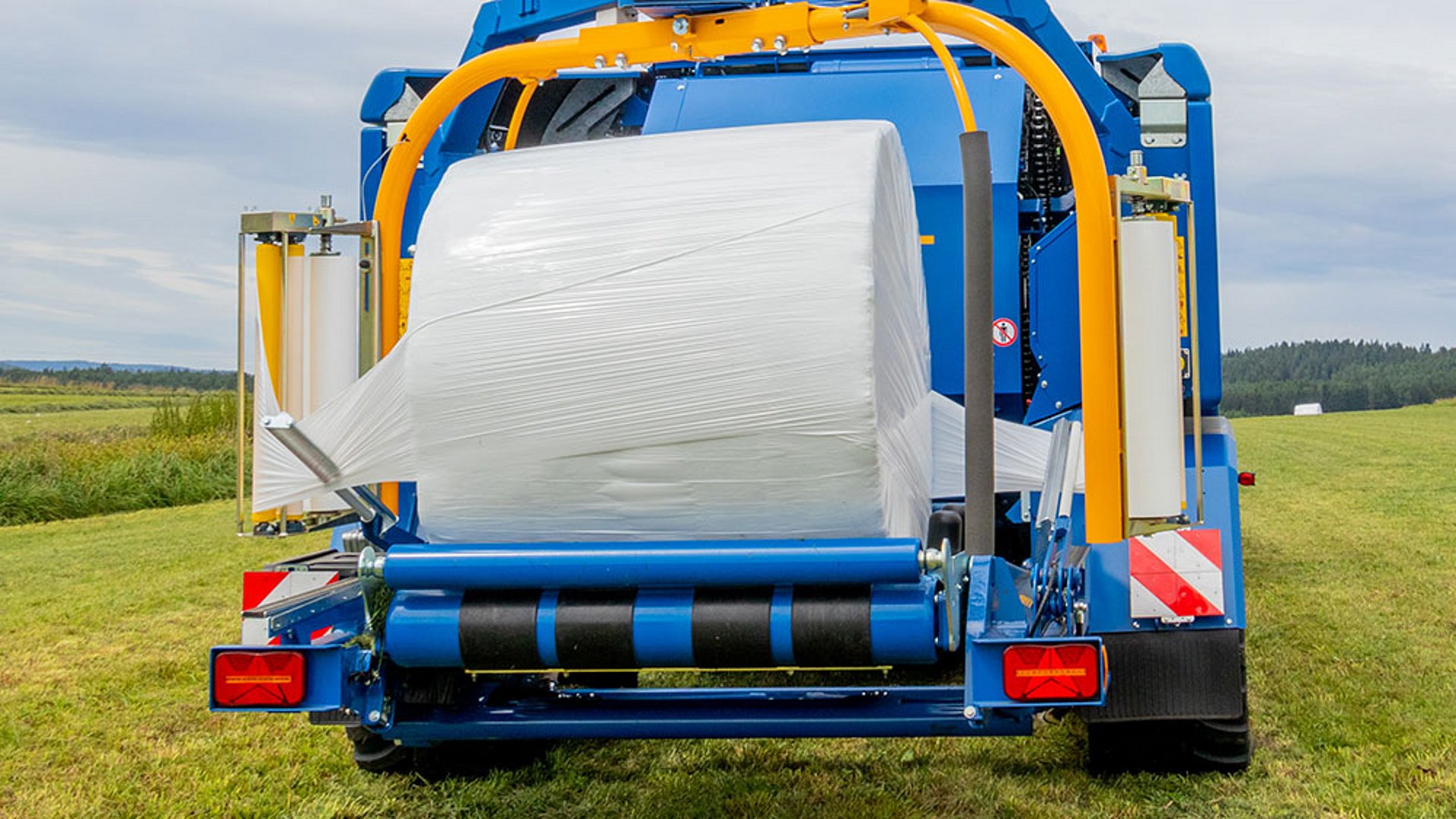

Automatic film cutting and holding system

The stainless steel cutting knives guarantee that the wrapping film will be cut cleanly and precisely. At the same time, the films are fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the wrapping films will unwind easily.

Basic Model

Load sensing (can also be operated in conjunction with tractors without load sensing pump)

  • Camless pendulum pickup
  • DIN rake width: 2.20 m
  • Rows of tines: 6
  • Tine spacing: 51 mm
  • Plastic strippers
  • Twin rollers
  • Touch wheels with pneumatic tires
  • 6-star rotor;
  • Hydraulic drop floor
  • Cutting unit with 30 twin blade reversible knives;
  • Cutting length: 35 mm;
  • Hydraulic bar safety device
  • 18 steel rollers (4 mm) reinforced on the inside (including cleaning & starter roller);
  • Double-row pendulum roller bearings

Film and net binding, hydraulically adjustable brake roller, automatic monitoring
2 cameras for monitoring film binding and bale deposit, including color monitor

  • Rigid drawbar
  • Tandem axle chassis;
  • Tires: 560/45-R22.5 Flotation Trac;
  • Brake system: dual-line air brake system
  • PTO speed: 1,000 rpm
  • AFC Auto Flow Control: split drive concept,
  • Overload safeguard with 2 cam switch couplings;
  • Chains:
    • Main drive – bale chamber: 24 OH
    • Secondary drive of bale chamber: 100 HSP
    • Rotor: 80 HSP Triplex
    • Pickup: 80 HSP



  • Fully automatic central lubricator for grease and oil
  • Fully automatic ISOBUS program control (without touch display)



  • Twin wrapping arm
  • Hydraulically actuated wrapping table
  • Bale deposit backwards
  • 4 bale conveyor belts including belt guide
  • 4 bale guide rollers
  • Film stretching unit for 750 mm
  • Automatic film cutting and holding system
  • Film monitoring unit;
  • Single-film mode
  • Hydraulically lowering, closed film storage for 14 rolls of film and 2 rolls of wide film or netting;
  • LED work lights
  • Additional roller for wrapping table

Technical Data

Height – single binding unit


  • without rotating light: 2,820 mm
  • with rotating light: 2,980 mm


Height – dual binding unit


  • without rotating light: 2,820 mm
  • with rotating light: 2,980 mm


Length

7,420 mm

Width (560/45-R22,5)

3,000 mm (standard tires)

Width (710/35-R22,5)

3,300 mm (optional tires)

Weight

8,980 kg

Bale diameter

1.25 m

Required Connections

Load Sensing connection (for LS mode) or one pressure connection and one depressurized return for the supply of the round baler

Electrical power supply to the machine via ISOBUS connector or the included wiring harness

7-pin power outlet for the entire lighting system, excluding working headlights



Power Requirement of the towing vehicle

Oil requirement

starting at 80 l/min at 200 bar

optimal: starting at 105 l/min at 200 bar

Power requirement

at least 120 kW



Additional Equipment

710/35-22,5 Nokian Country King

Swiveling touch wheels

Set consisting of 30 twin-blade reversible knives

The bale is wrapped simultaneously in two nets or wide films. This cuts the binding time for the bale in half.

Hydraulic articulated drawbar with two double-acting cylinders

Hydraulic articulated drawbar affords the operator an exceptionally smooth ride

  • Hydraulic drive uphill
  • Automatic braking function downhill
  • ABS system
  • Automatic regulation
  • Parameters can be set on the terminal

For film widths between 500 mm and 750 mm

The overlap can be adjusted as well

When the wrapping process is complete, the bale will keep turning to allow the film  to make better contact

For a gentle bale drop onto the field

When the wrapping process is complete, the bale is positioned on its right front side with the direction of travel

Consisting of

  • 100 l tank
  • 2-point extraction (complete emptying)
  • Pump with filter
  • Electronic flow meter
  • 2 nozzles 0.1 in stainless steel design

Consisting of compressed air hose and air gun, used for cleaning the round baler – only in combination with air brake system!

with 8 buttons and encoder

with 12 buttons and encoder

Wiring harness is required if ISOBUS is not available on the tractor

Customers can choose from a large selection of drawbar eye types

All drawbar eye types »

Country-specific Equipment

Dual-line hydraulic brake system - with emergency brake valve and accumulator

Height – single & dual binding unit: 3,015 mm
