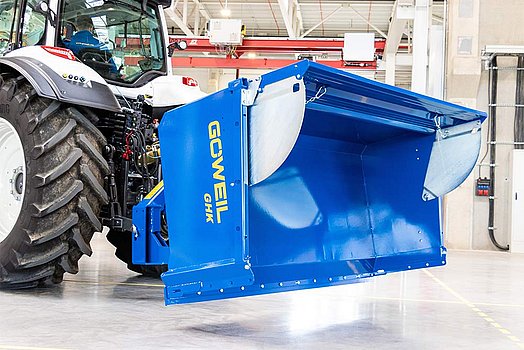

The swivel device is available for purchase as additional equipment.

Rear bucket as communal version
GHK Kommunal | High lIFT bucket

100 HP or more | Payload up to 7,000 kg

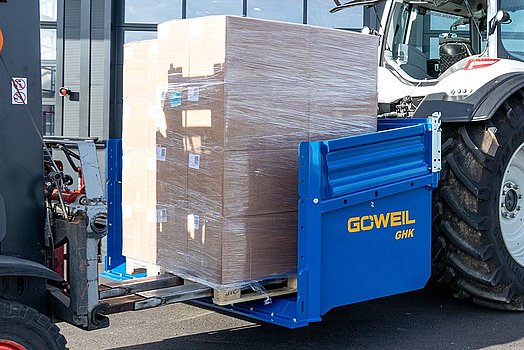

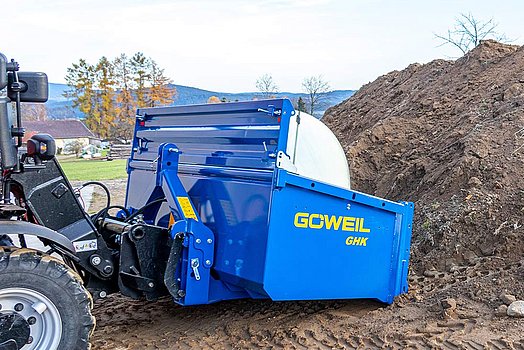

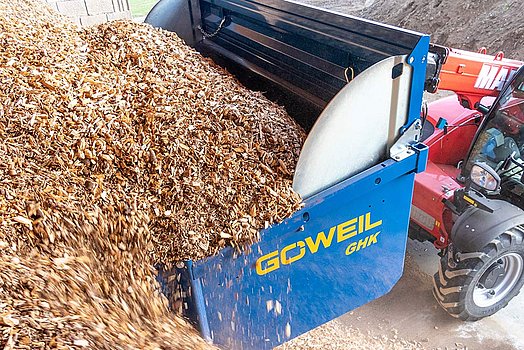

Furnished with a bolted HARDOX scraper bar, the GHK communal is the perfect solution for the tough and demanding jobs common in municipal applications!

Highlights

Body

The body is reinforced by additional cast parts at the top corner joints and at the sidewalls. These reinforcements let the rear bucket withstand even greater loads. The upper edge has been enhanced by a round steel pipe. Lashing points arranged on the side allow you to attach belts.




The high dump effect

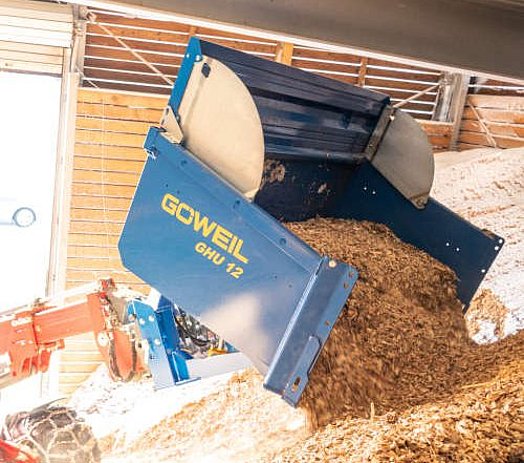

The design of the high dump bucket provides for a maximum dumping height.

Additional equipment

A large variety of additional equipment options makes it a breeze to customize the GHU to your specific needs.

Upright, safely protected telescopic cylinder

Not only is the upright telescopic cylinder perfectly protected and integrated into the 3-point frame, it also delivers a level of strength that is truly exceptional. It can handle any load you throw at it!




Swinging sidewall

Formed by a sidewall profile, the swinging sidewall will stand up to even greater loads.




Bucket bottom

The flat bucket bottom makes it a cinch to load the GHU.




Open 3-point frame

Ideal for leveling surfaces or clearing snow. No material will stick to the frame!

Basic model

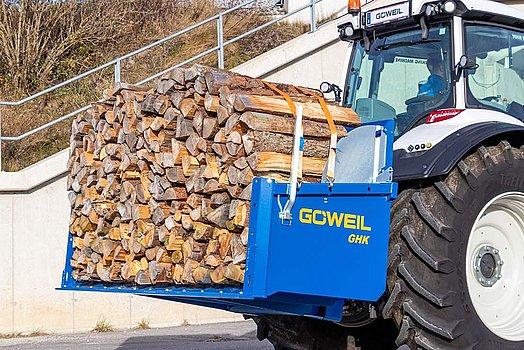

Communal version - painting RAL 2000

Double-acting 3-stage telescopic cylinder, upright in 3-point frame

Three-point linkage Cat. II and Cat. III

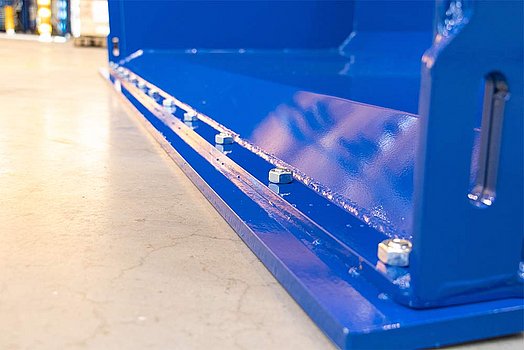

Flat bucket bottom with bolted scraper bar made from HARDOX 500

Removable rear panel/platform swing gate

Standard sizes

Bucket depth: 1,200 mm - front/side wall height: 800 m

Model

Bucket width

Weight

GHK/2200

2,200 mm

665 kg

GHK/2500

2,500 mm

690 kg



Mounting options

Euro mount

Straightforward installation thanks to bolted attachment
3-point attachment remains fully usable
2-stage locking lugs effect an improved tilt angle, allowing for picking up larger amounts of bulk solids

Weidemann, hydraulic

Adapter Weiste triangle, Cat. II

Hauer B

Other mounting options available on request

Overview Mounting options »

Additional equipment

Straightforward installation, can be fitted and removed with ease and without the use of tools, increases the height of the front panel by 450 mm, can still be used as a trough extension

Consisting of 2 side sections, front panel and one holder for the sidewall
Additional height of 350 mm

Bucket width: 2,200 mm, 2,500 mm

for connecting the additional rear panel with standard rear panel

Height: 500 mm
simple installation (can be slipped on or removed without the use of tools)

John Deere Green, Fendt Green, Gentian Blue (RAL 5010), Red (RAL 3000), Jet Black (RAL 9005)
