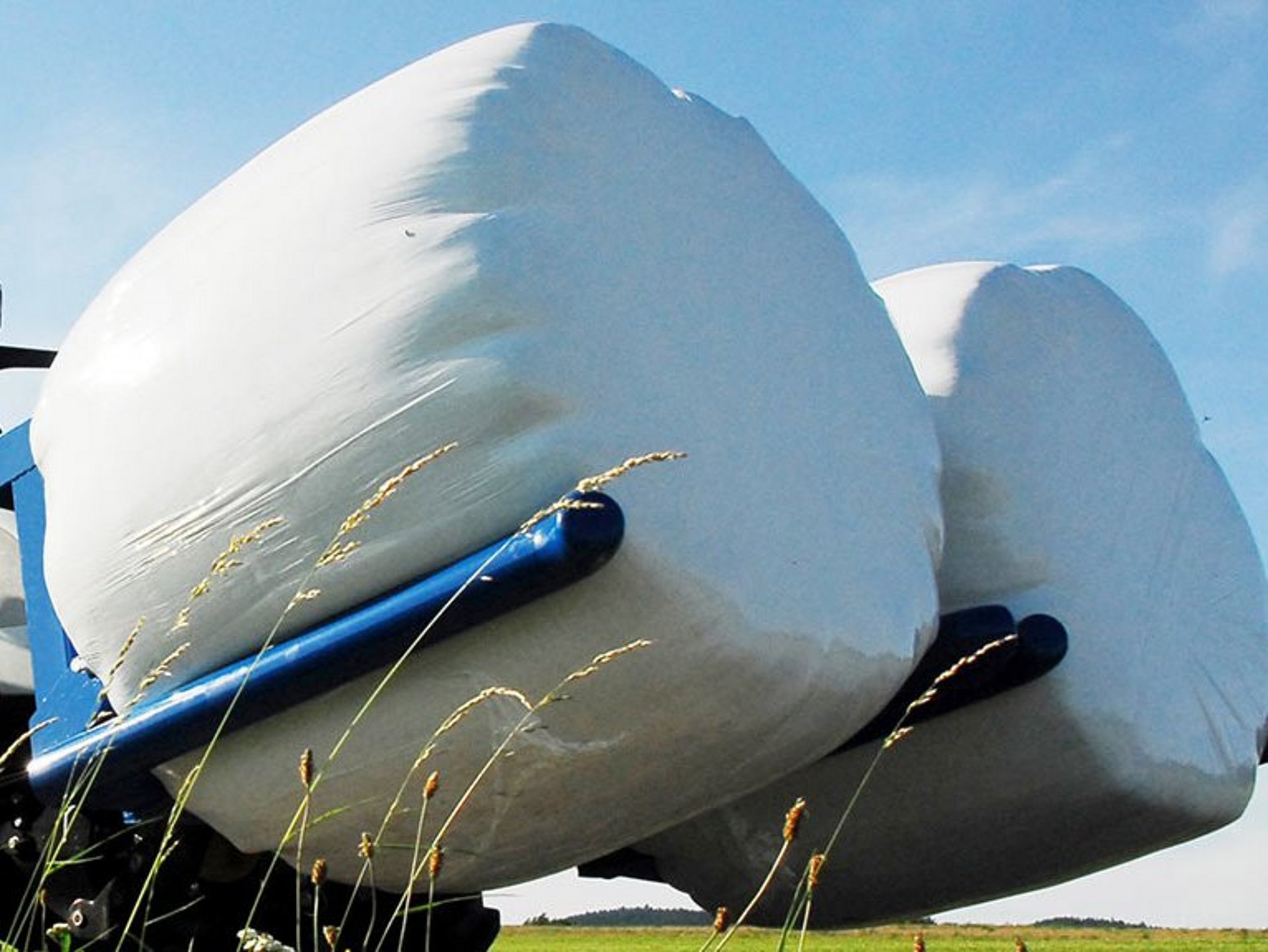

[Translate to English:] Auch bei der Fronthydraulik kann der DTR verwendet werden.
  1. Home
  2. Products
  3. Bale transport devices
  4. DTR

Double round bale spear for 2 wrapped bales
DTR | Double Transport Frame

The design of the double transport frame allows for mounting two BTGME or BTGHA round bale transport forks to the transport frame with a few easy steps. While installed stationary on one side, the double round bale spear for two wrapped bales is mounted on a transport cart on the other side, which can be moved up and down hydraulically. The machine is able to simultaneously transport two round bales with a diameter of up to 1.60 m.



Basic model

Without BTGME/BTGHA bale transport forks

Info & Contact

Download Brochure

Non-comitting request

Technical data (basic model)

Length:

450 mm (1' 3")

Width:

2.440 mm (8')

Height:

1.130 mm (3' 5")

Weight (without transport fork):

218 kg (480 lbs)
Payload:max. 3,000 kg (max. 6,600 lbs)

Max. operating pressure:

200 bar

Bale diameters:max. 1.60 m (63”)

Required connections

Double-acting hydraulic control device



Possible attachments

Adapter Weiste triangle Cat. II

Other attachments - on request

All attachements

The double transport frame combined with 2 BTGHA round bale transport forks.The double transport frame combined with 2 BTGHA round bale transport forks.
The DTR allows for the simultaneous transport of 2 round bales.The DTR allows for the simultaneous transport of 2 round bales.
The first bale is loaded.The first bale is loaded.
The DTR in action in the field.The DTR in action in the field.
The second bale is picked up.The second bale is picked up.
The double transport frame raised without a bale.The double transport frame raised without a bale.
