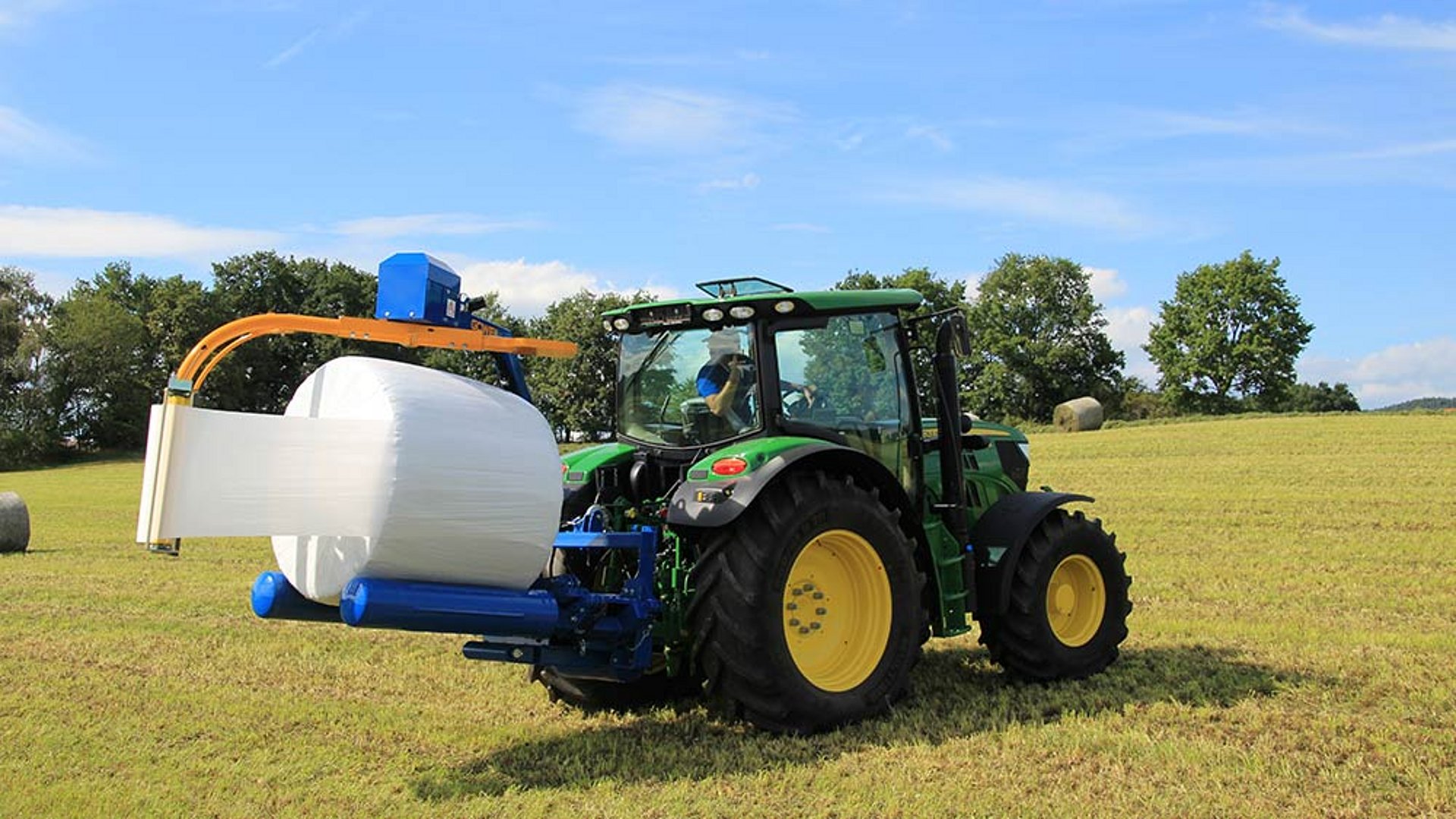

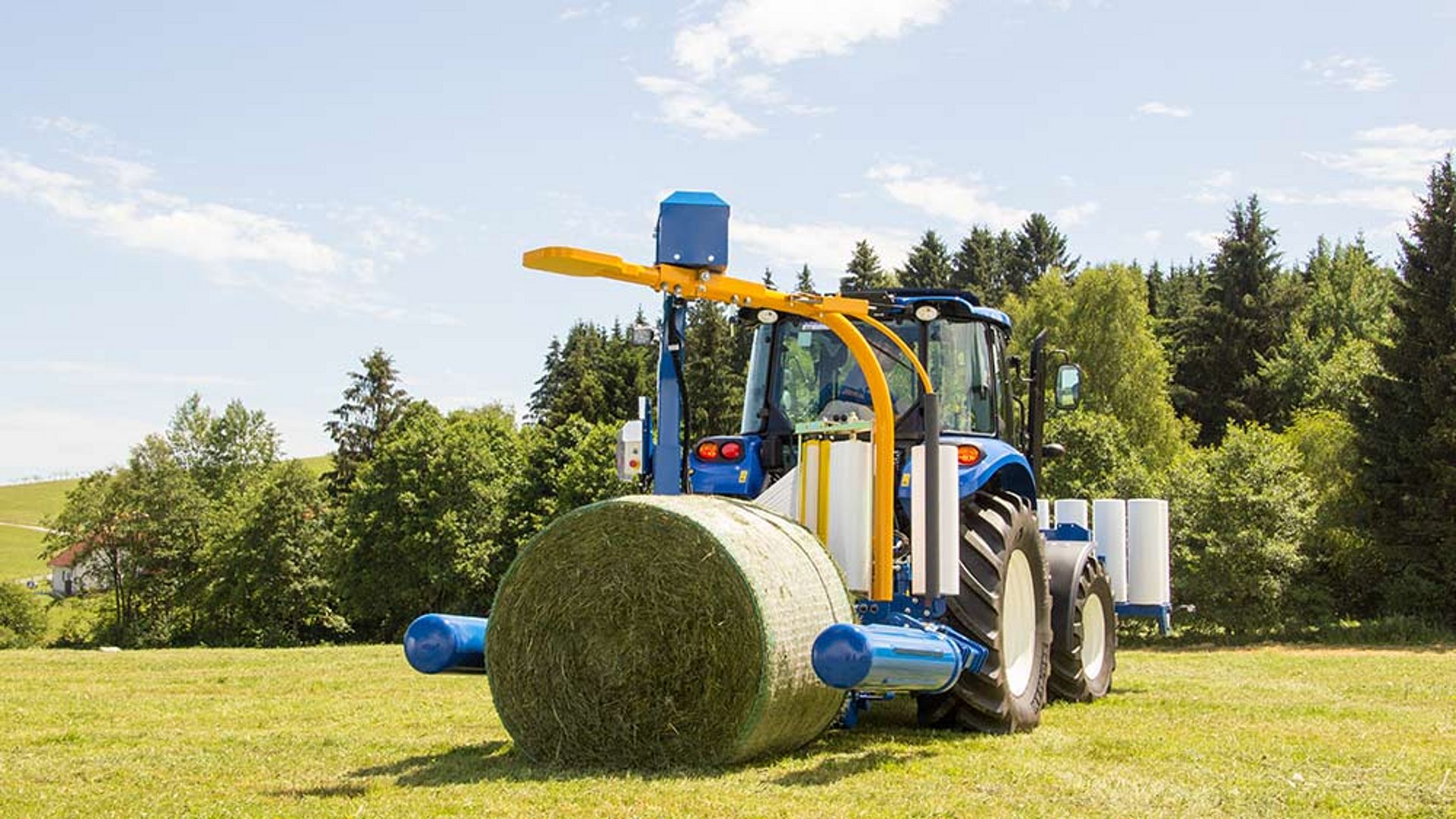

The G1015 is suitable for both front and rear installation.

Round bale wrapper
G1015 | Round bale wrapper

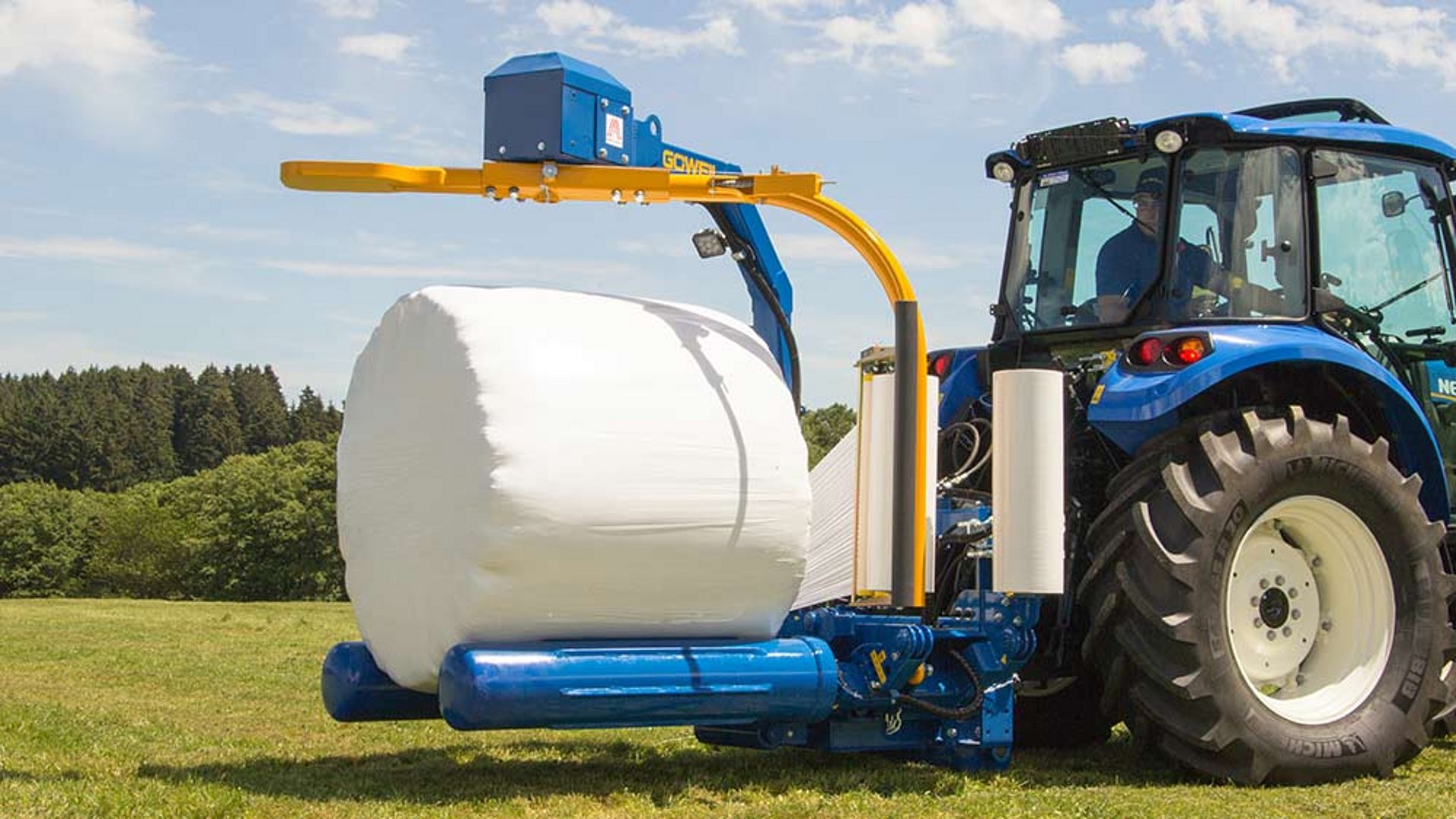

The G1015 roller wrapper made by GÖWEIL sets itself apart with its ultra compact and sturdy design. Two rollers actuated in series ensure that the bale is rotated evenly. The STANDARD program control including joystick can be used to control the roller wrapper with no effort at all.

Highlights

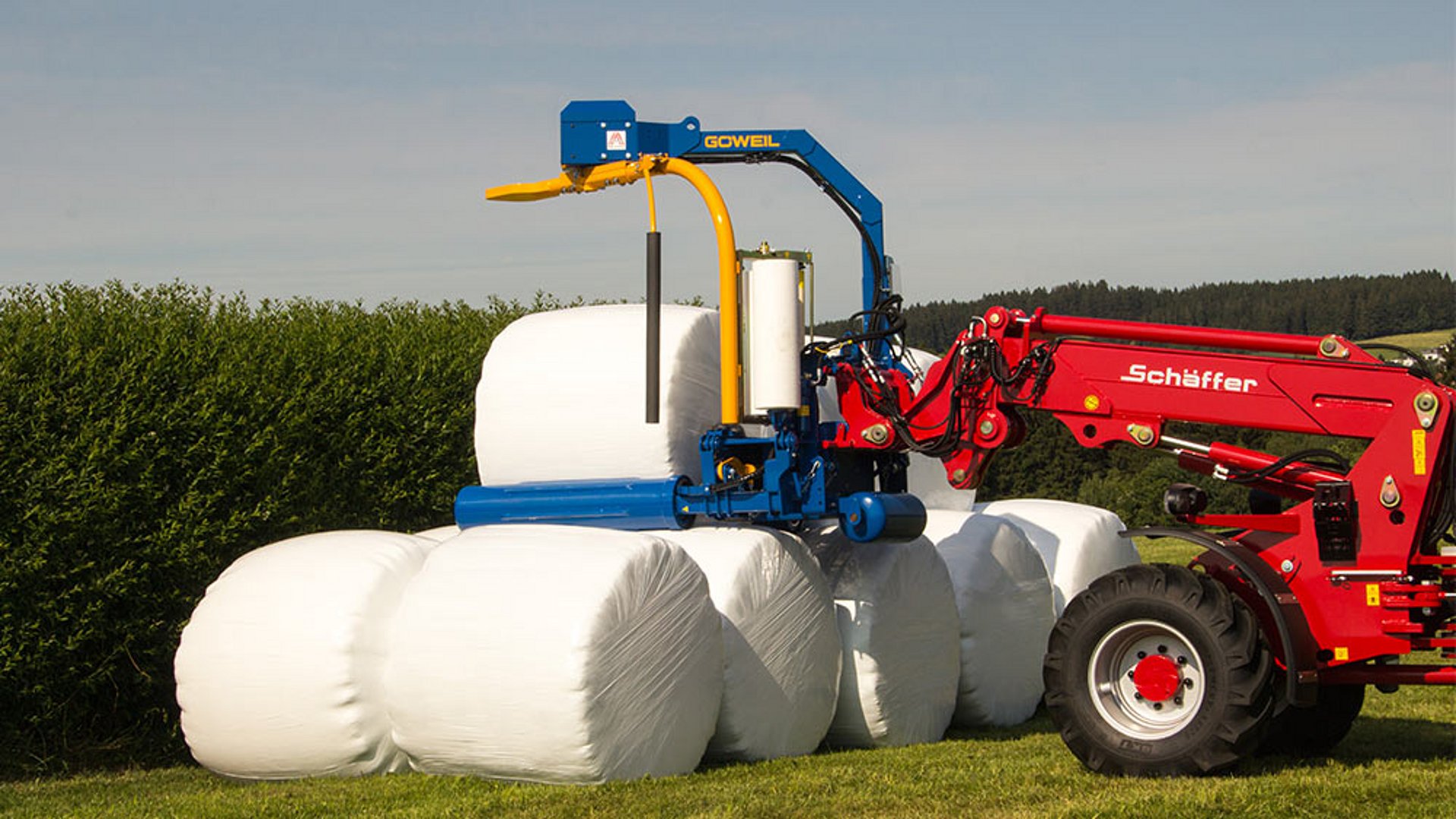

The G1015 roller wrapper makes it possible to perform the cycles “Transport”, “Wrap” and “Stack” with one single machine.

Transport, wrap, stack

The G1015 roller wrapper makes it possible to perform the cycles "Transport", "Wrap" and "Stack" with one single machine. And, thanks to its exceptionally sturdy and compact design, it is guaranteed to have a long service life. The wrapper is suitable for both front and rear installation. Customers can choose from an extensive selection of loader attachments.

Control

The G1015 wrapper comes standards with the easy-to-use STANDARD program control that includes an electronic joystick. All functions can also be executed directly at the control housing of the machine – which comes in handy when the operator needs to change the film. Better still, additional connections make it possible to use the wrapper's program control to also actuate the hydraulic upper linkage.

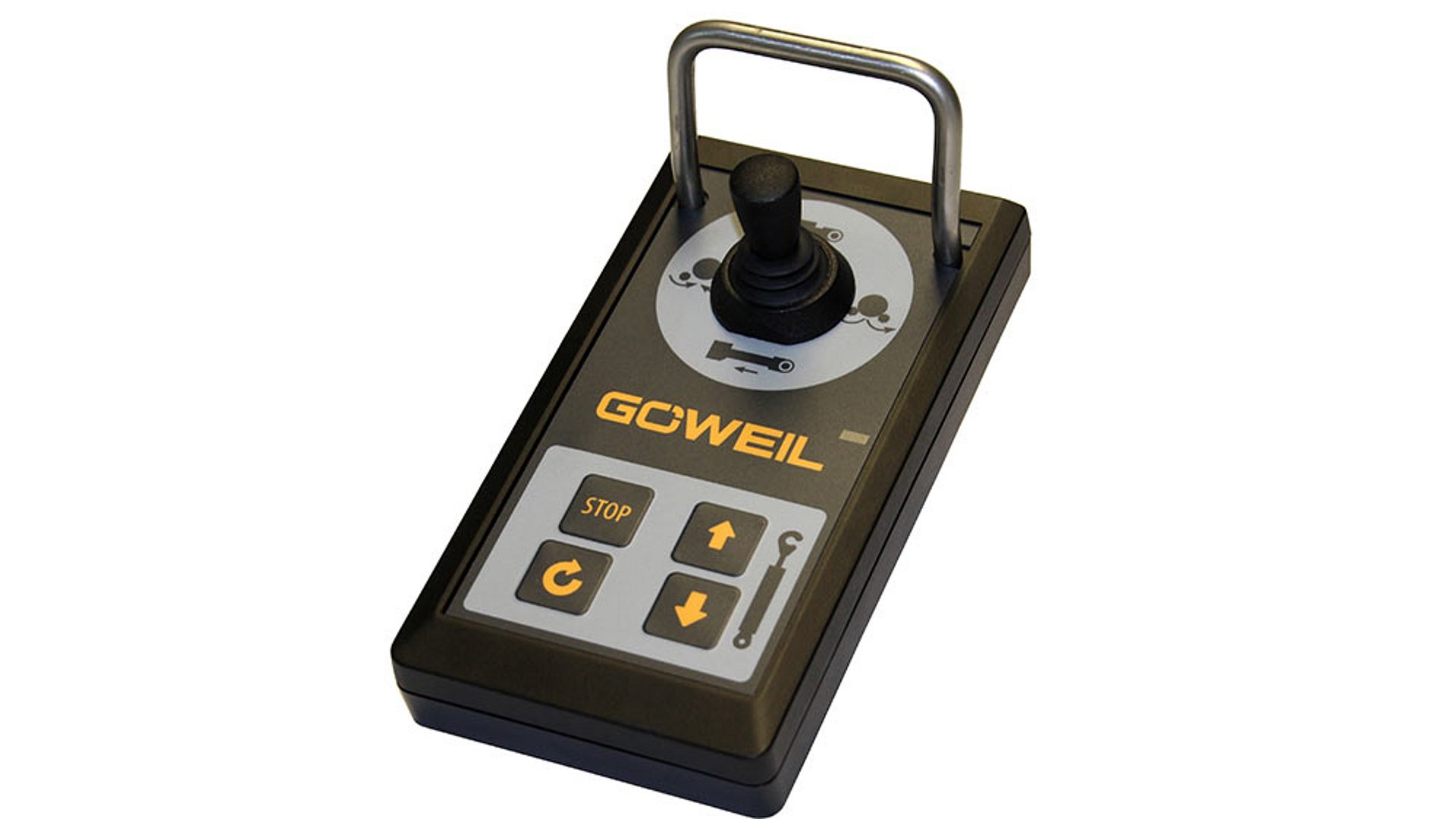

The G1015 wrapper comes standard with the STANDARD program control including joystick.

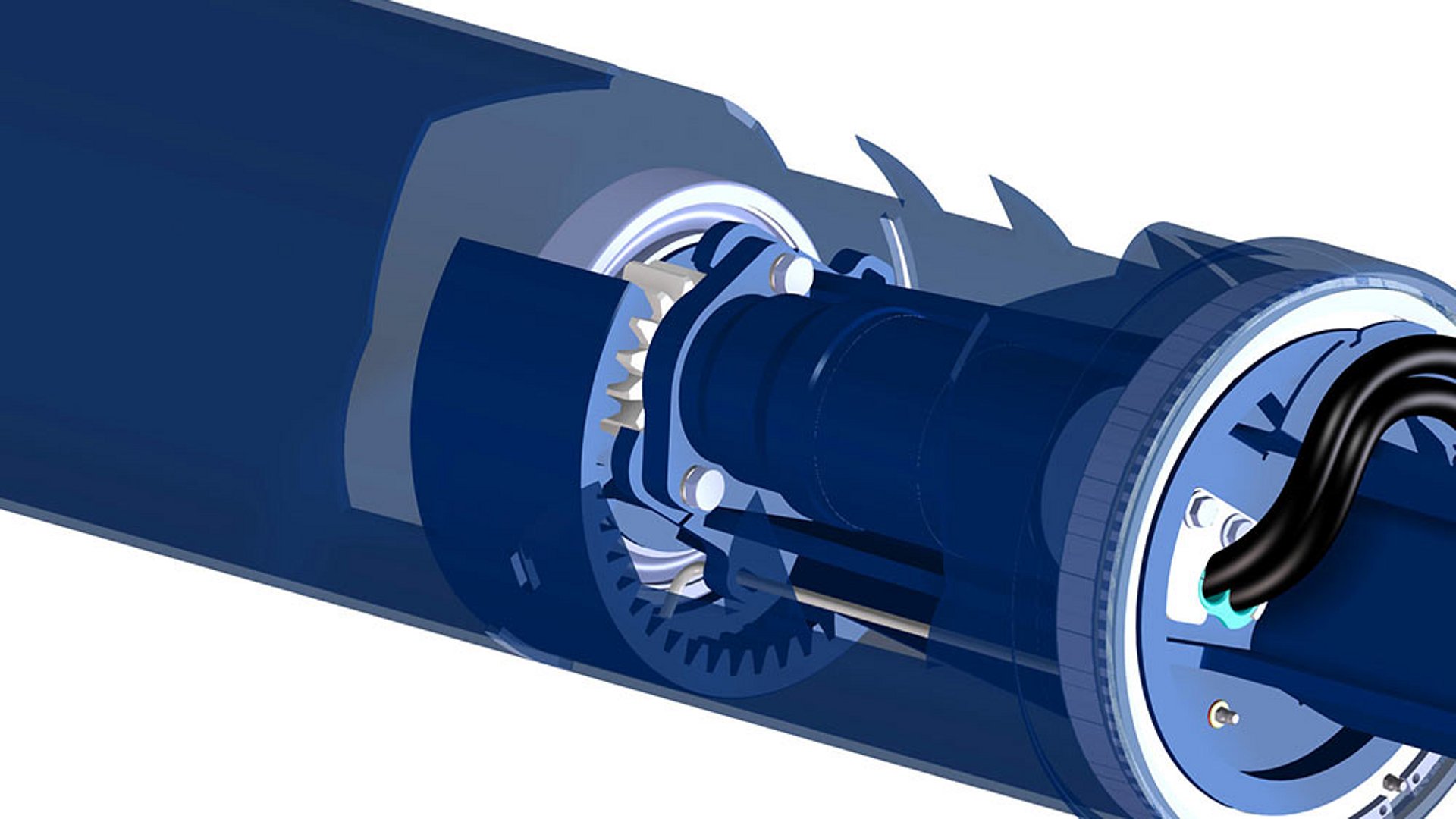

The hydraulic motors are mounted on the inside of the rollers.

Hydraulic cylinders and hydraulic motors

The hydraulic cylinders housed in the base frame of the wrapper and the hydraulic motors are safely protected. The hydraulic motors are mounted on the inside of the rollers.

Rollers

The large-size rollers of the G1050 wrapper guarantee that even the heaviest bales can be wrapped with flawless ease. Powered separately from one another, the rollers stretch the film around the bales in a uniform movement.

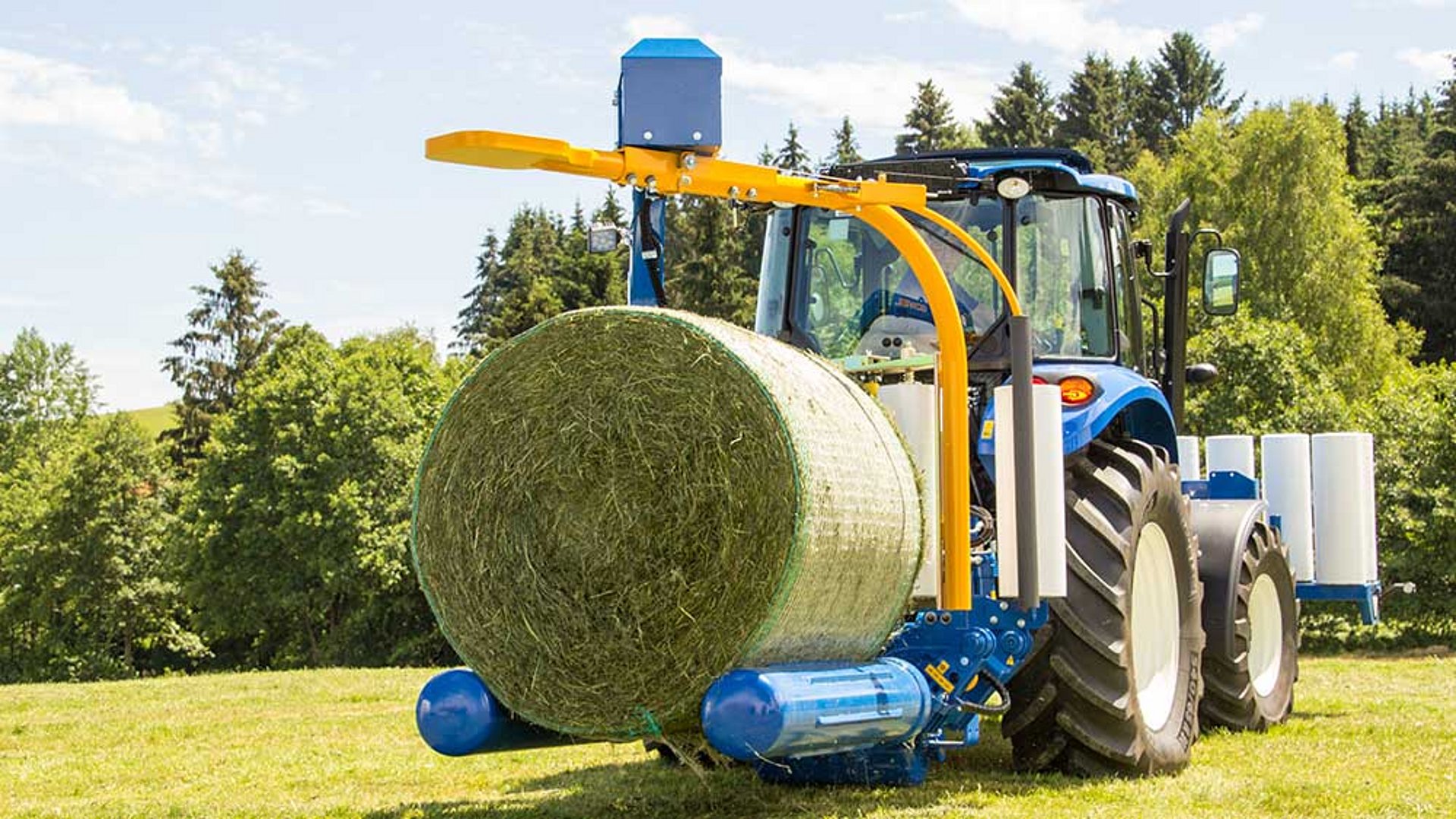

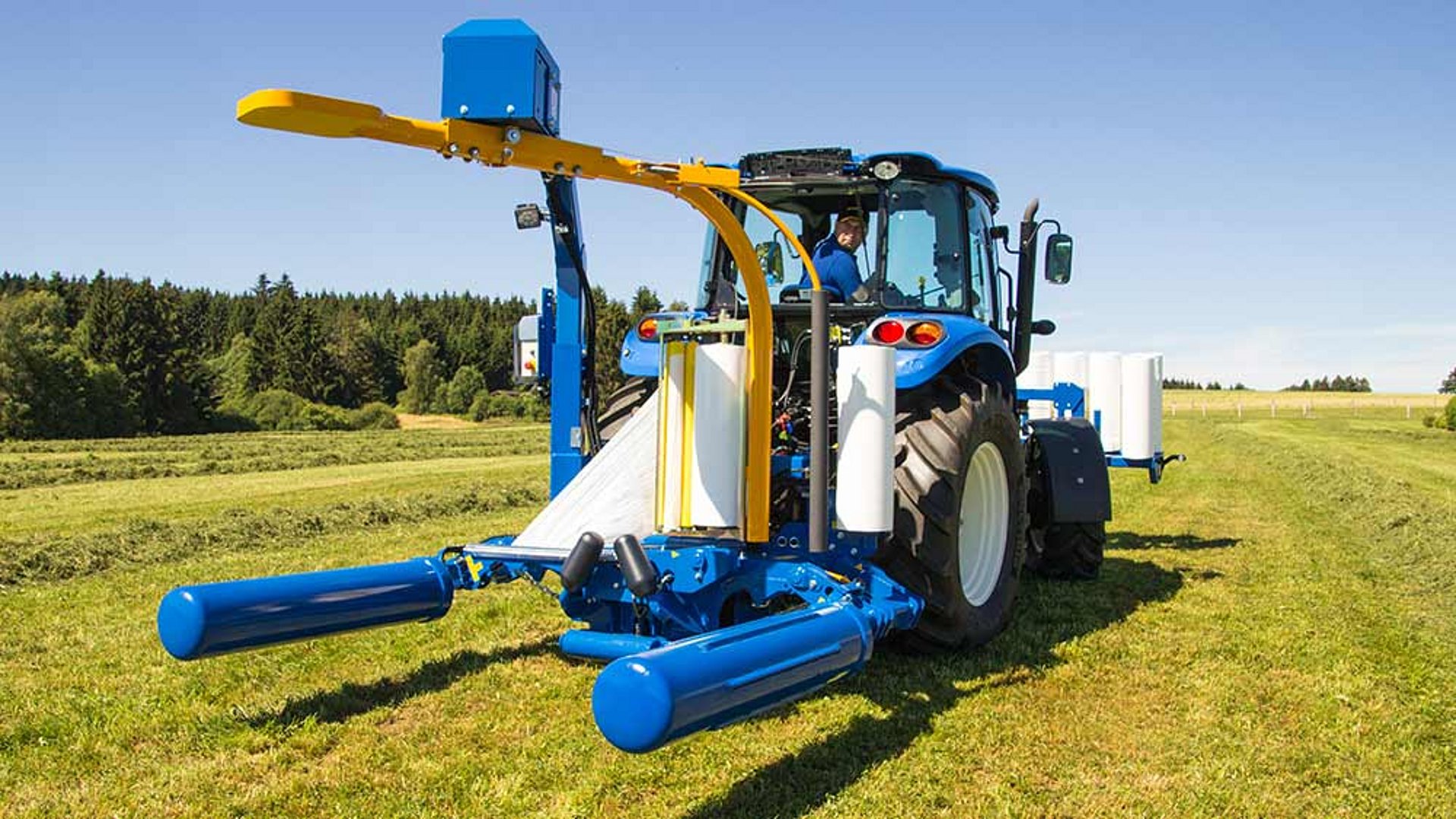

Two rollers actuated in series ensure that the bale is rotated evenly.

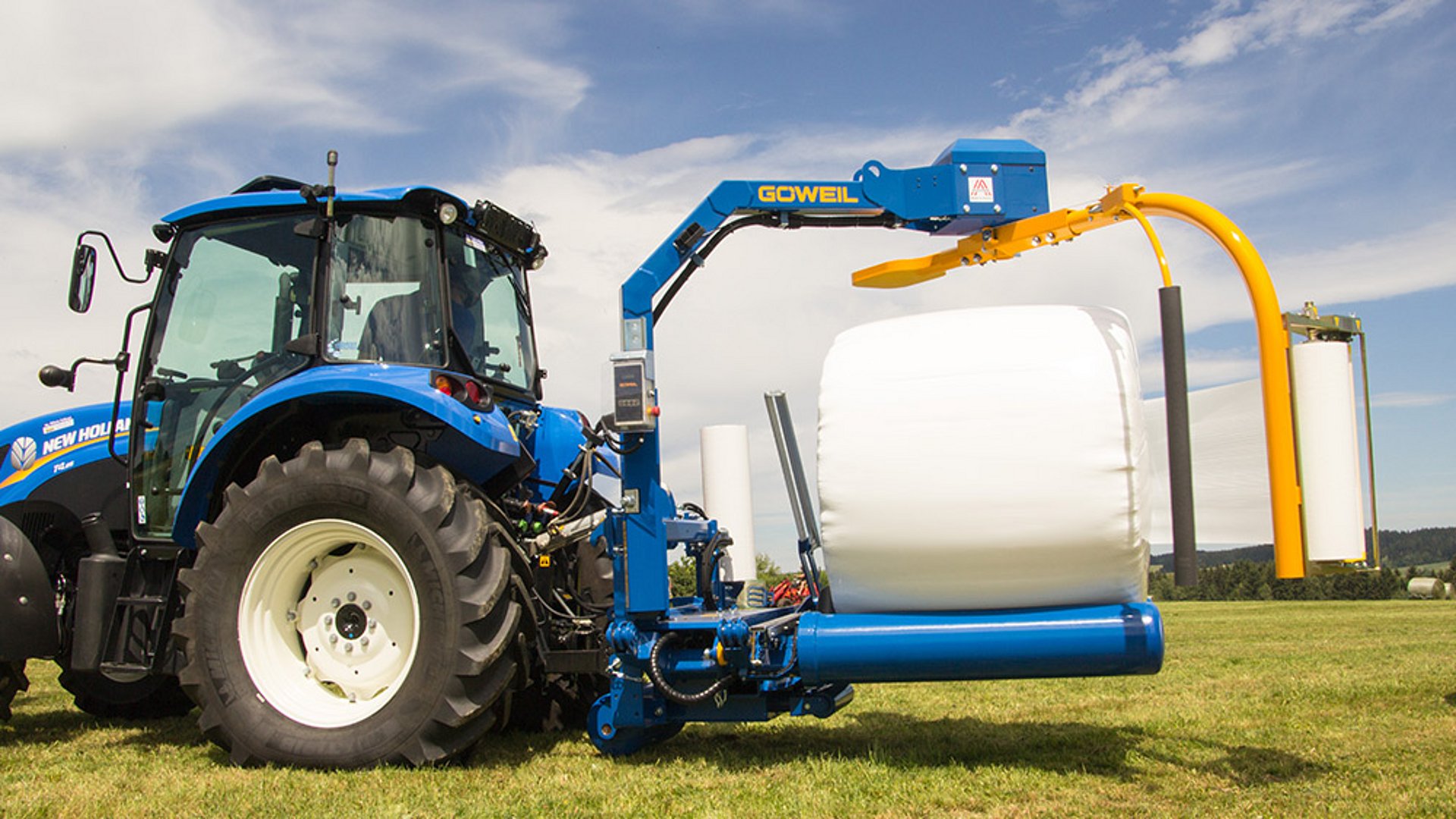

The wrapping arm is equipped with a film stretching unit that can accommodate 750 mm rolls of film.

Wrapping arm with film stretching unit

The wrapping arm is equipped with a film stretching unit that can accommodate 750 mm rolls of film. The three patented plastic rollers provide for perfectly uniform stretching.
What is more, the rollers are not sensitive to temperature. This helps save film and guarantees firmly wrapped bales. The quick-release system makes it possible to change empty rolls quickly and effortlessly.

Hydraulic upper linkage

The pitch of the wrapper can be adjusted continuously and with perfect ease thanks to the hydraulic upper linkage. Optional connections for the upper linkage make it possible to control the upper linkage with the wrapper’s program control.

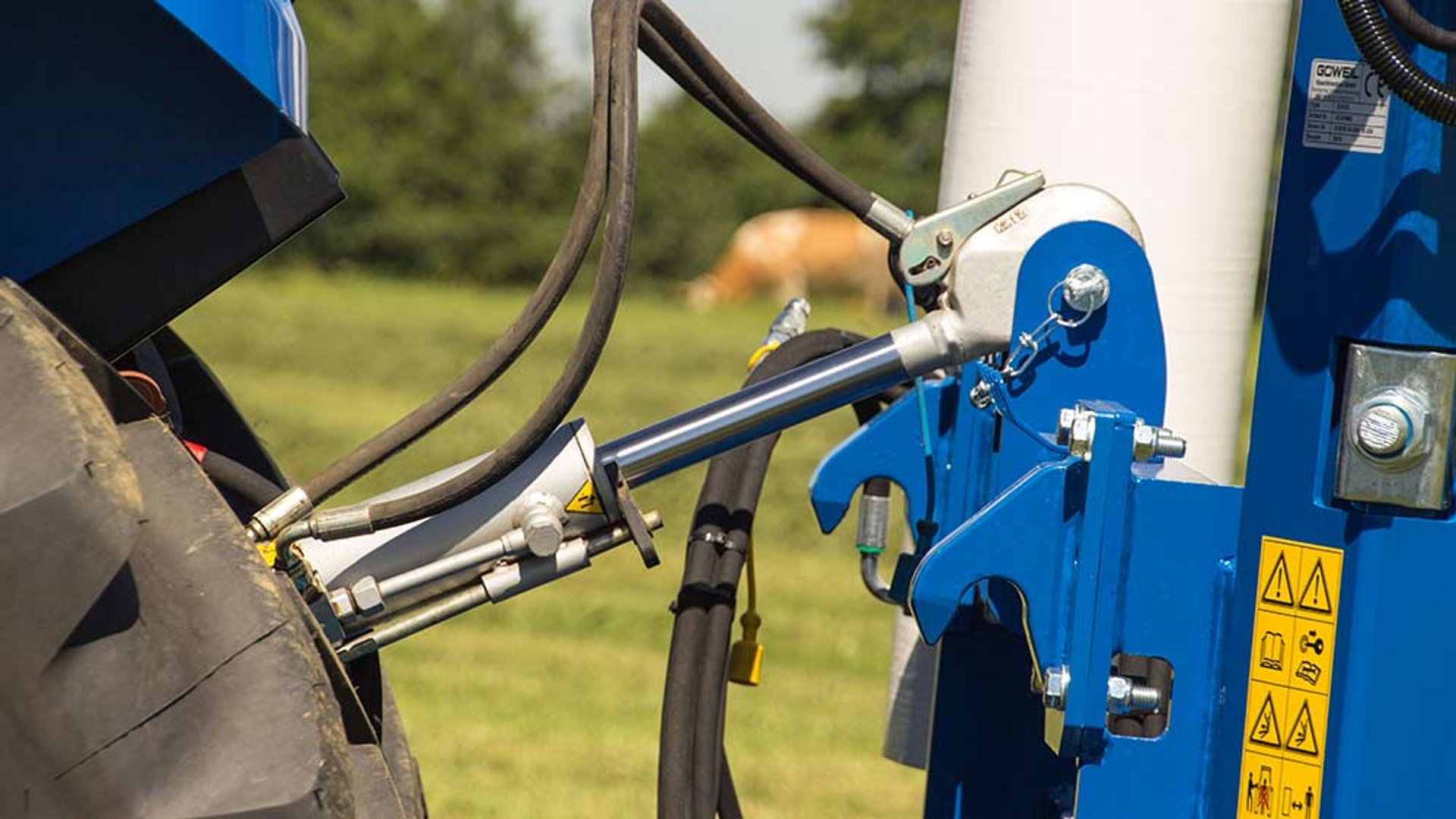

The hydraulic upper linkage can be used to adjust the pitch of the wrapper continuously.

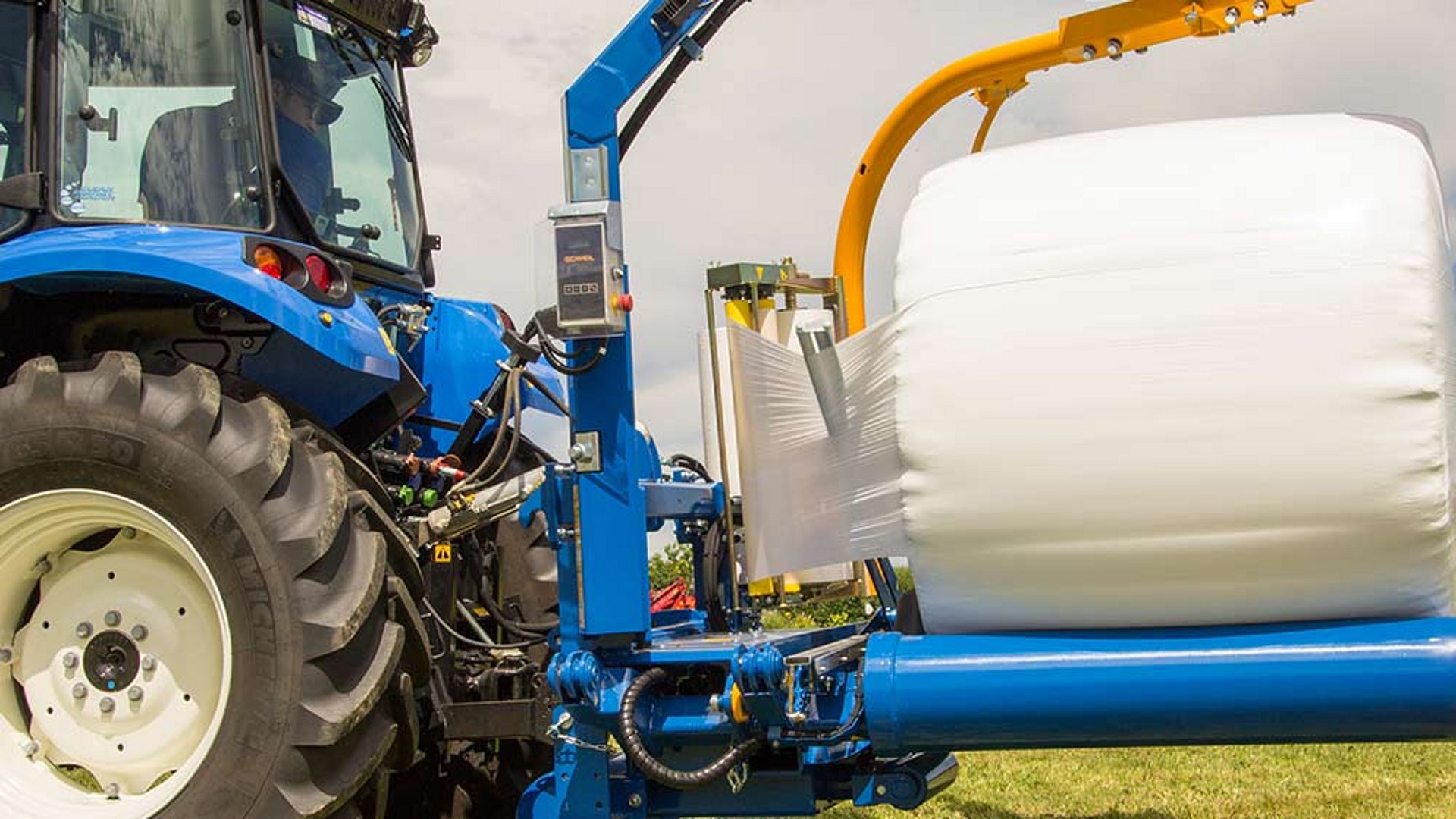

The stainless steel knife guarantees that the film will be cut cleanly and precisely.

Automatic film cutting and holding system

The stainless steel knife guarantees that the film will be cut cleanly and precisely. At the same time, the film is fixed in place by the cutter lever. Shortly after the wrapping process begins, the standard float position ensures that the film will unwind easily.

Additional equipment

A host of additional equipment options allow the user to customize and expand the machine to their individual needs.

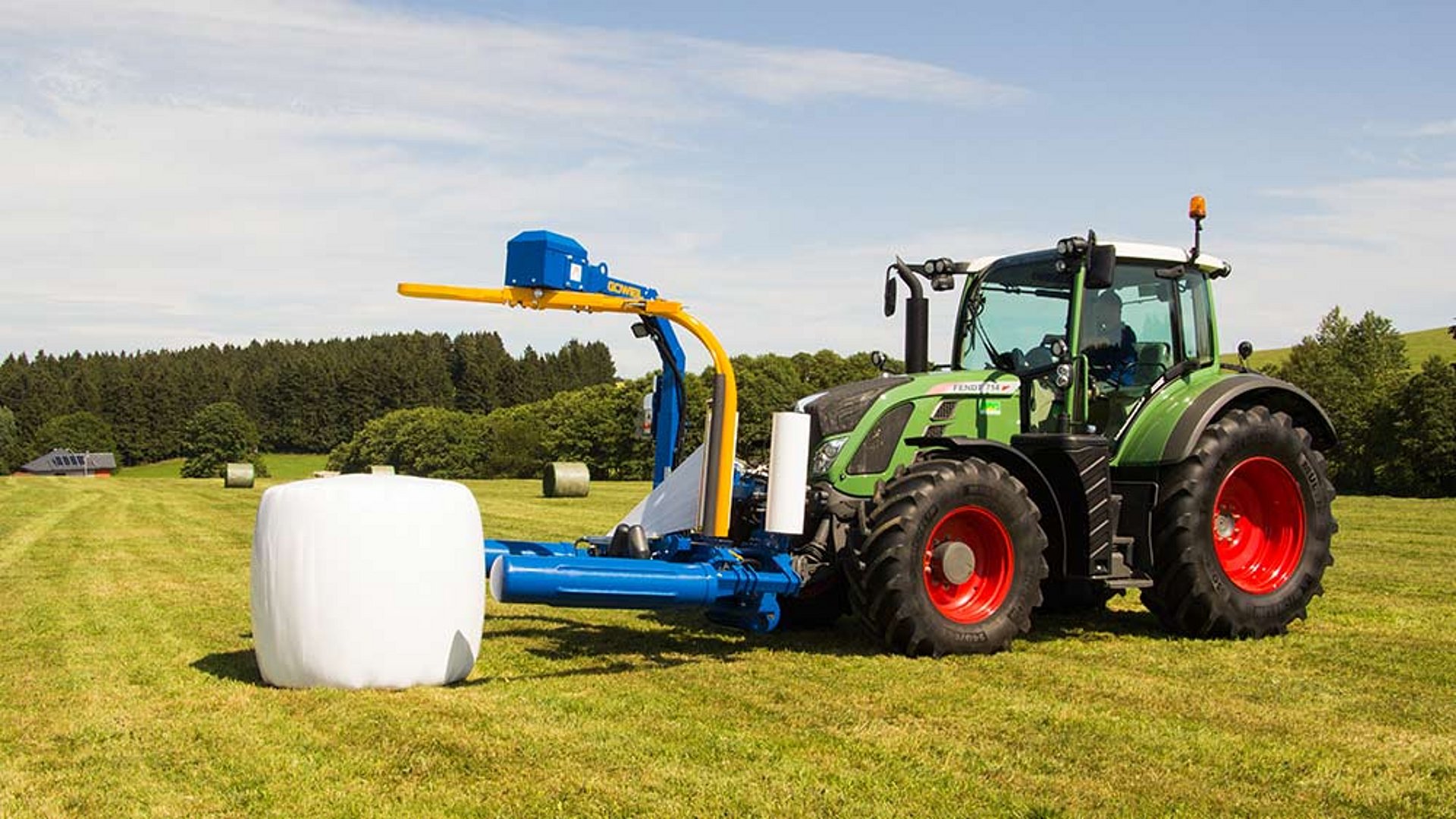

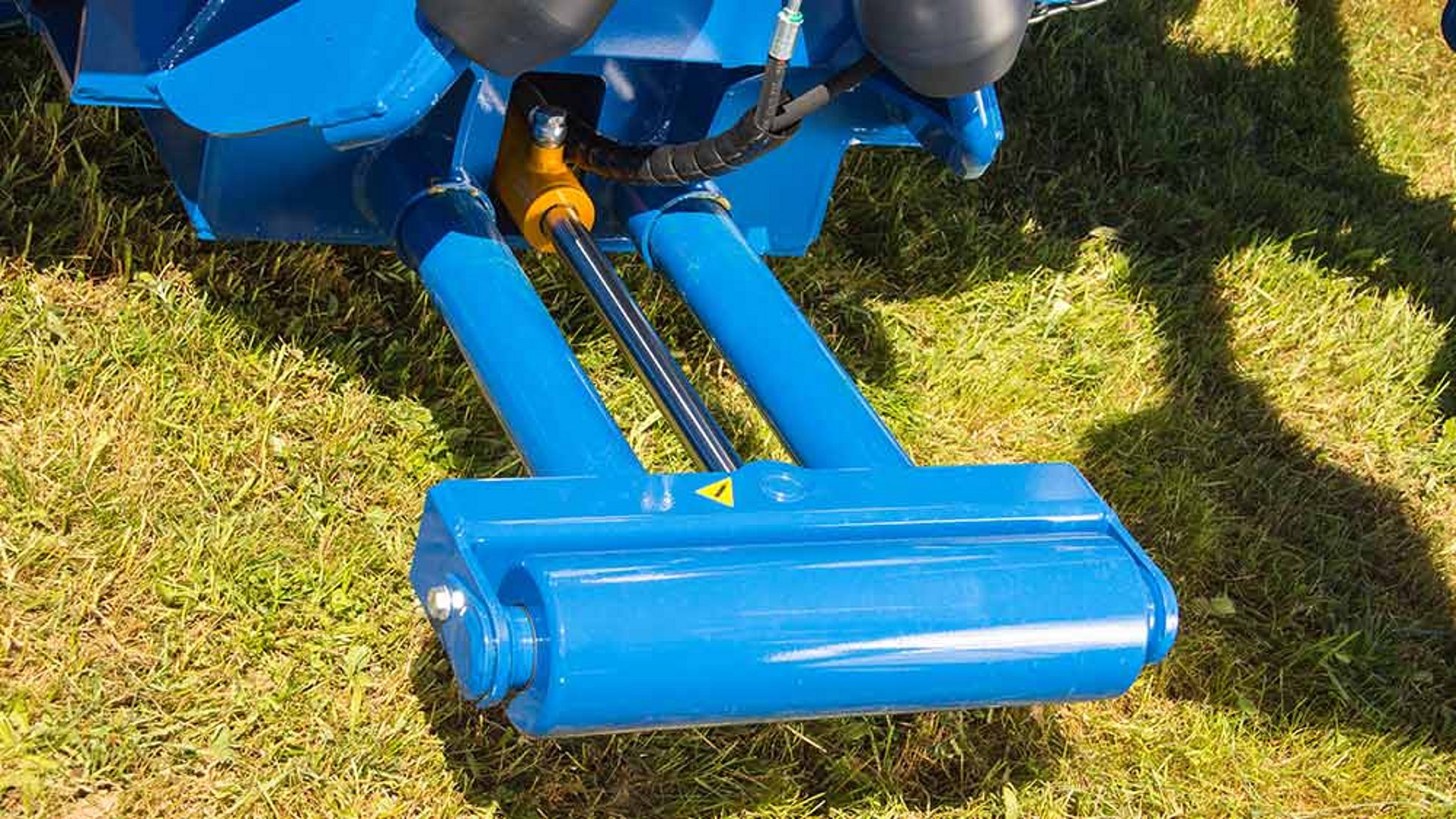

The G1015 wrapper can get upgraded with a bale tipper.

Basic model

can also be operated in conjunction with tractors without load sensing pump

Single wrapping arm

Cat. II and Cat. III three-point linkage

Hydraulically swiveling roller arms for picking up and depositing the bales

2 bale guide rollers

Film stretching unit 750 mm

Automatic film cutting and holding system

Storage for 1 roll of film

LED working headlight

Bale pick-up and deposit are controlled using the electronic joystick. The cycles "wrapping process" and "film-holding and cutting" start automatically.

Technical data (basic model)

Weight:

910 kg

Length:

2,220 mm

Width:

1,780 mm

Height:

2,360 mm

Roller opening width:

1,750 mm

Bale diameter:

0.90 – 1.55 m

Bale weight:

max. 1,200 kg

Oil requirements:

25 liters/min at least



Required connections

1 pressure connection and one depressurized return for the supply of the wrapper

Load Sensing connection (required for LS mode only)

3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2x6 mm²)

Additional equipment

For film widths between 500 mm and 750 mm; the overlap can be adjusted as well

Stops the wrapping process if film tears or runs out

The hydraulic upper linkage is controlled directly using the program control of the wrapper

Length changes to: 2,370 mm / height changes to: 2,440 mm

Operation via program control

approx. 60 kg

Battery supply cable 5.3 meters 2x6 mm² with 3-pin power outlet

Light and indicator system

Including gearbox with pump, slip-on tractor PTO drive shaft, return filter and 30 L hydraulic oil tank

Mounting options

Euro capture frame

Merlo, Merlo ZM3, SMS, MX

Dieci, Dieci Dedalus, Manitou, JCB Q-Fit, JCB 515-40 Q-Fit, Weidemann hydraulic, Kramer, Schäffer up to 3550, Schäffer from 3550T, Atlas, Claas Scorpion, Zettelmeyer 402, Zettelmeyer 602, CAT 907H/Liebherr L507, Faresin, Faucheux, Bobcat

Other mounting options available on request
