Three point square bale wrapper
G3010 Q | Square bale wrapper



The G3010 Q is distinguished by its robust design as well as its low working height. The wide, continuous belt guarantees uniform wrapping of each and every bale - even if it is misshapen. The wrapper is equipped with the STANDARD program control.

Highlights

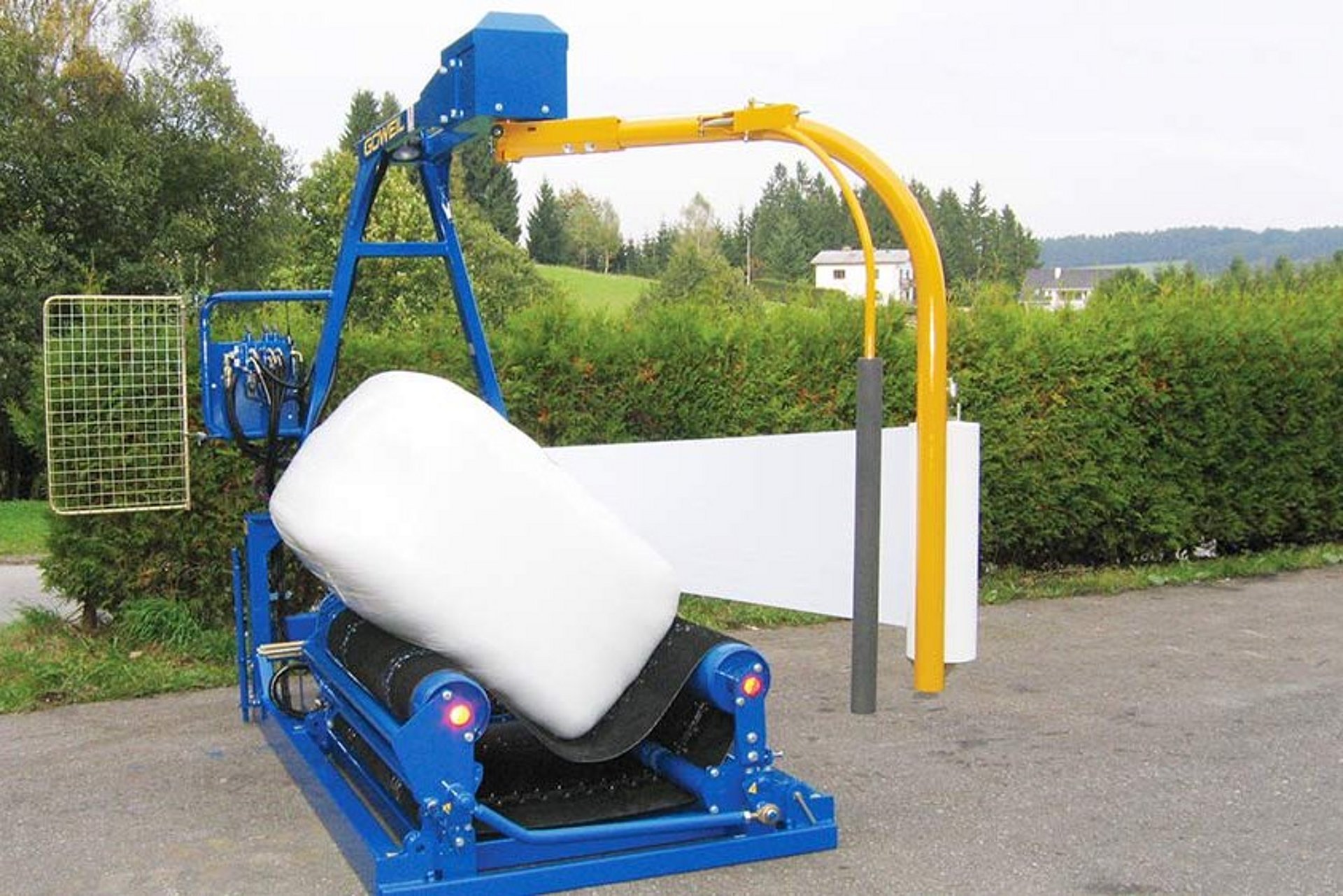

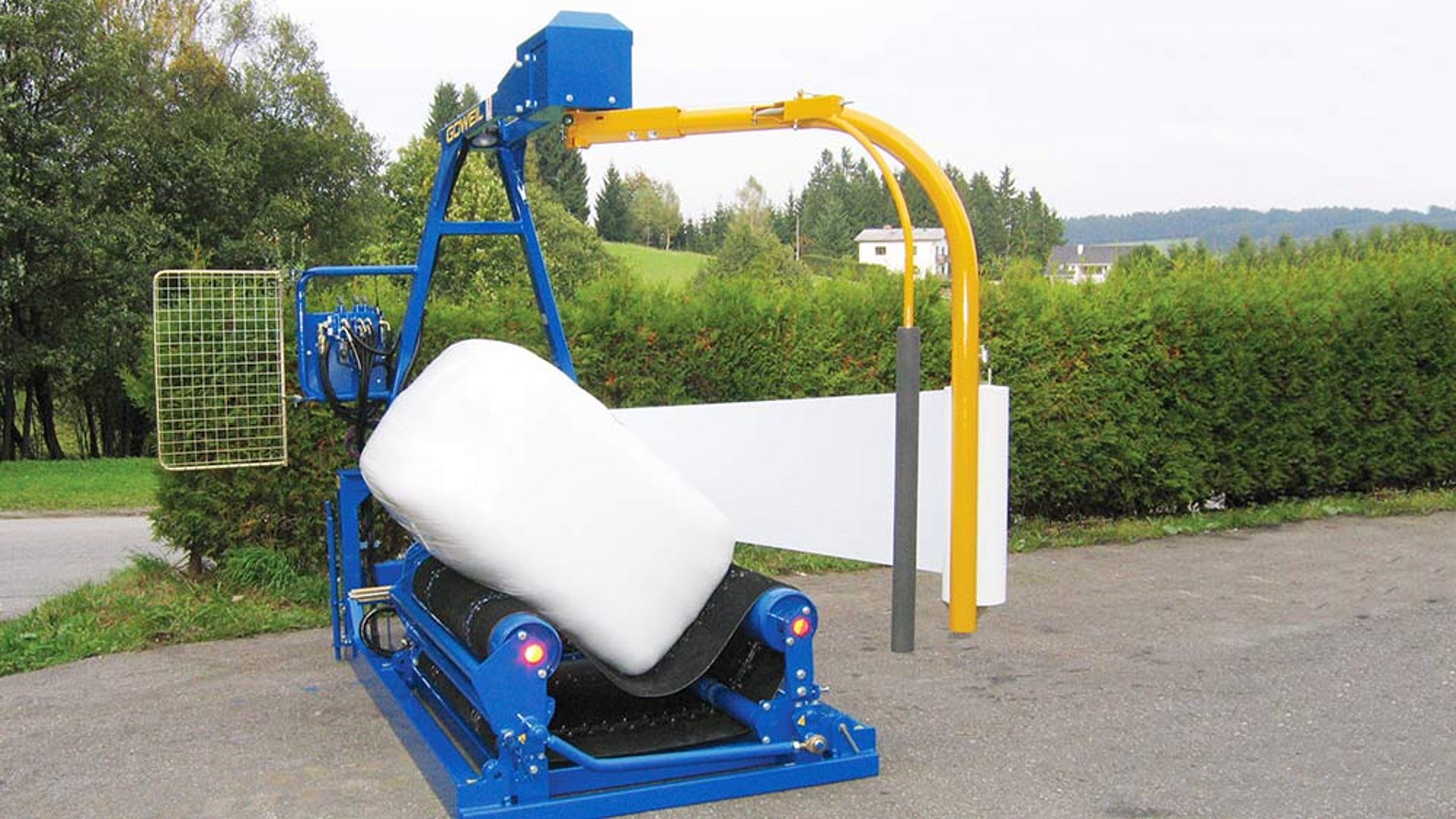

The G3010 Q packages square and round bales in an equally clean and air-tight manner.

SECURE BALE GUIDING

The rotating rollers arranged on both sides are connected to each other with tie rods. This produces a controlled force, which in conjuntion with the belt, generates a clamping effect on the bales. The wrapper is able to guide the bale securely even with rectangular bale dimensions. A quick adjustment can adapt the belt length to different bale dimensions.

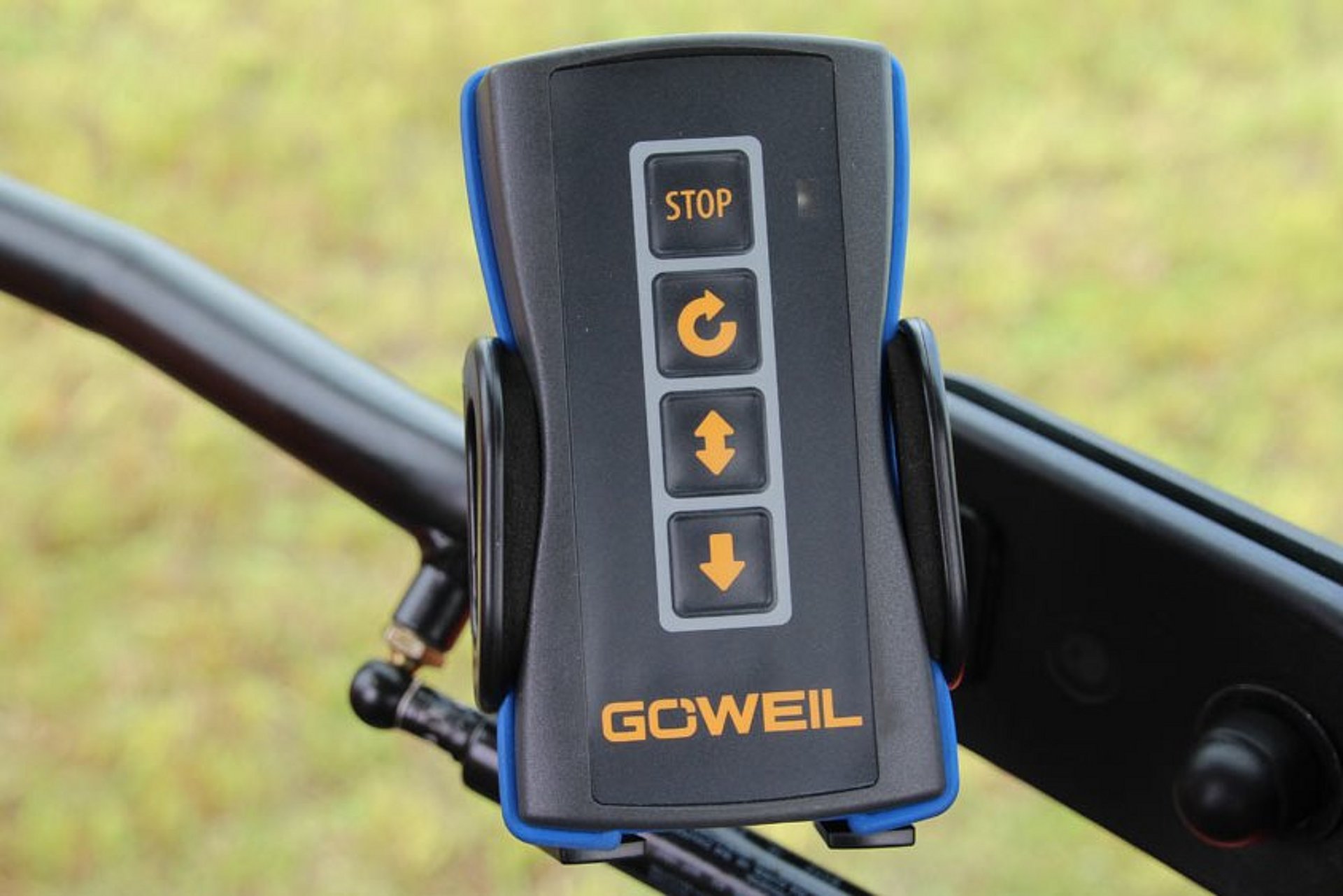

The user-friendly STANDARD program control with wireless operation

CONTROL STANDARD

A genuine highlight is the user-friendly and easy-to-use program control STANDARD with wireless operation.

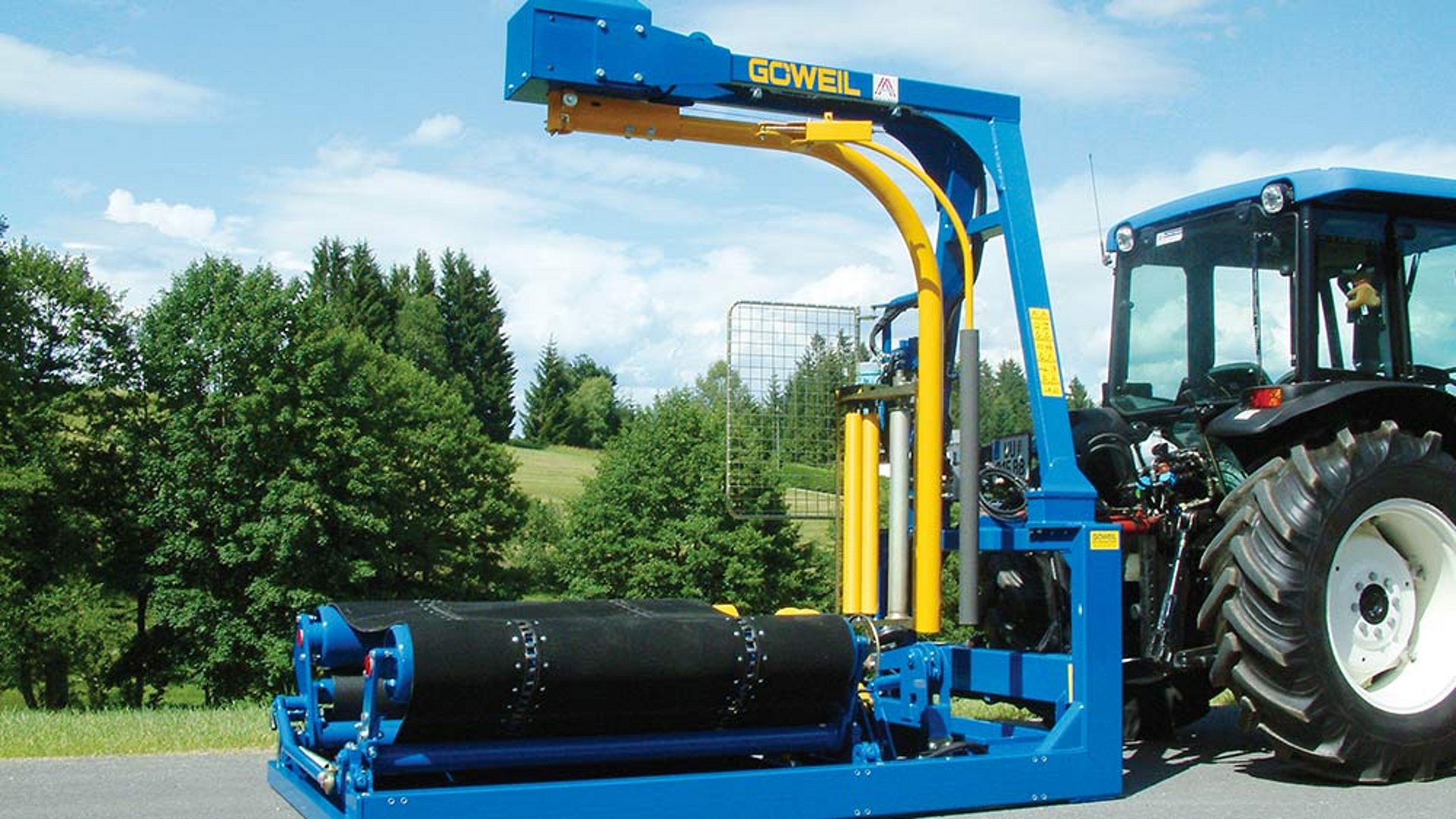

The continuous bale conveyor belt guarantees uniform wrapping of each and every bale.

Continuous belt

The wide, continuous belt guarantees uniform wrapping of each and every bale - even if it is misshapen.

The feed rate shut-off valve provides for an accurate overlap of the film.

FEED RATE SHUT-OFF VALVE

This ensures that the film will overlap accurately for rectangular bales.

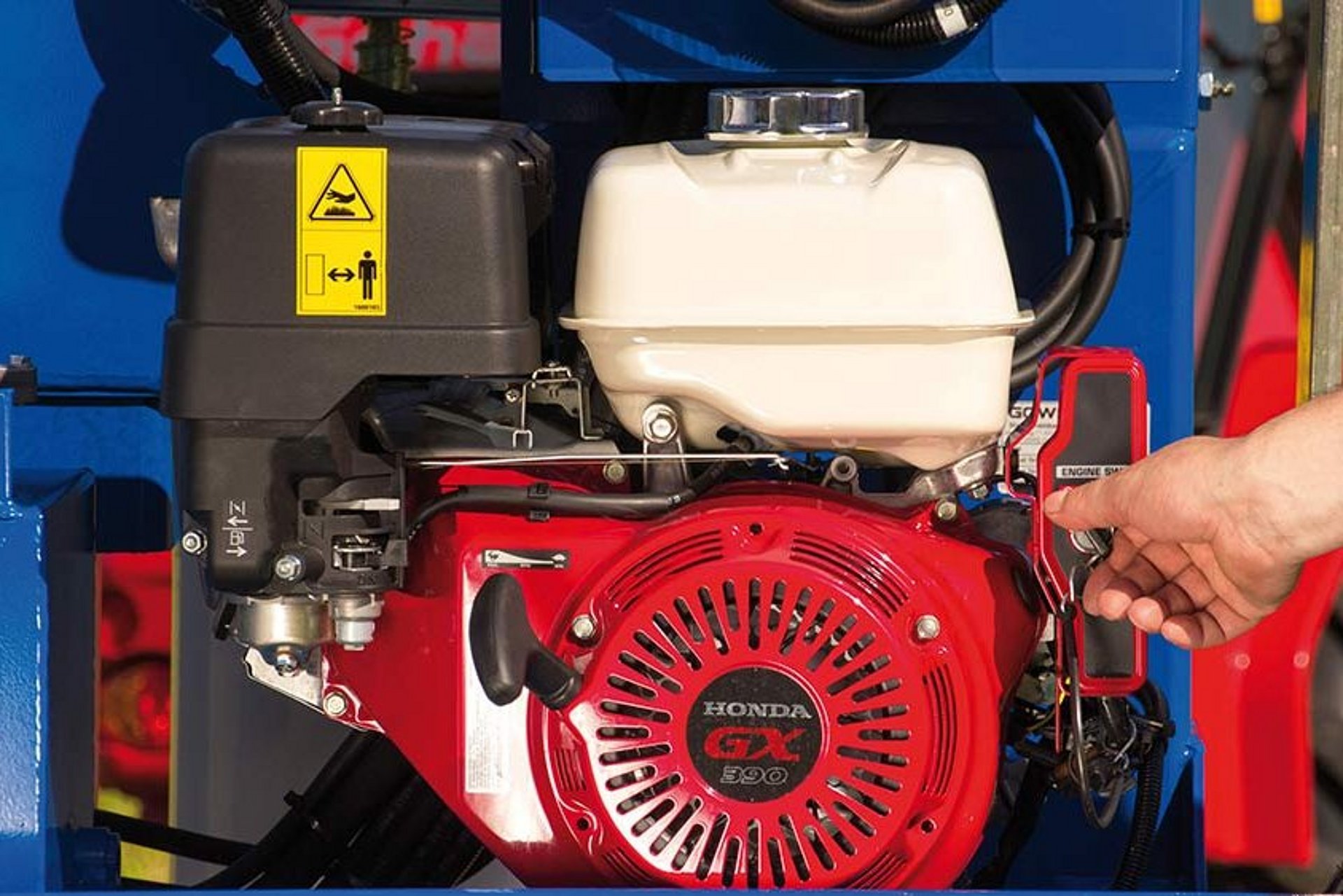

8.2 kW Honda gasoline engine including battery, generator and electric starter as well as hydraulic system

MOTOR

An 8.2 kW gasoline engine including battery, generator and electric starter as well as hydraulic system is available as an option.

It is possible to pick up the bale while driving forwards or backwards by simply shifting the mounting position of the loading arm from the front to the back or vice versa.

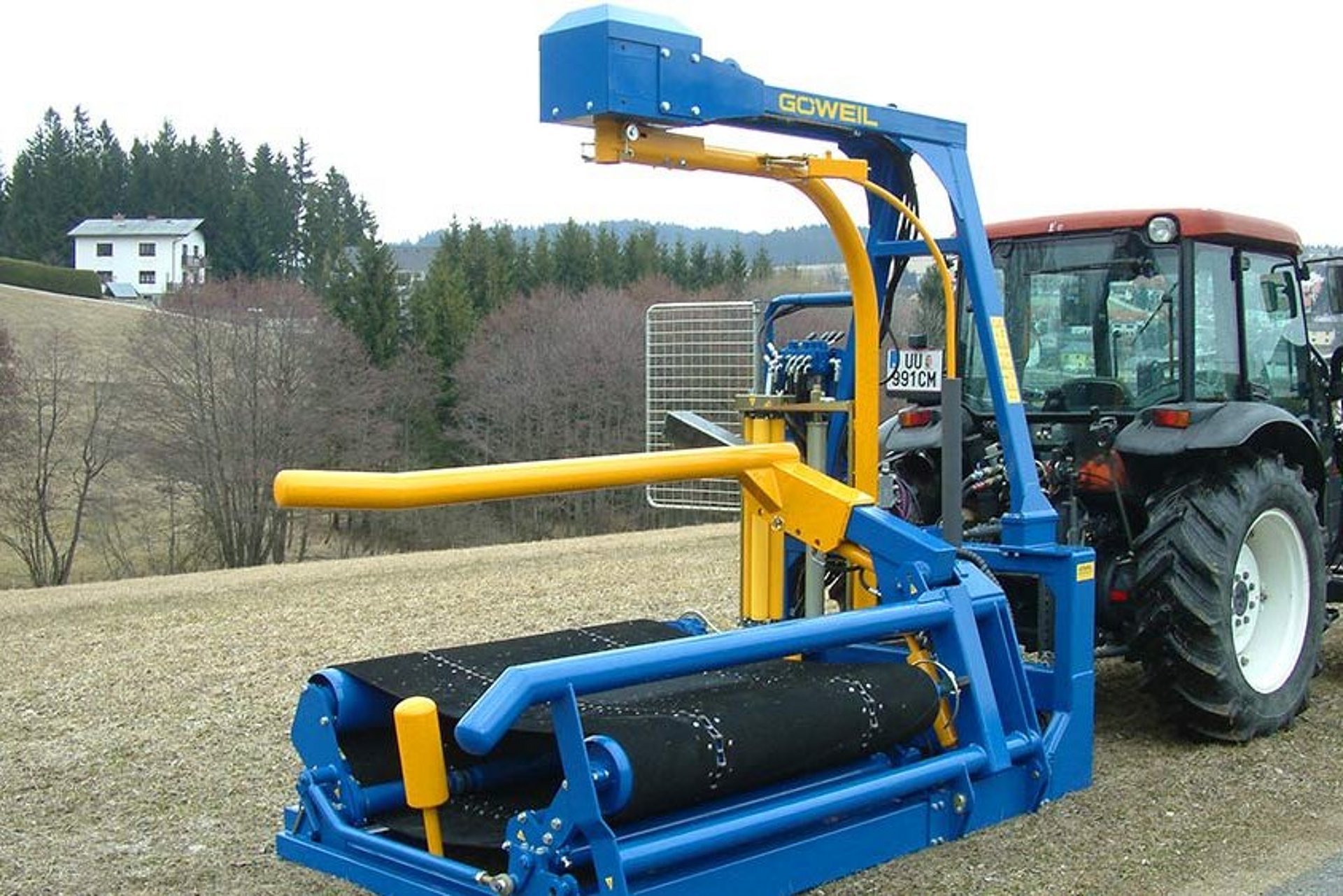

Bale pick-up

The G3010 wrapper can be optionally equipped with a hydraulic bale pick-up. It is possible to move the bale forwards or backwards while on the move by simply placing the lifting forks around the bale.

Basic model

Single wrapping arm

Hydraulically tilting wrapping table with mechanical belt length adjustment

Wide, continuous bale conveyor belt with belt guide and 2 bale guide rollers

Bale deposit to the left and the right

Combined film stretching unit 500 mm and 750 mm (20” and 30”)

Automatic film cutting and holding system

This ensures that the film will overlap accurately for rectangular bales

Three-point linkage Cat. II

LED work lights

The cycles "wrapping process" and "film-holding and cutting" start automatically, while “bale drop” starts at the push of a button.

Technical data (basic model)

Weight:1,130 kg (2,490 lbs)
Length:2,705 mm (8’ 11”)
Width:1,720 mm (5’ 8”)
Height:2,760 mm (9’)
For all bale dimensions:

up to 1.20 x 1.40 m (up to 48” x 56”)

Bale length:up to 1.60 m (up to 63”)
Round bale diameter:0.90 - 1.50 m (36” – 60”)
Oil requirement:

starting at 20 l/min (5 gpm) at max. 190 bar

Bale weight round / squaremax 1,800 / 1,000 kg (max. 4,000 / 2,200 lbs)



Required connections

1 pressure connection and one depressurized return for the supply of the wrapper (not applicable for PTO drive shaft)

3-pin power outlet for the electrical supply including direct supply line to the battery (cable cross-section 2x6 mm²)



Additional equipment

The execution of all work cycles is fully automatic

Only in combination with fully automatic program control PROFI

Required connection: 3-pin power outlet for the electrical supply of the hand-held terminal
(12 V / 10 A)

Bale pick-up on the right against the direction of travel
Bale deposit on the left
Width altered to 1,820 mm

Stops the wrapping process if film tears or runs out

Additional bale guide roller

Required connection: 7-pin power outlet for the entire lighting system (excluding work lights)

(without hydraulic oil)

tractor operation still possible

4 kW (5 hp) electric motor, return filter and 30 l (8 ga) hydraulic oil tank, fully assembled
Required connection for electric motor: 400 V / 50 Hz, CEE 16 A, protection class IP55

(without hydraulic oil)

Including gearbox with pump, slip-on tractor PTO drive shaft, return filter and 30 L hydraulic oil tank

without hydraulic oil

tractor operation still possible

8.2 kW (11 hp) gasoline engine with battery, electric starter, return filter and 30 l (8 gal) hydraulic oil tank

Erleichtert die Ballenablage in Hanglagen
Achtung ! Kann nicht in Verbindung mit der Ballenrampe verwendet werden.
