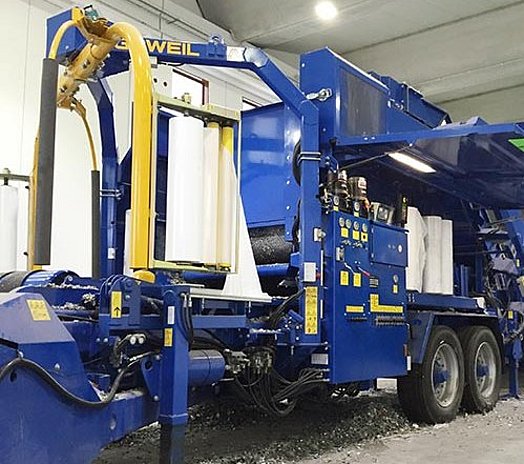

LT-Master F115 Industry | Industrial Baler-wrapper combination

The LT-Master offers a quick and easy solution to the problem of having to store and transport various types of materials. The materials are chopped prior to baling. This procedure makes the round bales ideally suited for intermediate storage and allows for the space-saving transport of the bales. When pressed into a bale, the materials stay clean and dry

Depending on the size and the structure of the material, compaction rates of between 30 % and 70 % can be achieved.

Highlights

High compression

The high bale density compresses the material to a minimal volume, saving valuable storage space.






Fast and agile

The pivoting drawbar can swivel up to 30° on either side. This provides a tight turning radius and allows the machine to be powered from either side.






Sophisticated brake system

A dual-line air brake system is fitted as standard.




Machine set-up

A major plus! The machine is ready for use in around three minutes.





Well lubricated

The central lubrication continuously supplies the main lubrication points with grease and oil. This ensures a very long service life and minimal wear and tear.





Never run short

Thanks to the hydraulically folding film storage holding up to 18 rolls of film, the LT-Master is ideally suited to long workdays.




Optimum control

The program control system PROFI uses a bus system to control the entire work flow fully automatically—the operator simply monitors the machine.





No distance too far

As a result of the 80 km/h chassis all work sites can be reached quickly, no matter whether this is with the tractor or truck. The LT-Master F115 has an EU type-approval.






LED work lights

The LED work lights provide the LT-Master with perfect illumination, even when it is used at night.






Feeding system & dosing highlights

Low-profile design

The low profile design and 3.50 meter width of the feeder make the filling process quick and easy—whether you use a dump trailer, push-off trailer, truck, or direct feeding


Scraper floor

The speed of the scraper floor adapts to the quantity of material and is automatically self-regulating. The galvanized, die-forged scraper floor chains from Rübig used on the elevator and feeder are indestructible.

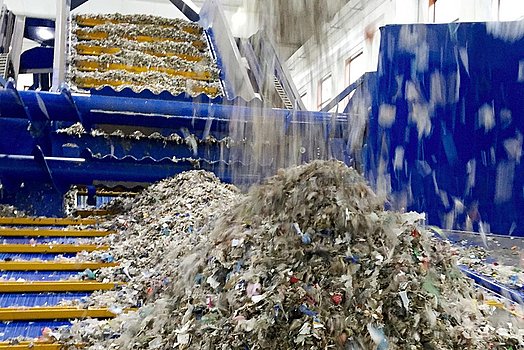

Large-capacity Multicrop feeder:

The Multicrop feeder provides a large buffer with a volume of around 13 m³. This large capacity keeps the LT-Master F115 running during feeding.
In order to better process the many different materials, the feeder has been equipped with a dosing drum. This and the feed screws ensure the even flow of materials on the elevator and also optimally process fibrous material such as grass and alfalfa.


Baler highlights

Hydraulically powered bale chamber

The hydraulically powered bale chamber favors a machine-friendlier way of working and also reduces the noise level of the baler-wrapper combination. What's more, the hydraulic drive enables the user to choose between different speeds during baling and binding (4 levels respectively). This means that the machine can be better adapted to the different materials and conditions, saving time and energy.


Fixed roller chamber

The two halves of the bale chamber are surrounded by a bale chamber belt, thereby minimizing loss of material. The belt tension can be adjusted hydraulically, helping to ensure a reliable bale start and good bale ejection.

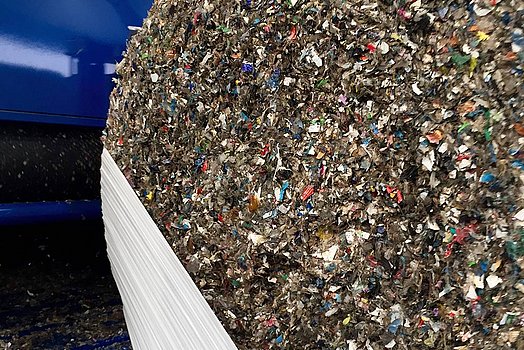

High bale density

The 4 mm thick steel rolls are reinforced on the inside; the ribbing ensures optimal bale density and secure rotation of the bale.




Long service life

Large, sealed bearings and a perfectly adapted lubrication system guarantee a long machine service life.




Net or film

An efficient binding system is needed to keep a bale in perfect condition. The LT-Master F115 is equipped as standard with a combined dual binding unit for net and film.




Refeed belt

The refeed belt running underneath the entire length of the machine prevents loss of material; stray material that escapes during the baling process is caught and fed back into the elevator without getting dirty.




Variable bale size

This setting allows a stepless bale size setting from 0.60–1.15 m.


Water spray

Adds water to dry materials during baling.


Wrapper highlights

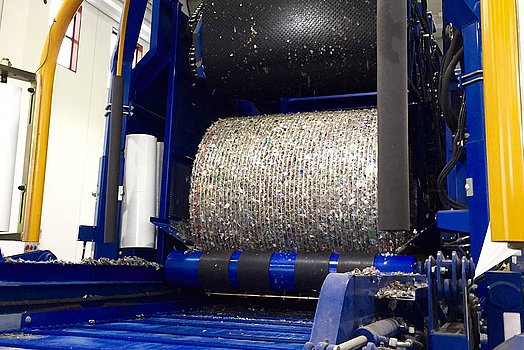

Mobile wrapping table

The wrapping table slides under the bale chamber and picks up the bales directly, quickly, and gently.

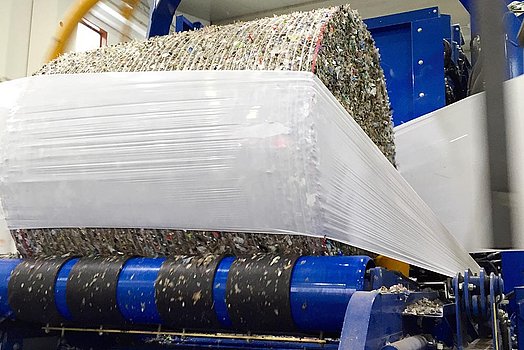

Twin wrapping arm

The wrapper always stays one step ahead thanks to its standard twin wrapping arm including 2 x 750 mm film pre-stretchers. The patented plastic rollers mean more bales per roll of film.


Film cutter

The stainless steel cutting knife guarantees precise cutting of the film. The standard float position of the film cutter ensures easy release of the film, which means that no remnants are trapped.


Bale delivery ramp

The hydraulically lowerable bale delivery ramp ensures a gentle bale deposit.


Film monitoring and single-film mode

If a roll of film runs out or the film tears, the feed rate of the wrapping table is reduced until a 50% overlap is guaranteed once more.
This allows bale wrapping to be completed without interruption. If both film rolls run out or tear, the film monitoring stops the wrapping process.


Materials suitable for baling

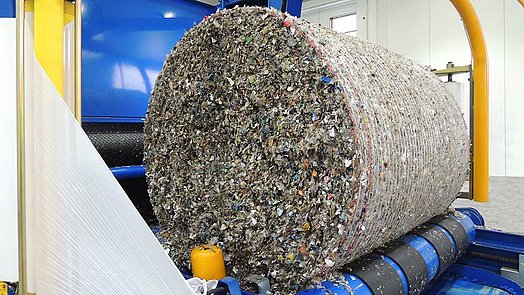

RDF / substitute fuels



A problem of increasing urgency is the storage of garbage and waste. Some materials are recycled for further processing and used as substitute fuels.

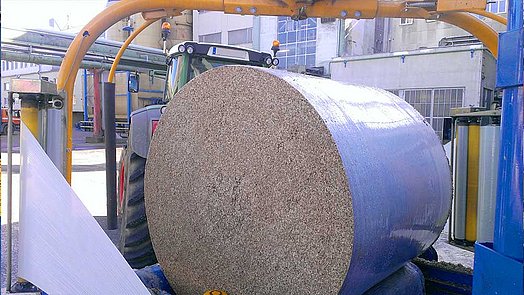

Other materials

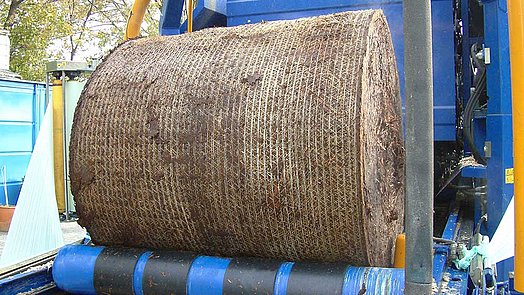

Grain, sugar beet chips, bagasse, miscanthus, horse manure, compost








Plastic materials

Films and solid remnants of plastic with a grain size of up to 50 mm








Wood / wood chips

Wood shavings, wood chips, chopped brushwood, wood wool, bark mulch and sawdust






Basic model

WITH EU type-approval for up to 80 km/h

The LT-Master F115 is equipped as standard with a combined dual binding unit. As a result, two rolls of net or film can be inserted at the same time or even in combination.

Working width 3.50 m

Always correctly dosed! This setting can be used to optimally adapt the round bales to the required feed quantity. The bale size can be varied continuously between 0.60 and 1.15 m.

only for film binding

The camera system, which is equipped with four infrared cameras, provides a perfect overview of the entire workflow and the area around the machine – both day and night.

The four cameras are positioned so as to allow a clear view of the top of the bale chamber, the elevator, the wrapping table, and the rear of the machine (on the right in the direction of travel).

The correct dry and moisture content of the material is crucial for high compression of the material and perfectly compressed bales. In the case of very dry materials, water can be added directly to the bale chamber via the water injection unit.<br/>

Consists of a solenoid valve, tubing, and adjustable nozzles.

The compact hand-held transmitter works via remote control and initiates bale deposit of the wrapped bale. Thanks to its handiness, the user can keep the transmitter with them at all times and start the deposit.

All work cycles are fully automatic

Info & Kontakt

Technical data (basic model)

Weight:14,800 kg
Length:11,850 mm
Width:2,550 mm
Height:4,000 mm
Bale diameter:

from 0.60 to 1.15 m



Tractor power requirements

Oil requirement pivoting drawbar:10 l at 200 bar
Power requirements:At least 90 kW

Required connections

Connections for operation

Cardan shaft connection: Speed: 740 -1000 | 1 3/8" Z6 or 1 3/8" Z21
1 double-acting and 1 single-acting control device for the pivoting drawbar
Power is supplied to the machine via the ISOBUS socket or the cable harness supplied.

Connection for electric motor: 400 V/50 Hz, CEE 125 A, 740 rpm, protection class IP55



Brake connections

Connections for dual-line air brake system or
Connections for the hydraulic dual-line brake system


Transport connections

A 7-pin socket for the entire lighting system, except work lights
Adapter for trucks: 24V | 7-pin | 15-pin (optional)
ABS



Additional equipment

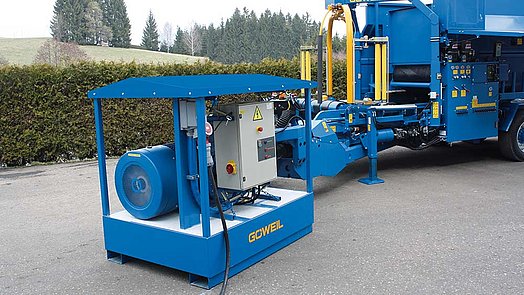

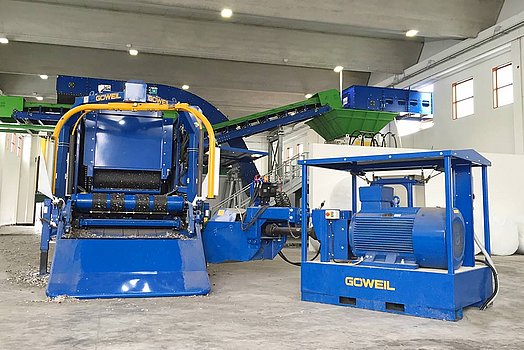

The drive works using a joint shaft, which also makes it possible to use a tractor at any time. The engine is very quiet and operating costs are kept down in comparison with a tractor with high fuel costs. As a result, not only do you save space, but also exhaust gases, thereby enabling operation in sheds. However, the cover makes it possible to use the electric drive outdoors with ease too (temperature range: -15 to +60° C). The maintenance costs are very low and thanks to the base with forklift slings, the electric drive is easy to transport. The electric drive has a soft starter. This massively reduces initial voltage peaks as well as the starting torque. This also saves power and is gentle on the drive, shafts, and transmission.

Power: 90 kW Voltage: 400 V Frequency: 50 Hz
Protection class: IP 55Power consumption: max. 125ADrive: 740 rpm
Weight: 2,970 kg L x W x H: 1,773 x 1,323 x 1,652 mmCEE 125A

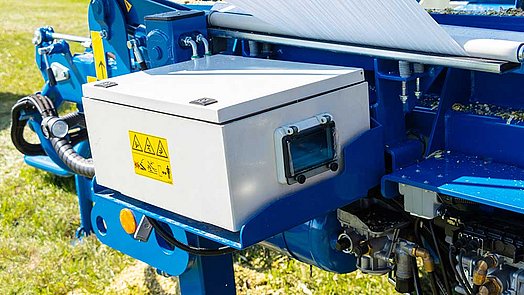

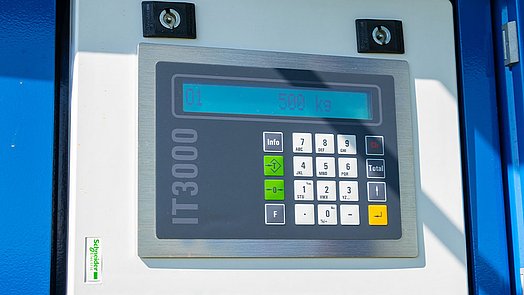

Consisting of weighing table, weighing terminal, and label printer with GÖWEIL logo or customer logo



The four weighing cells are directly integrated into the wrapping table. The display is attached to the switch panel. The weighing process for the wrapped bales runs automatically, ensuring that there are no time delays in the workflow. The bales can be weighed individually or even analyzed as a complete batch. The various options can be set very easily via the handset. The label printer depicts information such as the bale weight, date, time, and a loaded logo. If no labels are required, this function can be switched off on the handset. Adhesive labels and labeling strips are standard products and available from specialist stores. The weighing system can be retrofitted on existing machines.

Consisting of weighing table, weighing terminal, and label printer with GÖWEIL logo or customer logo



The four weighing cells are directly integrated into the wrapping table. The display is attached to the switch panel. The weighing process for the wrapped bales runs automatically, ensuring that there are no time delays in the workflow. The bales can be weighed individually or even analyzed as a complete batch. The various options can be set very easily via the handset. The label printer depicts information such as the bale weight, date, time, and a loaded logo. If no labels are required, this function can be switched off on the handset. Adhesive labels and labeling strips are standard products and available from specialist stores. The weighing system can be retrofitted on existing machines.

Thanks to the bale tipper integrated in the bale delivery ramp, it is possible to gently deposit the bale on the left or right. If this is deactivated, the bale is rolled off to the front as standard. Storage of the bales on their ends enables quicker and gentler removal.

In order to achieve a good ensiling result, there are a few key factors:

  • The ensiling suitability of the material
  • Adherence to the ensiling rules (harvest time and wilting, cutting length, efficiency of the silage chain, compression, and air-tight seal)
  • Weather conditions

If not all factors are perfectly coordinated (e.g., due to periods of bad weather), silage additives should help to significantly improve the ensiling result by preventing incorrect fermentation and subsequent warming processes.

Using a self-priming pump with filter and electronic flow meter, the silage additive is injected directly into the bale chamber via two stainless steel nozzles. The silage additive is thereby optimally distributed in the feed of the round bales. The dosing unit is ideal both for lactic acid bacteria and low-corrosion acids.

Note: tank not included.
Important: After use, the silage additive dosing must be rinsed with water every day.

Scope of delivery:

  • Dosistar control unit
  • Pump with filter
  • Electronic flow measurement
  • Various nozzles
  • Suction hose for external containers

The 450-liter stainless steel tank is mounted directly on the machine and ensures complete discharging.

12V to 24V

Consisting of spiral cable with 15-pin to 13-pin and 2x 7-pin to 13-pin

Customers can choose from a large selection of drawbar eye types
