High tip bucket
GHU 10 | High Lift Bucket
From 40 - 100 HP | payload up to 3,500 kg

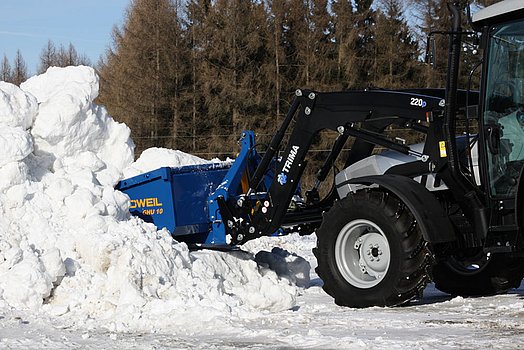

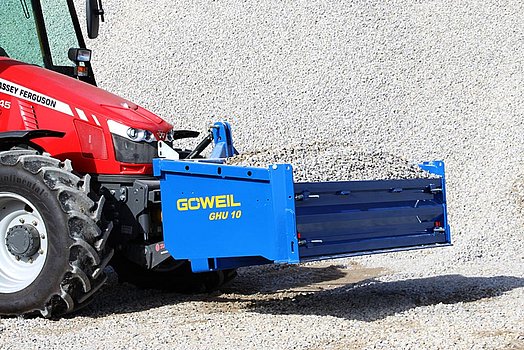

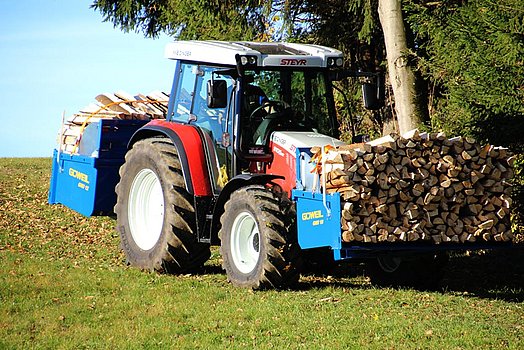

Whether you use it for commercial, agricultural or silvicultural applications - the GHU 10 is not only the Jack of all Trades but also the Master of All among the high lift buckets made by GÖWEIL. The design of the high lift bucket provides for a maximum dumping height and the swinging sidewall will stand up to even greater loads. This high lift bucket is ideal for leveling surfaces or clearing snow. No material will stick to the frame.
Highlights

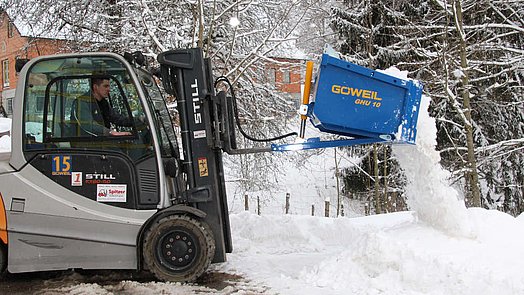

Stacker attachment
We also offer models of our tried-and-tested high dump bucket that are specially designed for stackers used in commercial applications.
Body
The body is reinforced by additional cast parts at the top corner joints and at the sidewalls. These reinforcements let the rear bucket withstand even greater loads. The upper edge has been enhanced by a round steel pipe. Lashing points arranged on the side allow you to attach belts.

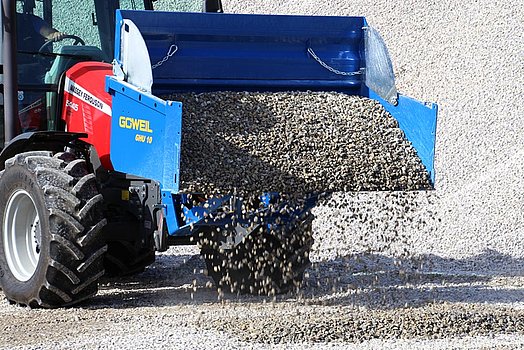

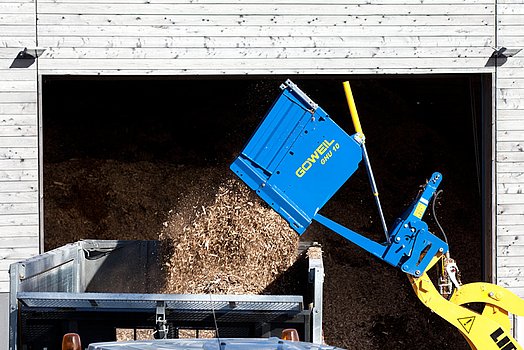

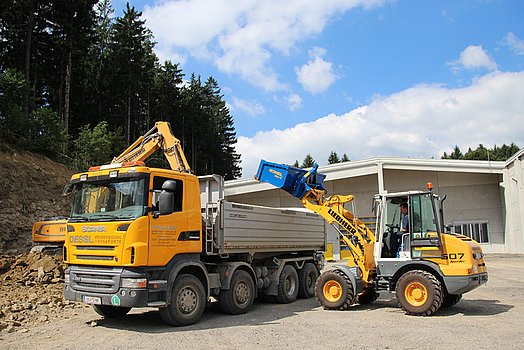

The high dump effect

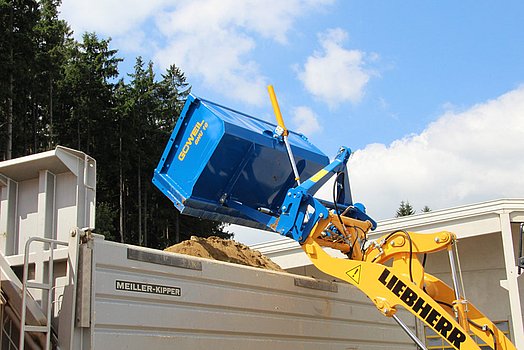

The design of the high lift bucket provides for a maximum dumping height.
Additional equipment
A large variety of additional equipment options makes it a breeze to customize the GHU/GHK to your specific needs.
Upright, safely protected telescopic cylinder
Not only is the upright telescopic cylinder perfectly protected and integrated into the 3-point frame, it also delivers a level of strength that is truly exceptional. It can handle any load you throw at it!

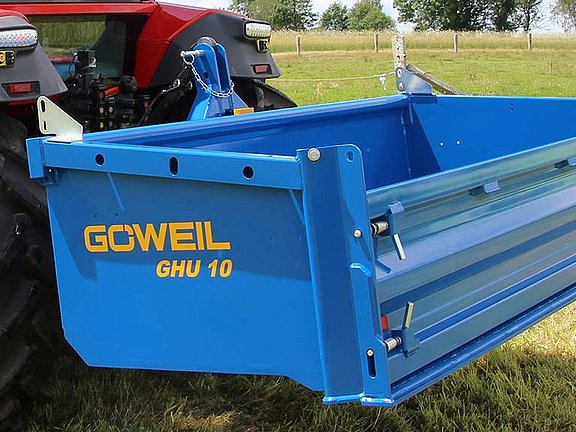

Swinging sidewall
Formed by a sidewall profile, the swinging sidewall will stand up to even greater loads.
Bucket bottom
The flat bucket bottom makes it a cinch to load the GHU/GHK.
Open 3-point frame
Ideal for leveling surfaces or clearing snow. No material will stick to the frame!
Basic model
für schnelles Absenken in Endlage inkl. automatischer Endlagenverriegelung bei einfachwirkender Ausführung
Standard sizes
Bucket depth: 1,000 mm I Front / side wall height: 600 mm
Model | Bucket width | Weight |
|---|---|---|
GHU 10/1400 | 1,400 mm | 315 kg |
GHU 10/1700 | 1,700 mm | 333 kg |
GHU 10/1850 | 1,850 mm | 342 kg |
GHU 10/2000 | 2,000 mm | 384 kg |
GHU 10/2200 | 2,200 mm | 398 kg |
Possible attachments
| Euro attachment | Straightforward installation thanks to bolted attachment three-point attachment remains fully usable 2-stage locking lugs effect an improved tilt angle, allowing for picking up larger amounts of bulk solids |
| Weidemann hydraulic, Skid Steer | |
| Weiste triangle Cat. II | |
Hauer B | |
| Overview of attachments with dimensions | |
Additional equipment

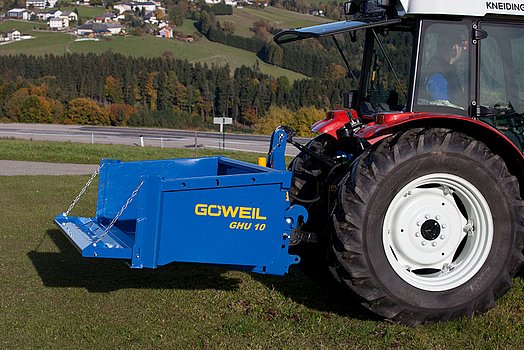

Straightforward installation (can be fitted and removed with ease and without the use of tools), increases the height of the front panel by 450 mm (18”), can still be used as a trough extension
Consisting of 2 side sections, front panel and one holder for the sidewall, additional height of 350 mm (14”)
Bucket width: 1,400 mm (55”), 1,700 mm (67”), 1,850 mm (72”), 2,000 mm (78”), 2,200 mm (86”)
for connecting the additional rear panel with standard rear panel
Height: 500 mm (20”)
Simple installation (can be slipped on or removed without the use of tools)
